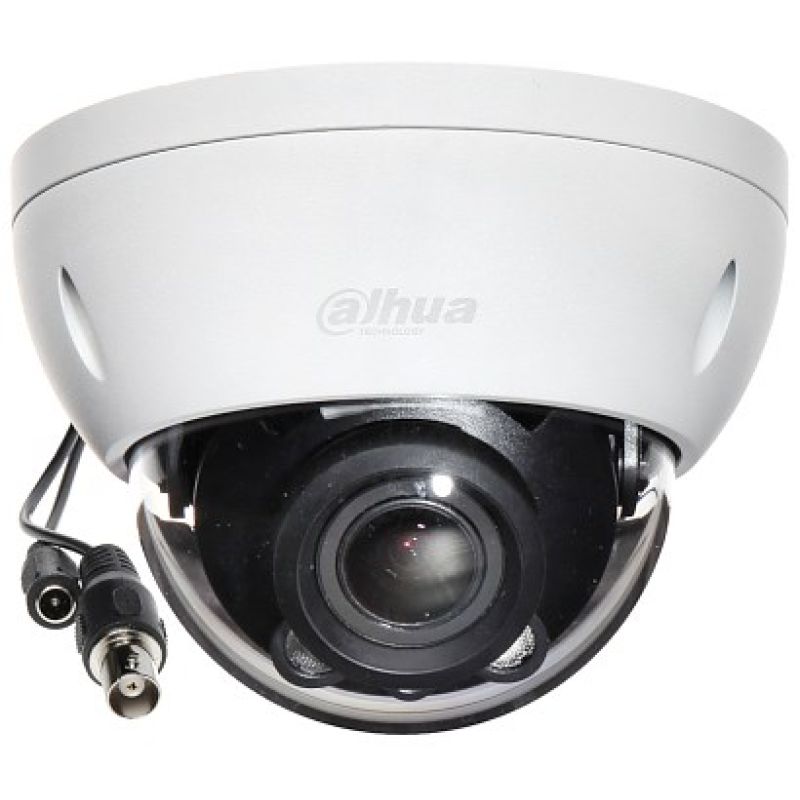

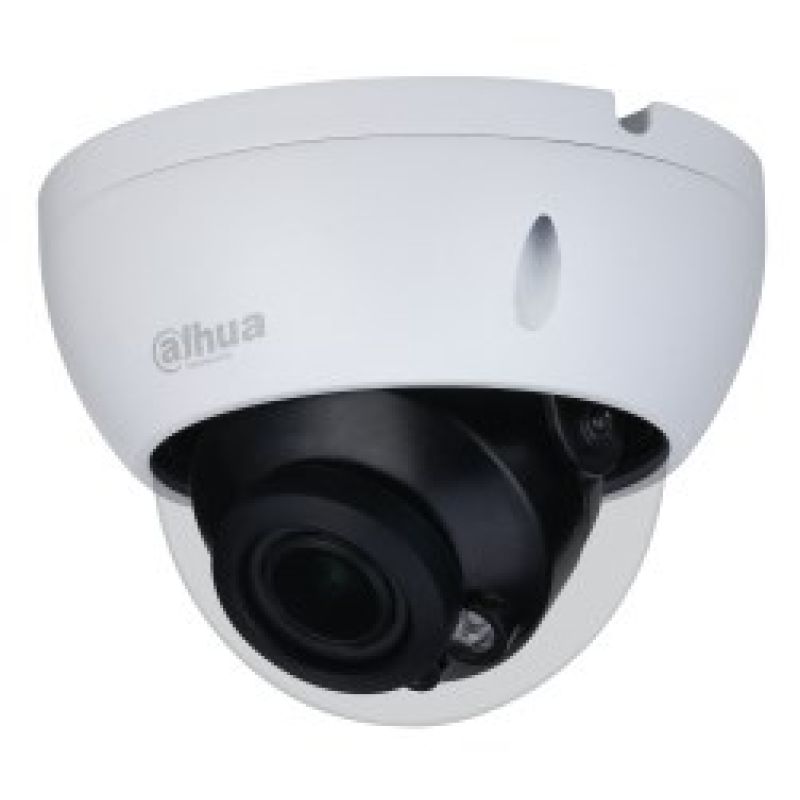

Dahua 4in1 camera HAC-HDBW1500R-Z-2712-S2
Dahua 4in1 camera HAC-HDBW1500R-Z-2712-S2
Sign up and unlock up to 10% off!
- Design
- Product color: White
- IP protection class: IP67
- Mounting type: Ceiling / Wall
- Layout: Rotary
- Housing material
- Plastic
- Metal
- IK code: IK10
- Power
- Power consumption (max): 5.5 W
- Power supply type: DC
- DC Output (Volts): 12
- Weight and dimensions
- Product height: 88.9 mm
- Product weight: 470 g
- Diameter: 12.2 cm
- Security
- Encryption/Security: HTTPS
- Alarm output channels: 1
- Digital Watermark: Yes
- Mirror: Yes
- Intelligent Video Surveillance (IVS) Features
- Intrusion
- A tripod
- Alarm input channels: 1
- Video motion detection: Yes
- Management features
- Website management: Yes
- Working conditions
- Temperature range (storage): -40 - 60 °C
- Temperature range (operation): -40 - 60 °C
- Relative humidity range: 0 - 95%
- Network
- Ethernet interface type: Fast Ethernet
- Efficiency
- Connection method: Wired
- Day/Night Mode: Yes
- Model: IP Security Camera
- Intended use: Indoor and outdoor
- Wide Dynamic Range (WDR): Yes
- Packaging data
- Weight with packaging: 620 g
- Package contents
- Number of cameras: 1
- Audio
- Signal-to-noise ratio: 65 dB
- Data carrier
- Built-in HDD: No
- Ports and interfaces
- DC output socket: Yes
- Camera
- Tilt angle range: 0 - 75°
- Shutter speed: 1/100000 s
- Lens viewing angle, horizontal: 34 - 107°
- Lens viewing angle, diagonal: 39 - 130°
- Vertical lens viewing angle: 19 - 55°
- Rotation angle: 355°
- Min. Illumination: 0.005 lx
- Camera shutter type: Electronic
- Swivel range: 0 - 355°
- White balance
- Region
- Natural
- Manual
- Street lamp
- External
- Automatic
- Number of privacy masking areas: 8
- Photosensitive matrix
- CCD sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Number of sensors: 1
- Progressive Scan: Yes
- Image sensor type: CMOS
- Night mode
- Night mode: Yes
- Number of lighting diodes: 12
- LED Type: Infrared/White
- Night Vision Distance: 30 m
- Video
- Supported graphics resolutions: 2880 x 1620
- Maximum resolution: 2880 x 1620 px
- Noise reduction: Yes
- Noise reduction technology: 2D noise reduction
- Frame rate: 30 fps
- Control Gain: Auto/Manual
- Smart IR: Yes
- Backlight compensation: Yes
- Total megapixels: 5 MP
- Digital Dynamic Range (DWDR): Yes
- Highlight Compensation (HLC): Yes
- Lens system
- Focus: Motorized
- Determining distance: 6.9 m
- Maximum aperture: 1.6
- Recognition distance: 13.8 m
- Observe distance: 27.6 m
- Number of lenses: 1
- Auto focus: Yes
- Detection distance: 69 m
| Name | Details |
|---|---|
| Producer | DAHUA |
