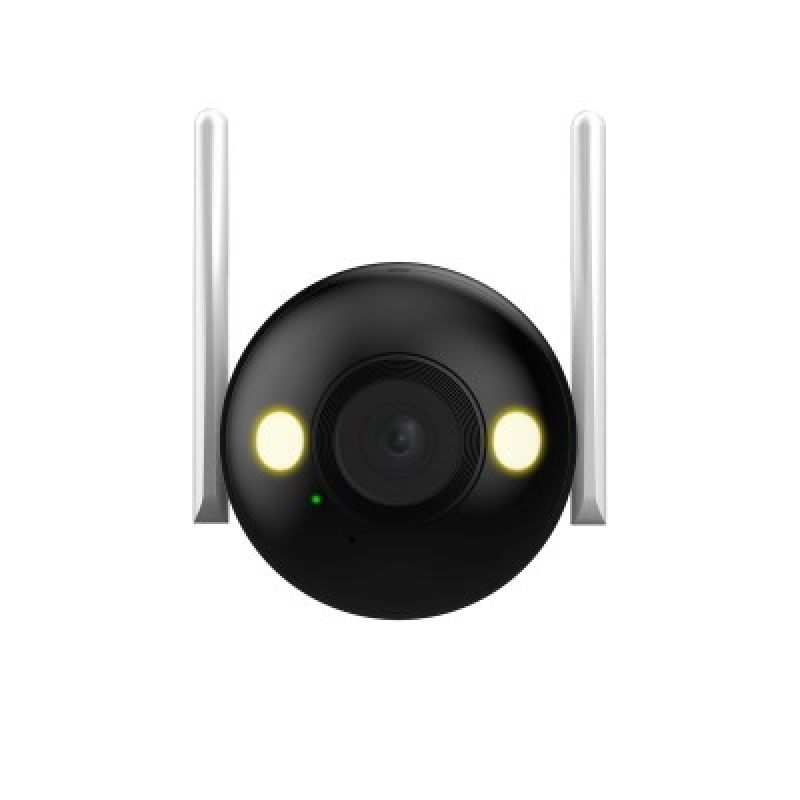

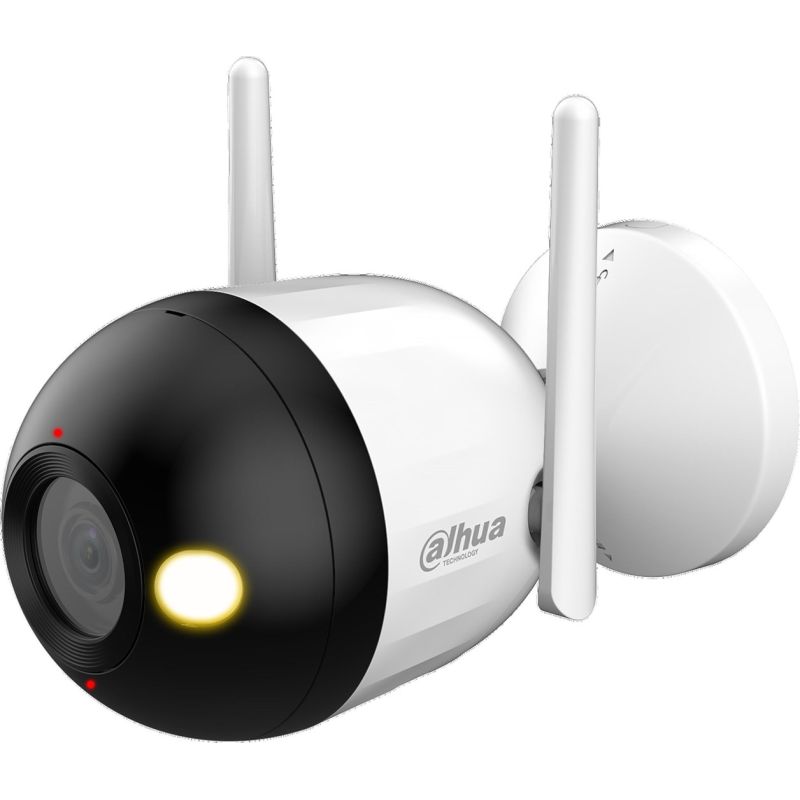

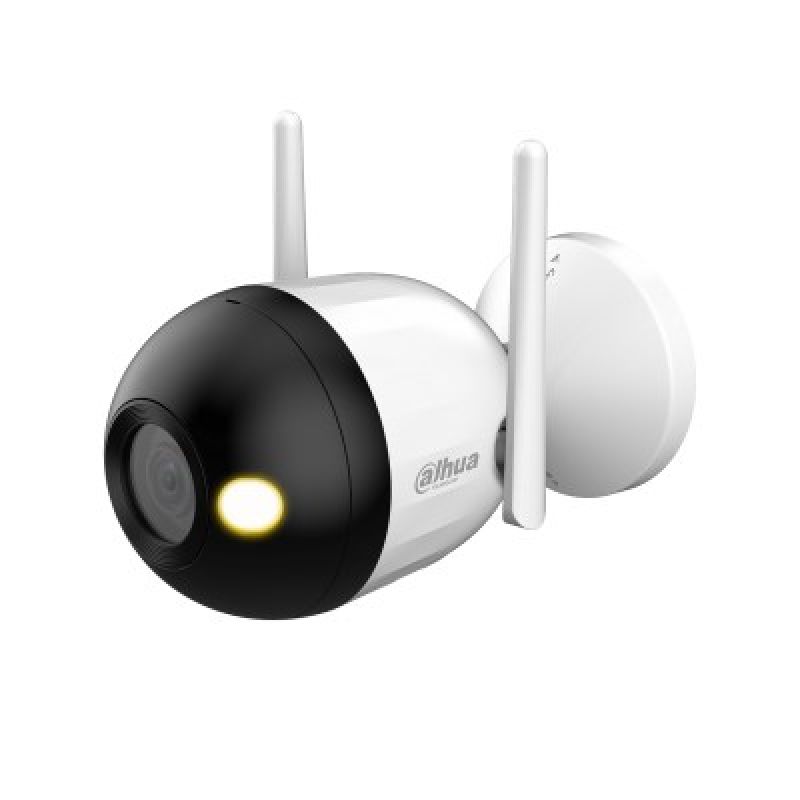

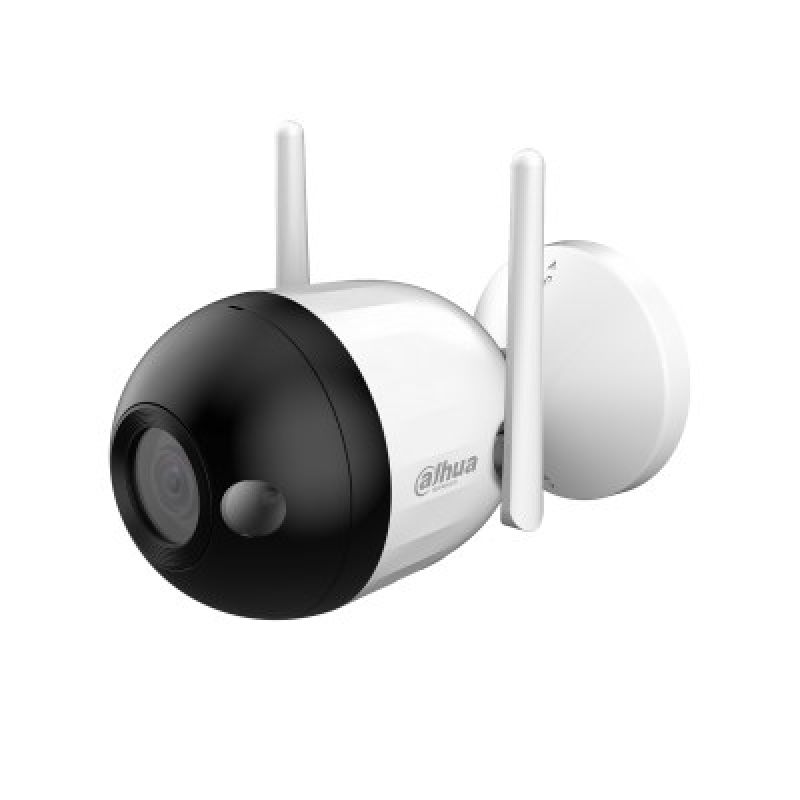

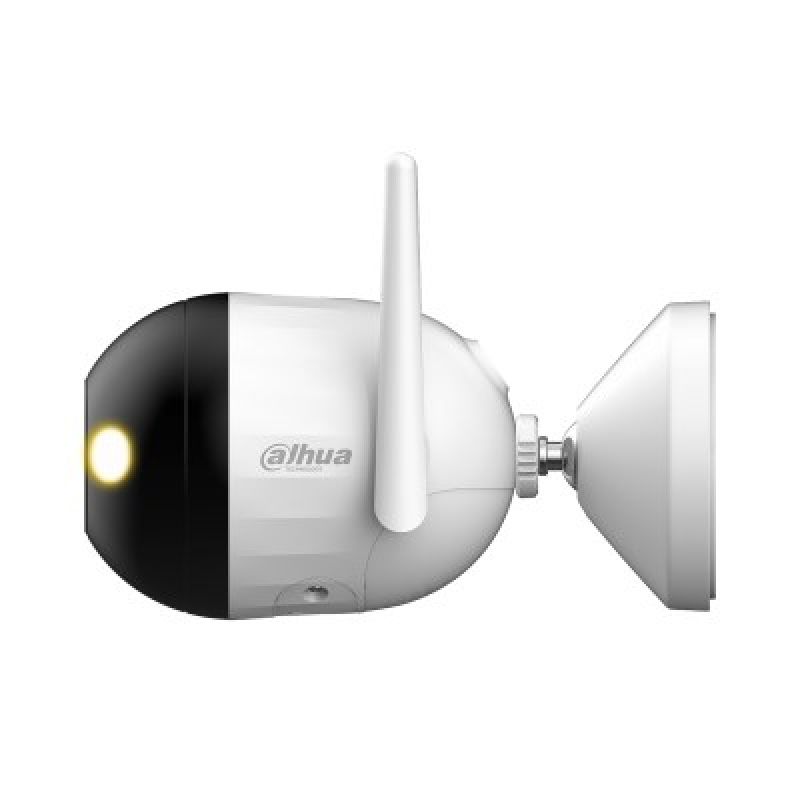

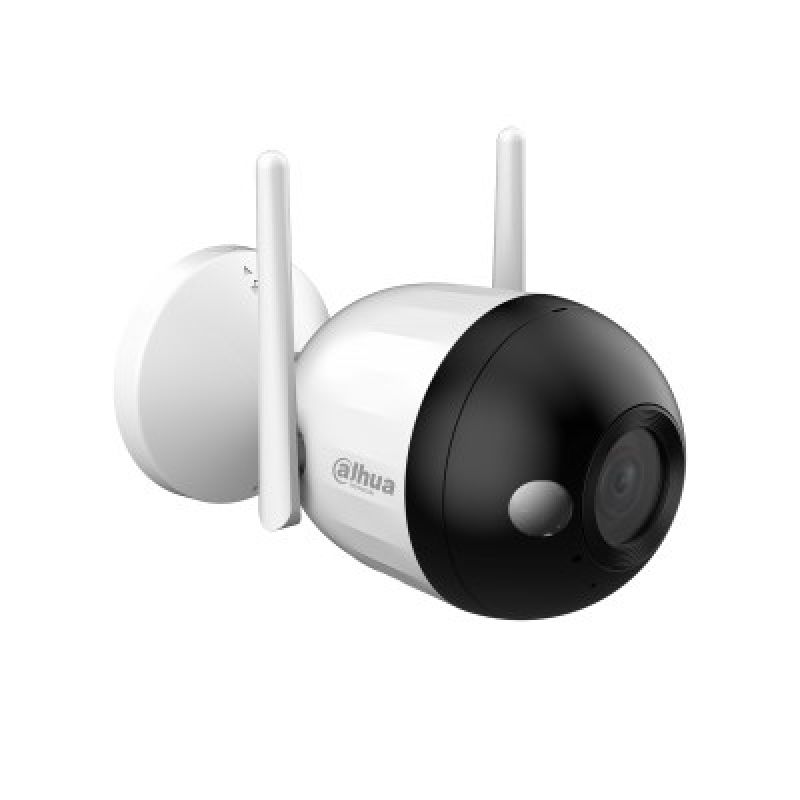

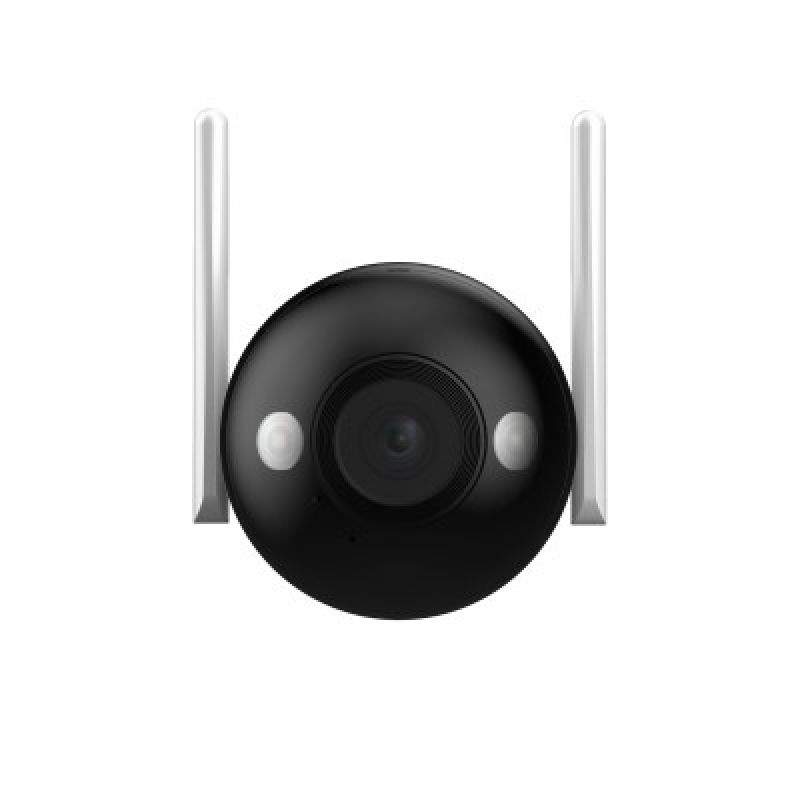

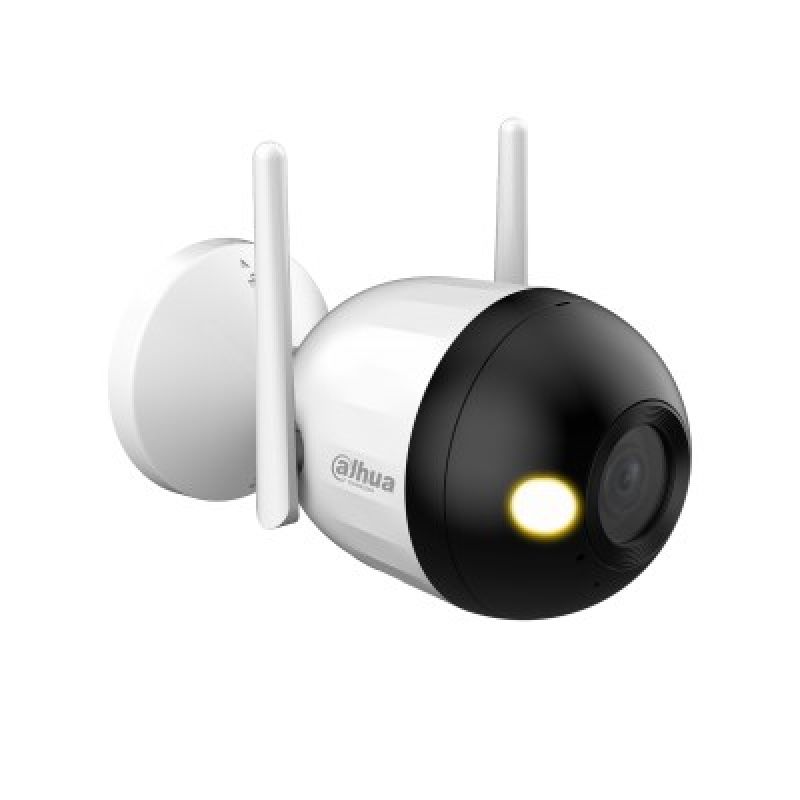

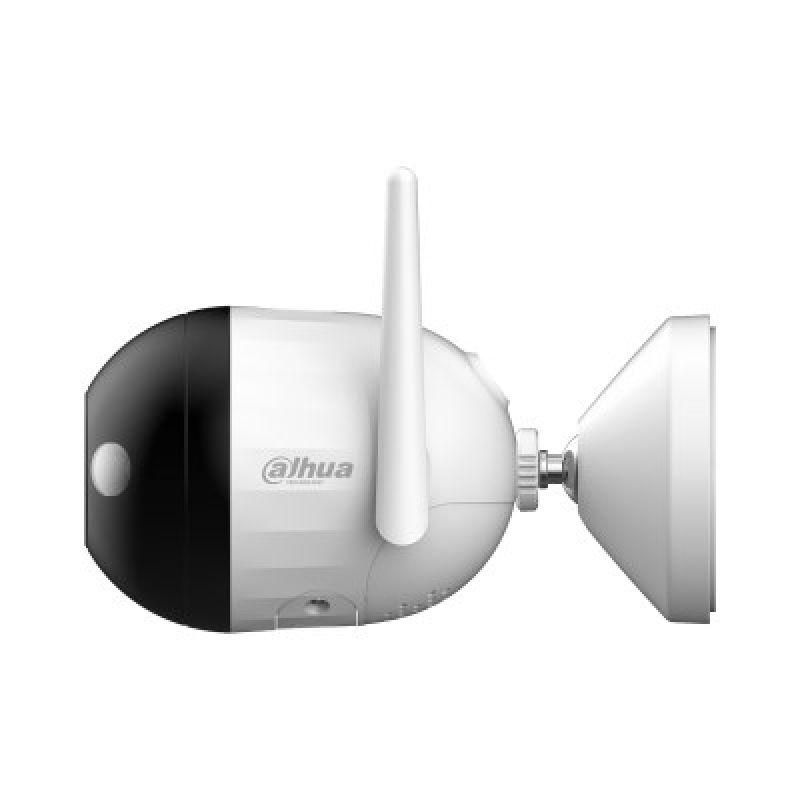

Dahua 4MP LED WiFi/F4C-LED 2.8MM Network Camera
Dahua 4MP LED WiFi/F4C-LED 2.8MM Network Camera
Sign up and unlock up to 10% off!
- Design
- Layout: Tube
- Product color
- Black
- White
- IP protection class: IP67
- Housing material
- Metal
- Plastic
- Mounting type: Wall
- Power
- Power supply type: DC
- Power consumption (max): 5.4 W
- Power consumption: 2.2 W
- DC Output (Volts): 12
- Weight and dimensions
- Product weight: 254.5 g
- Product height: 97.2 mm
- Product width: 78.4 mm
- Product depth: 131 mm
- Security
- Video motion detection: Yes
- Management features
- Remote control via smartphone: Yes
- Working conditions
- Temperature range (operation): -40 - 60 °C
- Network
- Wi-Fi standards
- 802.11g
- 802.11b
- Wi-Fi 4 (802.11n)
- Wired LAN: Yes
- Ethernet interface type: Fast Ethernet
- Wi-Fi: Yes
- Wi-Fi standards
- System requirements
- Support for mobile operating systems
- Android
- iOS
- Support for mobile operating systems
- Efficiency
- Built-in light: Yes
- Antenna type: External
- Model: IP Security Camera
- Connectivity: Wired and wireless
- Number of antennas: 2
- Wide Dynamic Range (WDR): Yes
- Intended use: Indoor and outdoor
- Day/Night Mode: Yes
- Package contents
- Number of cameras: 1
- Audio
- Built-in microphone: Yes
- Audio codecs
- G.726
- G.711a
- G.711Mu
- PCM
- Data carrier
- Integrated card reader: Yes
- Supported memory cards: MicroSD
- Maximum memory card size: 256 GB
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Shutter speed: 1/3 - 1/100000 s
- Camera shutter type: Electronic
- Lens viewing angle, horizontal: 98°
- Vertical lens viewing angle: 55°
- Lens viewing angle, diagonal: 115°
- Photosensitive matrix
- CCD sensor size: 25.4/3 mm (1/3")
- Image sensor type: CMOS
- Night mode
- Number of lighting diodes: 2
- LED type: White
- Night mode: Yes
- Video
- Supported graphics resolutions
- 1280 x 720 (HD 720)
- 2304 x 1296
- 1280 x 960
- 2560 x 1440
- 1920 x 1080 (HD 1080)
- Maximum resolution: 2560 x 1440 px
- Frame rate: 30 fps
- Total megapixels: 4 MP
- Data flow rate: H.264: 32kbps ~ 4096kbps, H.265: 12kbps ~ 4096kbps
- Digital Dynamic Range (DWDR): Yes
- Video transmission: Yes
- Compression formats
- H.265
- H.264
- H.264H
- H.264B
- Supported graphics resolutions
- Lens system
- Fixed focal length: 2.8 mm
- Maximum aperture: 1.6
- Safety warning
- Warnings
- The product contains electronic components and should not be disposed of in regular waste.
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- Warnings
| Name | Details |
|---|---|
| Producer | DAHUA |
