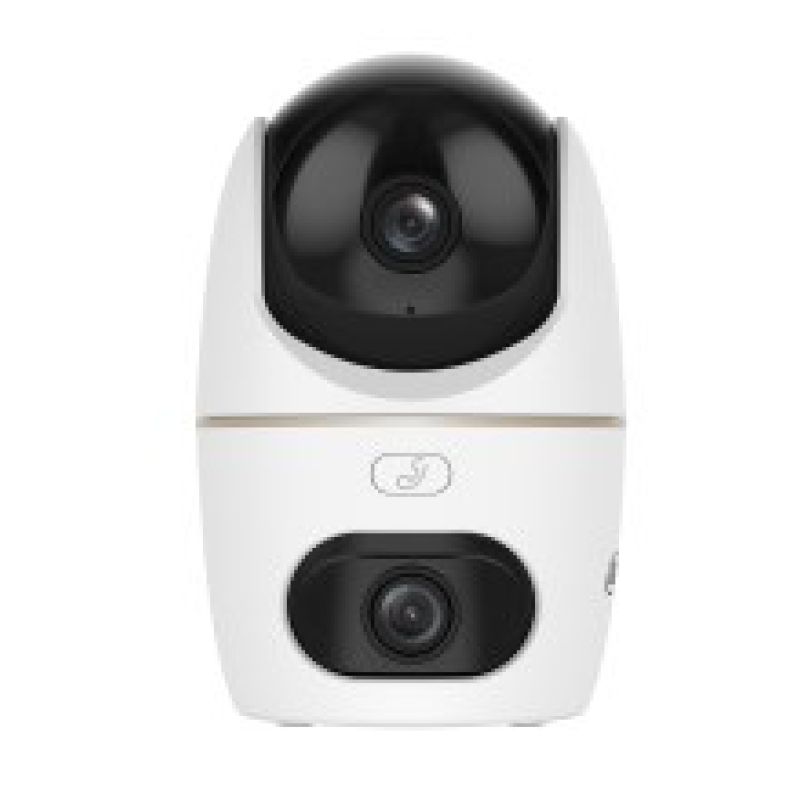

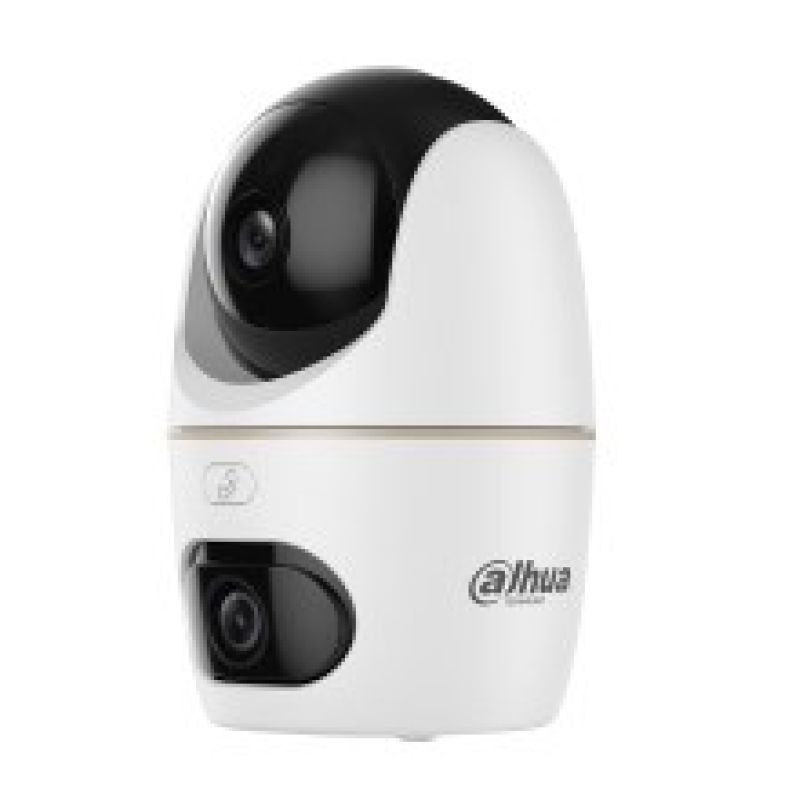

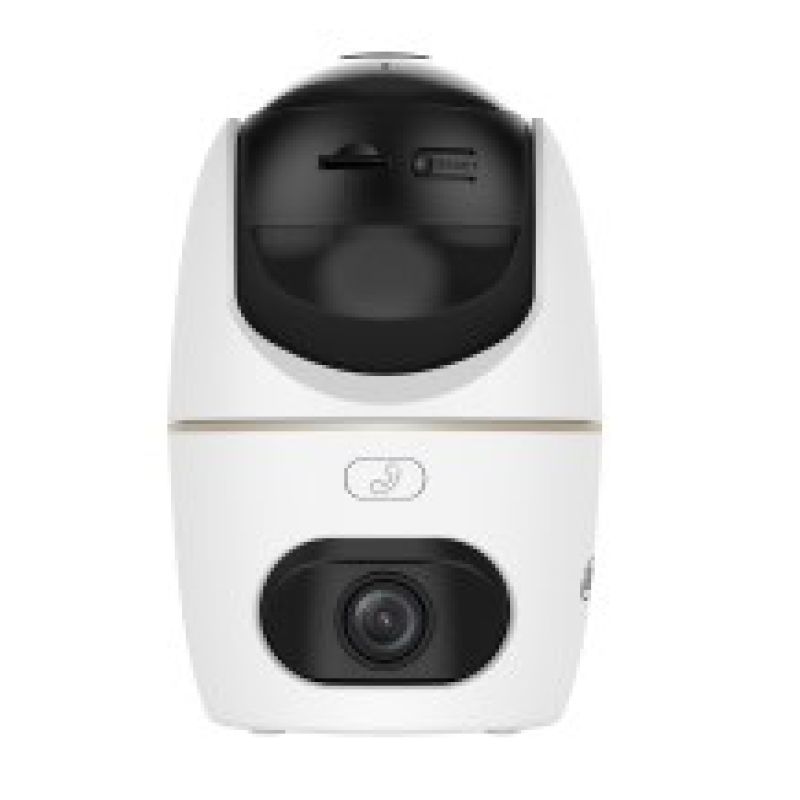

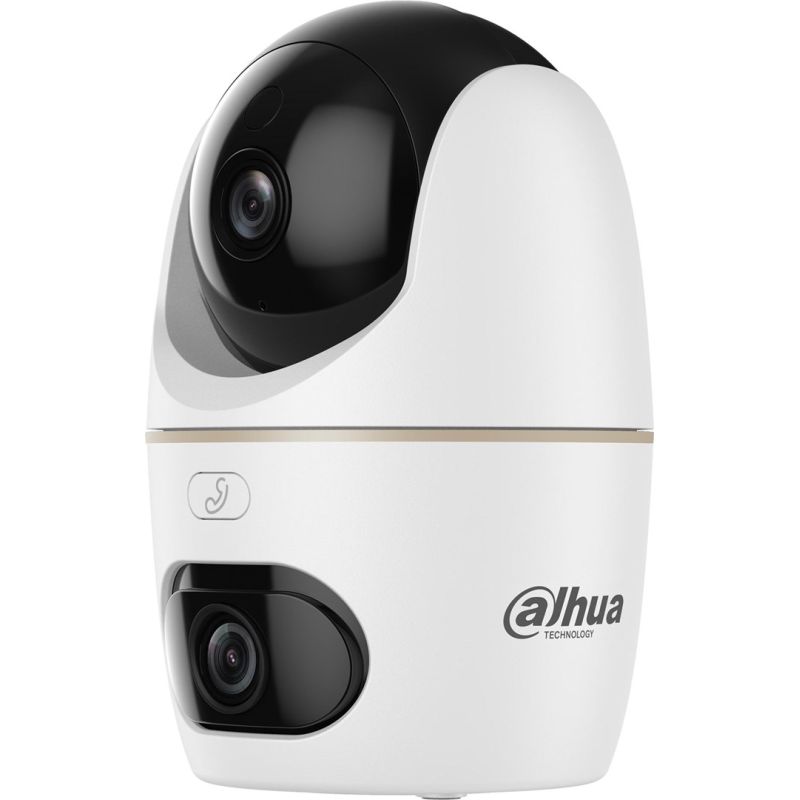

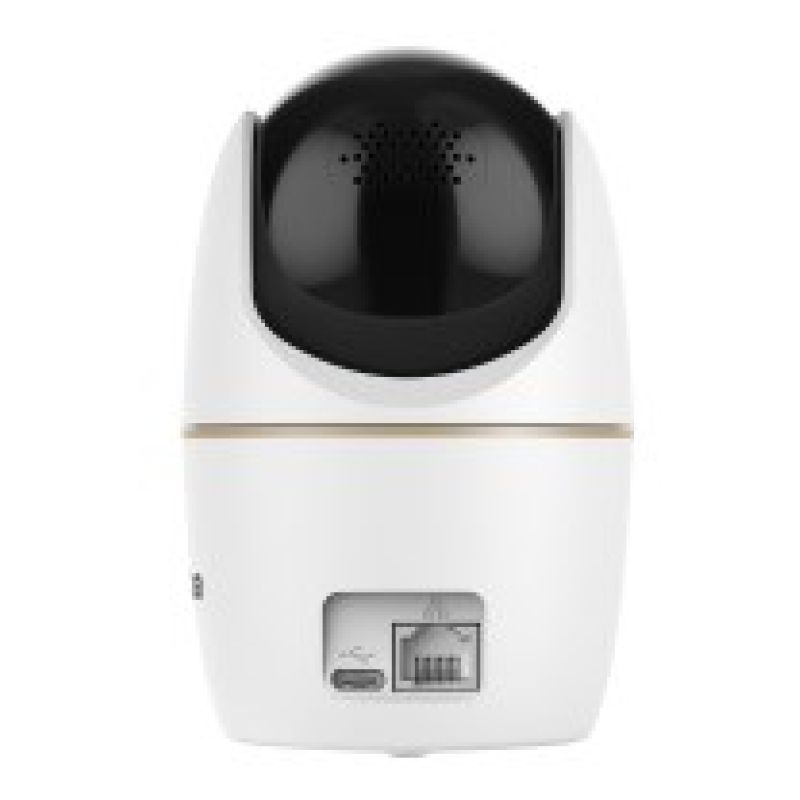

Dahua Hero H5D-5F Wireless WiFi Camera
Dahua Hero H5D-5F Wireless WiFi Camera
Sign up and unlock up to 10% off!
- Design
- Mounting type: Desk
- Product color
- White
- Black
- Layout: Dome
- Housing material: Plastic
- Power
- DC Output (Volts): 5
- Power consumption: 1.9 W
- Power supply type: DC
- Power consumption (max): 4 W
- Weight and dimensions
- Product width: 80.9 mm
- Product depth: 80.9 mm
- Product height: 125.7 mm
- Product weight: 233 g
- Security
- Motion sensor: Yes
- Working conditions
- Temperature range (operation): -10 - 45 °C
- Relative humidity range: 0 - 95%
- Network
- Communication standards
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11ax
- Bluetooth: Yes
- Wi-Fi: Yes
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- 802.11b
- Wi-Fi 6 (802.11ax)
- Wired LAN: Yes
- Communication standards
- Efficiency
- Intended use: Internal
- Auto-tracking: Yes
- Day/Night Mode: Yes
- Connectivity: Wired and wireless
- Wide Dynamic Range (WDR): Yes
- Model: IP Security Camera
- Package contents
- Number of cameras: 1
- Audio
- Built-in speakers: Yes
- Audio codecs: G.711a
- Built-in microphone: Yes
- Data carrier
- Maximum memory card size: 256 GB
- Built-in HDD: No
- Supported memory cards: MicroSD
- Integrated card reader: Yes
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Camera shutter type: Electronic
- Camera Pan Control: Yes
- Camera Tilt Control: Yes
- Shutter speed: 1/3 - 1/100000 s
- Sliding range: 0 - 349°
- Lens viewing angle, diagonal: 104°
- Lens viewing angle, horizontal: 86°
- Vertical lens viewing angle: 46°
- Tilt angle range: -5 - 90°
- Photosensitive matrix
- Image sensor type: CMOS
- CCD sensor size: 25.4/3 mm (1/3")
- Night mode
- Number of lighting diodes: 1
- Night mode: Yes
- LED type: Infrared
- Night Vision Distance: 10 m
- Video
- Total megapixels: 5 MP
- Frame rate: 30 fps
- Digital Dynamic Range (DWDR): Yes
- Video transmission: Yes
- Supported video file formats: H.265
- Data flow speed: 40 kbps – 4096 kbps
- Supported graphics resolutions
- 640 x 360
- 2880 x 1620
- Maximum resolution: 2880 x 1620 px
- Lens system
- Focal length: 3.6 mm
- Maximum aperture: 2
- Safety warning
- Warnings
- The product contains electronic components and should not be disposed of in regular waste.
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- Warnings
| Name | Details |
|---|---|
| Producer | DAHUA |
