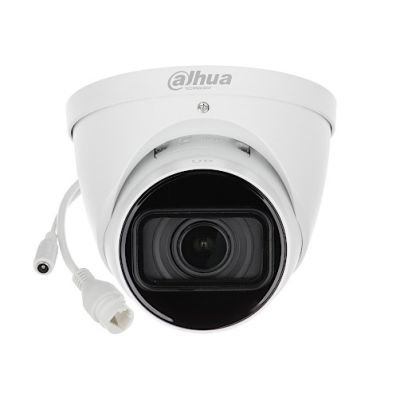

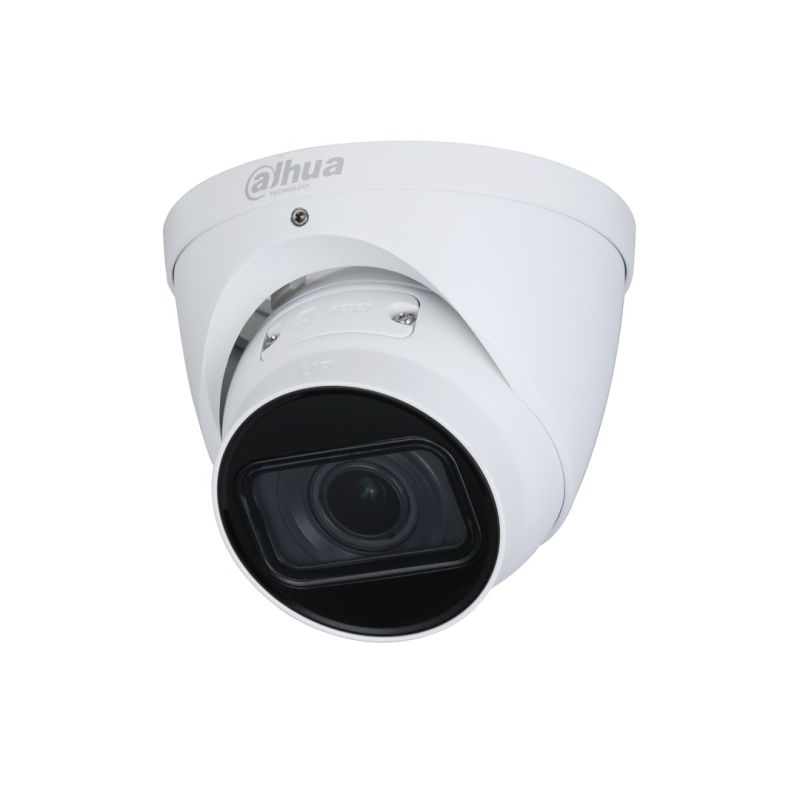

DAHUA IP CAMERA IPC-HDW1431T-ZS-2812-S4
DAHUA IP CAMERA IPC-HDW1431T-ZS-2812-S4
DAHUA IP CAMERA IPC-HDW1431T-ZS-2812-S4
PRICE:
238,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 100 EUR!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Layout: Rotary
- Housing material
- Metal
- Plastic
- Mounting type: Ceiling
- IP protection class: IP67
- Product color: White
- Power
- Power consumption: 6.9 W
- DC Output (Volts): 12
- Power supply type: DC, PoE
- Weight and dimensions
- Product depth: 122 mm
- Product width: 122 mm
- Product height: 108.3 mm
- Diameter: 12.2 cm
- Product weight: 690 g
- Security
- Video motion detection: Yes
- Encryption/Security
- 802.1x RADIUS
- HTTPS
- Management features
- Web browser: Yes
- Working conditions
- Temperature range (operation): -30 - 60 °C
- Temperature range (storage): -40 - 60 °C
- Relative humidity range: 0 - 95%
- Network
- Streaming method: Multicast
- Ethernet interface type: Fast Ethernet
- Quality of Service (QoS) Support: Yes
- Wired LAN: Yes
- Number of users: 20 users
- Communication standards: IEEE 802.3af
- System requirements
- Support for mobile operating systems
- Android
- iOS
- Support for mobile operating systems
- Efficiency
- Day/Night Mode: Yes
- Wide Dynamic Range (WDR): Yes
- Model: IP Security Camera
- Dynamic range: 120 dB
- Intended use: Indoor and outdoor
- Connection method: Wired
- Packaging data
- Weight with packaging: 870 g
- Package contents
- Number of cameras: 1
- Data carrier
- Internal memory capacity: 128 MB
- Built-in HDD: No
- Maximum memory card size: 256 GB
- Supported memory cards: MicroSD
- Integrated card reader: Yes
- ROM capacity: 128 MB
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Shutter Speed Adjustment: Auto/Manual
- Shutter speed: 1/3 - 1/100000 s
- Rotation angle: 360°
- Vertical lens viewing angle: 55 - 18°
- Lens viewing angle, diagonal: 116 - 36°
- Min. Illumination: 0.03 lx
- Lens viewing angle, horizontal: 98 - 31°
- Swivel range: 0 - 355°
- White balance
- Natural
- Manual
- External
- Automatic
- Tilt angle range: 0 - 78°
- Photosensitive matrix
- Progressive Scan: Yes
- CCD sensor size: 25.4/3 mm (1/3")
- Image sensor type: CMOS
- Night mode
- LED type: Infrared
- Number of lighting diodes: 2
- Night mode: Yes
- Night Vision Distance: 50 m
- Video
- Total megapixels: 4 MP
- Compression formats
- H.265
- H.264
- H.264B
- M-JPEG
- Privacy Mask: Yes
- Backlight compensation: Yes
- Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Highlight Compensation (HLC): Yes
- Noise reduction: Yes
- Data rate: H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps
- Video recording: Yes
- Supported video file formats
- H.265
- H.264
- Supported video modes
- 720p
- 1080p
- Noise reduction technology: 3D noise reduction
- Regional Area of Interest (ROI) Coding: Yes
- Control Gain: Auto/Manual
- Frame rate: 30 fps
- Smart IR: Yes
- Video transmission: Yes
- Supported graphics resolutions
- 2688 x 1520
- 1280 x 720 (HD 720)
- 2304 x 1296
- 1920 x 1080 (HD 1080)
- 1280 x 960
- 2560 x 1440
- 640 x 480 (VGA)
- 352 x 240
- 704 x 576
- 704 x 480
- 352 x 288
- Maximum resolution: 2688 x 1520 px
- Lens system
- Distance determination (tele): 20 m
- Detection distance (wide): 66 m
- Observing distance (tele): 80 m
- Focal length: 2.8 - 12 mm
- Number of lenses: 1
- Maximum aperture: 1.7
- Observing distance (wide): 26.4 m
- Recognition distance (wide): 13.2 m
- Distance measurement (wide): 6.6 m
- Distance Recognition (Tele): 40 m
- Minimum focal distance: 0.8 m
- Detection distance (tele): 200 m
- Safety warning
- Warnings
- The product contains electronic components and should not be disposed of in regular waste.
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- Warnings
- Panoramic camera
- Number of privacy masking areas (panoramic camera): 4
| Name | Details |
|---|---|
| Producer | DAHUA |
