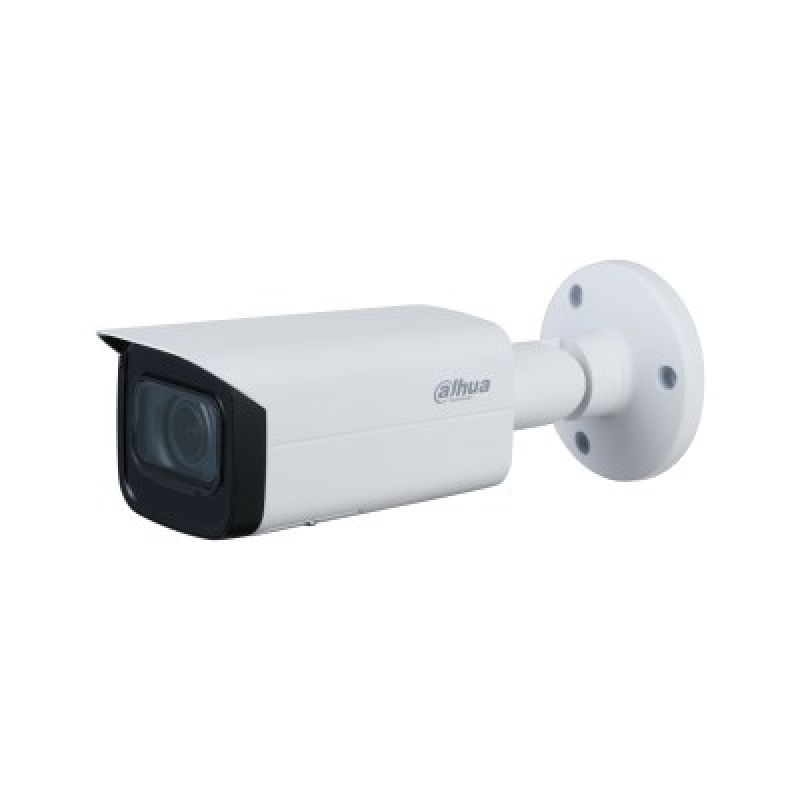

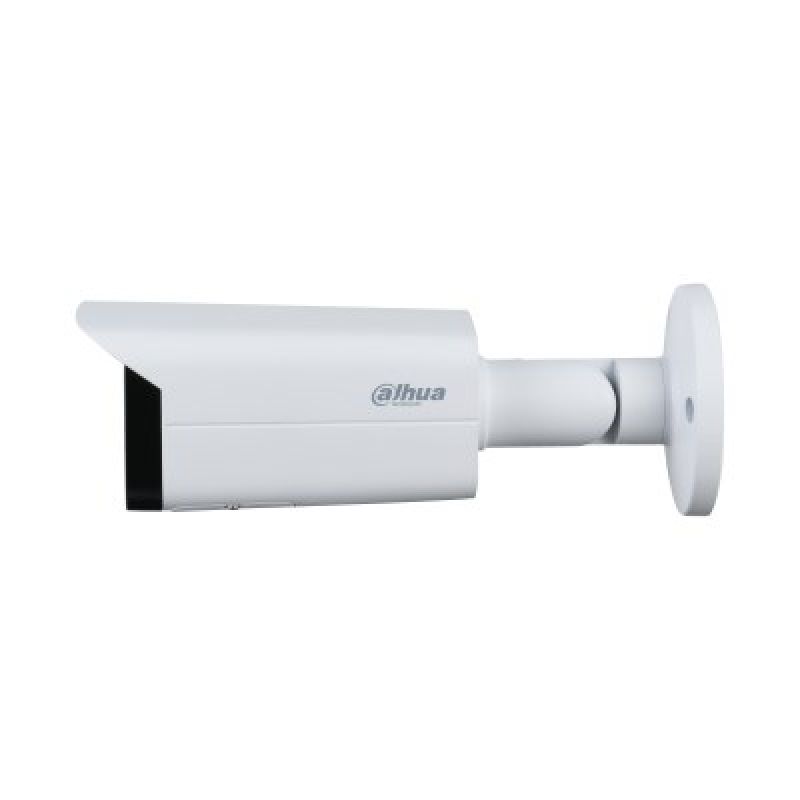

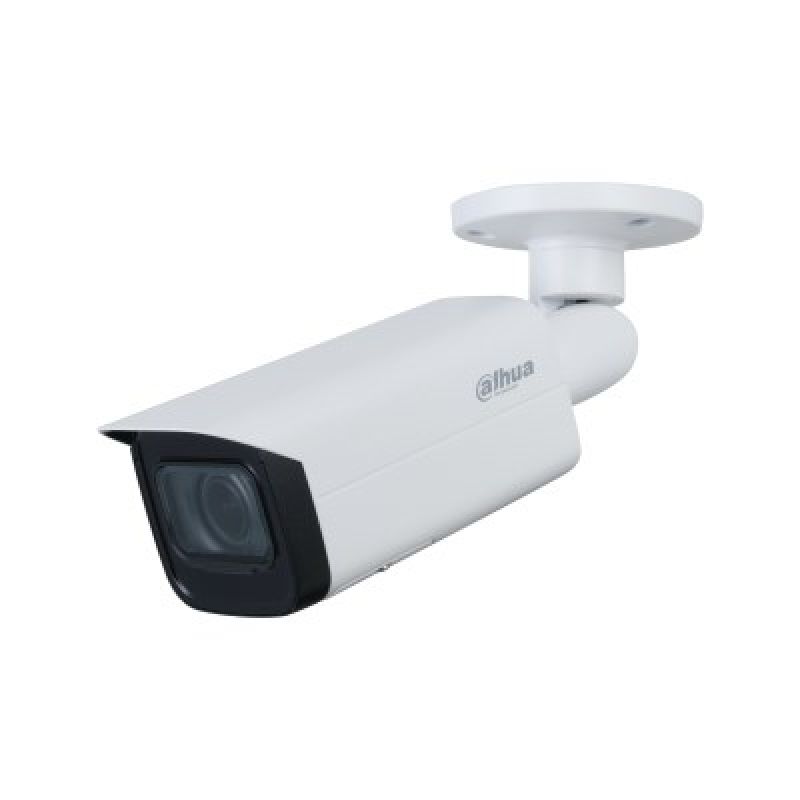

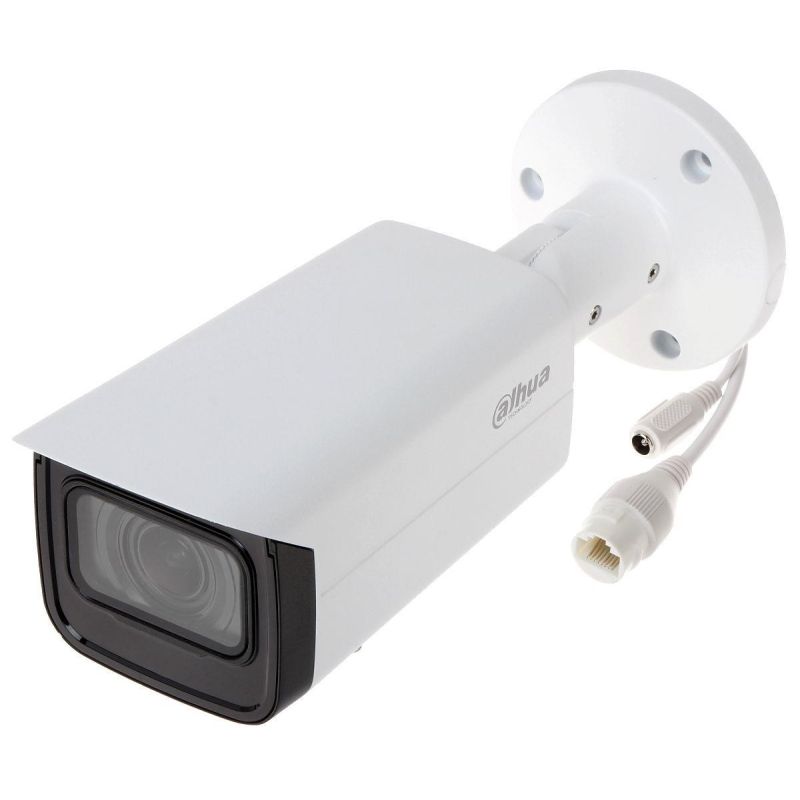

DAHUA IPC-HFW1230T-ZS-2812-S5 IP camera
DAHUA IPC-HFW1230T-ZS-2812-S5 IP camera
DAHUA IPC-HFW1230T-ZS-2812-S5 IP camera
PRICE:
178,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 100 EUR!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Layout: Tube
- Product color
- Black
- White
- IP protection class: IP67
- Mounting type: Ceiling / Wall / Pole
- Power
- Power supply type: DC, PoE
- Power consumption: 1.8 W
- Power consumption (max): 4.3 W
- Power consumption (PoE): 5.5 W
- DC Output (Volts): 12
- Weight and dimensions
- Product weight: 860 g
- Diameter: 9.04 cm
- Product height: 244.1 mm
- Working conditions
- Temperature range (operation): -30 - 60 °C
- Relative humidity range: 0 - 95%
- Network
- Wi-Fi: No
- Bluetooth: No
- Wired LAN: Yes
- Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS
- Ethernet interface type: Fast Ethernet
- Number of users: 6 users
- Efficiency
- Model: IP Security Camera
- Connection method: Wired
- Intended use: Outdoor
- Wide Dynamic Range (WDR): Yes
- Auto widescreen mode: Yes
- Maximum operating range: 50 m
- Day/Night Mode: Yes
- Packaging data
- Weight with packaging: 1.12 kg
- Package contents
- Number of cameras: 1
- Data carrier
- Supported memory cards: MicroSD
- Integrated card reader: Yes
- Maximum memory card size: 256 GB
- Internal memory capacity: 128 MB
- Built-in HDD: No
- ROM capacity: 16 MB
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Tilt angle range: 0 - 90°
- Min. Illumination: 0.0005 lx
- Swivel range: 0 - 360°
- Shutter Speed Adjustment: Auto/Manual
- Camera Tilt Control: Yes
- Shutter speed: 1/3 sec–1/100,000
- White balance: Automatic
- Camera Pan Control: Yes
- Rotation angle: 360°
- Photosensitive matrix
- Image sensor type: CMOS
- CCD sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Night mode
- LED type: Infrared
- Night Vision Distance: 50 m
- Night mode: Yes
- Number of lighting diodes: 2
- Video
- Supported graphics resolutions
- 704 x 480
- 352 x 240
- 704 x 576
- 1280 x 960
- 1280 x 720 (HD 720)
- 640 x 480 (VGA)
- 1920 x 1080 (HD 1080)
- 352 x 288
- Maximum resolution: 1920 x 1080 px
- Video transmission: Yes
- Highlight Compensation (HLC): Yes
- Supported video modes
- 1080p
- 720p
- Smart IR: Yes
- Backlight compensation: Yes
- Digital Dynamic Range (DWDR): Yes
- Compression formats
- H.264+
- H.265
- H.264
- H.265+
- Total megapixels: 2 MP
- Privacy Mask: Yes
- Frame rate: 30 fps
- Control Gain: Auto/Manual
- Noise reduction technology: 3D noise reduction
- Data rate: H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps
- Regional Area of Interest (ROI) Coding: Yes
- Data rate control: Constant bit rate (CBR), Variable bit rate (VBR)
- Noise reduction: Yes
- Supported graphics resolutions
- Lens system
- Detection distance (wide): 48 m
- Distance Recognition (Tele): 26 m
- Distance determination (wide): 5 m
- Distance measurement (tele): 13 m
- Number of lenses: 1
- Focus: Motorized/Manual
- Minimum focal distance: 1.2 m
- Detection distance (tele): 131 m
- Observing distance (tele): 52 m
- Recognition distance (wide): 10 m
- Focal length: 2.8 – 12
- Observing distance (wide): 19 m
- Standard focusing range: 1.2 m
- Determining distance: 13 m
- Safety warning
- Warnings
- The product contains electronic components and should not be disposed of in regular waste.
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- Warnings
| Name | Details |
|---|---|
| Producer | DAHUA |
