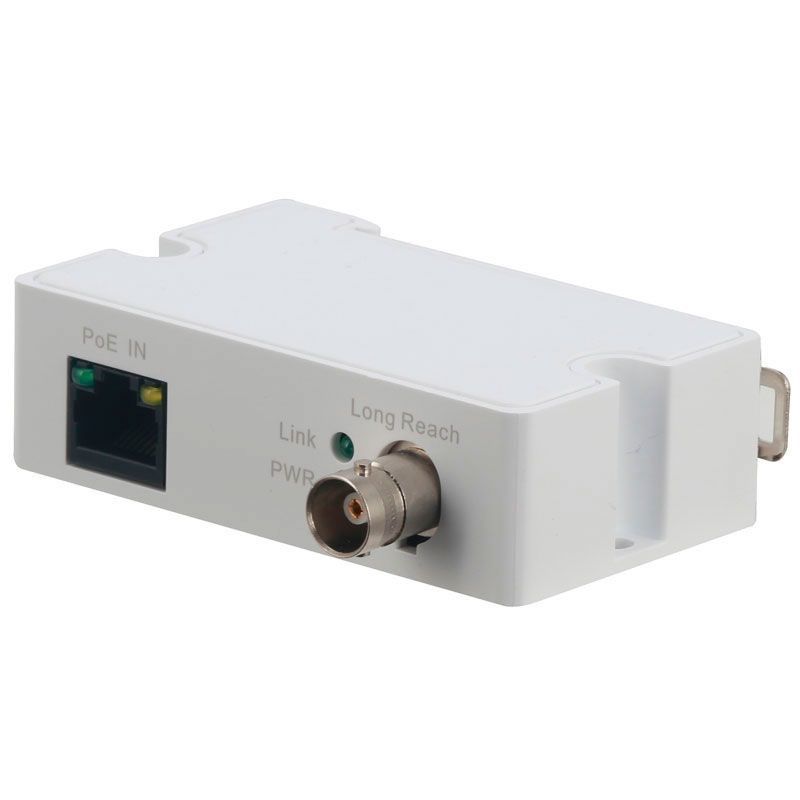

DAHUA LR1002-1EC receiver
DAHUA LR1002-1EC receiver
Sign up and unlock up to 10% off!
- Design
- LEDs: Yes
- Product color: Gray
- Power
- PoE Support: Yes
- Power consumption (transmitter) (max): 2 W
- Weight and dimensions
- Product depth: 52 mm
- Product weight: 61 g
- Product width: 79 mm
- Product height: 23 mm
- Working conditions
- Temperature range (operation): -30 - 65 °C
- Relative humidity range: 5 - 95%
- Network
- Communication standards
- IEEE 802.3u
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.3
- Cabling technology: 10/100Base-T(X)
- Communication standards
- Efficiency
- Model: Network Receiver
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- Automatic IEEE MDIX: Yes
- Maximum transfer distance: 1000 m
- Ports and interfaces
- Number of RJ-45 ports (receiver): 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of Fast Ethernet (PoE) ports: 1
| Name | Details |
|---|---|
| Category | Industry |
| Producer | DAHUA |
