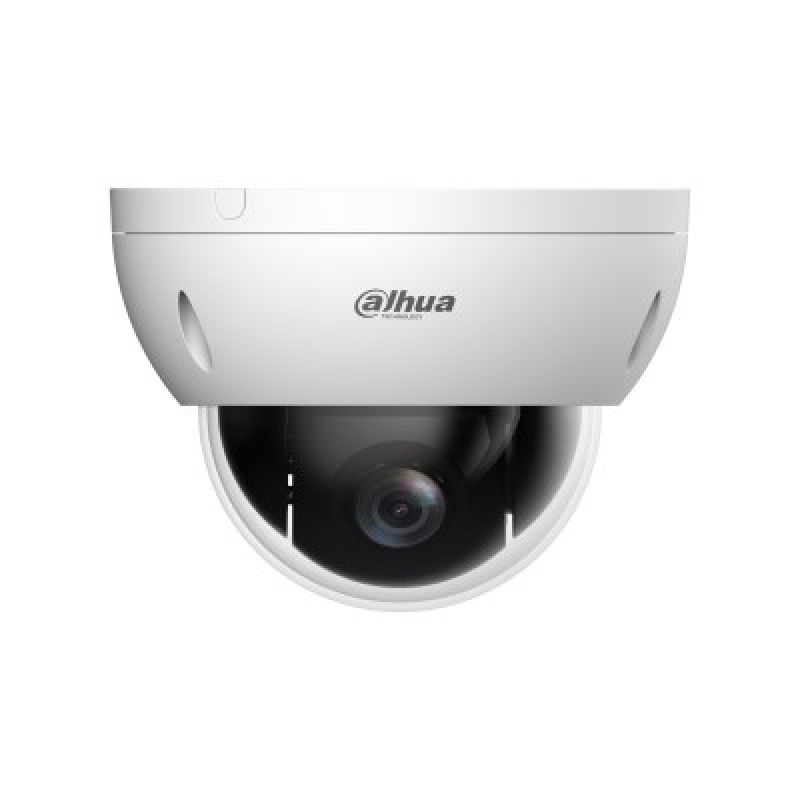

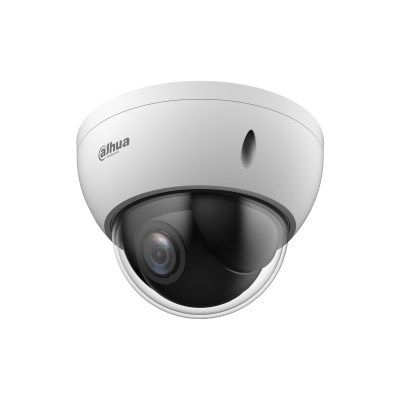

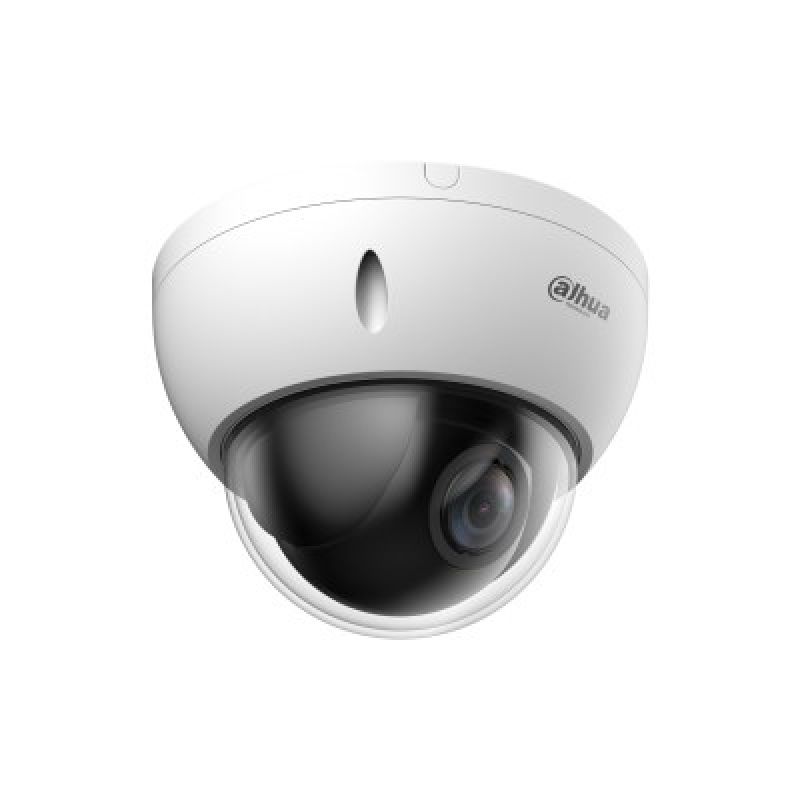

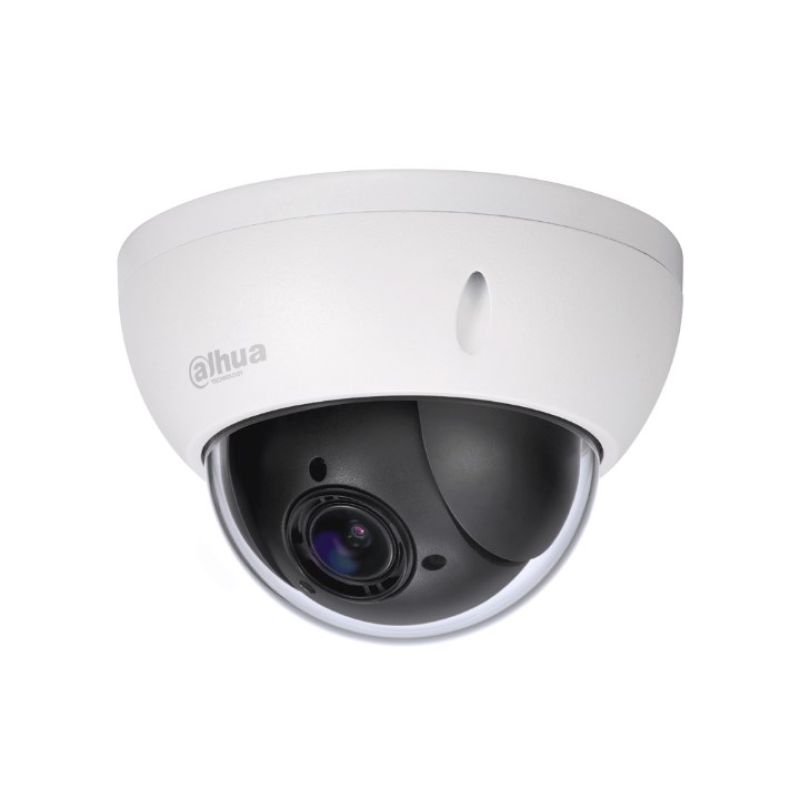

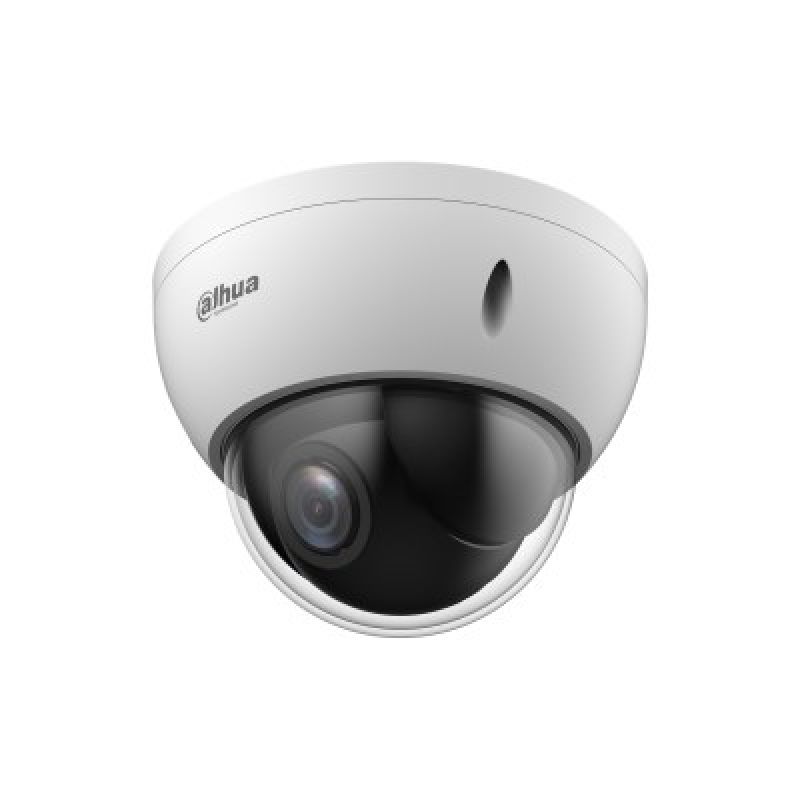

DAHUA SD22404DB-GNY IP CAMERA
DAHUA SD22404DB-GNY IP CAMERA
DAHUA SD22404DB-GNY IP CAMERA
PRICE:
360,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 100 EUR!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: White
- Layout: Dome
- IP protection class: IP66
- IK code: IK10
- Steam resistant: Yes
- Mounting type: Ceiling / Wall / Pole
- Power
- Power supply type: DC, PoE
- Power consumption (max): 6.1 W
- Power consumption: 2.3 W
- DC Output (Volts): 12
- DC Output (Amperes): 1 A
- Weight and dimensions
- Product weight: 500 g
- Product height: 89 mm
- Diameter: 12.2 cm
- Security
- Intelligent Video Surveillance (IVS) Features
- Lost object
- Intrusion
- Abandoned facility
- Moving object
- Crossing the border
- Face detection
- Vehicle detection
- A tripod
- Video motion detection: Yes
- Active intrusion alarm: Yes
- Intelligent Video Surveillance (IVS) Features
- Management features
- Website management: Yes
- Web browser: Yes
- Working conditions
- Permissible relative humidity: 0 - 95%
- Temperature range (operation): -30 - 60 °C
- Temperature range (storage): -30 - 60 °C
- Relative humidity range: 0 - 95%
- Network
- Bluetooth: No
- Ethernet interface type: Fast Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- Quality of Service (QoS) Support: Yes
- Stream method
- Multicast
- Unicast
- Number of users: 20 users
- Efficiency
- Connection method: Wired
- Model: IP Security Camera
- PTZ Protocols: Pelco-P/D
- PTZ modes
- 5th pattern
- 8-turn
- Pre-programmed points: Yes
- Track recording: Yes
- PTZ: Yes
- Intended use: Outdoor
- Day/Night Mode: Yes
- Packaging data
- Weight with packaging: 700 g
- Package contents
- Number of cameras: 1
- Audio
- Signal-to-noise ratio: 55 dB
- Data carrier
- Supported memory cards: MicroSD
- Integrated card reader: Yes
- RAM capacity: 512 MB
- Built-in HDD: No
- Maximum memory card size: 512 GB
- ROM capacity: 128 MB
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Tilt angle range: 0 - 90°
- White balance
- Street lamp
- Natural
- Manual
- ATW
- Sodium lamp
- Internal
- External
- Automatic
- Min. Illumination: 0.0005 lx
- Camera Tilt Control: Yes
- Lens viewing angle, horizontal: 90.3 - 29.4°
- Vertical lens viewing angle: 48.5 - 16.6°
- Predefined roll speed: 60 °/s
- Swivel range: 0 - 355°
- Shutter speed: 1 - 1/30000 s
- Camera Pan Control: Yes
- Lens viewing angle, diagonal: 105.7 - 33.6°
- Manual tilt speed: 0.1 - 60 °/s
- Manual rotation speed: 0.1 - 100 °/s
- Initial speed: 100 °/s
- Photosensitive matrix
- Image sensor type: CMOS
- Progressive Scan: Yes
- CCD sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Night mode
- LED type: Infrared
- Night mode: Yes
- Video
- Supported graphics resolutions
- 2560 x 1440
- 640 x 480 (VGA)
- 1920 x 1080 (HD 1080)
- 352 x 288
- 704 x 576
- 1280 x 720 (HD 720)
- 2304 x 1296
- 1280 x 960
- Maximum resolution: 2560 x 1440 px
- Highlight Compensation (HLC): Yes
- Data rate: H.264: 2816Kbps – 13056Kbps; H.265: 1024Kbps – 7936Kbps
- Backlight compensation: Yes
- Regional Area of Interest (ROI) Coding: Yes
- Compression formats
- M-JPEG
- H.265+
- H.265
- H.264
- H.264B
- H.264+
- H.264H
- Noise reduction: Yes
- Video transmission: Yes
- Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Digital Dynamic Range (DWDR): Yes
- Image stabilizer: Yes
- Noise reduction technology: 2D noise reduction, 3D noise reduction
- Total megapixels: 4 MP
- Control Gain: Auto/Manual
- Supported graphics resolutions
- Lens system
- Auto focus: Yes
- Minimum focal distance: 1.5 m
- Focal length: 2.8 - 12 mm
- Digital zoom: 16x
- Zoom capability: Yes
- Number of lenses: 1
- Observe distance: 94.8 m
- Detection distance: 240 m
- Recognition distance: 48 m
- Maximum aperture: 3
- Determining distance: 24 m
- Minimum aperture: 1.6
- Optical zoom: 4x
- Safety warning
- Warnings
- The product contains electronic components and should not be disposed of in regular trash.
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- Warnings
| Name | Details |
|---|---|
| Producer | DAHUA |
