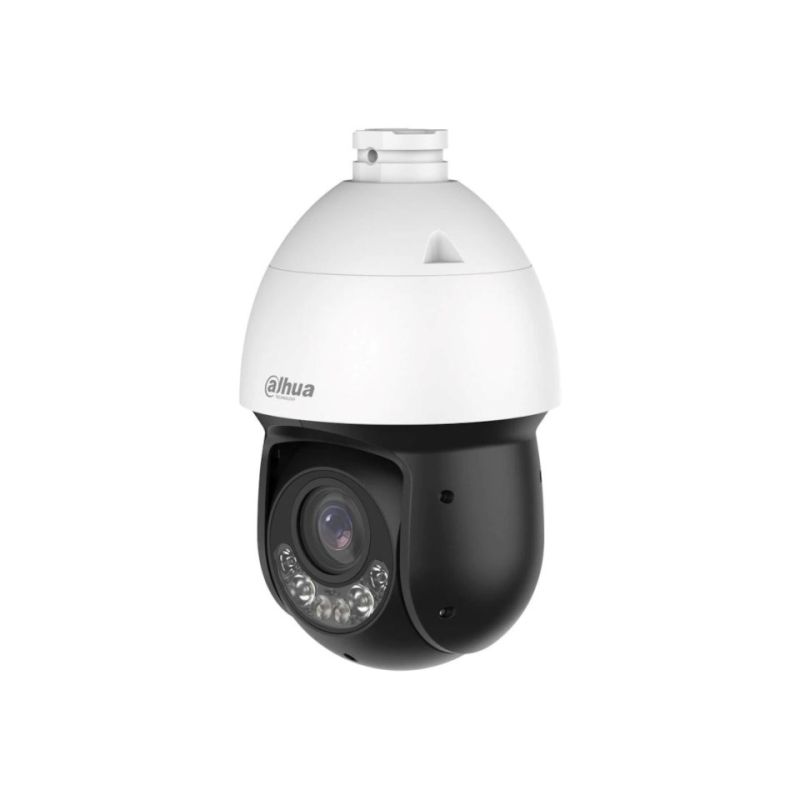

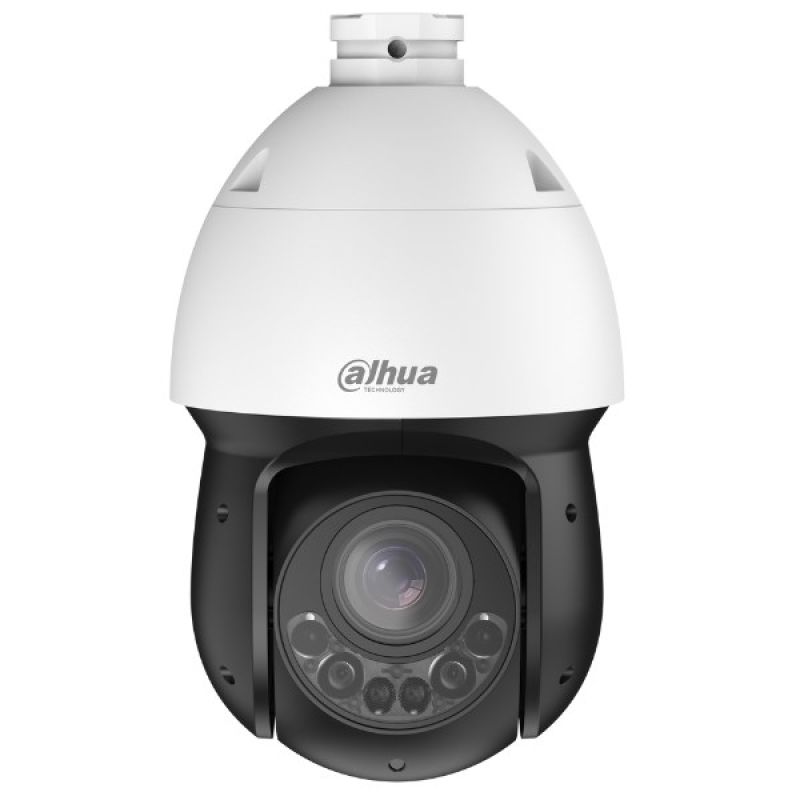

Dahua Technology D4D225MB-HNR - high-speed IP camera
Dahua Technology D4D225MB-HNR - high-speed IP camera
Sign up and unlock up to 10% off!
- Design
- Mounting type: Ceiling
- Product color
- Black
- White
- IP protection class: IP67
- Power
- Power consumption: 23 W
- Power supply type: PoE
- Weight and dimensions
- Product diameter: 160 mm
- Product weight: 2.4 kg
- Product height: 270.4 mm
- Security
- Intelligent Video Surveillance (IVS) Features
- Lost object
- Fence crossing detection
- Line crossing detection
- Loitering nearby detection
- Link tracking
- Abandoned facility
- Fast movement
- Intrusion
- Human Alarm Classification
- Detection of crowds
- Parking detection
- Intelligent Video Surveillance (IVS) Features
- Management features
- Management software: DMSS; DSS Pro
- Web browser: Yes
- Working conditions
- Temperature range (operation): -40 - 70 °C
- Relative humidity range: 0 - 95%
- Network
- Number of users: 20 users
- Stream method
- Multicast
- Unicast
- Cabling technology: 10/100Base-T
- Quality of Service (QoS) Support: Yes
- System requirements
- Support for mobile operating systems
- Android
- iOS
- Support for mobile operating systems
- Efficiency
- Connection method: Wired
- Model: IP Security Camera
- Wide Dynamic Range (WDR): Yes
- Package contents
- Number of cameras: 1
- Data carrier
- ROM capacity: 4000 MB
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- White balance
- Internal
- ATW
- Sodium lamp
- Street lamp
- Natural light
- Manual
- External
- Automatic
- Swivel range: 0 - 360°
- Tilt angle range: -15 - 90°
- White balance
- Photosensitive matrix
- Image sensor type: STARVIS CMOS
- Progressive Scan: Yes
- Video
- Digital zoom: 16x
- Electronic Image Stabilization (EIS): Yes
- Privacy Mask: Yes
- Signal-to-noise ratio: -55 dB
- 2D NR (2D Noise Reduction): Yes
- Regional Area of Interest (ROI) Coding: Yes
- Compression formats
- H.264M
- H.265
- H.264
- M-JPEG
- Smart H.264+
- Smart H.265+
- H.264B
- Data rate control: Constant bit rate (CBR), Variable bit rate (VBR)
- Highlight Compensation (HLC): Yes
- 3D NR (3D Noise Reduction): Yes
- Supported graphics resolutions
- 1280 x 960
- 1920 x 1080
- 1280 x 720
- 704 x 480
- 352 x 240
- 704 x 576
- 352 x 288
- 640 × 480
- Maximum resolution: 1920 x 1080 px
- Lens system
- Maximum aperture: 3.5
- Safety warning
- Warnings
- The product contains electronic components and should not be disposed of in regular waste.
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- Warnings
| Name | Details |
|---|---|
| Producer | DAHUA |
