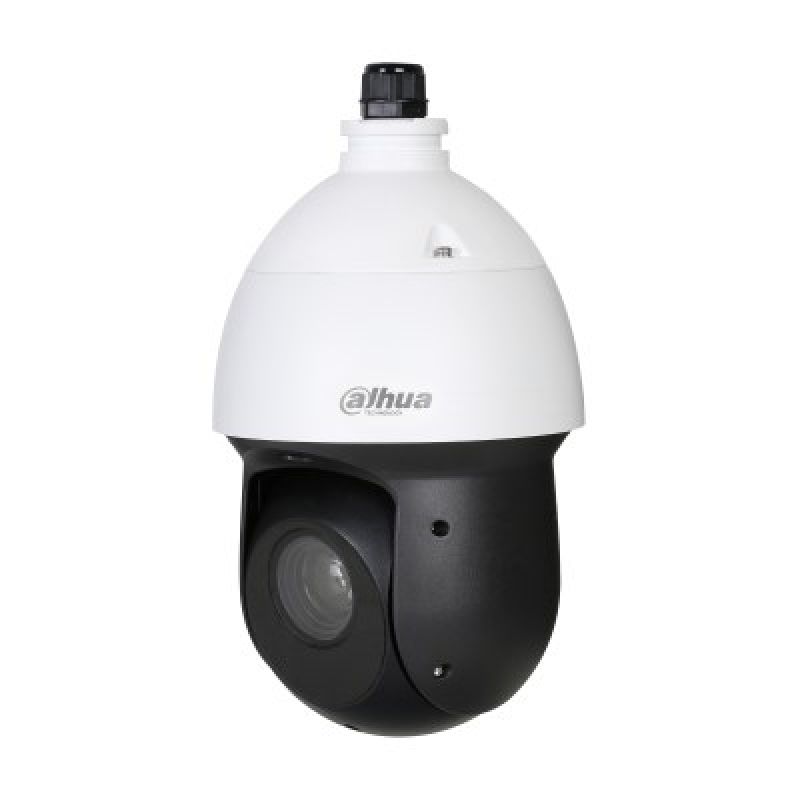

Dahua Technology DH-SD49225DB-HC Industrial Camera Spherical CCTV Security Camera Outdoor 1920 x 1080 px Ceiling
Dahua Technology DH-SD49225DB-HC Industrial Camera Spherical CCTV Security Camera Outdoor 1920 x 1080 px Ceiling
Dahua Technology DH-SD49225DB-HC Industrial Camera Spherical CCTV Security Camera Outdoor 1920 x 1080 px Ceiling
PRICE:
567,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- IP protection class: IP66
- Arrangement: Spherical
- Product color: White
- Mounting type: Ceiling
- Power
- Power supply type: DC
- Power consumption (max): 22 W
- Power consumption: 10 W
- DC Output (Volts): 12
- Weight and dimensions
- Product weight: 3 kg
- Product height: 269.9 mm
- Diameter: 16 cm
- Working conditions
- Relative humidity range: 0 - 95%
- Temperature range (operation): -40 - 70 °C
- Network
- Bluetooth: No
- Wired LAN: No
- Wi-Fi: No
- Efficiency
- Model: CCTV Security Camera
- Connection method: Wired
- PTZ modes
- 8-turn
- 5th pattern
- Automatic scanning
- Specific point
- PTZ Protocols: DH-SD
- Wide Dynamic Range (WDR): Yes
- Pre-programmed points: Yes
- Alarm I/O: Yes
- Day/Night Mode: Yes
- PTZ: Yes
- Dynamic range: 120 dB
- Intended use: Outdoor
- Packaging data
- Weight with packaging: 4.2 kg
- Package contents
- Number of cameras: 1
- Audio
- Audio output channels: 1.0 ch.
- Audio input channels: 1.0 ch.
- Signal-to-noise ratio: 50 dB
- Data carrier
- ROM capacity: 128 MB
- Internal memory capacity: 256 MB
- Built-in HDD: No
- Ports and interfaces
- RS-485 ports: 1
- BNC outputs: 1
- Camera
- White balance
- Sodium lamp
- Natural
- Manual
- Street lamp
- External
- Automatic
- Internal
- Tilt angle range: -15 - 90°
- Min. Illumination: 0 lx
- Auto change: Yes
- Camera Tilt Control: Yes
- Camera Pan Control: Yes
- Predefined roll speed: 200 °/s
- Lens viewing angle, diagonal: 69.4 - 3.7°
- Shutter speed: 1/3 - 1/30000 s
- Lens viewing angle, horizontal: 60.6 - 3.2°
- Vertical lens viewing angle: 34.1 - 1.8°
- Initial speed: 240 °/s
- Camera shutter type: Electronic
- Swivel range: 0 - 360°
- Manual tilt speed: 0.1 - 120 °/s
- Manual rotation speed: 0.1 - 200 °/s
- White balance
- Photosensitive matrix
- CCD sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive Scan: Yes
- Image sensor type: CMOS
- Night mode
- Night Vision Distance: 100 m
- Number of lighting diodes: 6
- LED type: Infrared
- Night mode: Yes
- Video
- Backlight compensation: Yes
- Highlight Compensation (HLC): Yes
- Maximum resolution: 1920 x 1080 px
- Supported graphics resolutions
- 704 x 480
- 1280 x 720 (HD 720)
- 704 x 576
- 1920 x 1080 (HD 1080)
- Analog signal format system: PAL
- Total megapixels: 2 MP
- Control Gain: Auto/Manual
- Noise reduction: Yes
- Noise reduction technology: 2D noise reduction, 3D noise reduction
- Privacy Mask: Yes
- Frame rate: 60 fps
- Lens system
- Auto focus: Yes
- Maximum aperture: 3.5
- Distance determination: 165.5 m
- Zoom capability: Yes
- Digital zoom: 16x
- Detection distance: 1655.2 m
- Optical zoom: 25x
- Focal length: 4.8 - 120 mm
- Minimum aperture: 1.6
- Minimum focal distance: 0.1 m
- Recognition distance: 331 m
- Observe distance: 653.8 m
- Safety warning
- Warnings
- The product contains electronic components and should not be disposed of in regular waste.
- It is forbidden to open the device yourself; service and repairs should be performed by qualified personnel.
- Avoid exposing the device to direct water or moisture.
- Start and operate the device according to the operating instructions to avoid the risk of electric shock.
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- Warnings
| Name | Details |
|---|---|
| Producer | DAHUA |
