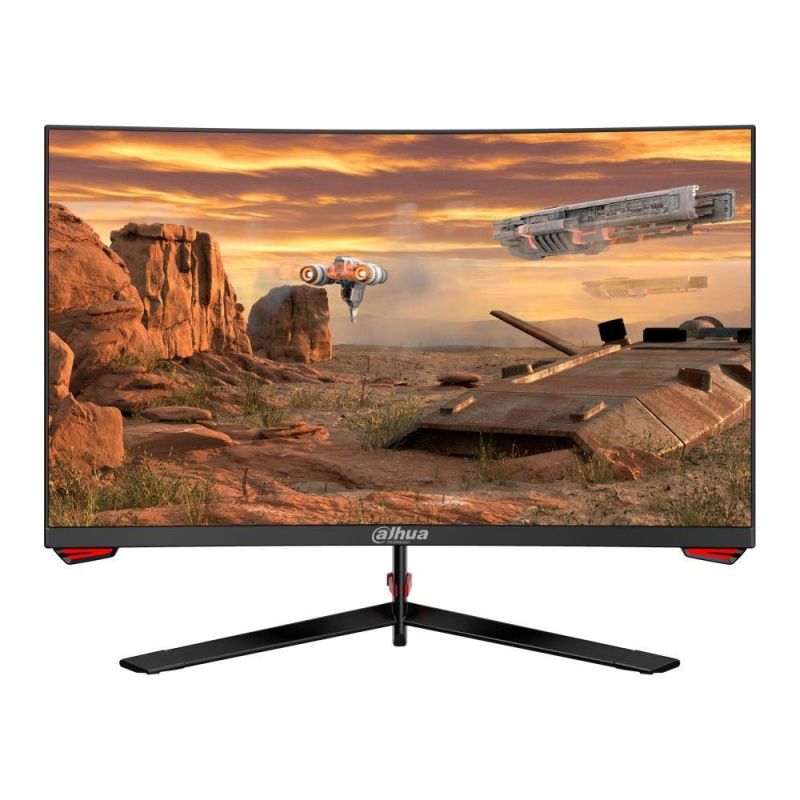

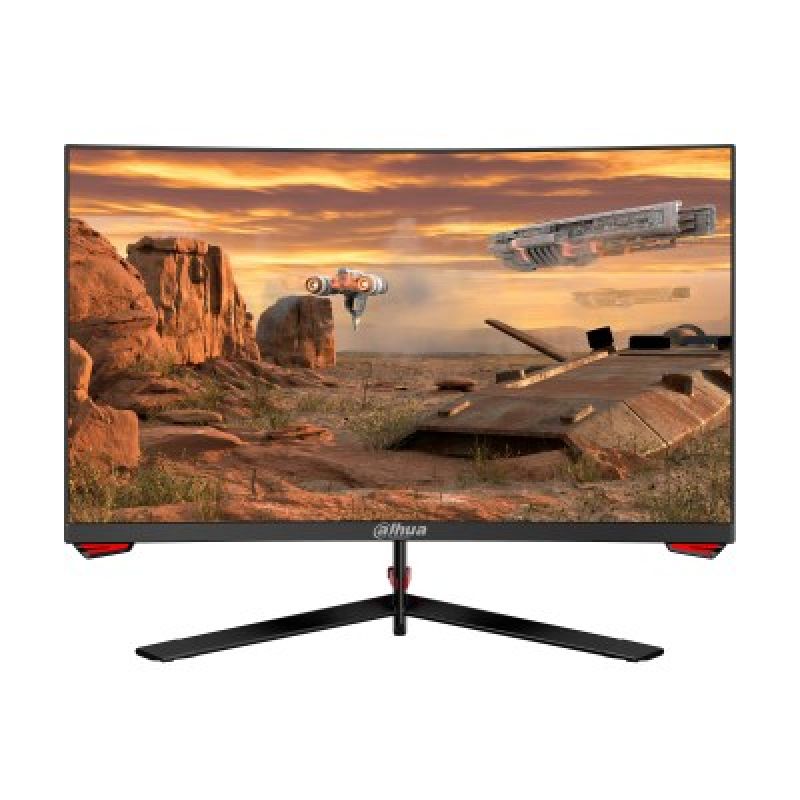

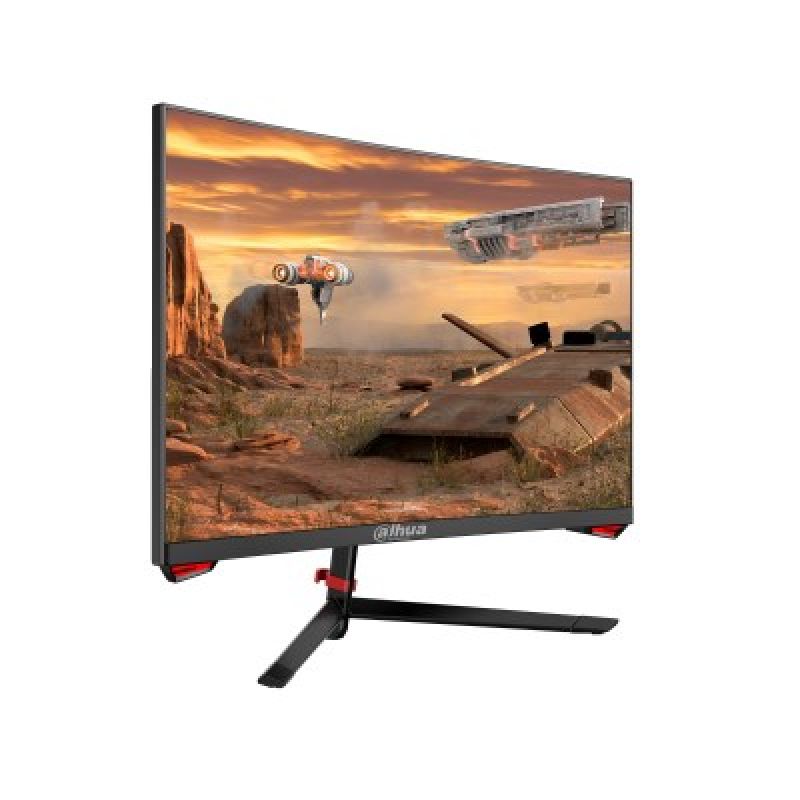

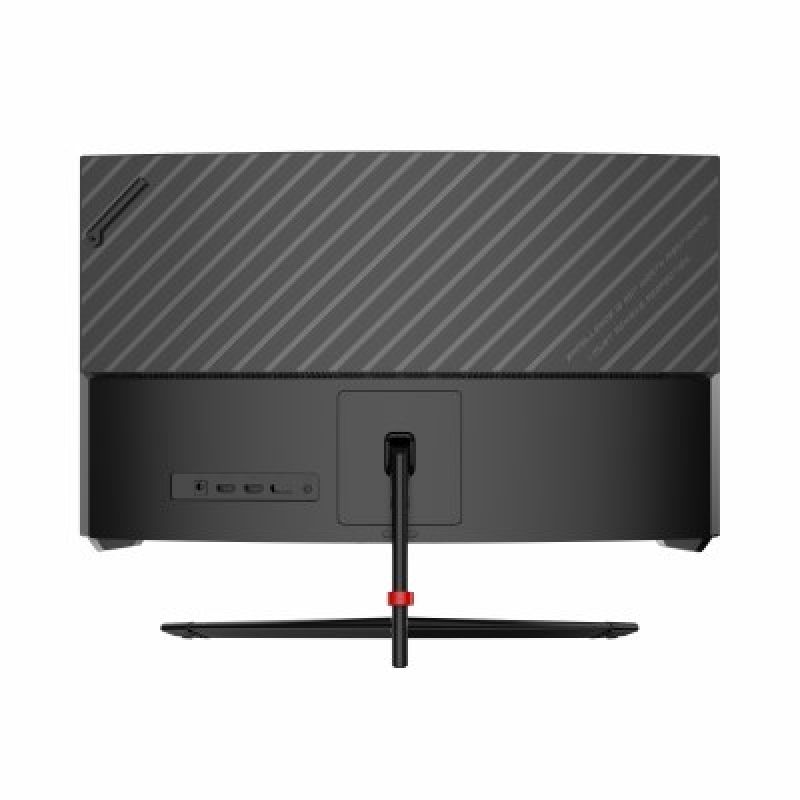

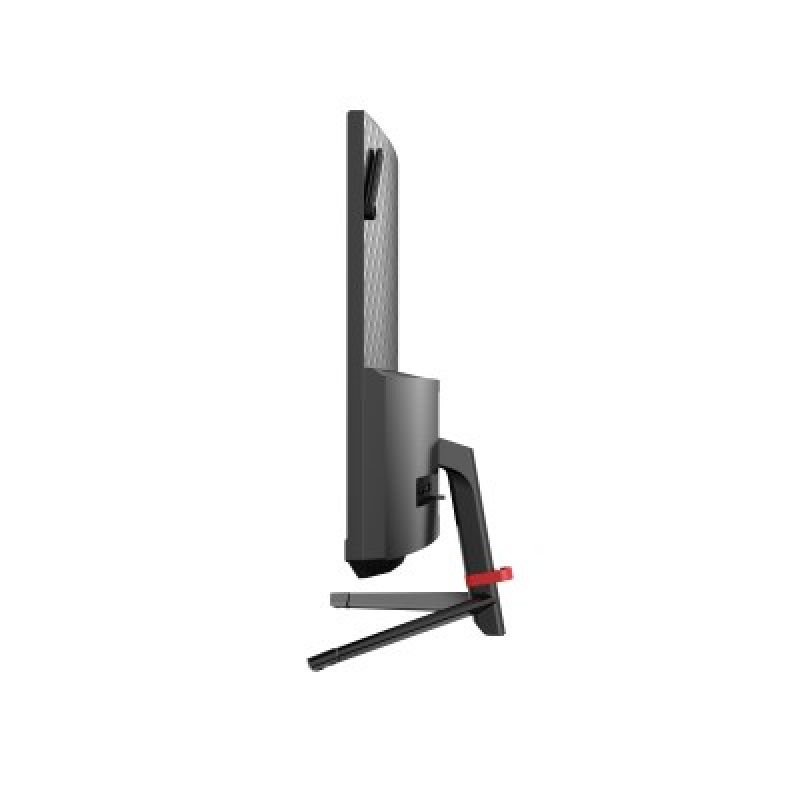

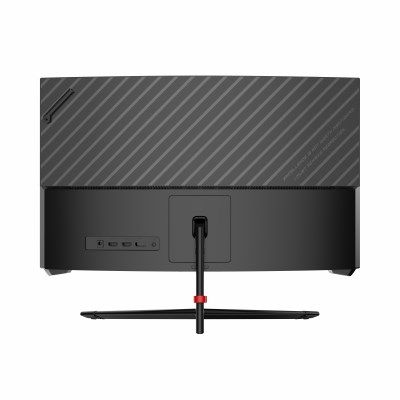

Dahua Technology DHI-LM24-E230C LED display 59.9 cm (23.6") 1920 x 1080 px Full HD Black
Dahua Technology DHI-LM24-E230C LED display 59.9 cm (23.6") 1920 x 1080 px Full HD Black
Sign up and unlock up to 10% off!
- Design
- Detachable base: Yes
- Frameless design: Yes
- Product color: Black
- Market positioning: Gaming
- Power
- European Product Registry for Energy Labeling (EPREL) code: 1536828
- Energy Efficiency Scale: From A to G
- Energy consumption (SDR) per 1000 hours: 17 kWh
- Energy efficiency class (HDR): Not available
- Energy efficiency class (SDR): E
- AC input frequency: 50/60 Hz
- AC adapter output voltage: 12V
- Off mode: 0.3 W
- Power consumption (max): 35 W
- Power consumption: 24 W
- Power consumption in standby mode: 0.5 W
- Power supply type: External
- AC input voltage: 100 - 240 V
- Weight and dimensions
- Height (without base): 333.5 mm
- Width (without base): 537.9 mm
- Weight (with base): 3.2 kg
- Depth (without base): 74 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 10 - 85%
- Packaging data
- Weight with packaging: 4.9 kg
- Package height: 407 mm
- Package width: 630 mm
- Package depth: 149 mm
- Package contents
- Base Included: Yes
- Power supply included: Yes
- Cables: DisplayPort
- Display
- sRGB coverage (typical): 99%
- NTSC coverage (typical): 83%
- Maximum refresh rate: 165 Hz
- Adobe RGB coverage: 80%
- Screen curvature classification: 1500R
- Horizontal viewing angle: 178°
- Display technology: LED
- Response time (typical): 1 ms
- Touchscreen: No
- Display brightness (typical): 250 cd/m²
- Resolution: 1920 x 1080 px
- Screen shape: Curved
- Backlight type: Edge LED
- Native aspect ratio: 16:9
- Matrix type: VA
- Screen diagonal: 23.6"
- HD type: Full HD
- Viewing angle (vertical): 178°
- Contrast ratio (typical): 3000:1
- Multimedia
- Built-in camera: No
- Built-in speakers: No
- Ergonomics
- Wall mountable: Yes
- Swivel: No
- Axis of rotation: No
- Tilt angle range: -5 - 15°
- Panel mounting interface: 75 x 75 mm
- Tilt adjustment: Yes
- Height adjustment: No
- VESA Standard: Yes
- Ports and interfaces
- HDMI: Yes
- Headphone output: Yes
- DisplayPort Quantity: 1
- DisplayPort version: 1.2
- Headphone outputs: 1
- HDMI version: 1.4
- Number of HDMI ports: 2
- DC output socket: Yes
- Built-in USB hub: No
- Safety warning
- Warnings
- Place the monitor on a flat and stable surface to avoid tipping and damage.
- Do not disassemble the monitor housing to avoid the risk of electric shock.
- Unplug the monitor from the power source before cleaning.
- Warnings
| Name | Details |
|---|---|
| Producer | DAHUA |
