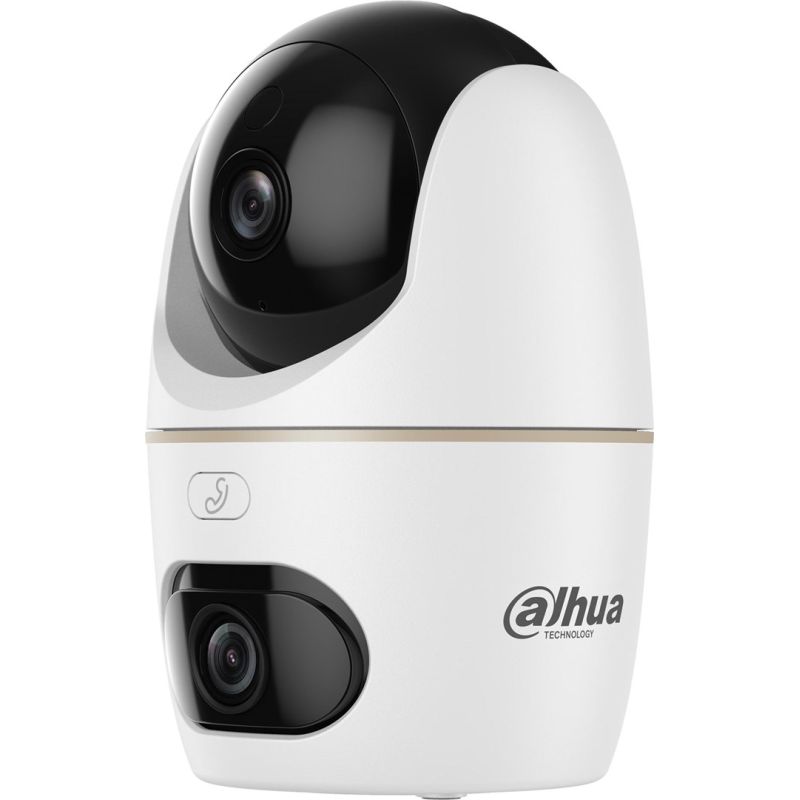

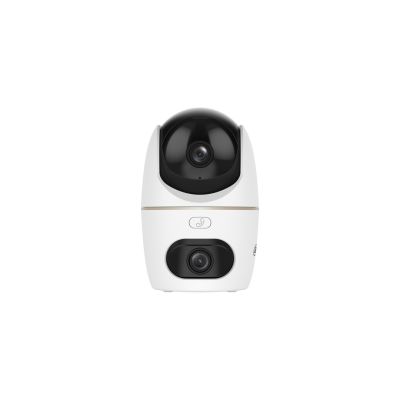

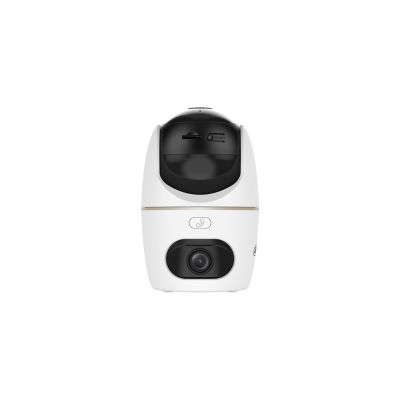

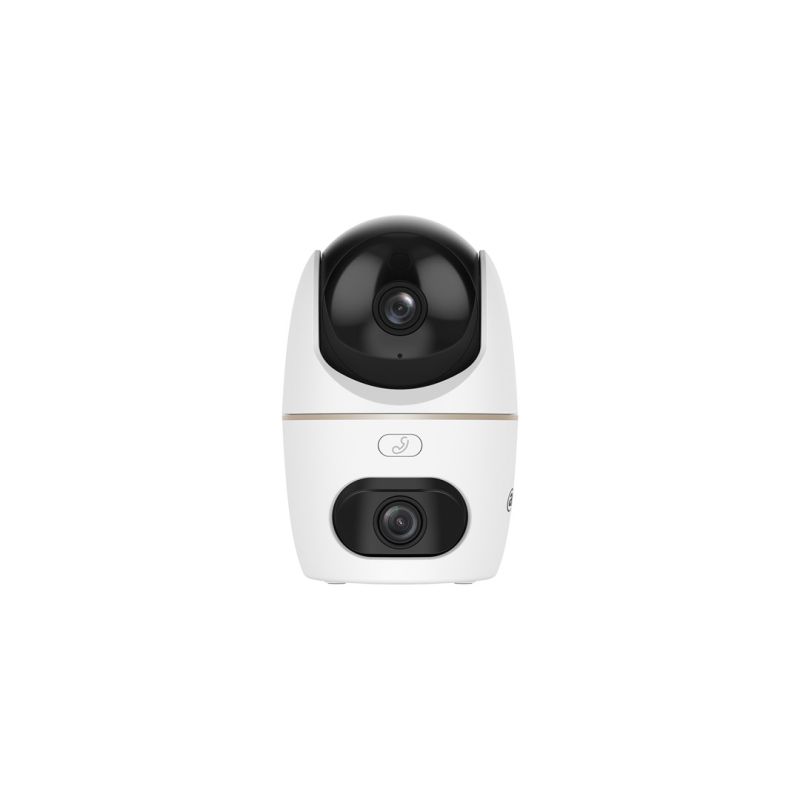

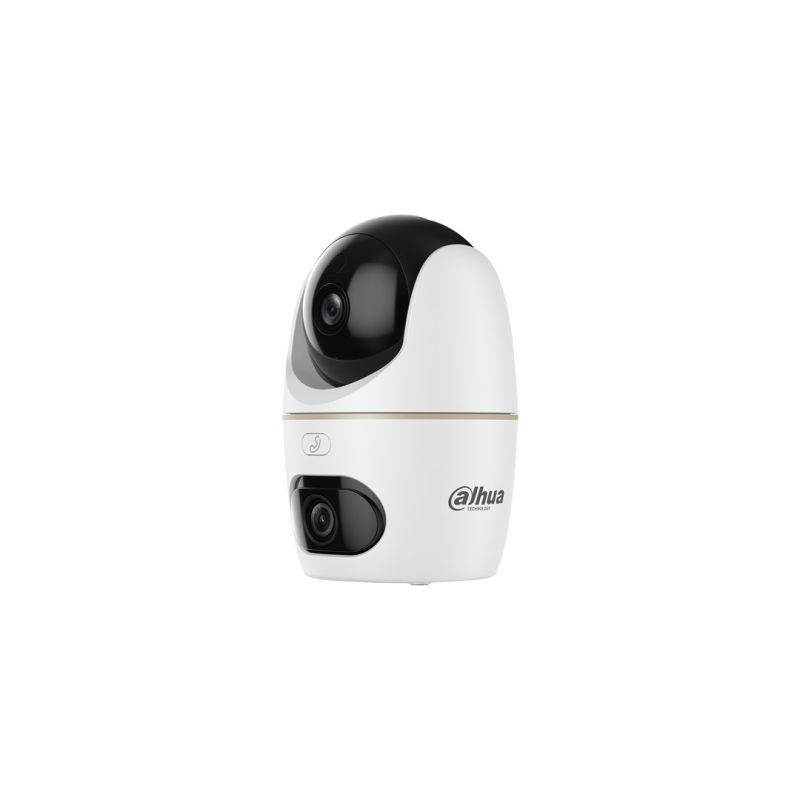

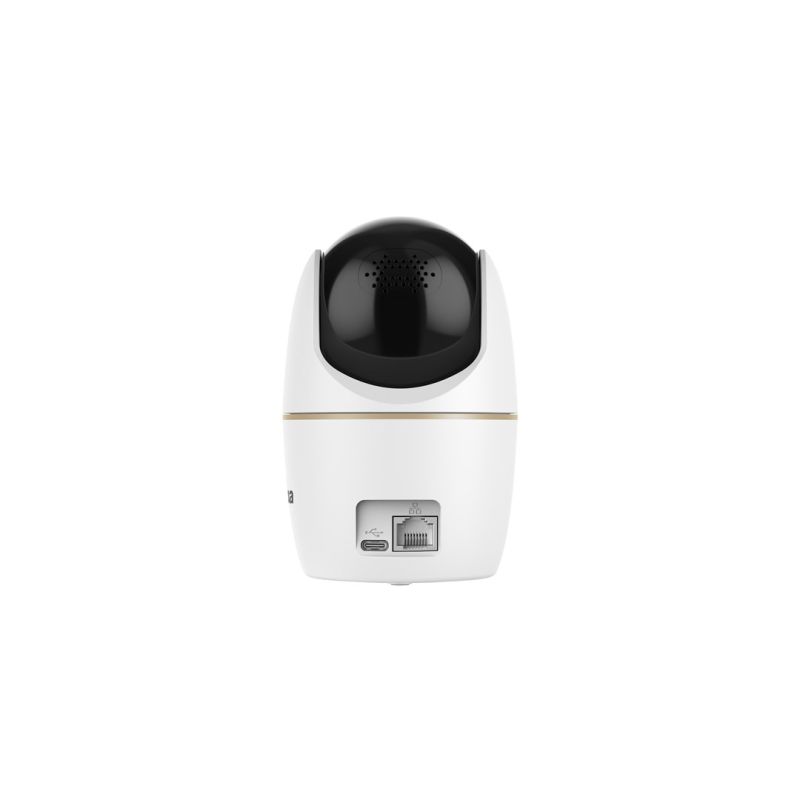

Dahua Technology H3D-3F Industrial Camera Spherical IP Security Camera Indoor 2304 x 1296 px Ceiling / Wall
Dahua Technology H3D-3F Industrial Camera Spherical IP Security Camera Indoor 2304 x 1296 px Ceiling / Wall
Sign up and unlock up to 10% off!
- Design
- Product color: White
- Arrangement: Spherical
- Housing material: Plastic
- Mounting type: Ceiling / Wall
- Power
- Power consumption (max): 5.2 W
- Power consumption: 2.3 W
- DC Output (Volts): 5
- Power supply type: DC
- Weight and dimensions
- Diameter: 8.09 cm
- Product weight: 233 g
- Product height: 125.7 mm
- Security
- Intelligent Video Surveillance (IVS) Features
- People detection
- Detecting unusual sounds
- Pet detection
- Video motion detection: Yes
- Intelligent Video Surveillance (IVS) Features
- Working conditions
- Temperature range (operation): -10 - 45 °C
- Relative humidity range: 0 - 95%
- Network
- Wi-Fi standards
- 802.11b
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wi-Fi: Yes
- Ethernet interface type: Fast Ethernet
- Bluetooth: Yes
- Wired LAN: Yes
- Wi-Fi standards
- System requirements
- Support for mobile operating systems
- Android
- iOS
- Support for mobile operating systems
- Efficiency
- Model: IP Security Camera
- Intended use: Internal
- Connectivity: Wired and wireless
- Day/Night Mode: Yes
- Package contents
- Number of cameras: 1
- Quick Start Guide: Yes
- AC adapter: Yes
- Wires: Alternating Current
- Screws Included: Yes
- Mounting Brackets Included: Yes
- Audio
- Supported audio formats: G.711 A-law
- Built-in microphone: Yes
- Built-in speakers: Yes
- Data carrier
- Integrated card reader: Yes
- Maximum memory card size: 256 GB
- Supported memory cards: MicroSD
- Built-in HDD: No
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- USB port: Yes
- Camera
- Tilt angle range: -5 - 90°
- Sliding range: 0 - 349°
- Camera Pan Control: Yes
- Camera Tilt Control: Yes
- Vertical lens viewing angle: 43°
- Lens viewing angle, horizontal: 79°
- Lens viewing angle, diagonal: 94°
- Photosensitive matrix
- CCD sensor size: 25.4/3.2 mm (1/3.2")
- Image sensor type: CMOS
- Night mode
- Night Vision Distance: 30 m
- LED type: Infrared
- Night mode: Yes
- Video
- Maximum resolution: 2304 x 1296 px
- Digital Dynamic Range (DWDR): Yes
- Compression formats: H.265
- Data flow speed: 512 - 4096 kbps
- Frame rate: 15 fps
- Lens system
- Maximum aperture: 2
- Fixed focal length: 3.6 mm
- Number of lenses: 2
- Sustainable development
- Certificates of conformity: CE
| Name | Details |
|---|---|
| Producer | DAHUA |
