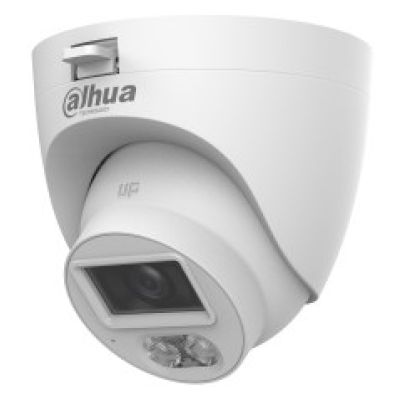

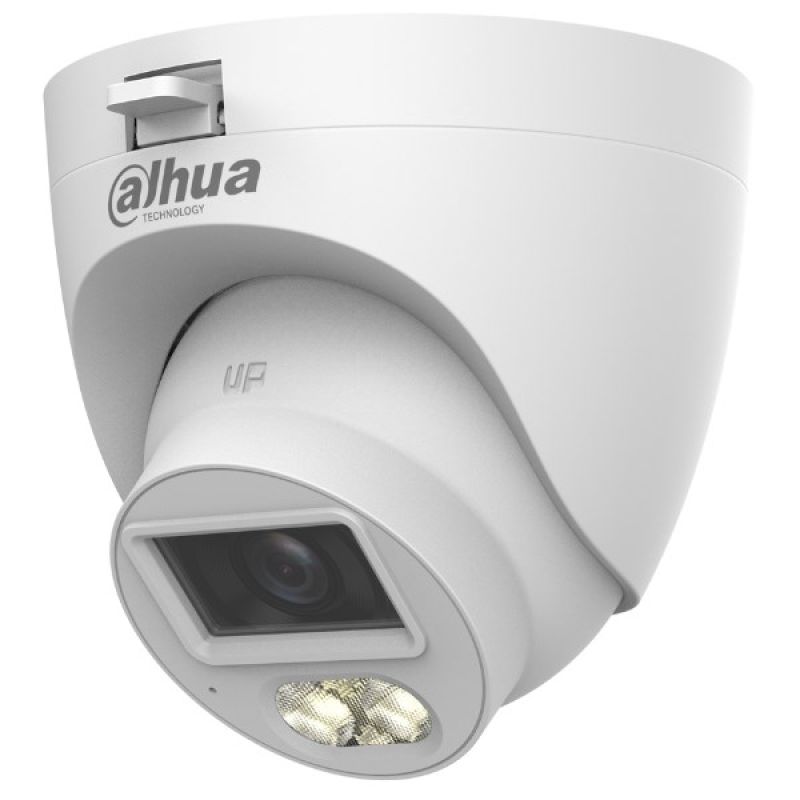

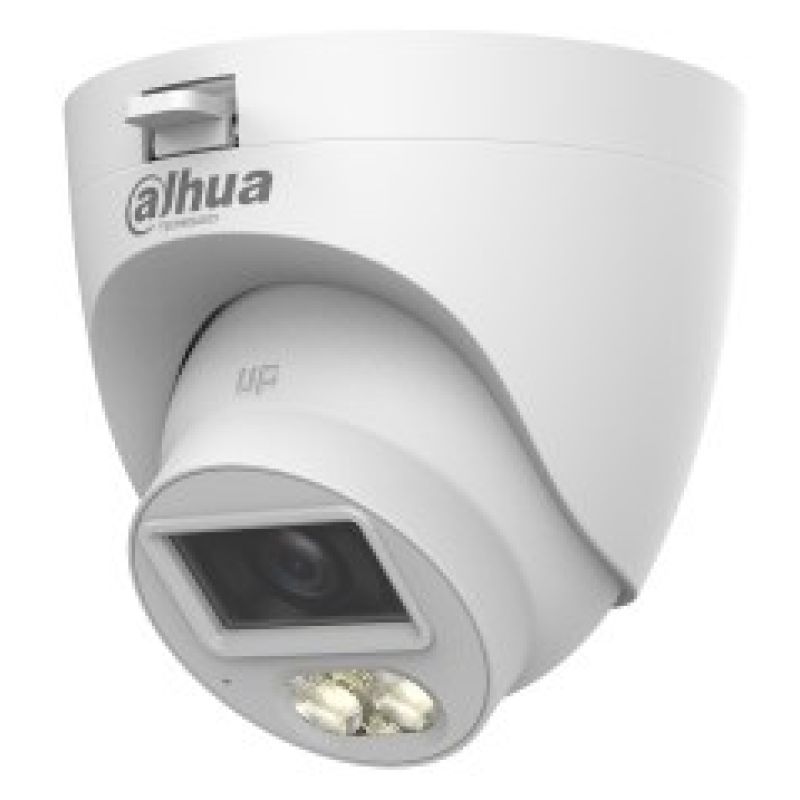

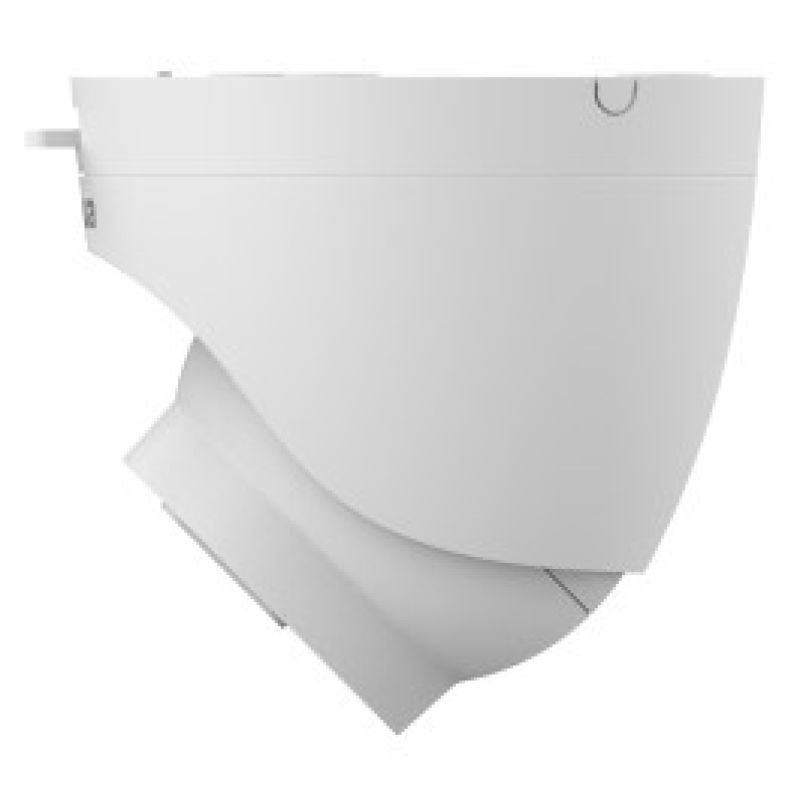

Dahua Technology Lite HAC-HDW1801CLQ-IL-A Dome IP Security Camera Indoor & Outdoor 3840 x 2160 px Ceiling / Wall
Dahua Technology Lite HAC-HDW1801CLQ-IL-A Dome IP Security Camera Indoor & Outdoor 3840 x 2160 px Ceiling / Wall
Sign up and unlock up to 10% off!
- Design
- Mounting type: Ceiling / Wall
- IP protection class: IP67
- Layout: Dome
- Product color: White
- Housing material: Plastic
- Power
- DC Output (Volts): 12
- Power consumption (max): 4.1 W
- Power supply type: DC
- Weight and dimensions
- Product height: 92.9 mm
- Product weight: 190 g
- Diameter: 9.74 cm
- Security
- Mirror: Yes
- Video motion detection: Yes
- Working conditions
- Permissible relative humidity: 0 - 95%
- Temperature range (operation): -40 - 60 °C
- Relative humidity range: 0 - 95%
- Temperature range (storage): -40 - 60 °C
- Efficiency
- Alarm I/O: Yes
- Remote viewing: Yes
- Intended use: Indoor and outdoor
- Day/Night Mode: Yes
- Connection method: Wired
- Model: IP Security Camera
- Wide Dynamic Range (WDR): Yes
- Built-in light: Yes
- Packaging data
- Weight with packaging: 260 g
- Package contents
- User Manual: Yes
- Number of cameras: 1
- Audio
- Built-in microphone: Yes
- Signal-to-noise ratio: 65 dB
- Data carrier
- Built-in HDD: No
- Camera
- Lens viewing angle, diagonal: 125.3°
- Vertical lens viewing angle: 56.5°
- Lens angle of view, horizontal: 105.5°
- Number of privacy masking areas: 8
- Tilt angle range: 0 - 78°
- Rotation angle: 360°
- White balance
- Area white balance
- Automatic
- Swivel range: 0 - 360°
- Camera shutter type: Electronic
- Shutter speed: 1/100000 s
- Min. Illumination: 0.01 lx
- Photosensitive matrix
- Number of sensors: 1
- Image sensor type: CMOS
- Progressive Scan: Yes
- Night mode
- Night mode: Yes
- Night Vision Distance: 30 m
- Number of lighting diodes: 2
- Video
- Control Gain: Auto/Manual
- Maximum resolution: 3840 x 2160 px
- Supported graphics resolutions
- 960 x 576
- 3840 x 2160
- 960 x 480
- Backlight compensation: Yes
- Noise reduction technology: 3D noise reduction
- Frame rate: 15 fps
- Smart IR: Yes
- Total megapixels: 5 MP
- Digital Dynamic Range (DWDR): Yes
- Noise reduction: Yes
- Highlight Compensation (HLC): Yes
- Lens system
- Number of lenses: 1
- Determining distance: 8.8 m
- Detection distance: 88 m
- Focus: Motorized/Manual
- Fixed focal length: 2.8 mm
- Fixed focus: Yes
- Maximum aperture: 2
- Recognition distance: 17.6 m
- Observe distance: 35.2 m
| Name | Details |
|---|---|
| Producer | DAHUA |
