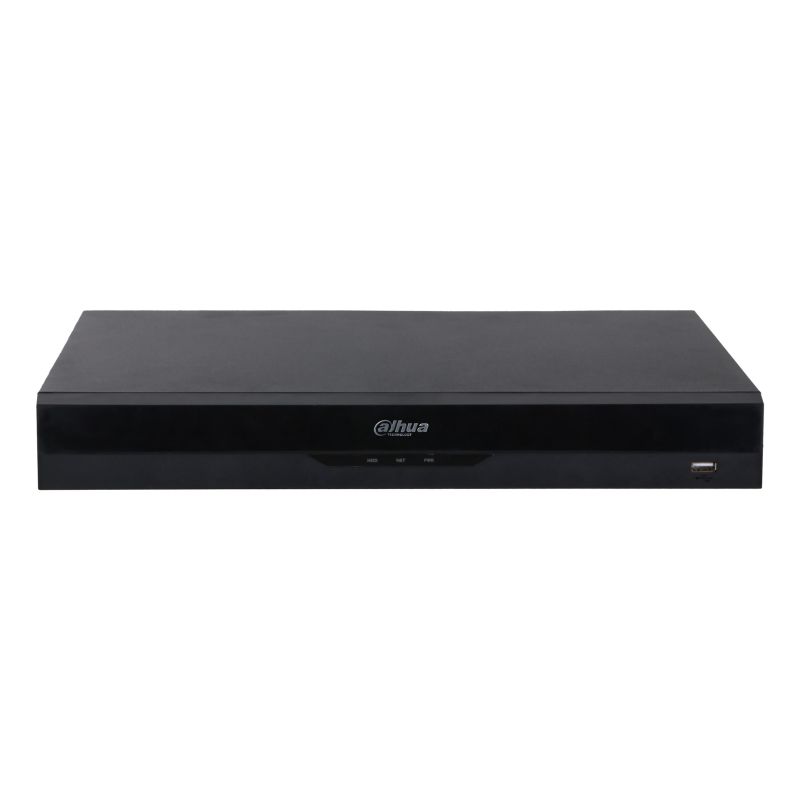

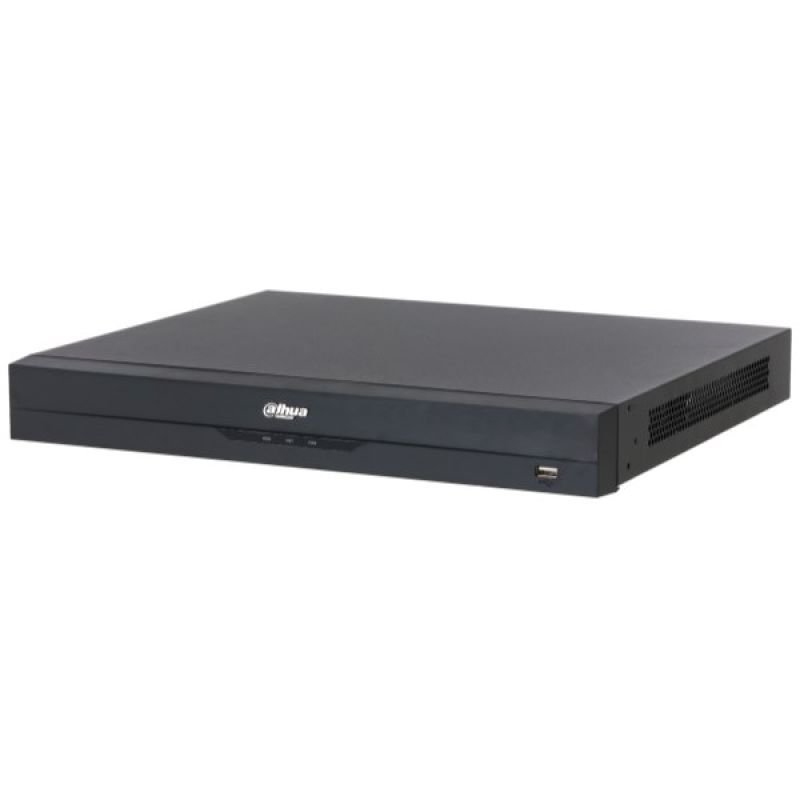

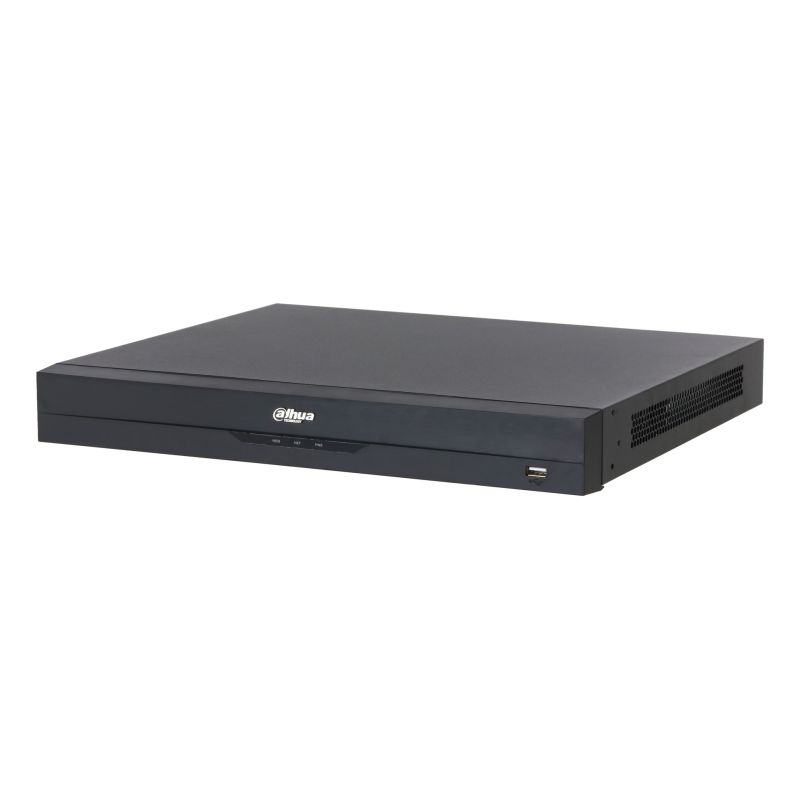

Dahua Technology WizSense NVR5232-16P-EI2 Network Video Recorder (NVR) 1U Black
Dahua Technology WizSense NVR5232-16P-EI2 Network Video Recorder (NVR) 1U Black
Dahua Technology WizSense NVR5232-16P-EI2 Network Video Recorder (NVR) 1U Black
PRICE:
1283,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity: CE
- Processor
- Built-in processor: Yes
- Characteristics
- Rack mounting options: Yes
- Product color: Black
- Rack capacity: 1U
- Power
- Power consumption: 10 W
- Total Power over Ethernet (PoE) budget: 130 W
- Power over Ethernet (PoE) power per port: 25.5 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Weight and dimensions
- Product depth: 329.6 mm
- Weight with packaging: 4.06 kg
- Product width: 375 mm
- Product height: 53 mm
- Package depth: 147 mm
- Package height: 425 mm
- Package width: 451 mm
- Product weight: 2.62 kg
- Working conditions
- Temperature range (storage): -20 - 60 °C
- Temperature range (operation): -10 - 55 °C
- Relative humidity range: 10 - 93%
- System requirements
- Supported browsers: Chrome, IE, Safari, Edge, Firefox
- Support for mobile operating systems
- Android
- iOS
- Efficiency
- Installed operating system: Embedded LINUX
- Supported video file formats
- H.265
- M-JPEG
- H.265+
- H.264
- H.264+
- Video Loss Detection: Yes
- Alarm input channels: 4
- Video Channel Inputs: 32 channels
- Counts people: Yes
- Backup function: Yes
- Supported audio formats
- PCM
- G.726
- G.711 A-law
- G.711 μ-law
- Video motion detection: Yes
- Face detection function: Yes
- Alarm output channels: 2
- Multi-screen: Yes
- Maximum frame rate: 30 fps
- Input bandwidth: 448 Mbit/s
- Output bandwidth: 448 Mbit/s
- Maximum resolution: 7680 x 4320 px
- Wireless LAN Features
- Wi-Fi: No

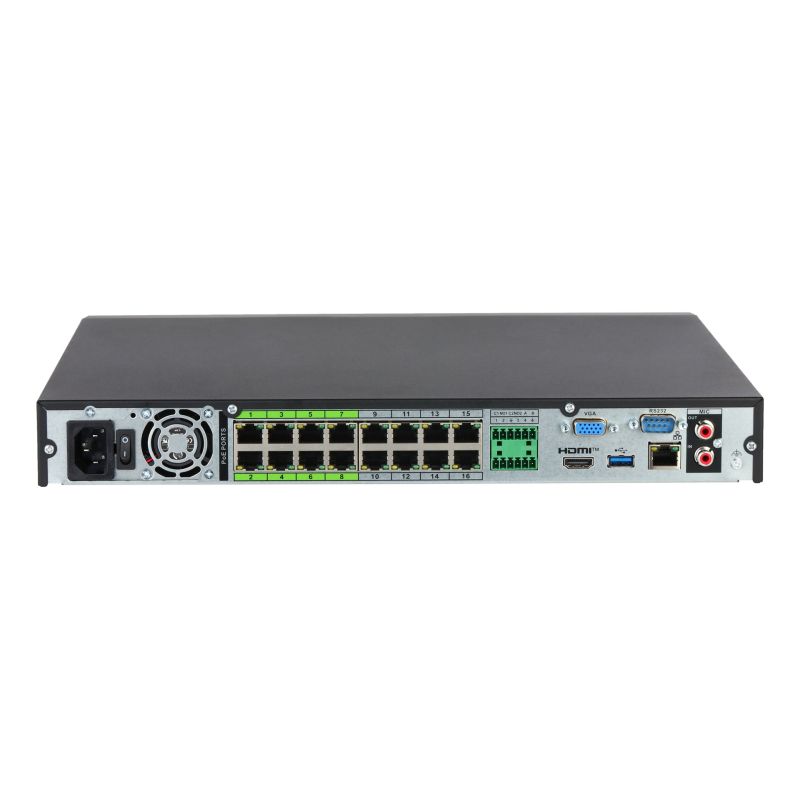

- Ports and interfaces
- Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, iSCSI, RTMP
- RS-485 ports: 1
- Number of Fast Ethernet (PoE) ports: 16
- Number of HDMI ports: 1
- RS232 connector: Yes
- PoE Support: Yes
- RCA audio outputs: 1
- RS-232 port: 1
- RCA audio connectors: 1
- VGA (D-Sub) Outputs: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- 1000 Mbps
- Number of USB 2.0 ports: 1
- Communication standards
- IEEE 802.3af
- IEEE 802.3at
- Hard drive
- Number of supported HDDs: 2
- Maximum storage capacity: 26 TB
- HDD interface: SATA
