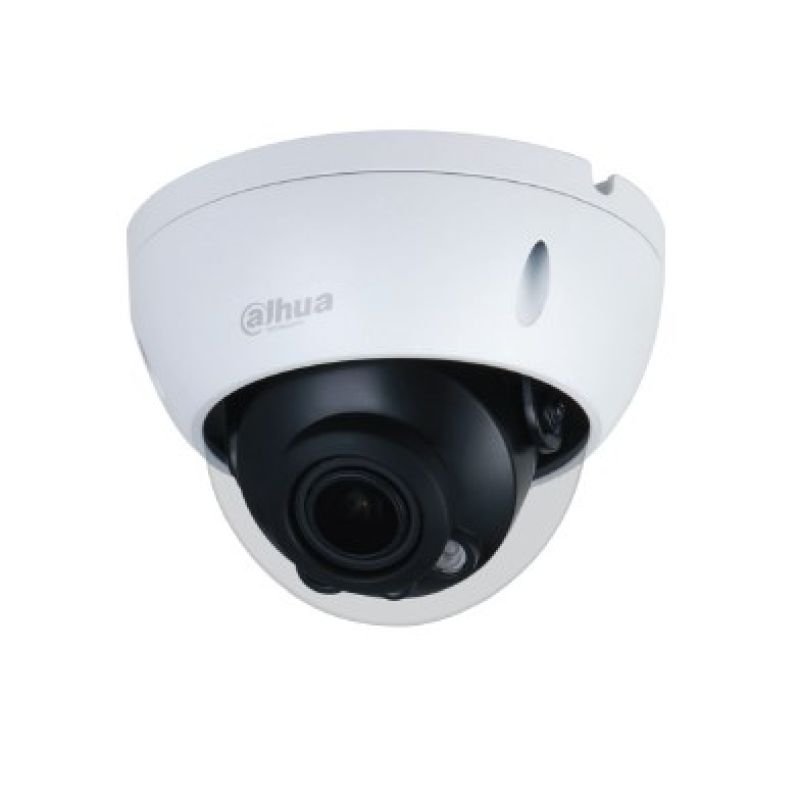

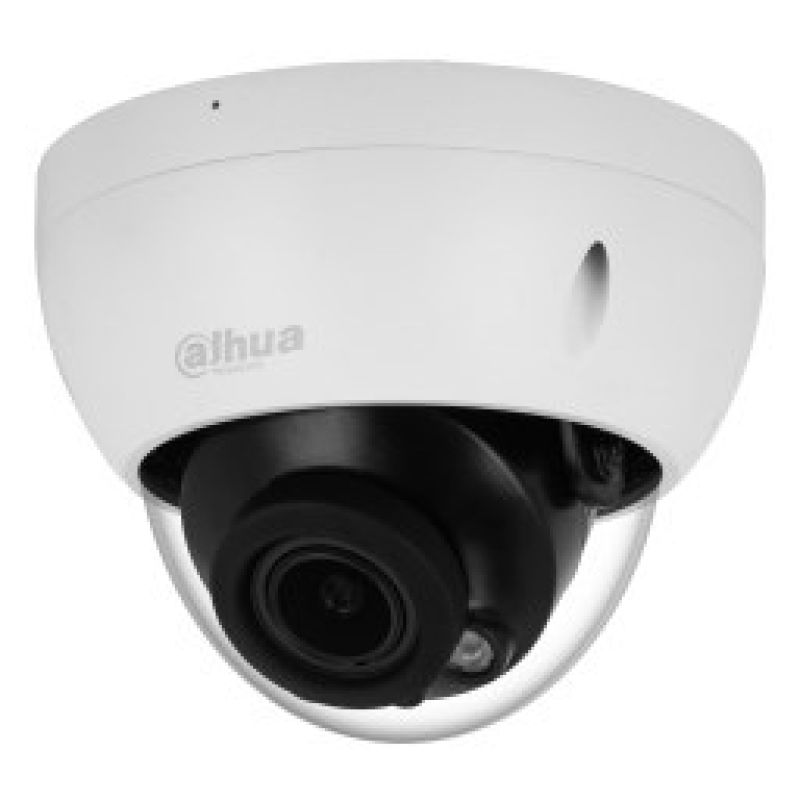

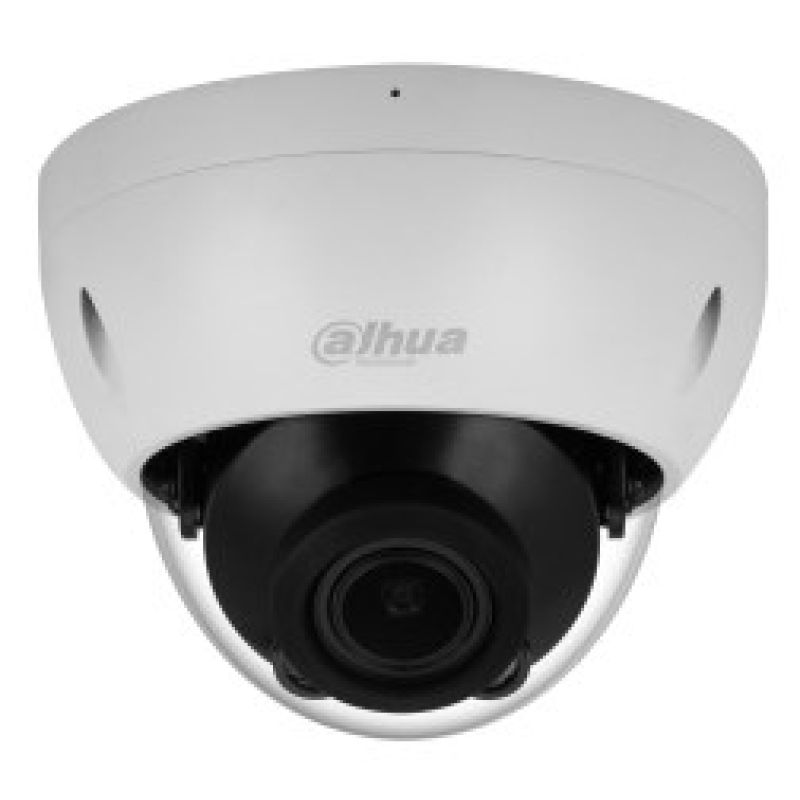

Dahua WizSense IPC-HDBW2441R-ZAS-27135 2688 x 1520 px Ceiling Industrial Camera
Dahua WizSense IPC-HDBW2441R-ZAS-27135 2688 x 1520 px Ceiling Industrial Camera
Dahua WizSense IPC-HDBW2441R-ZAS-27135 2688 x 1520 px Ceiling Industrial Camera
PRICE:
308,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- IP protection class: IP67
- Housing material: Metal
- IK code: IK10
- Mounting type: Ceiling
- Product color: White
- Layout: Dome
- Power
- Power consumption (PoE): 3.2 W
- DC Output (Volts): 12
- Power consumption (max): 6.5 W
- Power supply type: DC, PoE
- Power consumption: 2.3 W
- Weight and dimensions
- Product height: 93.4 mm
- Diameter: 12.2 cm
- Product weight: 520 g
- Security
- Alarm output channels: 1
- Alarm input channels: 1
- Video motion detection: Yes
- Mirror: Yes
- Management features
- Web browser: No
- Management software: Smart PSS; DSS; DMSS
- Working conditions
- Relative humidity range: 0 - 95%
- Temperature range (operation): -30 - 60 °C
- Temperature range (storage): -40 - 60 °C
- Network
- Wired LAN: Yes
- Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
- Wi-Fi: No
- Number of users: 6 users
- Bluetooth: No
- System requirements
- Support for mobile operating systems
- Android
- iOS
- Support for mobile operating systems
- Efficiency
- Wide Dynamic Range (WDR): Yes
- Intended use: Outdoor
- Day/Night Mode: Yes
- Dynamic range: 120 dB
- Connection method: Wired
- Model: IP Security Camera
- Packaging data
- Weight with packaging: 680 g
- Package contents
- Number of cameras: 1
- Audio
- Audio input channels: 1.0 ch.
- Supported audio formats
- G.726
- PCM
- G.711 μ-law
- G.711 A-law
- Signal-to-noise ratio: 56 dB
- Built-in speakers: Yes
- Audio output channels: 1.0 ch.
- Built-in microphone: Yes
- Data carrier
- Built-in HDD: No
- Internal memory capacity: 128 MB
- Flash memory size: 128 MB
- Maximum memory card size: 256 GB
- Supported memory cards: MicroSD
- Integrated card reader: Yes
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- White balance
- Region
- Natural
- Manual
- Street lamp
- External
- Automatic
- Rotation angle: 355°
- Shutter speed: 1/3 - 1/100000 s
- Min. Illumination: 0 lx
- Swivel range: 0 - 355°
- Camera shutter type: Electronic
- Shutter Speed Adjustment: Auto/Manual
- Lens viewing angle, diagonal: 125 - 34°
- Lens viewing angle, horizontal: 104 - 29°
- Number of privacy masking areas: 4
- Vertical lens viewing angle: 54 - 16°
- Tilt angle range: 0 - 75°
- White balance
- Photosensitive matrix
- CCD sensor size: 25.4 / 2.9 mm (1 / 2.9")
- Progressive Scan: Yes
- Image sensor type: CMOS
- Night mode
- Night Vision Distance: 40 m
- Number of lighting diodes: 2
- LED type: Infrared
- Night mode: Yes
- Video
- Noise reduction: Yes
- Backlight compensation: Yes
- Data transfer speed: 12 kbps–6144 kbps
- Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Total megapixels: 4 MP
- Highlight Compensation (HLC): Yes
- Compression formats
- H.264H
- M-JPEG
- H.264B
- H.265
- H.264
- Control Gain: Auto/Manual
- Noise reduction technology: 3D noise reduction
- Maximum resolution: 2688 x 1520 px
- Supported graphics resolutions
- 704 x 480
- 2560 x 1440
- 1920 x 1080 (HD 1080)
- 352 x 288
- 352 x 240
- 704 x 576
- 1280 x 960
- 1280 x 720 (HD 720)
- 2304 x 1296
- 640 x 480 (VGA)
- 2688 x 1520
- Lens system
- Focal length: 2.7 - 13.5 mm
- Minimum aperture: 1.5
- Detection distance (wide): 64 m
- Observing distance (tele): 84 m
- Distance measurement (tele): 21 m
- Distance Recognition (Tele): 42 m
- Distance measurement (wide): 6.4 m
- Recognition distance (wide): 12.8 m
- Detection distance (tele): 210 m
- Observing distance (wide): 25.6 m
- Minimum focal distance: 0.8 m
- Safety warning
- Warnings
- Avoid exposing the device to direct water or moisture.
- Start and operate the device according to the operating instructions to avoid the risk of electric shock.
- The product contains electronic components and should not be disposed of in regular waste.
- It is forbidden to open the device yourself; service and repairs should be performed by qualified personnel.
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- Warnings
| Name | Details |
|---|---|
| Producer | DAHUA |
