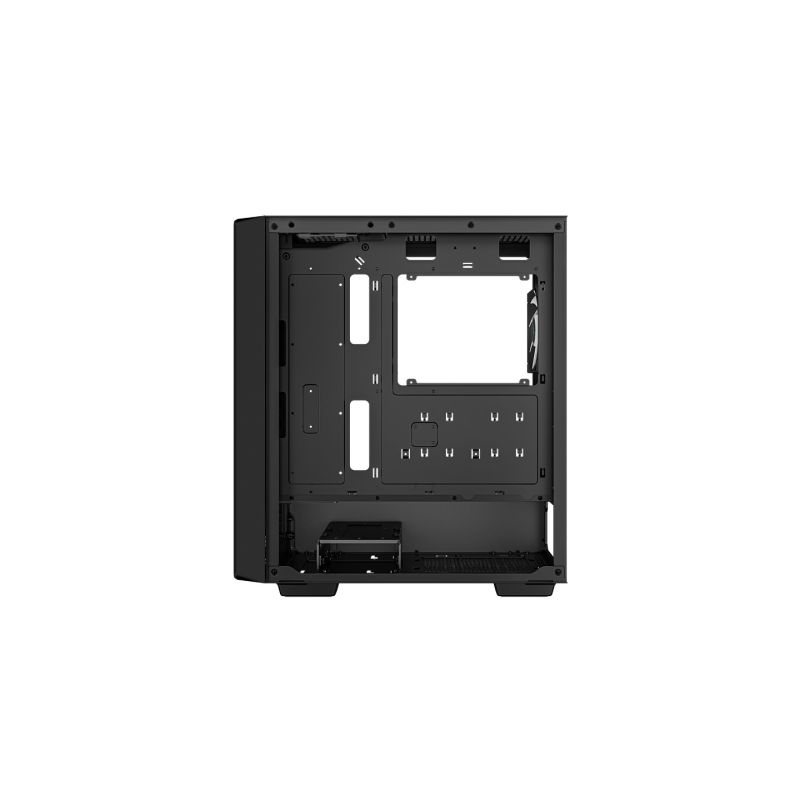

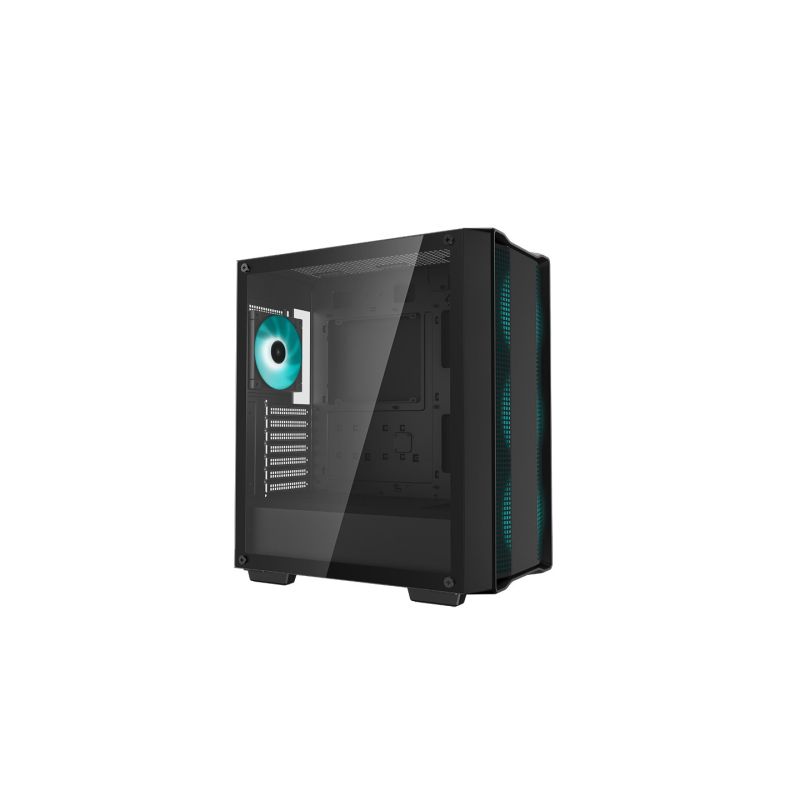

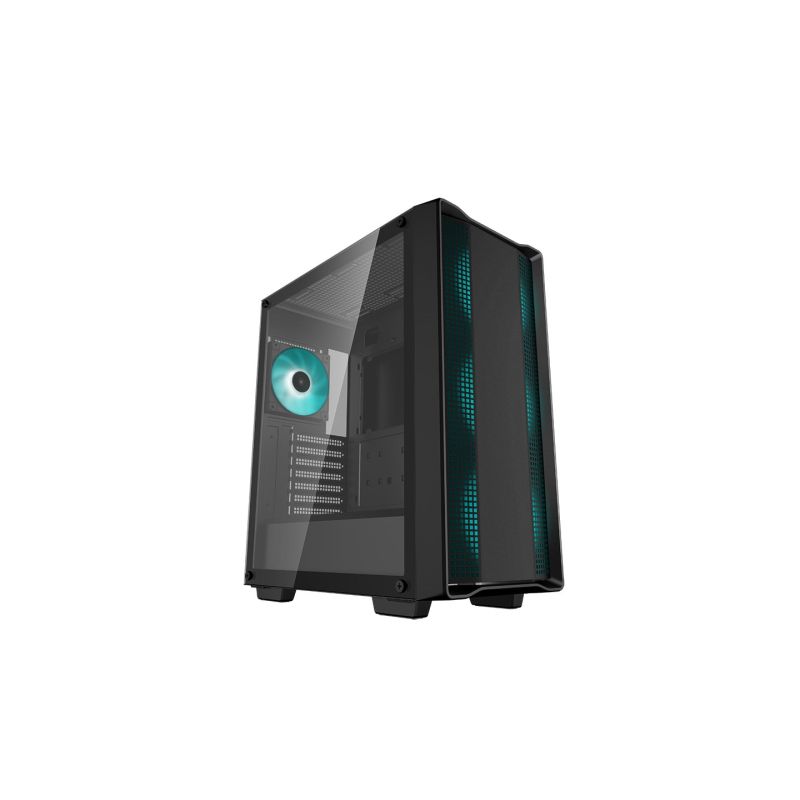

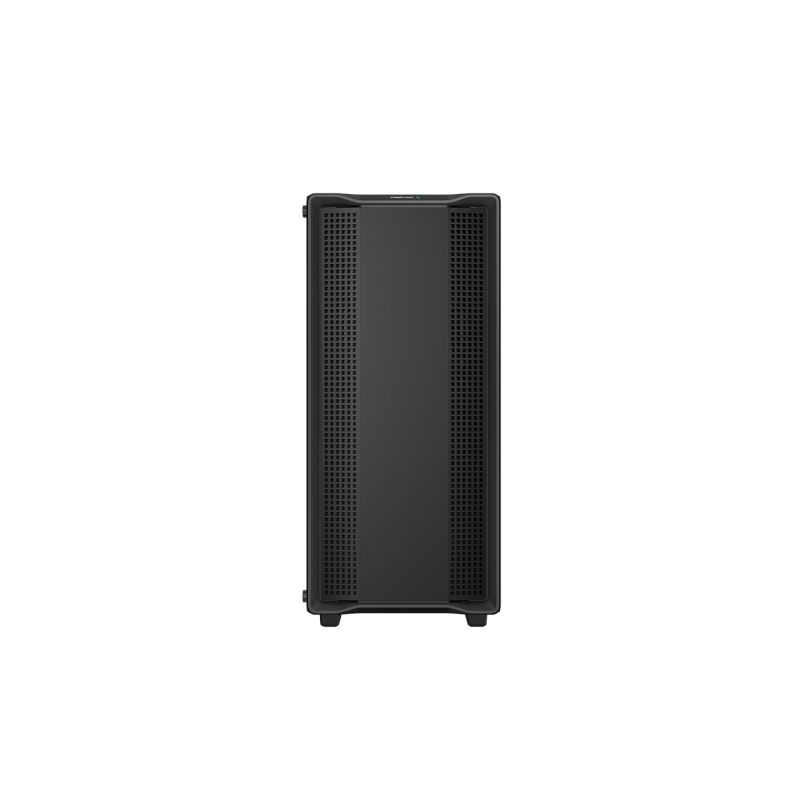

DeepCool CC560 V2 Case
DeepCool CC560 V2 Case
Sign up and unlock up to 10% off!
- Design
- Intended use: Gaming
- Maximum CPU cooler height: 16.5 cm
- Model: PC
- Tempered glass panel(s): Yes
- Materials
- ABS
- SPCC
- Tempered glass
- Maximum length of graphics cards: 37 cm
- Product color: Black
- Cable management: Yes
- Number of 2.5" bays: 3
- On/Off Button: Yes

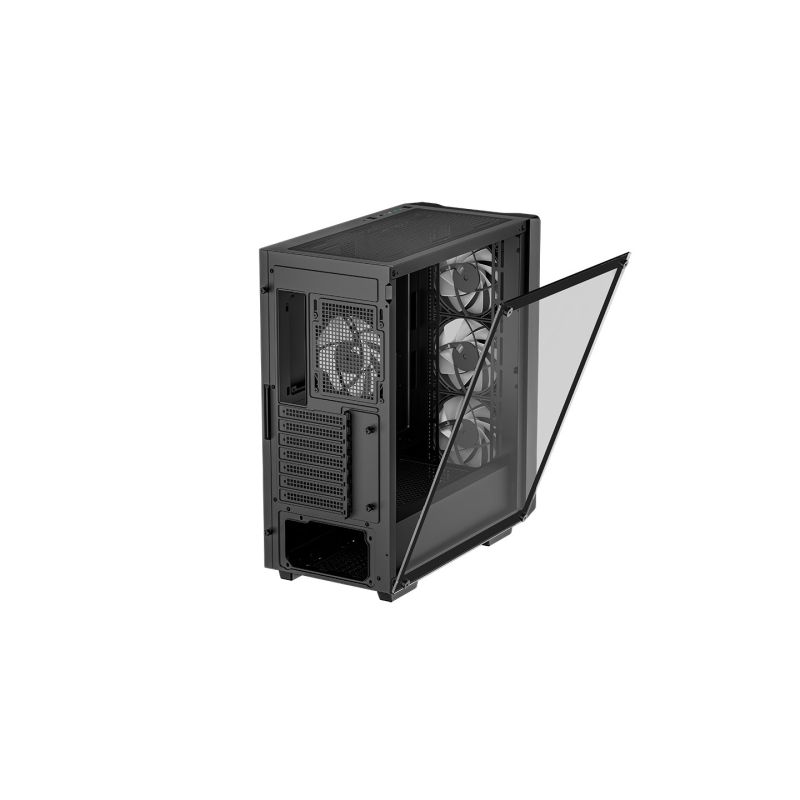

- Side window: Yes
- Backlight: Yes
- Number of expansion slots: 7
- Backlight color: Multicolor
- Maximum PSU length: 17 cm
- Layout: Midi Tower
- Number of 3.5" bays: 2
- Lighting location
- Case fan

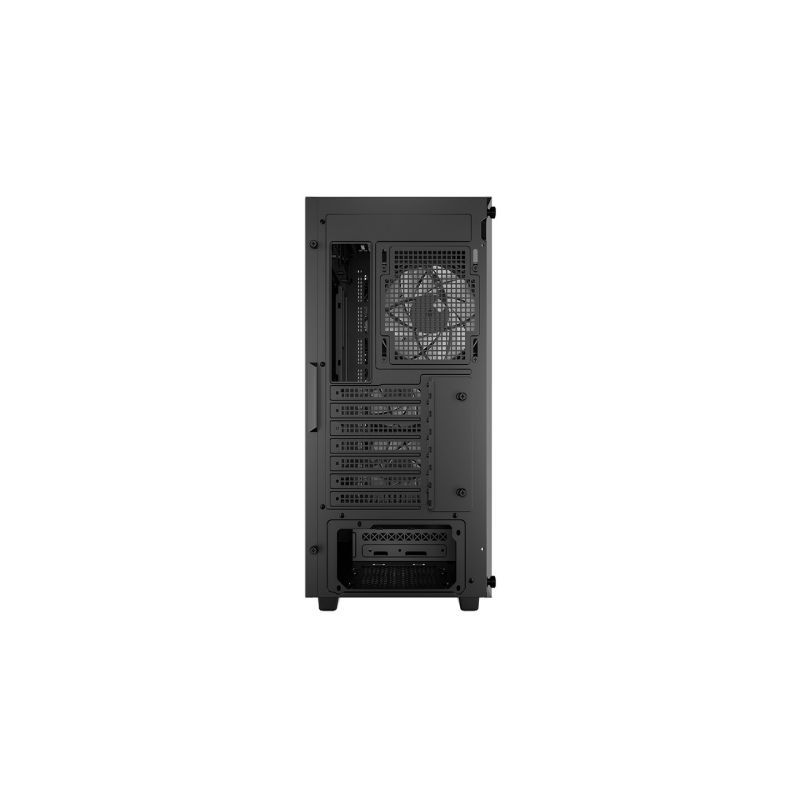

- Rear
- Front
- Reset button: No
- Supported motherboard type
- ATX
- micro ATX
- Mini-ITX
- Weight and dimensions
- Product depth: 432 mm
- Product width: 215 mm
- Product height: 483 mm
- Product weight: 7.2 kg
- Data carrier
- Supported hard drive sizes
- 2.5
- 3.5"
- Supported hard drive sizes

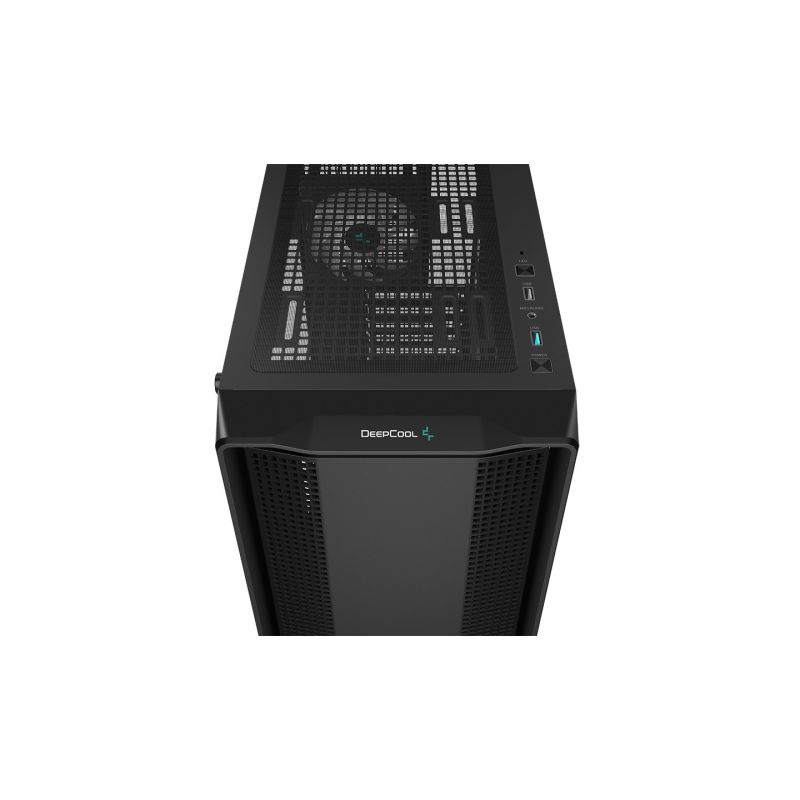

- Ports and interfaces
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Audio output: Yes
- Number of USB 2.0 ports: 1
- Safety warning
- Warnings
- Keep the product away from water sources to prevent electrical damage.
- Ensure adequate case ventilation to avoid components overheating.
- Be careful of sharp edges during assembly.
- Warnings
- Cooling
- Supported top fan diameter
- 140 mm
- 120
- Supported front radiator sizes
- 240
- 140
- 120
- 280
- 360 mm
- Maximum number of rear fans: 1
- Supported top cooler sizes
- 240
- 120
- 140
- Supported front fan diameters
- 120
- 140 mm
- Liquid Cooling Capacity: Yes
- Maximum number of front fans: 3

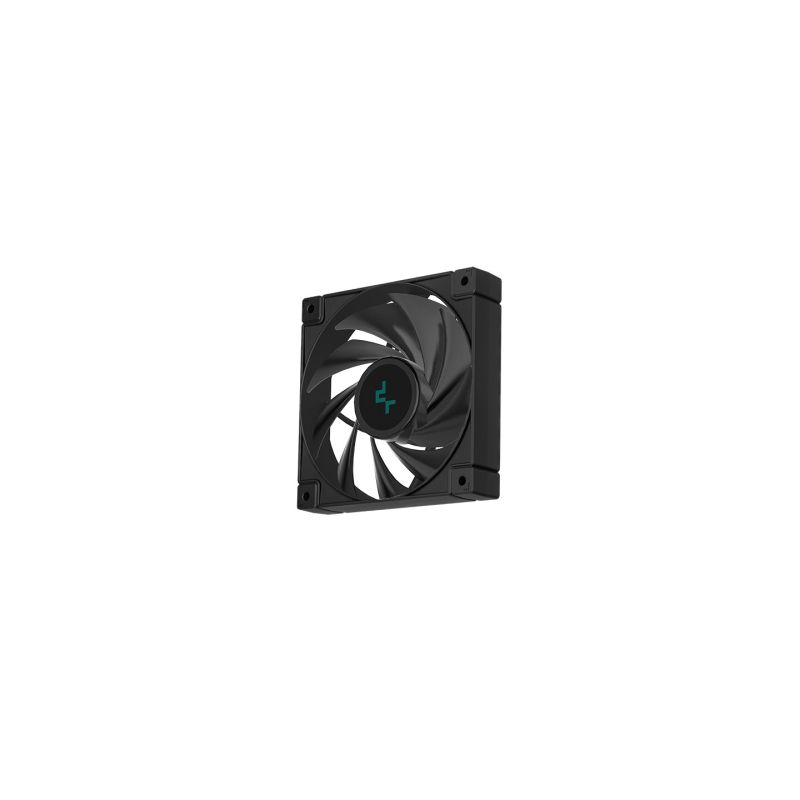

- Installed rear fans: 1x 120mm
- Maximum number of top fans: 2
- Supported rear radiator sizes: 120mm
- Supported rear fan diameter: 120 mm

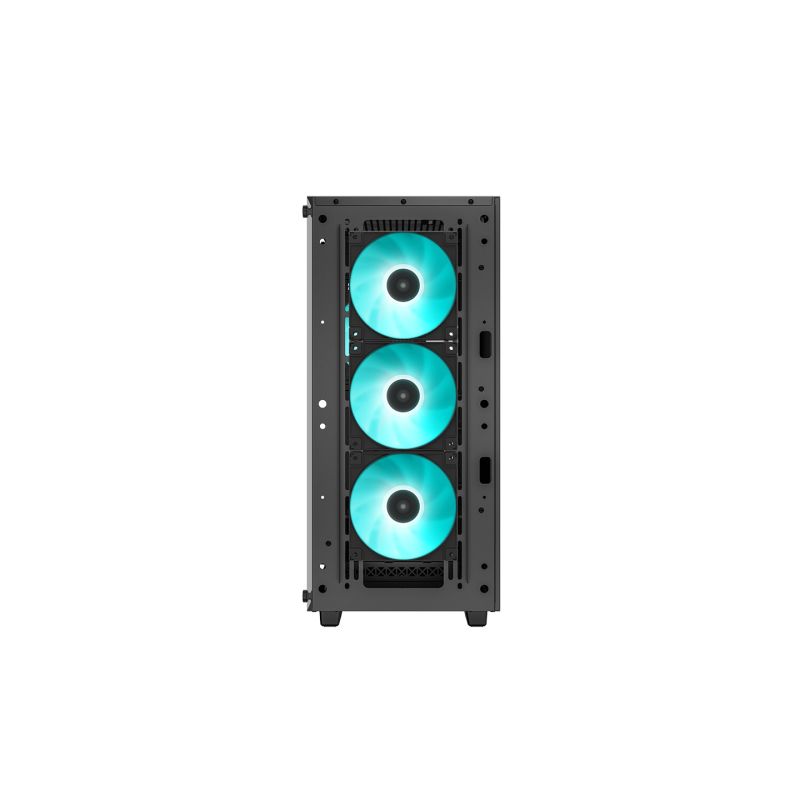

- Installed front fans: 3x 120mm
- Supported top fan diameter
- Power supply
- Power Location: Lower
- Power Supply Included: No
- Supported power supply types
- PS2
- ATX
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | DEEPCOOL |
