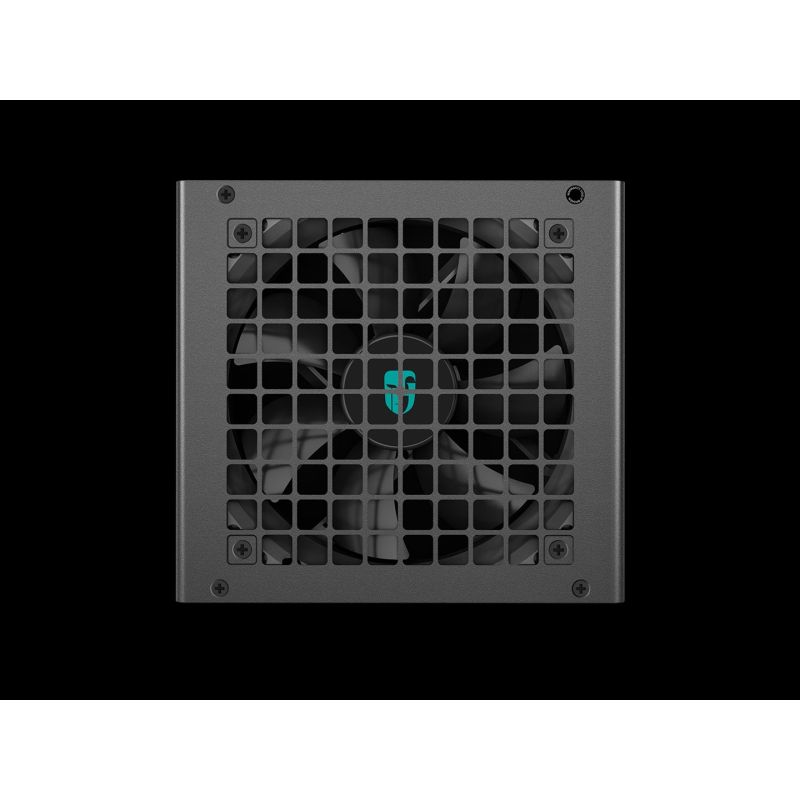

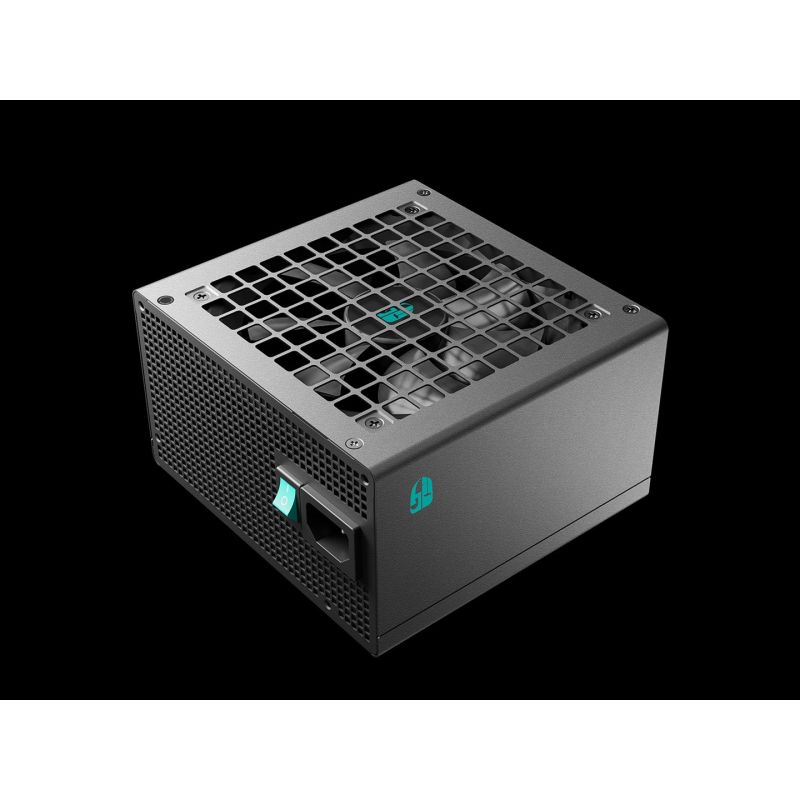

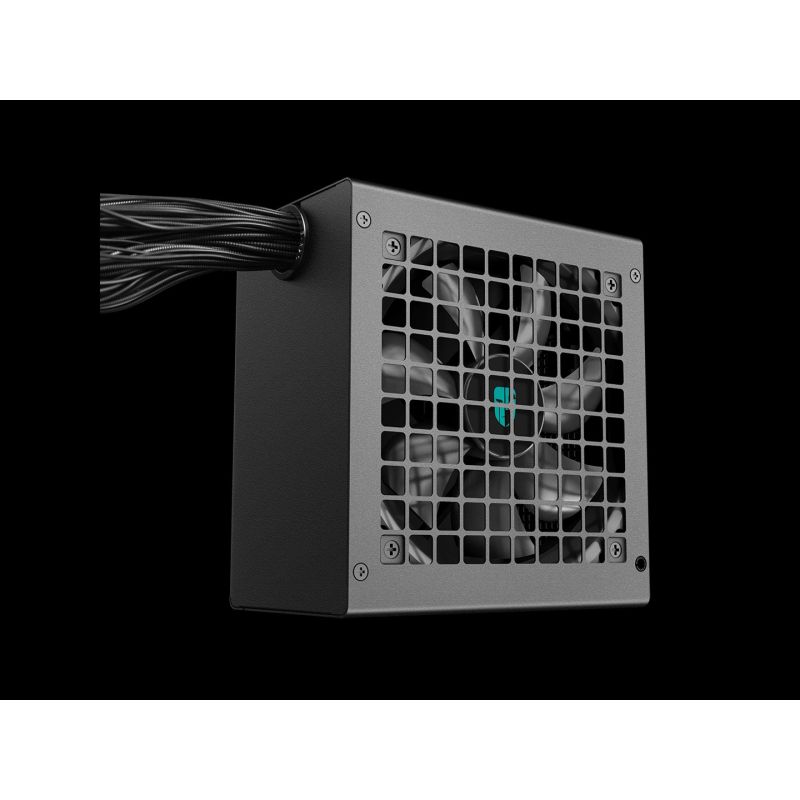

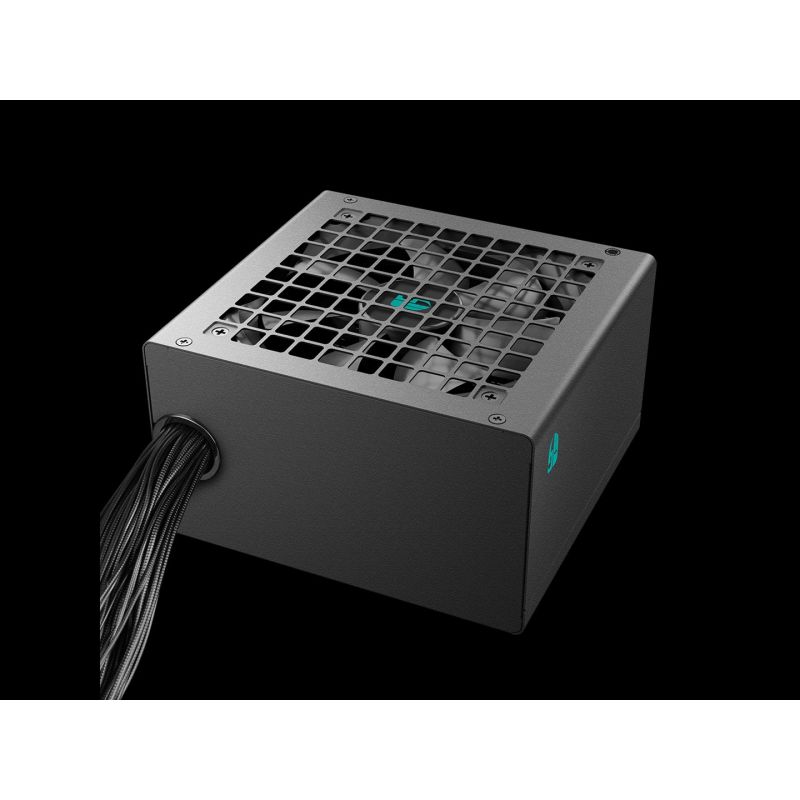

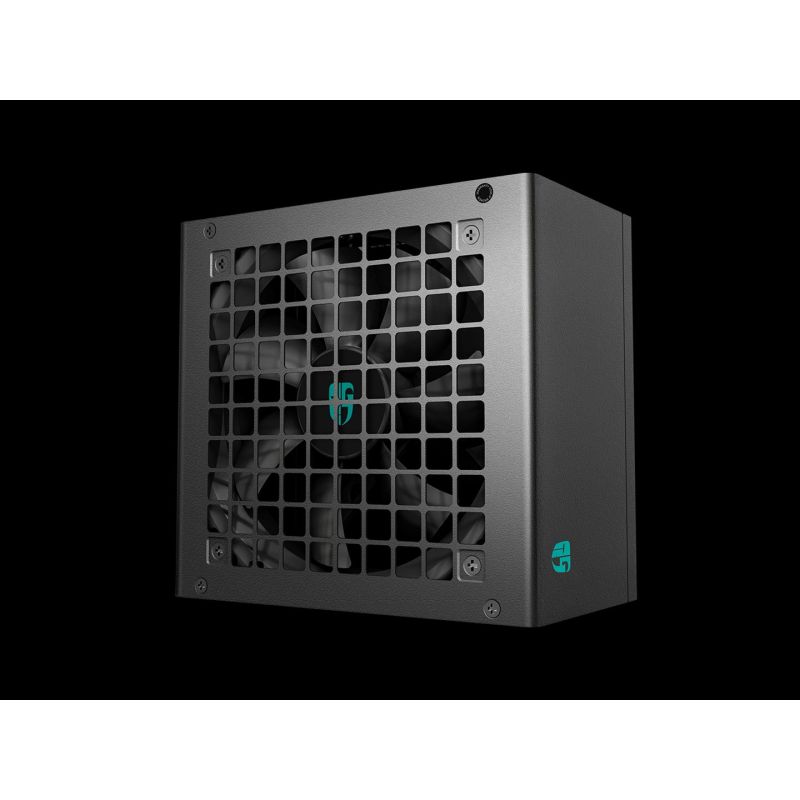

DeepCool PF600X Power Supply
DeepCool PF600X Power Supply
DeepCool PF600X Power Supply
PRICE:
59,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental certificate (sustainable development)
- China RoHS
- Triman
- WEEE
- Sustainability: Yes
- Environmental certificate (sustainable development)
- Design
- Fan bowl diameter: 12 cm
- Number of fans: 1 fan
- Cooling type: Active
- Product color: Black
- Power
- Total power (+5V): 100 W
- Total power (+12V): 600 W
- Maximum output current (-12V): 0.3A
- Maximum output current (+3.3V): 16 A
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+5 Vsb): 3 A
- Total power (-12V): 3.6 W
- Total power: 600 W
- Total power (+5 Vsb): 15 W
- Power protection features
- SCP
- OTP
- OPP
- OCP
- OVP
- SIP
- UVP
- NLO
- Efficiency: 88%
- Maximum output current (+12V): 50A
- Total power (+3.3V): 100 W
- Maximum output current (+5V): 16A
- Good Signal Power Delay Range: 100 - 150 ms
- Hold time: 16 ms
- AC input voltage: 200 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 5 A
- Weight and dimensions
- Product depth: 140 mm
- Product height: 86 mm
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- Intended use: PC
- Bearing technology: HYB
- MTBF (Mean Time Between Failures): 40000 h
- ATX version: 2.52
- Power supply type (PSU): ATX
- 80 PLUS Certificate: 80 PLUS Bronze
- Packaging data
- Packaging type: Box
- Package contents
- Wires: Alternating Current
- Certificates
- Certificates of conformity
- CE
- CCC
- Central Committee
- RCM
- Certificates of conformity
- Ports and interfaces
- PCI Express power connectors (6+2 pin): 2
- Motherboard power connector: 24-pin ATX
- CPU power supply connector (4+4 pin): Yes
- SATA power cable length
- 600
- 750 mm
- 450
- 900 mm
- Number of SATA power connectors: 8
- Motherboard cable length: 55 cm
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | DEEPCOOL |
| Department | Electronics |
