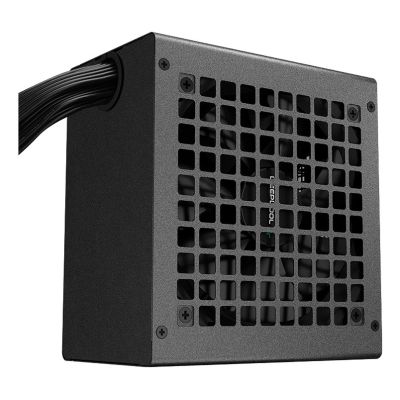

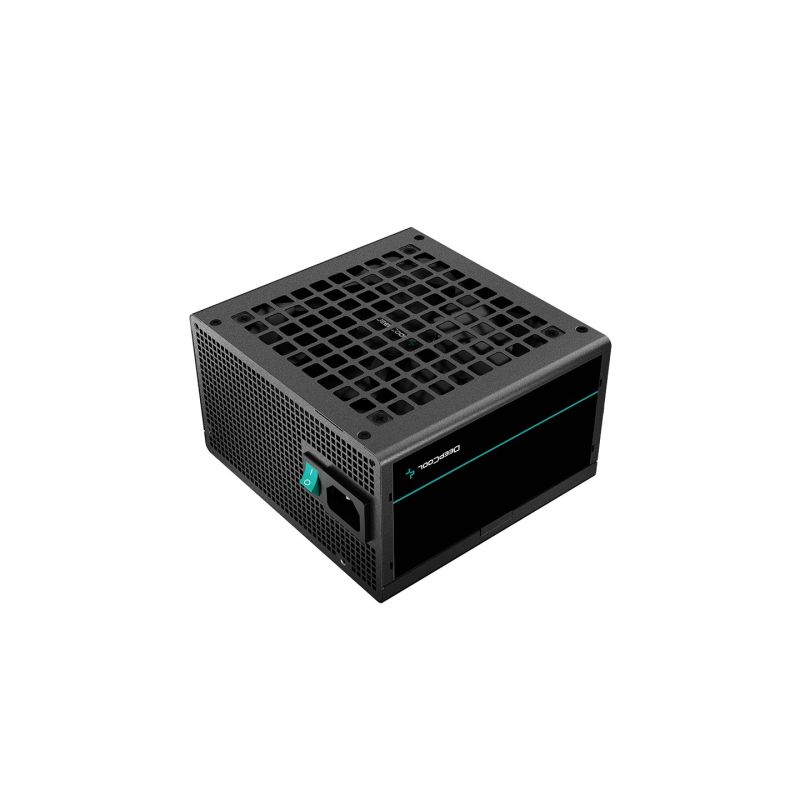

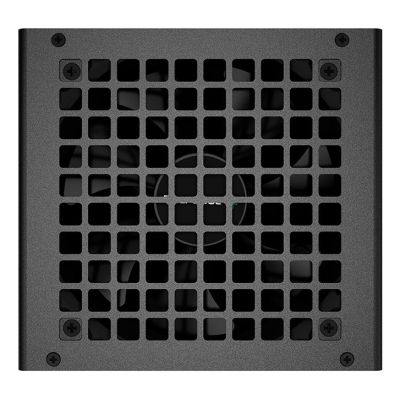

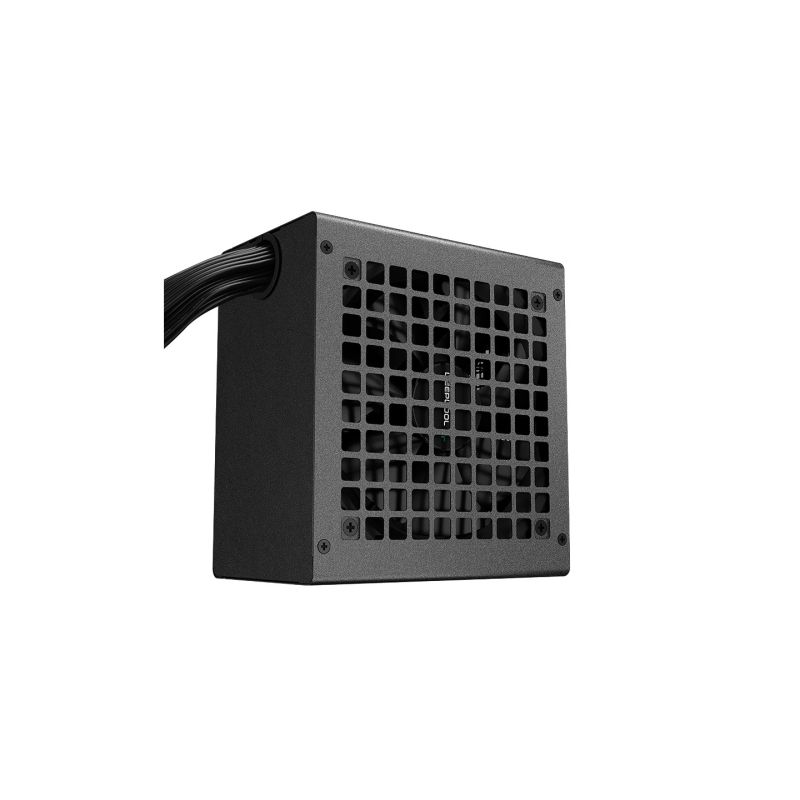

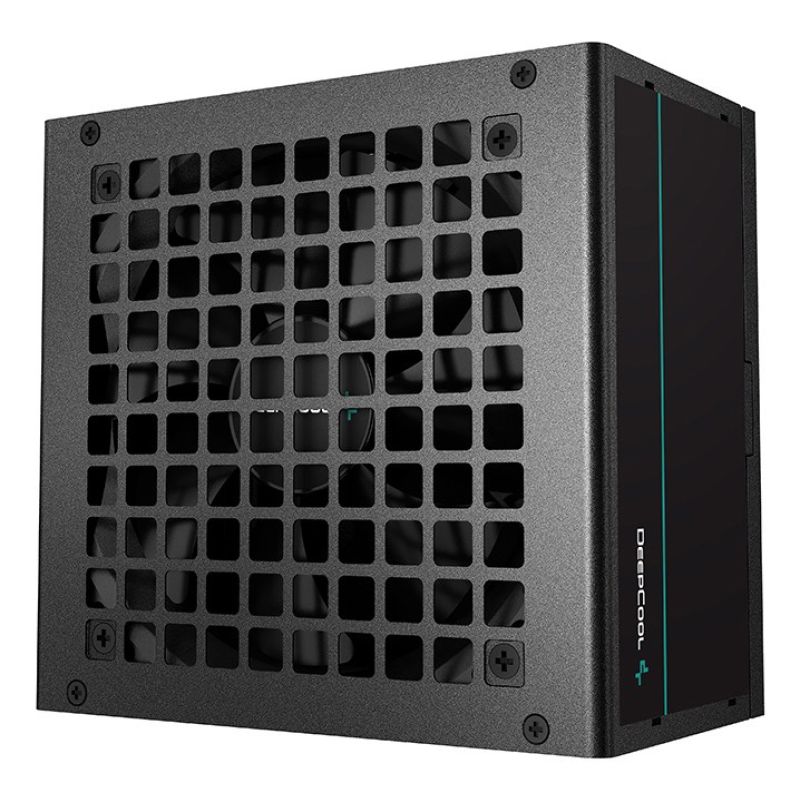

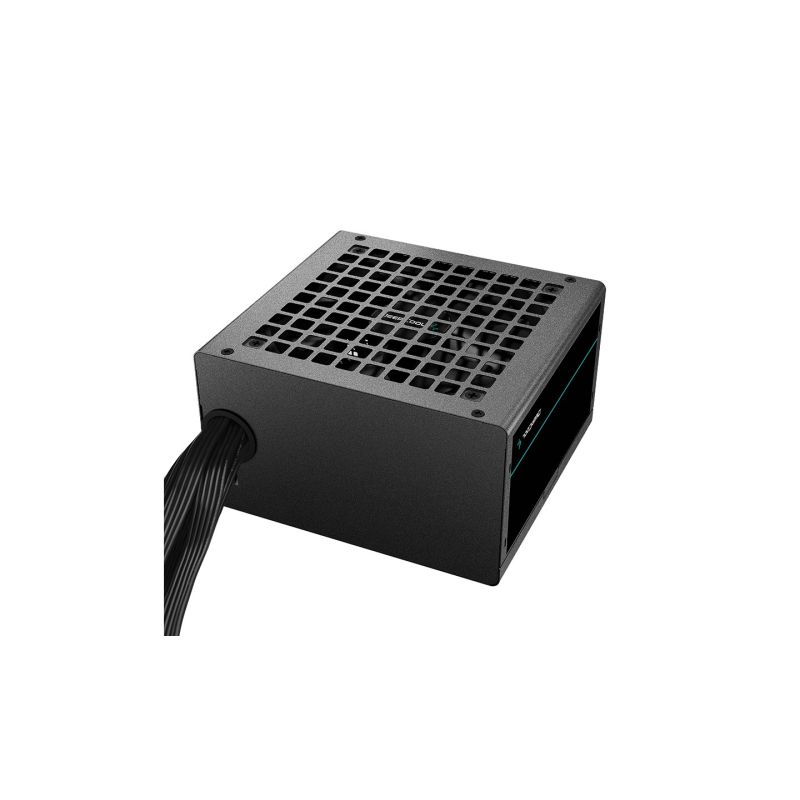

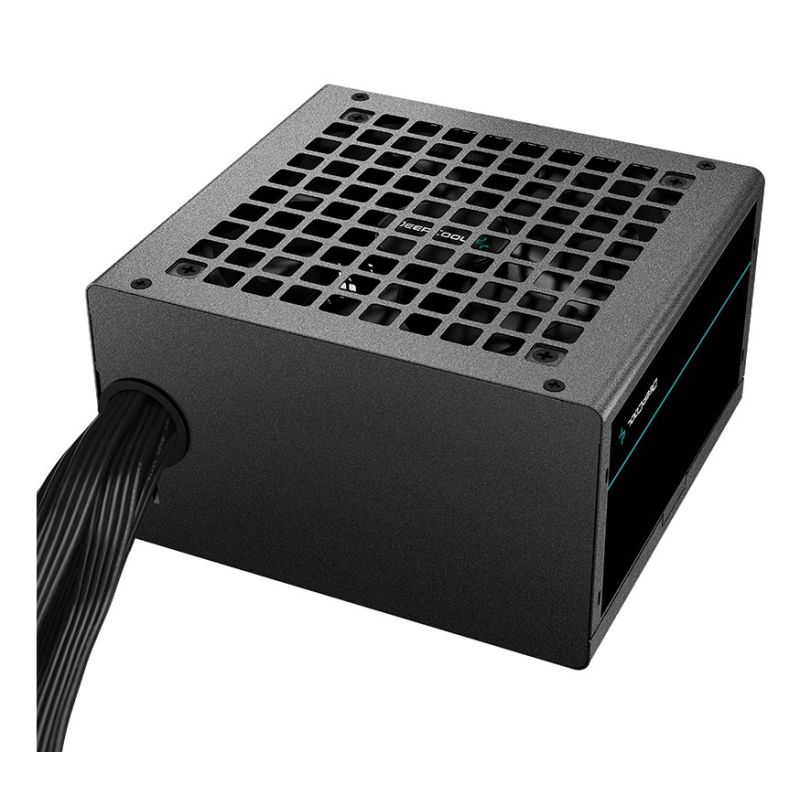

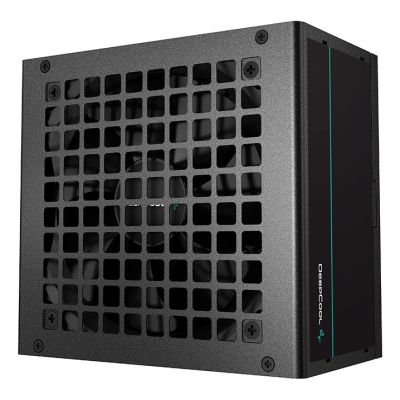

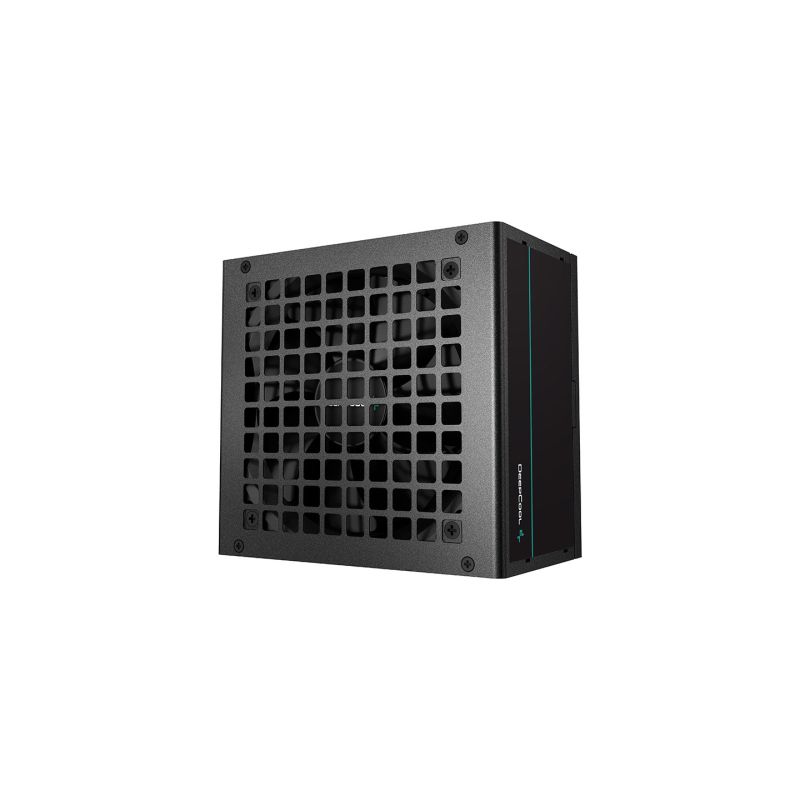

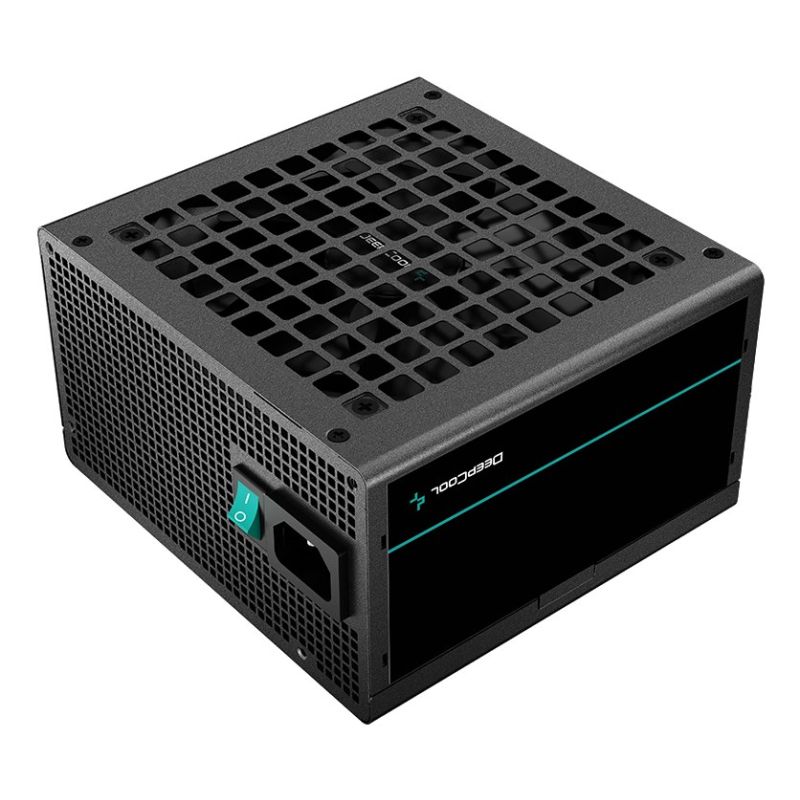

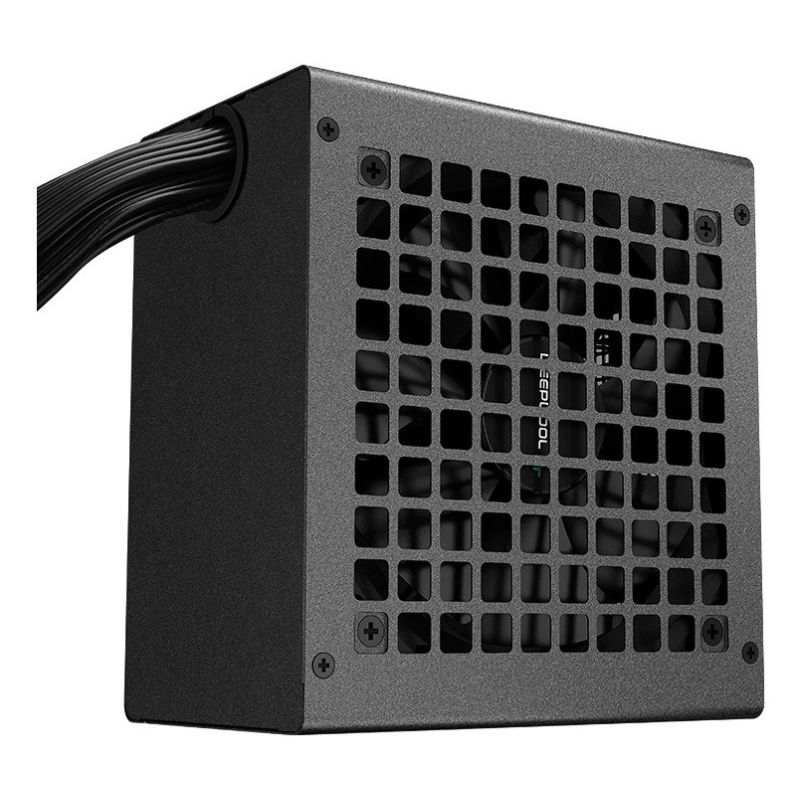

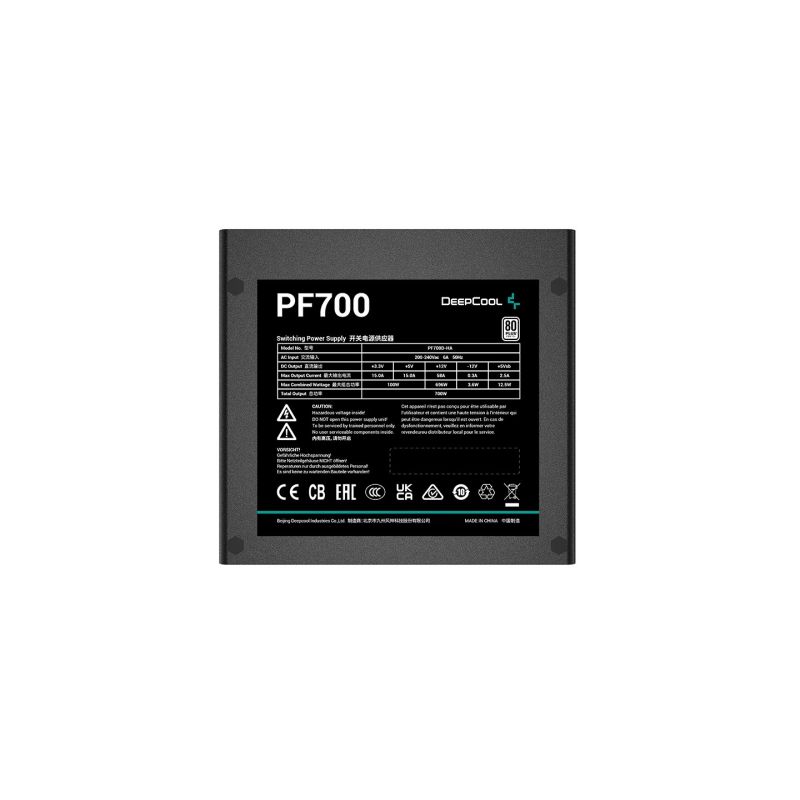

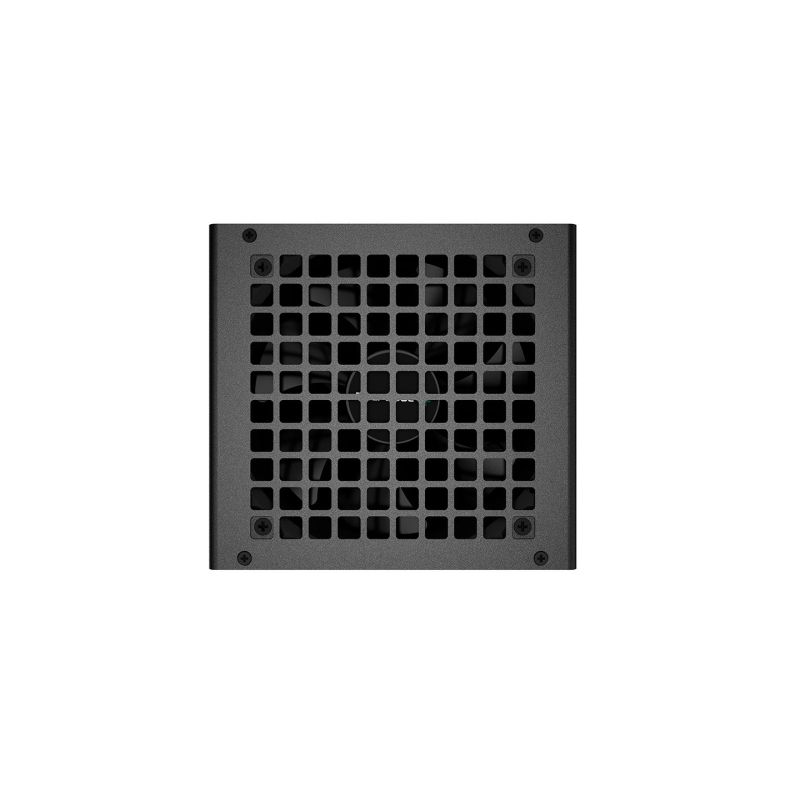

DeepCool PF700 Power Supply Module 700W 20+4 pin ATX ATX Black
DeepCool PF700 Power Supply Module 700W 20+4 pin ATX ATX Black
DeepCool PF700 Power Supply Module 700W 20+4 pin ATX ATX Black
PRICE:
71,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Cooling type: Active

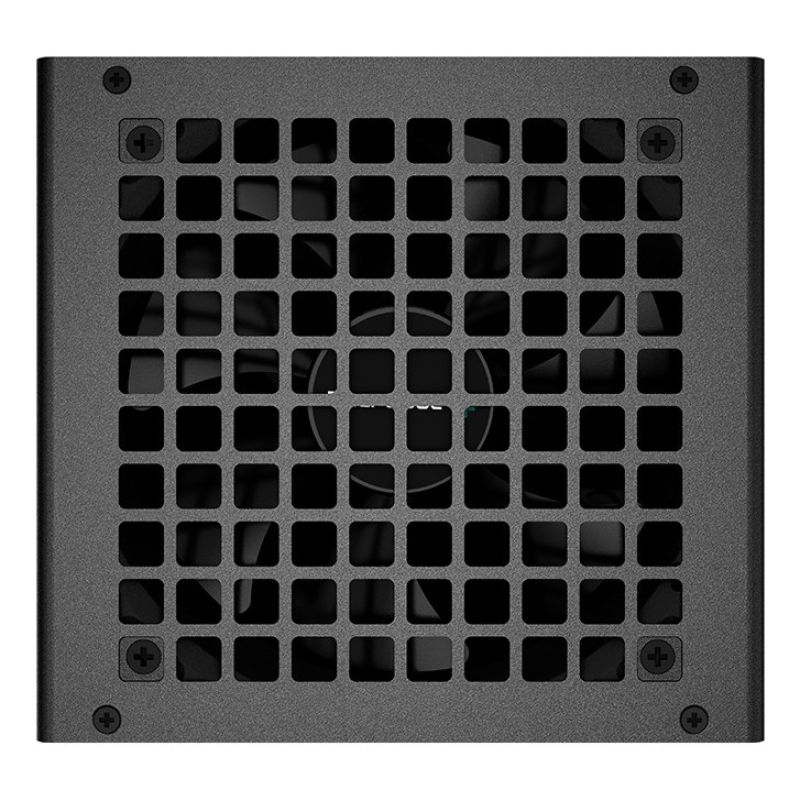

- Fan bowl diameter: 12 cm
- Built-in switch: Yes
- Number of fans: 1 fan
- Product color: Black
- Power
- Maximum output current (+5V): 15A
- Total power: 700 W
- Efficiency: 85%
- AC input frequency: 50 Hz
- Total power (+5V): 100 W
- AC input voltage: 220 - 240 V
- Total power (+5 Vsb): 12.5 W
- Maximum output current (+5 Vsb): 2.5 A
- Power protection features
- Short circuit
- Overload protection
- Protection against overvoltage
- Low voltage protection
- Hold time: 12 ms
- Total power (+3.3V): 100 W
- Total power (+12V): 696 W
- Maximum output current (-12V): 0.3A
- Maximum output current (+3.3V): 15 A
- Maximum output current (+12V): 58A
- Total power (-12V): 3.6 W
- Weight and dimensions
- Product depth: 140 mm
- Product height: 86 mm
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- 80 PLUS Certificate: 80 PLUS
- Intended use: PC/server
- Power supply type (PSU): ATX
- MTBF (Mean Time Between Failures): 100000 h
- ATX version: 2.4
- Packaging data
- Packaging type: Box
- Package contents
- Wires: Alternating Current
- Ports and interfaces
- PCI Express power connectors (6+2 pin): 2
- Wiring Type: Non-Modular
- Number of SATA power connectors: 4
- EPS power connector (4+4 pin): Yes
- Motherboard power connector: 20+4 pin ATX
- Motherboard cable length: 55 cm
- SATA power cable length
- 450
- 750 mm
- 900 mm
- 600
| Name | Details |
|---|---|
| Producer | DEEPCOOL |
