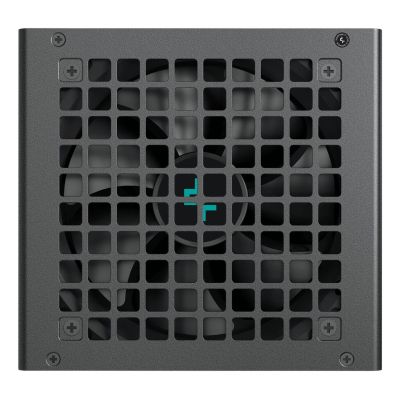

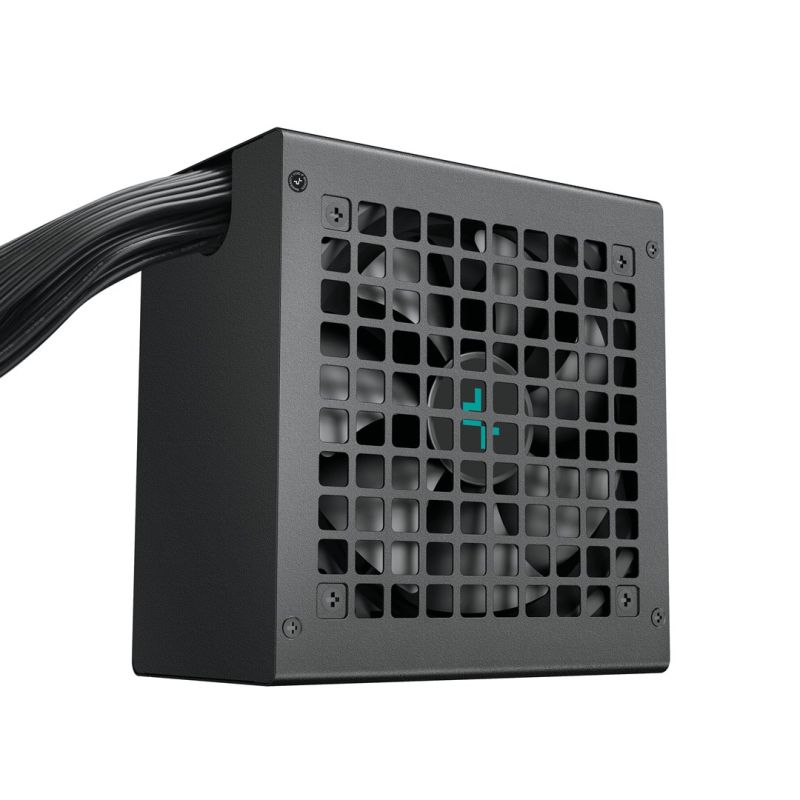

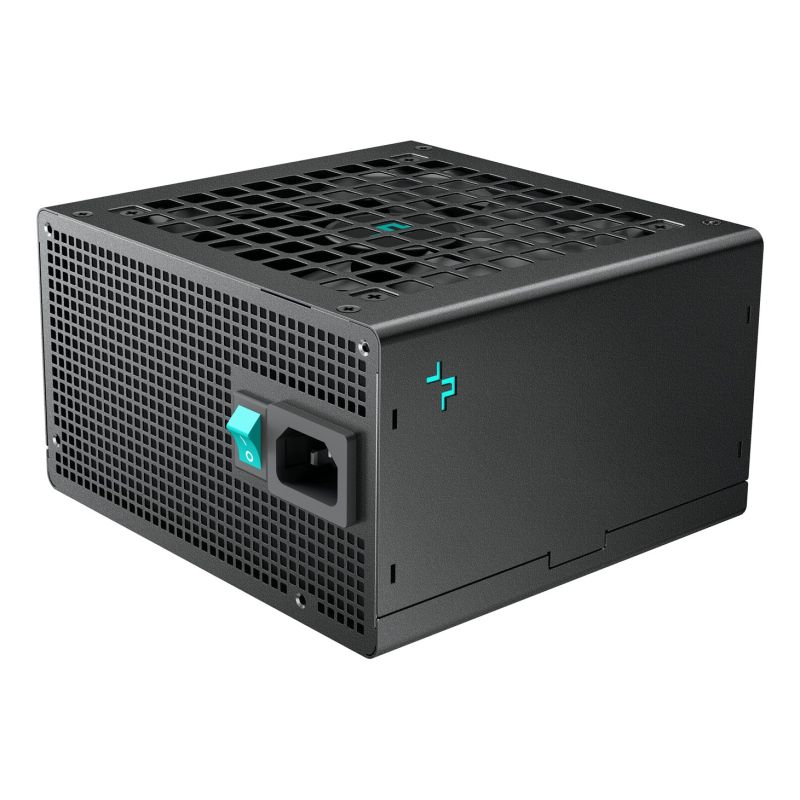

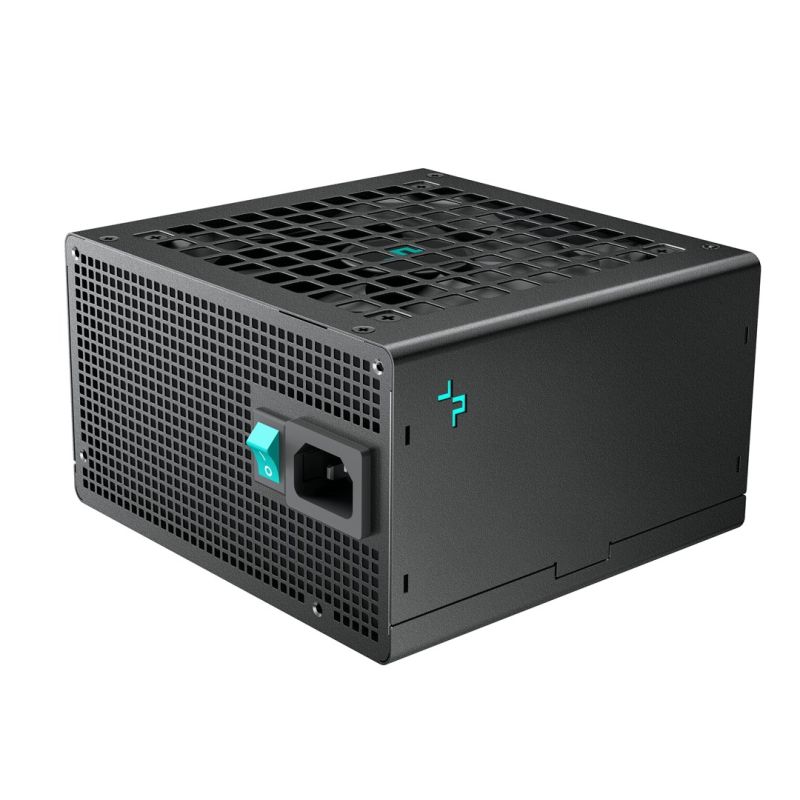

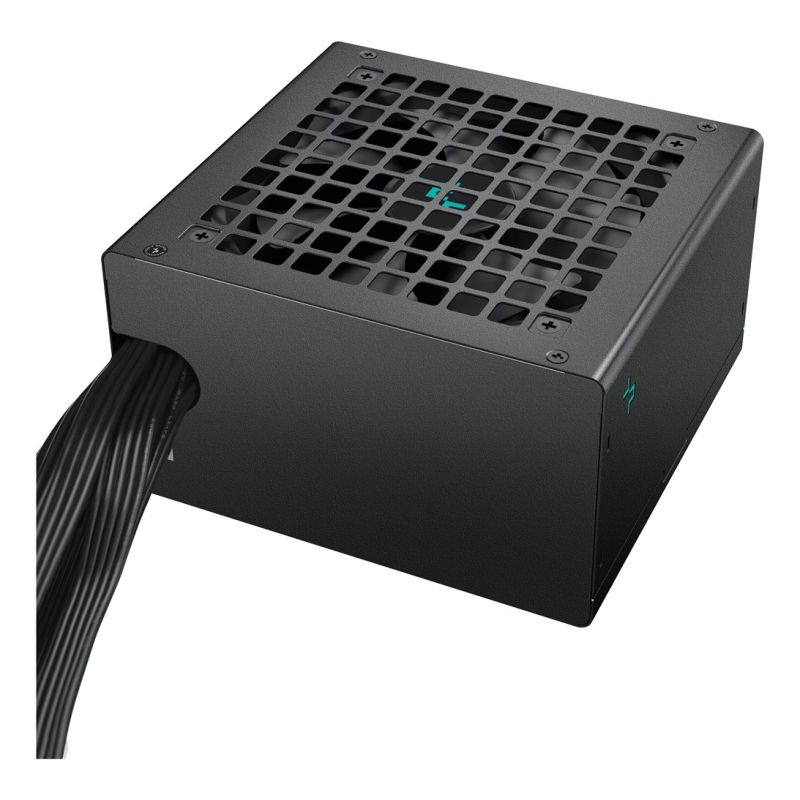

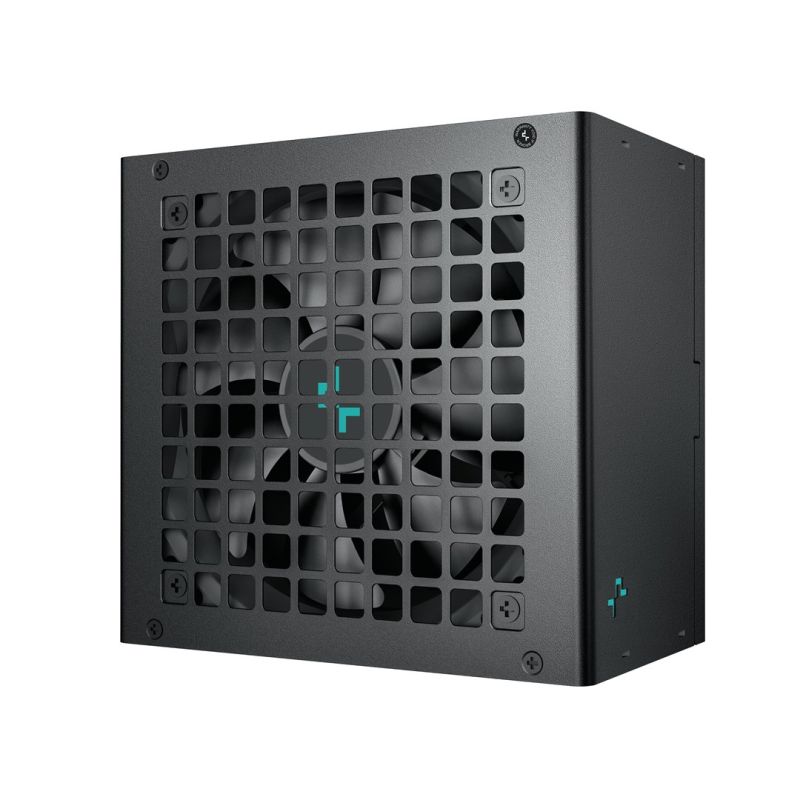

DeepCool PL750D Power Supply Module 750 W 20+4 pin ATX ATX Black
DeepCool PL750D Power Supply Module 750 W 20+4 pin ATX ATX Black
DeepCool PL750D Power Supply Module 750 W 20+4 pin ATX ATX Black
PRICE:
98,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Sustainability: Yes
- Environmental certificate (sustainable development)
- ErP
- Triman
- Certificates of conformity
- WEEE
- RoHS
- Design
- Fan bowl diameter: 12 cm
- Cooling type: Active
- Product color: Black

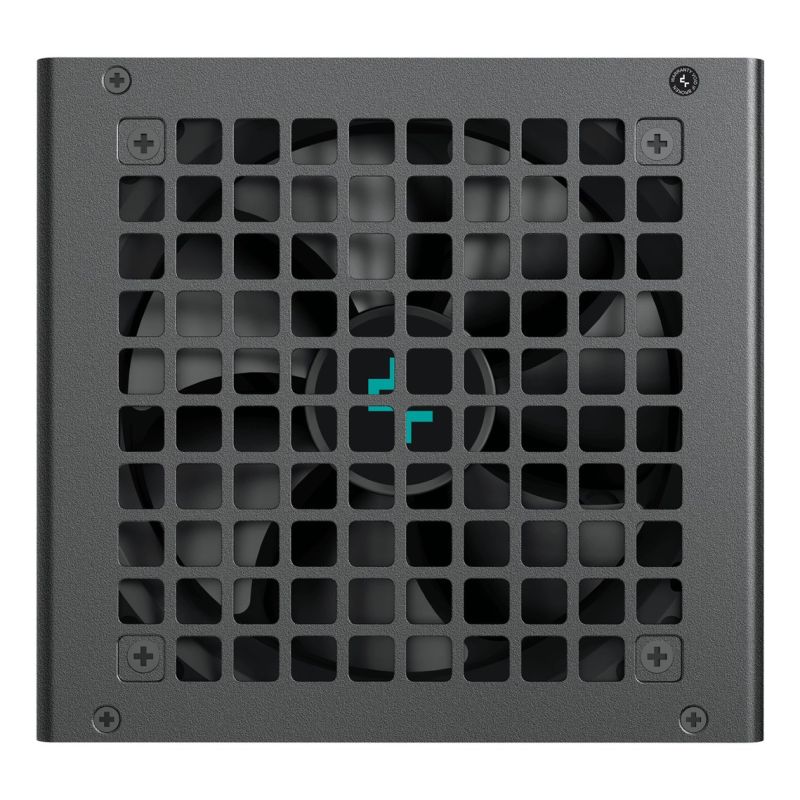

- Fan Location: Top
- Number of fans: 1 fan
- Built-in switch: Yes

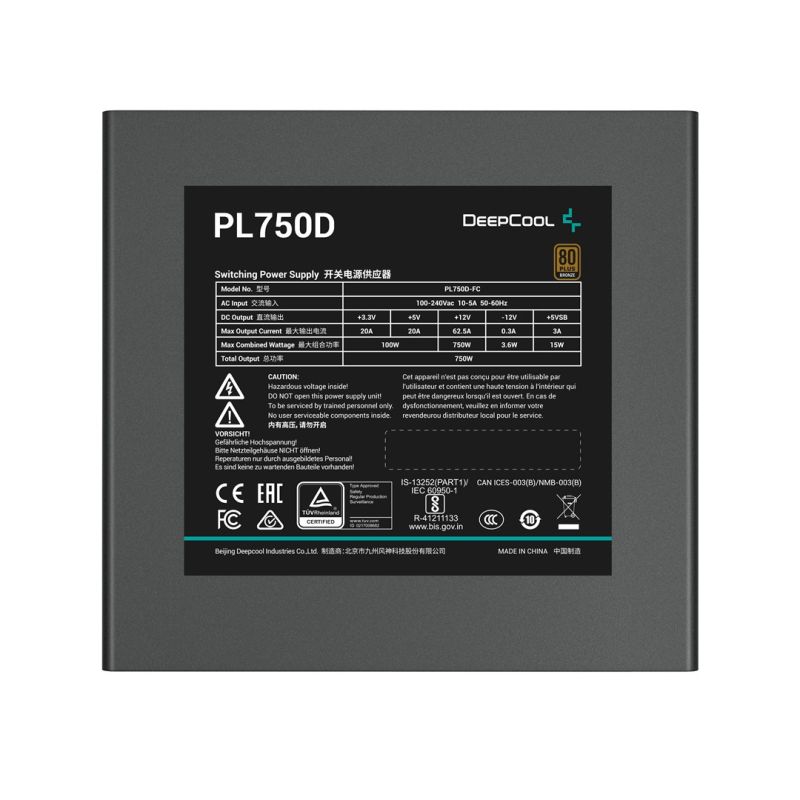

- Power
- AC input frequency: 50/60 Hz
- Total power (-12V): 3.6 W
- Good Signal Power Delay Range: 100 - 150 ms
- Maximum output current (-12V): 0.3A
- Total power (+5V): 100 W
- Maximum output current (+12V): 62.5A
- Efficiency: 85%
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+3.3V): 20 A
- Total power (+5 Vsb): 15 W
- Total power: 750 W
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (+5V): 20A
- AC input voltage: 100 - 240 V
- Power protection features
- Low voltage protection
- Overload protection
- No-load operation
- Surge & inrush protection (SIP)
- Surge protection
- Protection against overvoltage
- Overcurrent
- Overheating protection
- Total power (+12V): 750 W
- Input current: 10 - 5 A
- Total power (+3.3V): 100 W
- Hold time: 16 ms
- Weight and dimensions
- Product height: 86 mm
- Product depth: 140 mm
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- 80 PLUS Certificate: 80 PLUS Bronze
- MTBF (Mean Time Between Failures): 100000 h
- Intended use: PC
- ATX version: 3.0
- Bearing technology: HYB
- Power supply type (PSU): ATX
- Packaging data
- Packaging type: Box
- Ports and interfaces
- PCI Express power connectors (6+2 pin): 3
- Number of SATA power connectors: 8
- Motherboard power connector: 20+4 pin ATX
- Wiring Type: Non-Modular
- PCI Express power connectors (16-pin): 1
- ATX power supply connector (20+4 pin): Yes
- CPU power supply connector (4+4 pin): Yes
- SATA power cable length
- 450 mm
- 550
- 650
- 750
- Peripheral (Molex) Power Connectors (4-pin): 2
- Motherboard cable length: 55 cm
