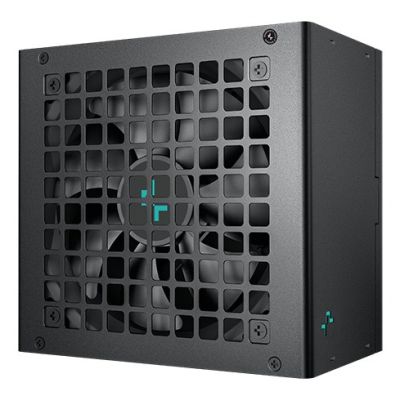

Deepcool PL800D 800w Bronze Power Supply
Deepcool PL800D 800w Bronze Power Supply
Deepcool PL800D 800w Bronze Power Supply
PRICE:
108,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental certificate (sustainable development)
- Triman
- ErP
- Sustainability: Yes
- Environmental certificate (sustainable development)
- Design
- Cooling type: Active
- Fan Location: Top
- Product color: Black
- Fan bowl diameter: 12 cm
- Number of fans: 1 fan
- Built-in switch: Yes
- Power
- Maximum output current (+3.3V): 20 A
- AC input voltage: 100 - 240 V
- Total power (+5 Vsb): 15 W
- Total power (+5V): 100 W
- Total power: 800 W
- AC input frequency: 50/60 Hz
- Maximum output current (+12V): 54 A
- PFC (Power Factor Correction) Type: Active
- Efficiency: 85%
- Input current: 9 - 4.5 A
- Maximum output current (-12V): 0.3A
- Maximum output current (+5V): 20A
- Maximum output current (+5 Vsb): 3 A
- Total power (-12V): 3.6 W
- Total power (+12V): 648 W
- Power protection features
- Overload protection
- No load operation
- Surge & inrush protection (SIP)
- Low voltage protection
- Overheating protection
- Protection against overvoltage
- Overcurrent
- Surge protection
- Hold time: 16 ms
- Total power (+3.3V): 100 W
- Good Signal Power Delay Range: 100 - 150 ms
- Weight and dimensions
- Product depth: 140 mm
- Product height: 86 mm
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- Bearing technology: HYB
- ATX version: 3.0
- MTBF (Mean Time Between Failures): 100000 h
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Bronze
- Power supply type (PSU): ATX
- Packaging data
- Packaging type: Box
- Certificates
- Certificates of conformity
- WEEE
- RoHS
- Certificates of conformity
- Ports and interfaces
- Wiring Type: Non-Modular
- SATA power cable length
- 450
- 550
- 650
- PCI Express power connectors (6+2 pin): 3
- Motherboard cable length: 55 cm
- Number of SATA power connectors: 6
- Peripheral (Molex) Power Connectors (4-pin): 2
- CPU power supply connector (4+4 pin): Yes
- Motherboard power connector: 20+4 pin ATX
- PCI Express power connectors (16-pin): 1
- ATX power supply connector (20+4 pin): Yes
| Name | Details |
|---|---|
| Producer | DEEPCOOL |
