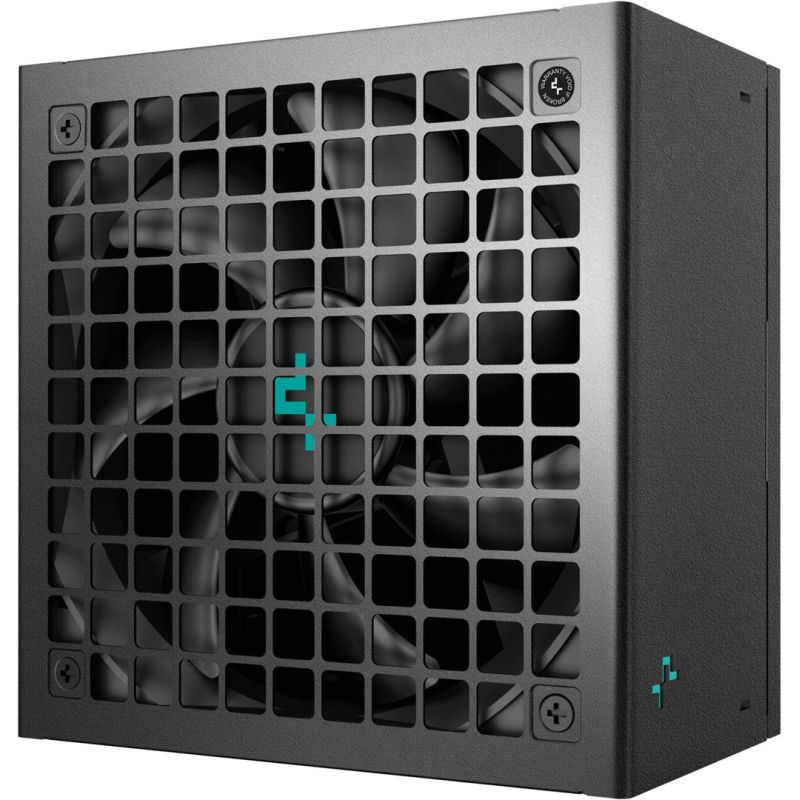

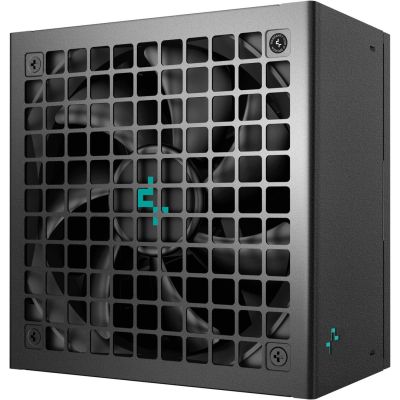

DeepCool PN1000-D Power Supply (R-PNA00D-FC0B-JGEU-V2)
DeepCool PN1000-D Power Supply (R-PNA00D-FC0B-JGEU-V2)
DeepCool PN1000-D Power Supply (R-PNA00D-FC0B-JGEU-V2)
PRICE:
160,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Number of fans: 1 fan
- Built-in switch: Yes
- Product color: Black
- Cooling type: Active
- Fan bowl diameter: 12 cm
- Fan Location: Top
- Power
- Total power: 1000 W
- Efficiency: 90%
- Power protection features
- Overheating protection
- Overload protection
- No load operation
- Surge & inrush protection (SIP)
- Protection against overvoltage
- Overcurrent
- Low voltage protection
- Surge protection
- Total power (+3.3V): 120 W
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Total power (-12V): 3.6 W
- PFC (Power Factor Correction) Type: Active
- Total power (+5V): 120 W
- Maximum output current (+3.3V): 22 A
- Total power (+12V): 999.6 W
- Hold time: 16 ms
- Good Signal Power Delay Range: 100 - 150 ms
- Maximum output current (-12V): 0.3A
- Maximum output current (+12V): 83.3A
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (+5V): 22A
- Weight and dimensions
- Product height: 85 mm
- Product depth: 150 mm
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- 80 PLUS Certificate: 80 PLUS Gold
- ATX version: 3.1
- Bearing Technology: FDB
- Power supply type (PSU): ATX
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Packaging data
- Packaging type: Box
- Certificates
- Certificates of conformity
- RoHS
- WEEE
- Certificates of conformity
- Ports and interfaces
- Wiring type: Modular
- Motherboard power connector: 24-pin ATX
- Motherboard cable length: 54 cm
| Name | Details |
|---|---|
| Producer | DEEPCOOL |
