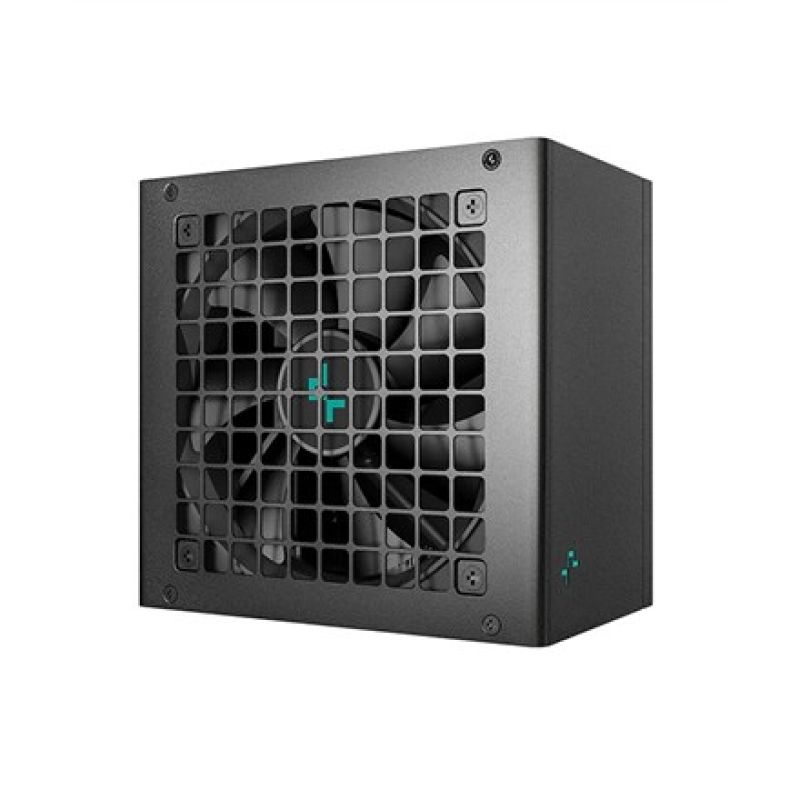

Deepcool PN750D 750W Gold Direct Power Supply
Deepcool PN750D 750W Gold Direct Power Supply
Deepcool PN750D 750W Gold Direct Power Supply
PRICE:
162,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design

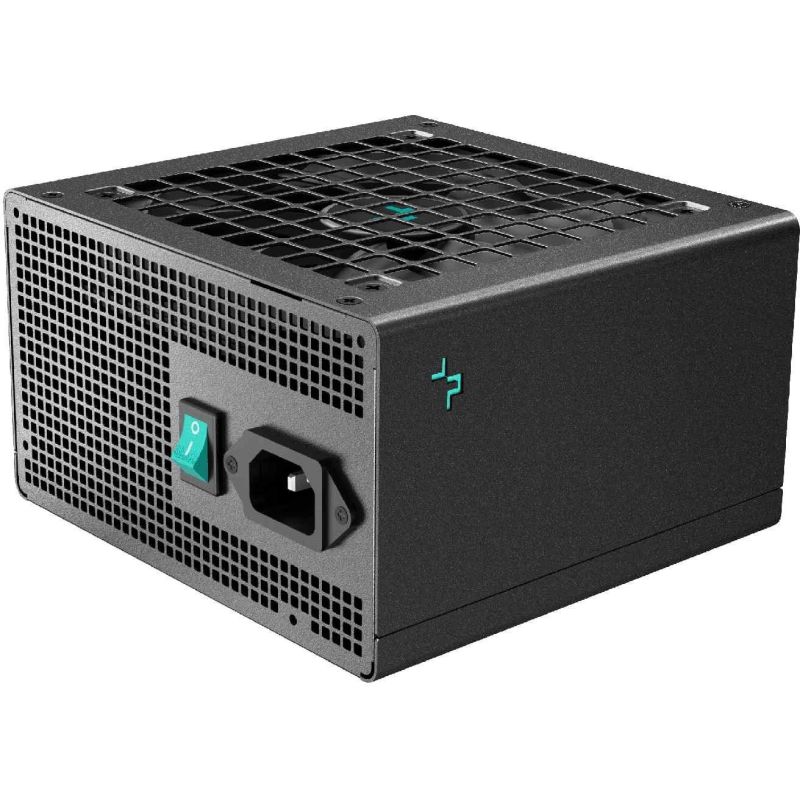

- Built-in on/off switch: Yes

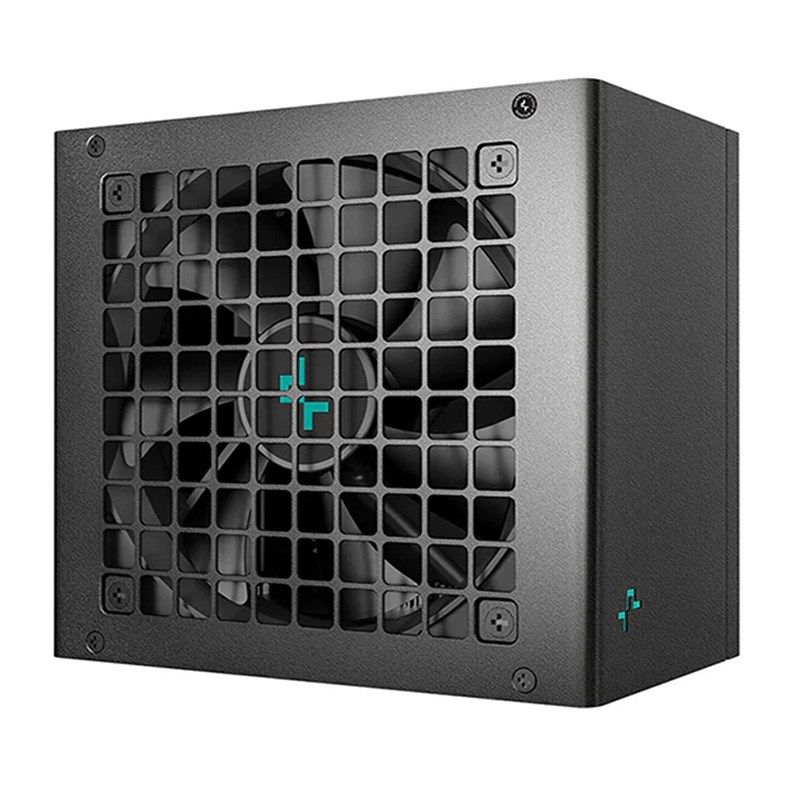

- Fan location: Top
- Cooling type: Active
- Number of fans: 1 fan

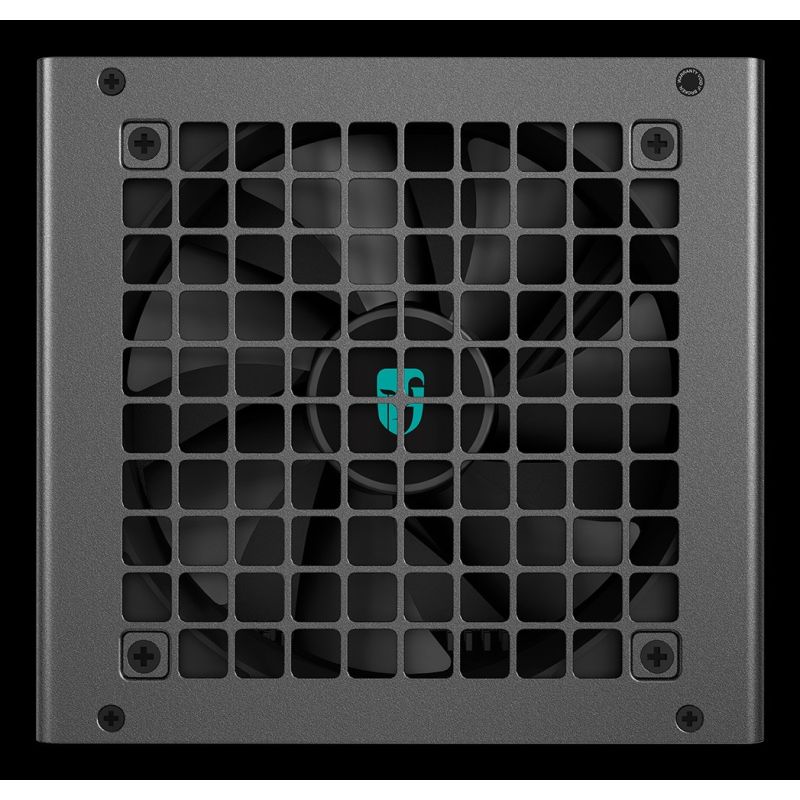

- Fan diameter: 12 cm
- Product colour: Black
- Power
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Maximum output current (+3.3V): 20 A
- Maximum output current (-12 V): 0.3 A
- Power protection features
- Overload protection
- Overvoltage protection
- Overcurrent protection
- Overheating protection
- Surge protection
- No-load operation
- Surge & inrush protection (SIP)
- Undervoltage protection
- Total power (+3.3 V): 110 W
- Hold-up time: 16 ms
- Maximum output current (+5 V): 20 A
- PFC (Power Factor Correction) type: Active
- Total power: 750 W
- Efficiency: 80%
- Maximum output current (+12 V): 62.5 A
- Total power (+5 V): 110 W
- Power Good signal delay range: 100 - 150 ms
- Total power (+12 V): 750 W
- Maximum output current (+5 Vsb): 3 A
- Total power (-12V): 3.6 W
- Weight and dimensions
- Product height: 86 mm
- Product width: 150 mm
- Product depth: 140 mm
- Operating conditions
- Operating temperature range: 0 - 40 °C
- Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- ATX version: 3.1
- Bearing technology: HDB
- Power supply unit (PSU) type: ATX
- MTBF (Mean Time Between Failures): 100000 h
- Packaging data
- Packaging type: Box
- Certificates
- Compliance certificates
- RoHS
- WEEE
- Compliance certificates
- Ports and interfaces
- Motherboard power connector: 24-pin ATX

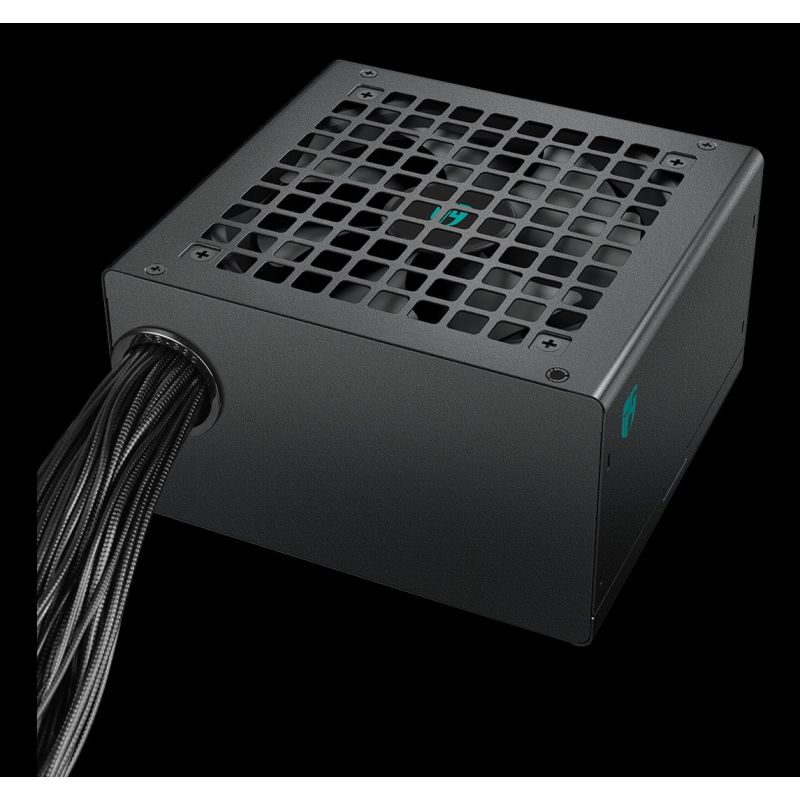

- Cabling type: Non-modular
- Motherboard cable length: 54 cm
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Product Type | Power supplies |
| Producer | DEEPCOOL |
| Colour | Golden |
| Department | Electronics |
