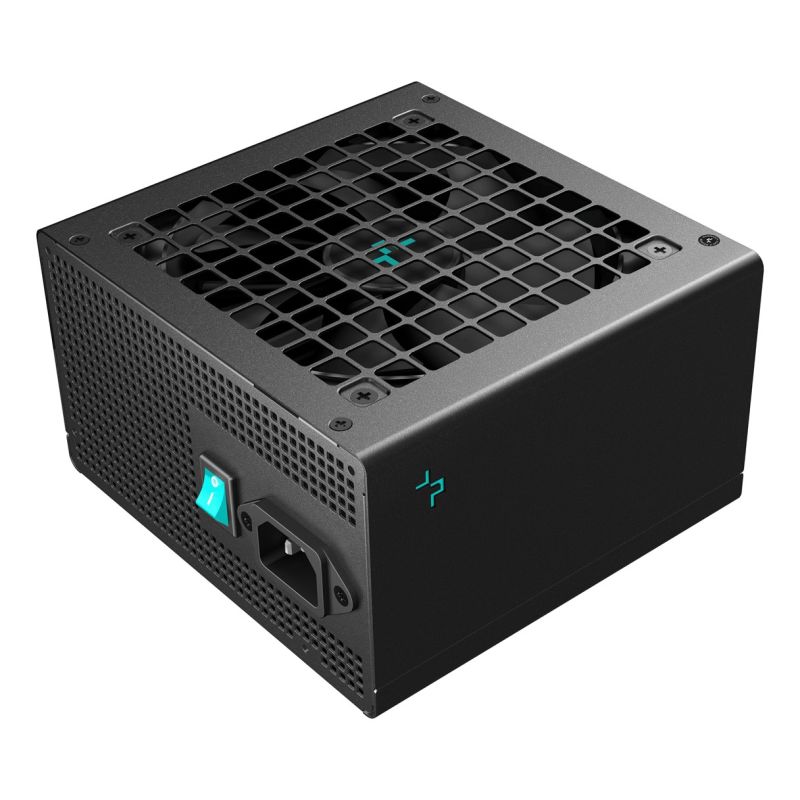

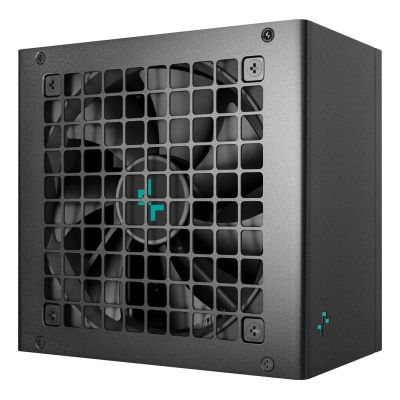

Deepcool PN850M 850w Gold Modular Power Supply
Deepcool PN850M 850w Gold Modular Power Supply
Deepcool PN850M 850w Gold Modular Power Supply
PRICE:
145,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Sustainability: Yes
- Environmental certificate (sustainable development)
- Triman
- ErP
- Design

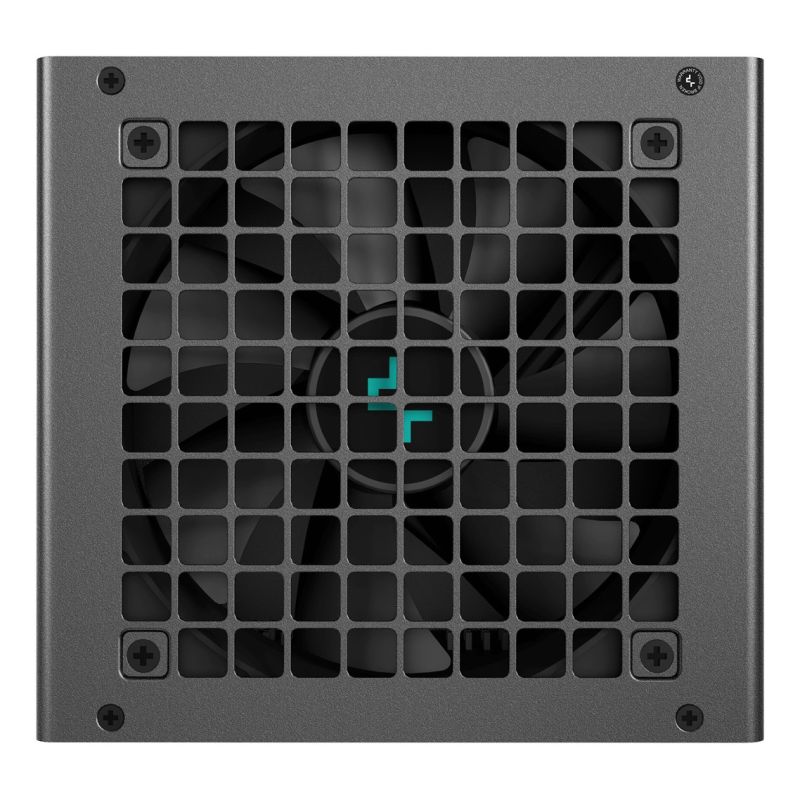

- Fan Location: Top

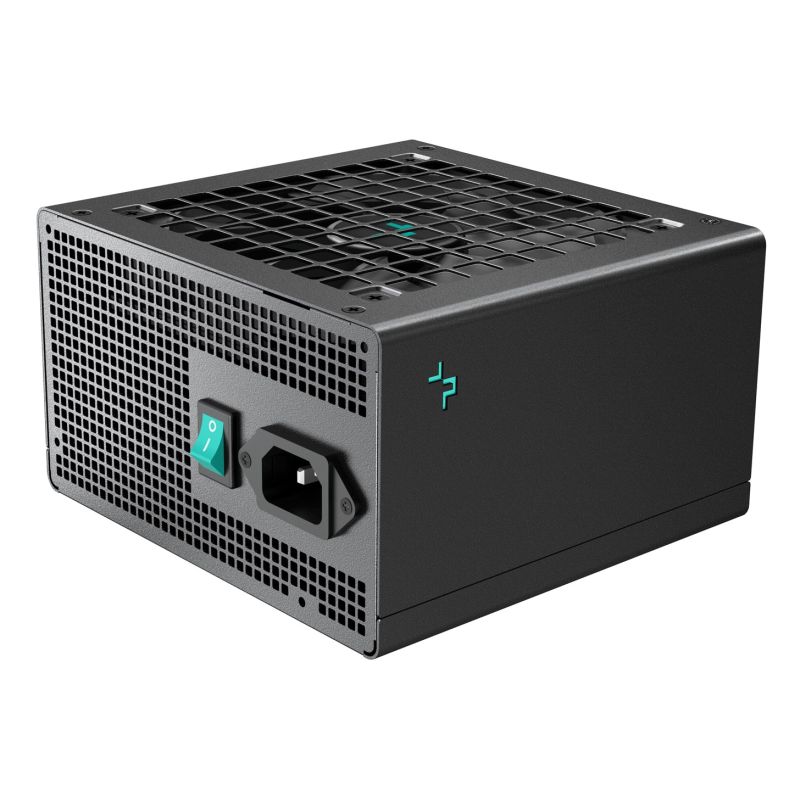

- Built-in switch: Yes
- Product color: Black
- Cooling type: Active
- Fan bowl diameter: 12 cm
- Number of fans: 1 fan
- Power
- Power protection features
- Surge protection
- Overload protection
- Short circuit
- Overheating protection
- No load operation
- Surge & inrush protection (SIP)
- Low voltage protection
- Protection against overvoltage
- Total power (+3.3V): 110 W
- Efficiency: 90%
- PFC (Power Factor Correction) Type: Active
- Input current: 10 - 5 A
- Total power (-12V): 3.6 W
- Total power (+5 Vsb): 15 W
- Maximum output current (+3.3V): 20 A
- AC input voltage: 100 - 240 V
- Total power: 850 W
- Maximum output current (-12V): 0.3A
- AC input frequency: 50/60 Hz
- Maximum output current (+12V): 70.5A
- Total power (+5V): 110 W
- Hold time: 16 ms
- Maximum output current (+5 Vsb): 3 A
- Total power (+12V): 846 W
- Maximum output current (+5V): 20A
- Good Signal Power Delay Range: 100 - 150 ms
- Power protection features
- Weight and dimensions
- Product height: 86 mm
- Product depth: 140 mm
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- Bearing Technology: FDB
- ATX version: 3.1
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- 80 PLUS Certificate: 80 PLUS Gold
- Power supply type (PSU): ATX
- Packaging data
- Packaging type: Box

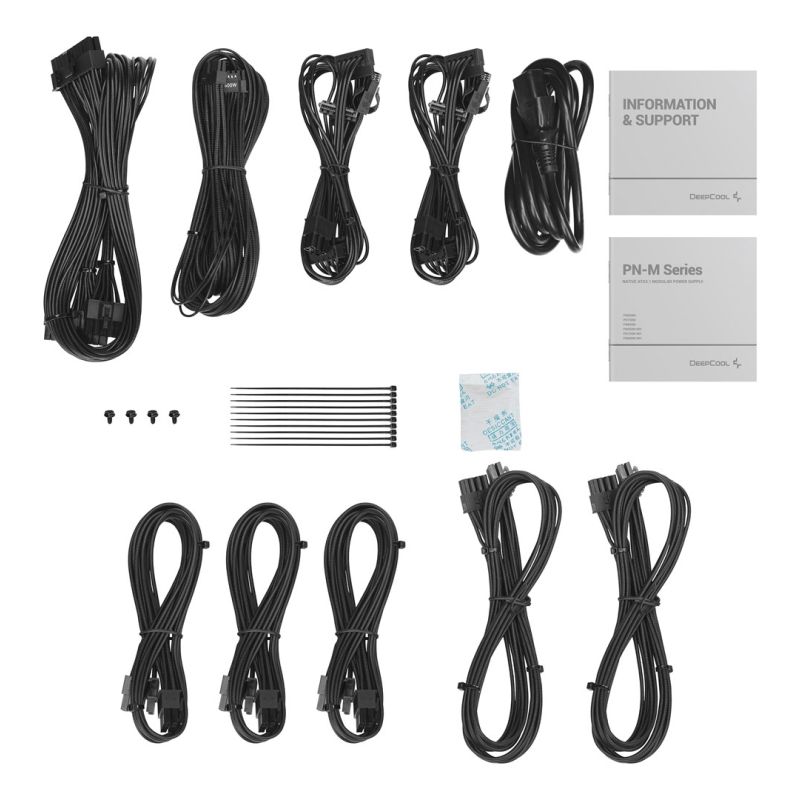

- Package contents
- Wires: Alternating Current
- Cable clamps included: Yes
- Certificates
- Certificates of conformity
- RoHS
- Federal Communications Commission (FCC)
- CCC
- WEEE
- RCM
- CE
- EAC
- Certificates of conformity

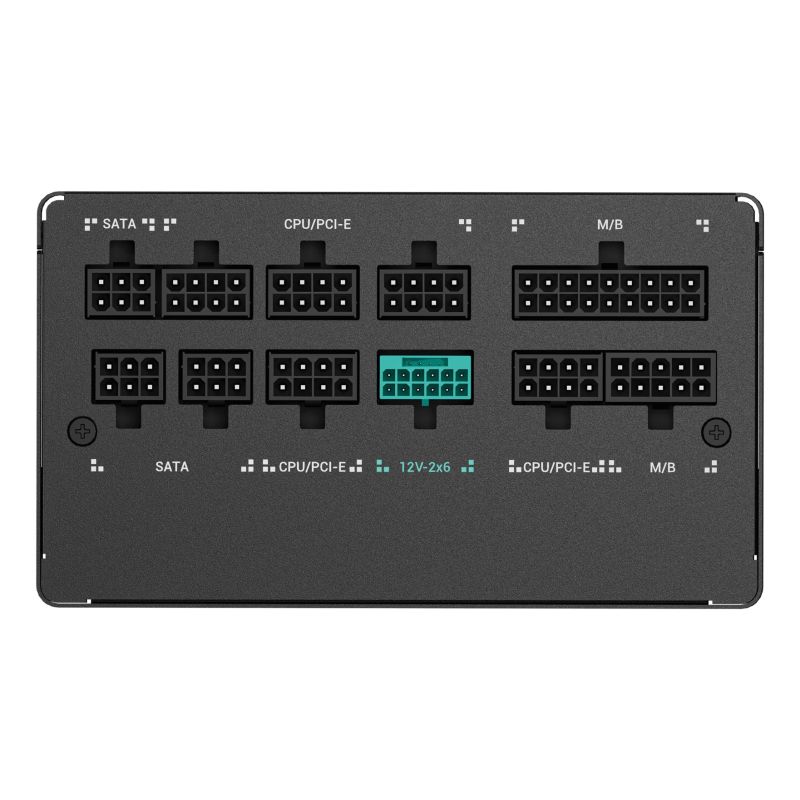

- Ports and interfaces
- Motherboard power connector: 20+4 pin ATX
- SATA power cable length
- 450
- 690 mm
- 810
- 570
- CPU power cable length: 70 cm
- Wiring Type: Fully Modular
- PCI Express power connectors (6+2 pin): 3
- Number of SATA power connectors: 8
- Peripheral (Molex) Power Connectors (4-pin): 2
- Motherboard cable length: 55 cm
- ATX power supply connector (20+4 pin): Yes
- PCI Express power connectors (16-pin): 1
- Peripheral (Molex) Power cable length: 930 mm
- CPU power supply connector (4+4 pin): Yes
| Name | Details |
|---|---|
| Producer | DEEPCOOL |
