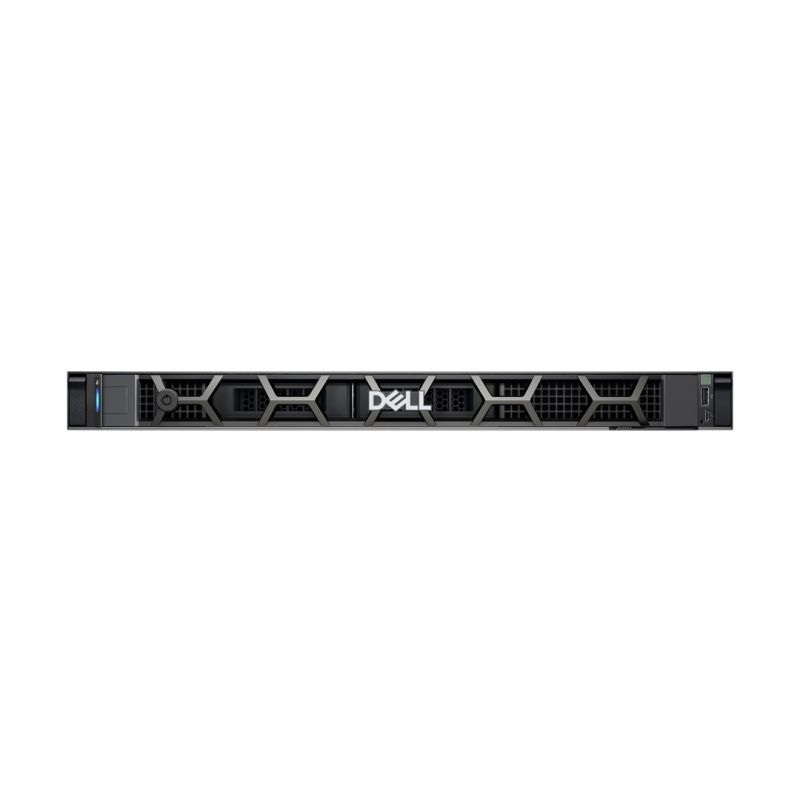

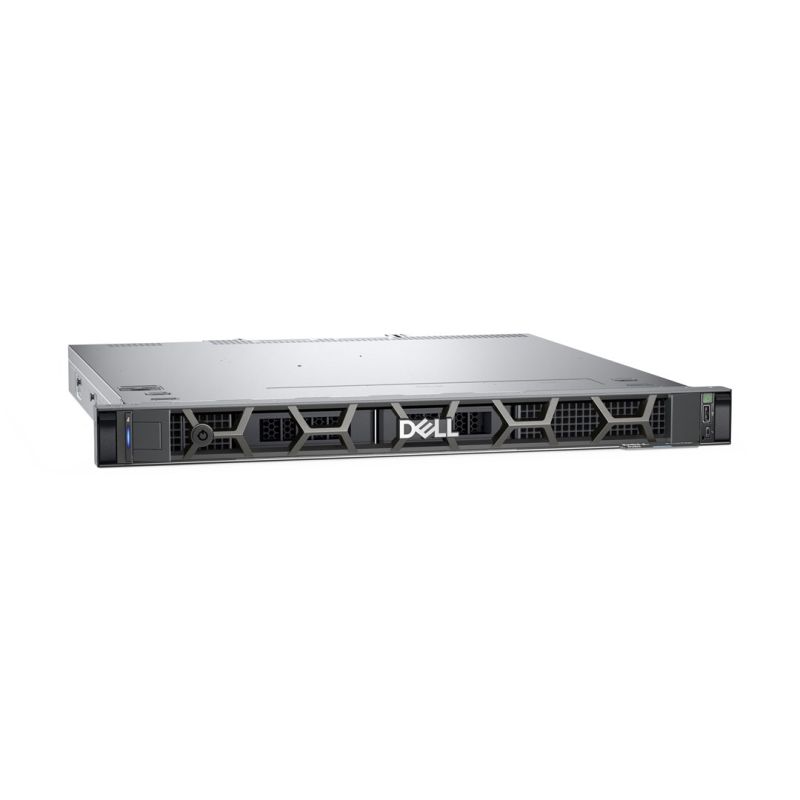

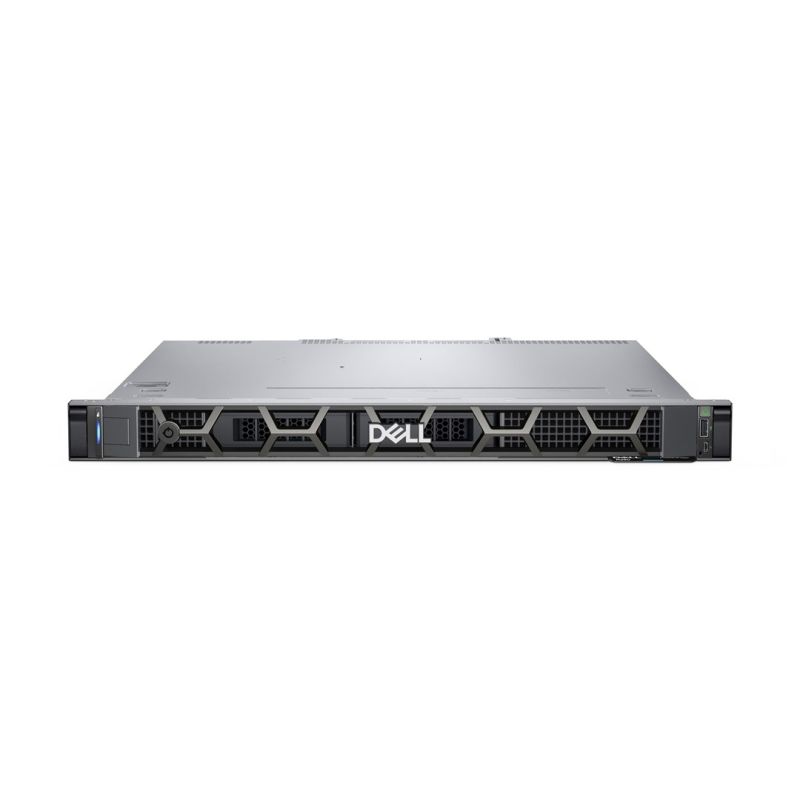

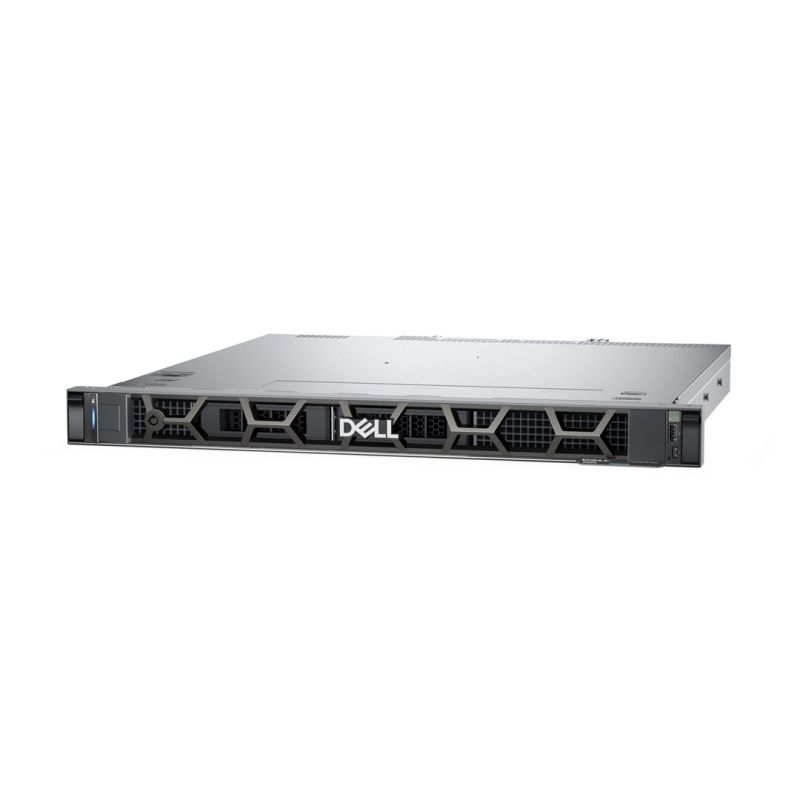

DELL PowerEdge R260 server 2.4 TB Rack (1U) Intel Xeon 6 6315P 2.8 GHz 16 GB DDR5-SDRAM 700 W
DELL PowerEdge R260 server 2.4 TB Rack (1U) Intel Xeon 6 6315P 2.8 GHz 16 GB DDR5-SDRAM 700 W
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Thermal Design Power (TDP): 55 W
- Processor model: 6315P
- Number of threads: 4
- Memory clock speed supported by the processor: 4800 MHz
- Number of processor cores: 4
- Number of processors: 1
- Processor Cache: 12 MB
- Memory types supported by the processor: DDR5-SDRAM
- Efficient cores: 4
- Processor clock speed: 2.8 GHz
- System bus rate: 16 GT/s
- Maximum processor clock speed: 5.2 GHz
- Processor type: Intel Xeon 6
- Memory
- Memory chip: 1 x 16 GB
- Buffer memory type: Unregistered (unbuffered)
- ECC Correction: Yes
- RAM: 16 GB
- Memory data transfer rate: 5600 MT/s
- RAM type: DDR5-SDRAM
- Memory slots: DIMM x 4
- Maximum memory capacity: 128 GB
- Design
- Housing: Rack (1U)
- Frame: Yes
- Product color: Black
- Power
- Power supply: 700 W
- Power supply input voltage: 200 - 240 V
- Number of main power sources: 1
- Power Backup Support (RPS): No
- Weight and dimensions
- Product width: 482 mm
- Product height: 42.8 mm
- Working conditions
- Permissible relative humidity: 5 - 95%
- Permissible altitude (above sea level): 0 - 12000 m
- Permissible operating altitude (above sea level): 0 - 3048 m
- Temperature range (storage): -40 - 65 °C
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Cabling technology: 10/100/1000Base-T(X)
- LAN Controller: Broadcom 5720
- Efficiency
- Remote Administration: iDRAC9, Enterprise 16G
- Trusted Platform Module (TPM): Yes
- Software
- Installed operating system: None
- Certificates
- 80 PLUS Certified: 80 PLUS Titanium
- Data carrier
- HDD size: 2.5"
- Supported RAID Controllers: PERC H355 Adapter LP
- Supported hard drive sizes: 2.5
- Number of HDDs installed: 2
- Number of supported HDDs: 6
- HDD Interface: Serial Attached SCSI (SAS)
- HDD speed: 10000 RPM
- Hot Plug Support: Yes
- HDD capacity: 1.2 TB
- Total disk capacity: 2.4 TB
- Optical drive: No
- RAID Service: No
- Ports and interfaces
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Serial communication ports: 1
- Number of VGA (D-Sub) ports: 1
- Number of Ethernet LAN ports (RJ-45): 2
- Number of USB 2.0 ports: 2
- Other functions
- Data transfer speed: 12 Gbit/s
- Bits per sector: 512n
- Carbon footprint
- Total carbon footprint (kg of CO2e): 950
- Carbon dioxide emissions, energy consumption (kg CO2e): 541.5
- Carbon dioxide emissions, logistics (kg CO2e): 95
- Total carbon dioxide emissions, standard deviation (kg CO2e): 711
- Carbon dioxide emissions, production (kg CO2e): 304
- End-of-life carbon dioxide emissions (kg CO2e): 9.5
- PAIA Version: PAIA 1.3.2, 2024
