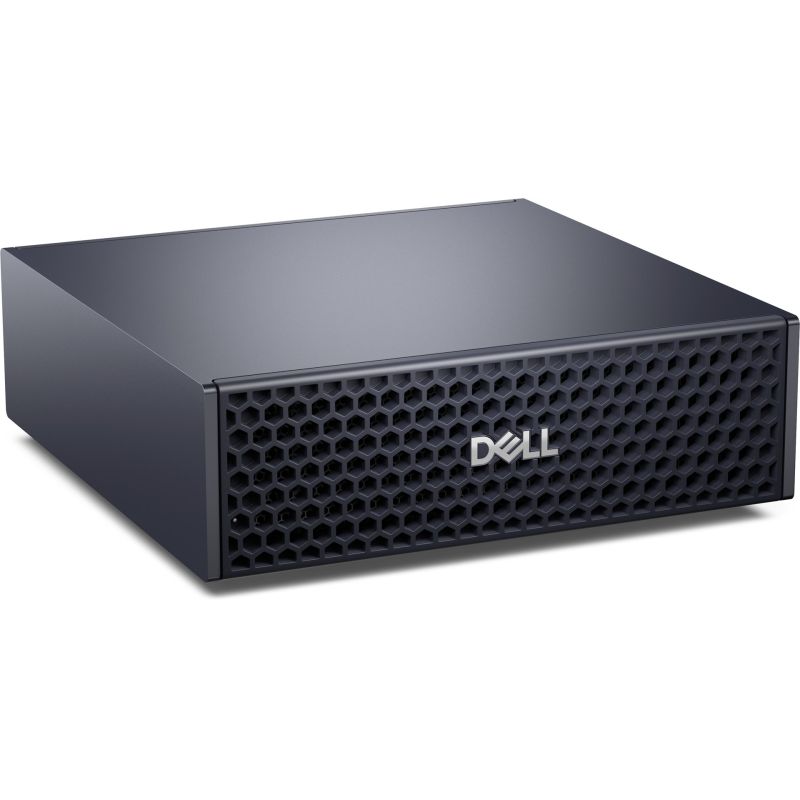

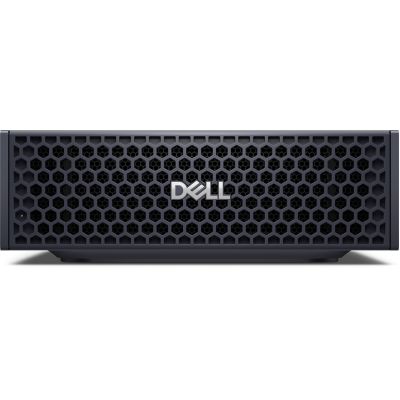

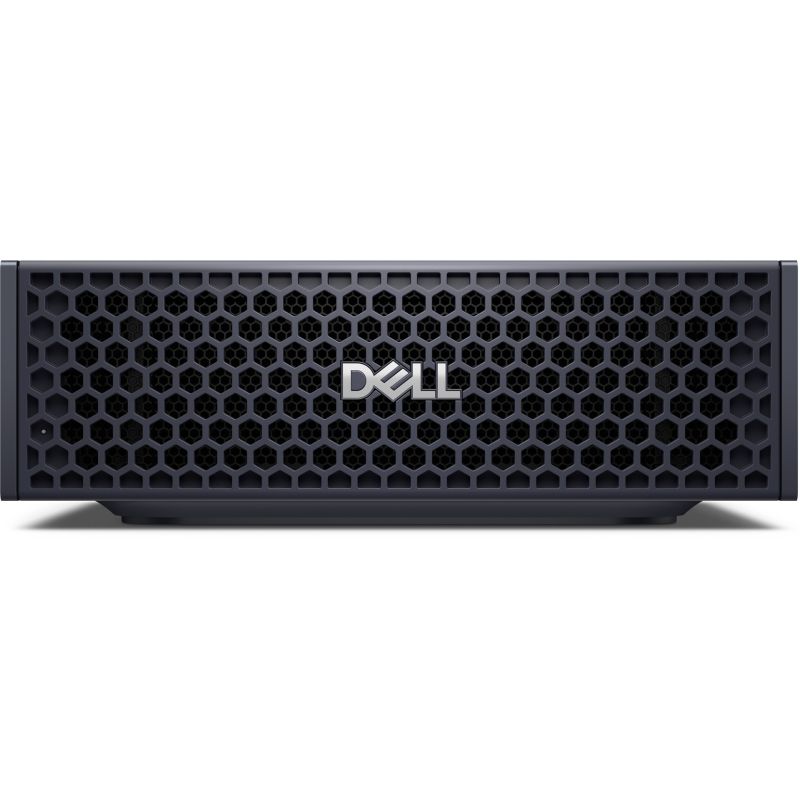

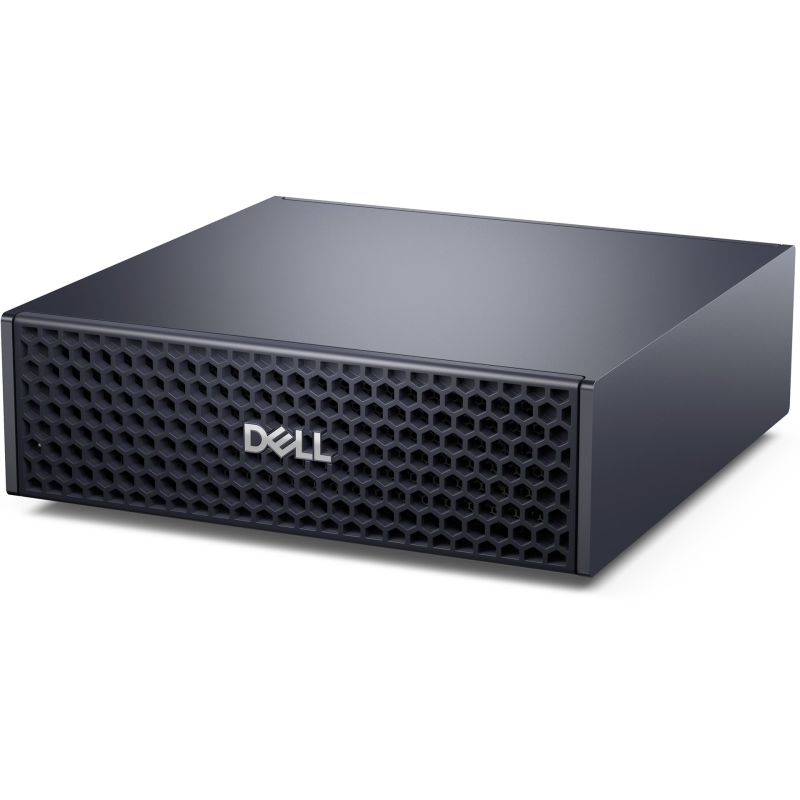

DELL Pro Max GB10 FCM1253 128GB LPDDR5x-SDRAM 2TB SSD DGX OS Mini PC Black
DELL Pro Max GB10 FCM1253 128GB LPDDR5x-SDRAM 2TB SSD DGX OS Mini PC Black
Sign up and unlock up to 10% off!
- Processor
- Number of processor cores: 20
- Processor Cache: 16 MB
- Processor manufacturer: Nvidia
- Processor model: GB10
- Graphics
- Dedicated graphics card model: Not available
- Built-in graphics card model: NVIDIA Blackwell
- Built-in graphics card: Yes
- Embedded graphics processor manufacturer: NVIDIA
- Dedicated graphics card: No
- Memory
- Maximum memory capacity: 128 GB
- Memory data transfer rate: 8533 MT/s
- RAM: 128 GB
- RAM type: LPDDR5x-SDRAM
- Design
- Product color: Black
- Power
- Power supply input voltage: 100 - 240 V
- Power supply: 280 W
- Weight and dimensions
- Product weight: 1.34 kg
- Product depth: 150 mm
- Product height: 51 mm
- Product width: 150 mm
- Working conditions
- Temperature range (storage): -40 - 65 °C
- Temperature range (operation): 0 - 35 °C
- Permissible operating altitude (above sea level): -15.2 - 3048 m
- Storage shock: 160 G
- Vibration during operation: 0.66 G
- Permissible altitude (above sea level): -15.2 - 10668 m
- Storage Vibration: 1.3 G
- Permissible relative humidity: 0 - 95%
- Shock during operation: 110 G
- Relative humidity range: 10 - 90%
- Network
- Bluetooth: Yes
- LAN controller: NVIDIA ConnectX-7
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- 1000 Mbps
- 10000 Mbps
- WLAN card manufacturer: AzureWare
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- Wi-Fi standards
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 7 (802.11be)
- Wi-Fi 6E (802.11ax)
- Wi-Fi 5 (802.11ac)
- Wired LAN: Yes
- Efficiency
- Trusted Platform Module (TPM): Yes
- TPM version: 2.0
- Product type: Mini PC
- Display
- Display Included: No
- Software
- Installed operating system: DGX OS
- Data carrier
- Optical drive: No
- Total SSD capacity: 2 TB
- M.2 SSD Size: 2230 (22 x 30 mm)
- Total disk capacity: 2 TB
- Number of installed drives: 1
- NVMe: Yes
- Media: SSD
- SSD storage capacity: 2 TB
- SSD storage interface: PCI Express 4.0
- SSD type: M.2
- Number of SSDs installed: 1

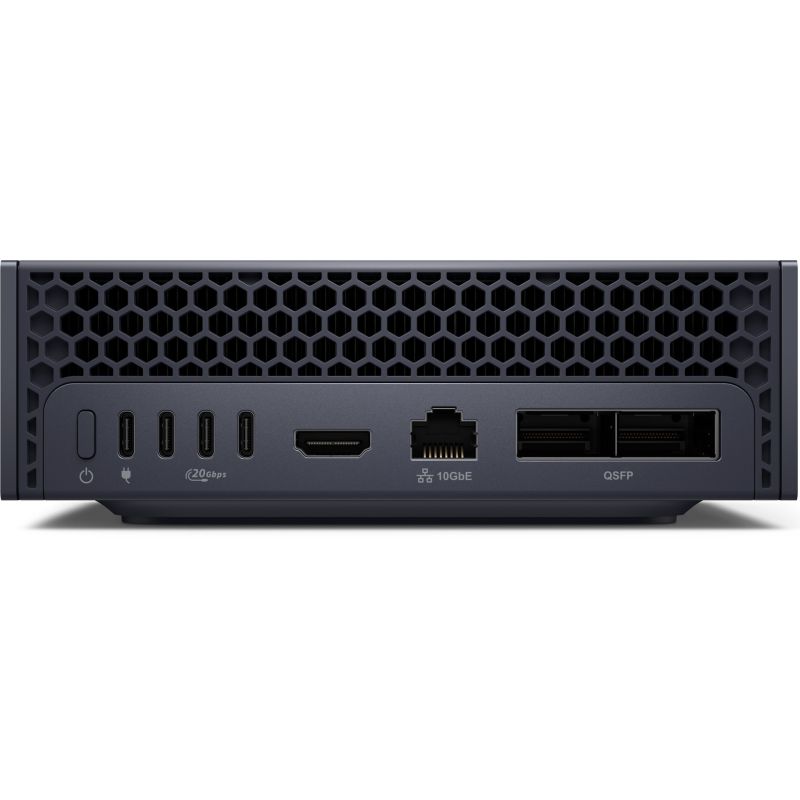

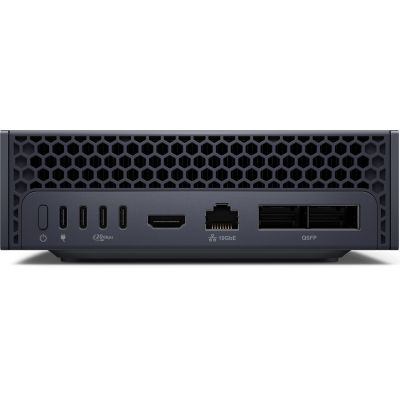

- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 2x2 Type-C ports: 3
- Number of HDMI ports: 1
- DisplayPort USB Type-C Alternate Mode: Yes
- HDMI version: 2.1a
- Other functions
- Does not contain: PVC/BFR
- Carbon footprint
- Total carbon footprint (kg of CO2e): 427
- Carbon dioxide emissions, logistics (kg CO2e): 61,488
- Carbon dioxide emissions, energy consumption (kg CO2e): 99.064
- Carbon dioxide emissions, production (kg CO2e): 258,762
- End-of-life carbon dioxide emissions (kg CO2e): 7.686
- PAIA Version: PAIA 1.5.1, 2025
- Total carbon dioxide emissions, standard deviation (kg CO2e): 110
- Neural Processor (NPU)
- NPU Performance up to: 13 TOPs
| Name | Details |
|---|---|
| Producer | Dell |
