Digitus Industrial 16+2 Port Managed Gigabit Ethernet PoE L2 Switch
Digitus Industrial 16+2 Port Managed Gigabit Ethernet PoE L2 Switch
Digitus Industrial 16+2 Port Managed Gigabit Ethernet PoE L2 Switch
PRICE:
765,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Suitable for external use: No
- Stackable: No

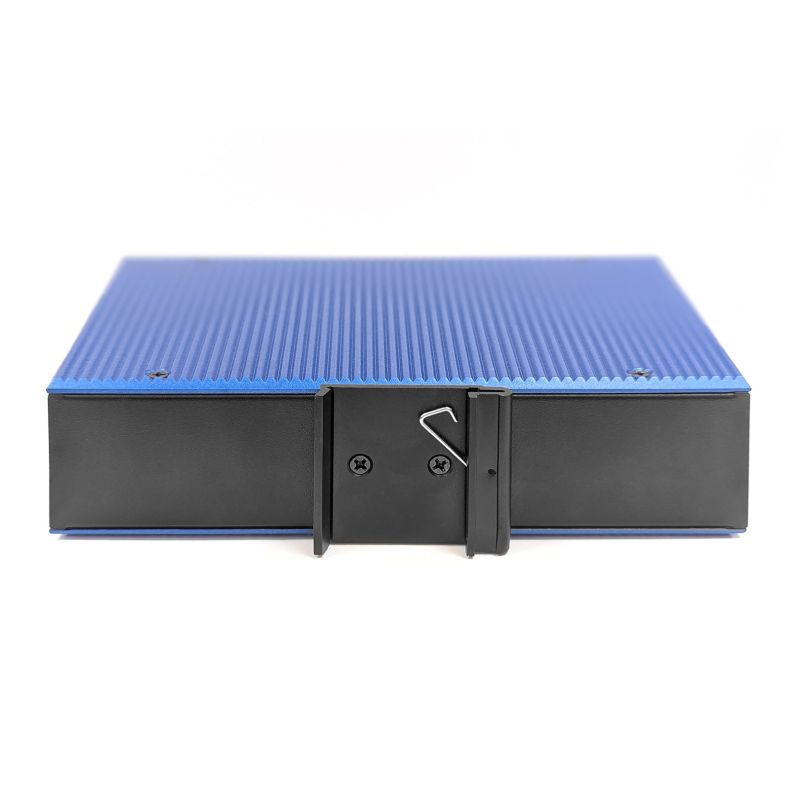

- DIN rail mounting: Yes
- Product color
- Blue
- Black
- Vandal-resistant: No
- IP protection class: IP40
- Housing material: Metal
- Rack mounting options: No
- Power
- Protection against sudden voltage increases
- 4 kV
- Yes
- DC input voltage: 48 - 57 V
- Power consumption: 15 W
- Backup Power Supply (RPS) Support: Yes
- Power supply included: Yes
- Power source: DC/PoE
- Protection against sudden voltage increases
- Weight and dimensions
- Product weight: 1.2 kg
- Product depth: 135 mm
- Product width: 175.6 mm
- Product height: 45.5 mm
- Security
- Access Control List (ACL): Yes
- MAC address filtering: Yes
- IGMP snooping: Yes
- Management features
- Switch Layer: L2
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- Working conditions
- Temperature range (operation): -40 - 80 °C
- Temperature range (storage): -40 - 80 °C
- Relative humidity range: 5 - 95%
- Permissible relative humidity: 5 - 95%
- Network
- Virtual LAN Features
- Port-based VLAN
- Voice VLAN
- MAC address-based VLAN
- Protocol-based VLAN
- IP subnet–based VLAN
- Flow Control Support: Yes
- Connection Aggregator: Yes
- Traffic Growth Control: Yes
- Port Mirroring: Yes
- Half-duplex: Yes
- Communication standards: IEEE 802.3af
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- VLAN Support: No
- Number of VLANs: 4094
- Full duplex: Yes
- 10G Support: No
- Virtual LAN Features
- Efficiency
- MTBF (Mean Time Between Failures): 300000 h
- Packaging data
- Package depth: 72.5 mm
- Package width: 186 mm
- Weight with packaging: 75 g
- Package height: 208 mm
- Packaging capacity: 2804.88 cm³
- Package contents
- Quick Start Guide: Yes
- Ports and interfaces
- Number of Gigabit Ethernet ports: 16
- Number of SFP modules installed: 2
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Fiber optic connector: SFP
- Other functions
- Bandwidth: 56 Gbit/s
- Ethernet interface type: Gigabit Ethernet
- Logistics data
- Mask with serial number: 85176200
- Country of origin: China
- Data transfer
- Store-and-forward: Yes
- Jumbo Frames Expansion: 10240
- Transfer speed: 42 Mpps
- Jumbo Frame Compatible: Yes
- Packet buffer memory: 4.1 MB
- Address table size: 8000 entries
- Routing/switching capacity: 1 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 30 W
| Name | Details |
|---|---|
| Producer | DIGITUS |
