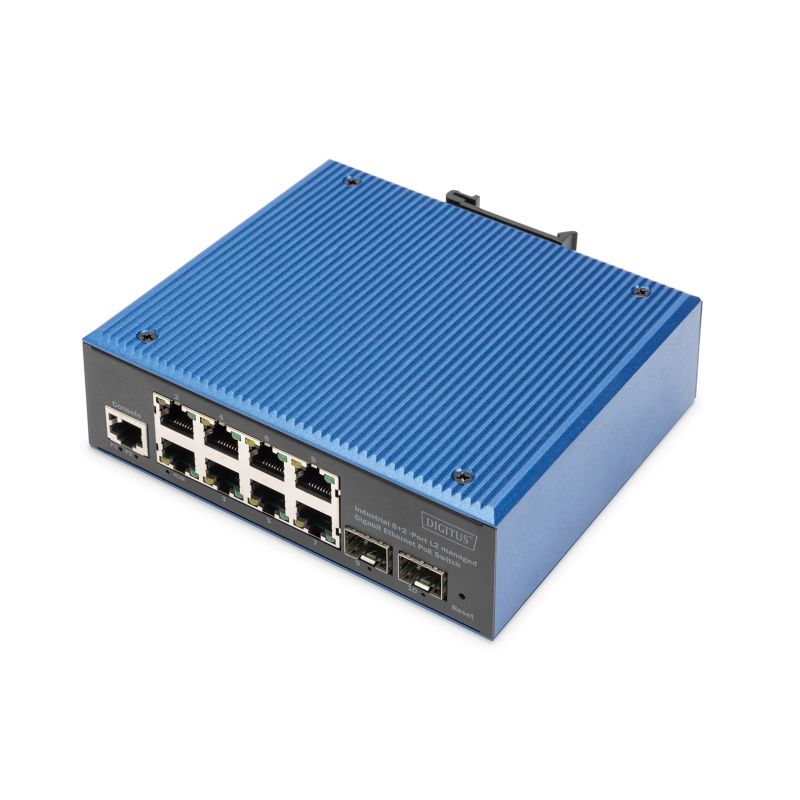

Digitus Industrial 8+2 Port Managed Gigabit Ethernet PoE L2 Switch
Digitus Industrial 8+2 Port Managed Gigabit Ethernet PoE L2 Switch
Digitus Industrial 8+2 Port Managed Gigabit Ethernet PoE L2 Switch
PRICE:
506,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Vandal-resistant: No

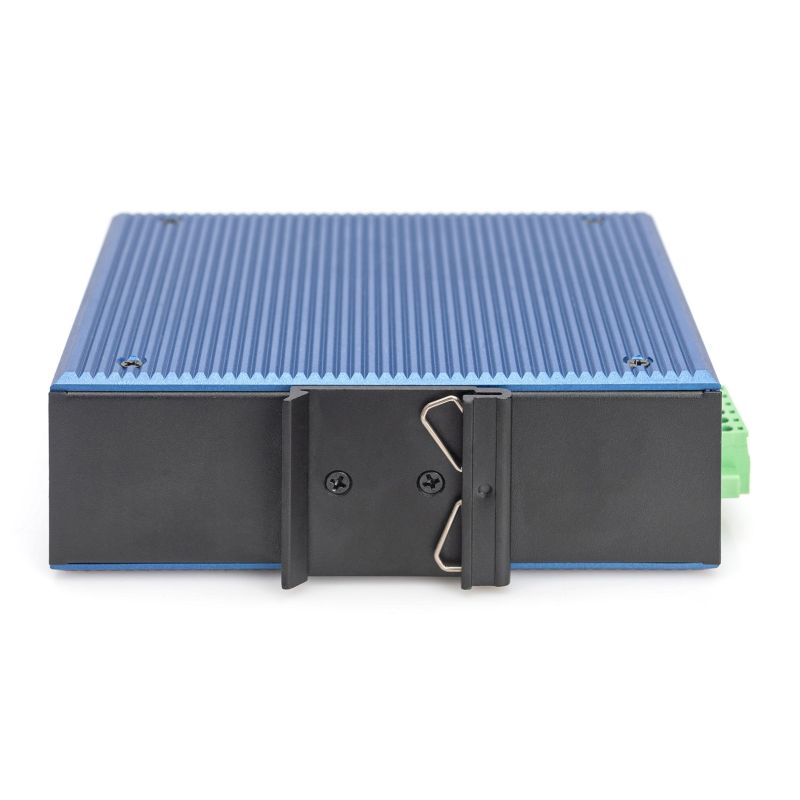

- DIN rail mounting: Yes
- Stackable: No
- Suitable for external use: No
- Product color
- Blue
- Black
- IP protection class: IP40
- Housing material: Metal
- Rack mounting options: No
- Power
- DC input voltage: 48 - 57 V
- Protection against sudden voltage increases
- 4 kV
- Yes

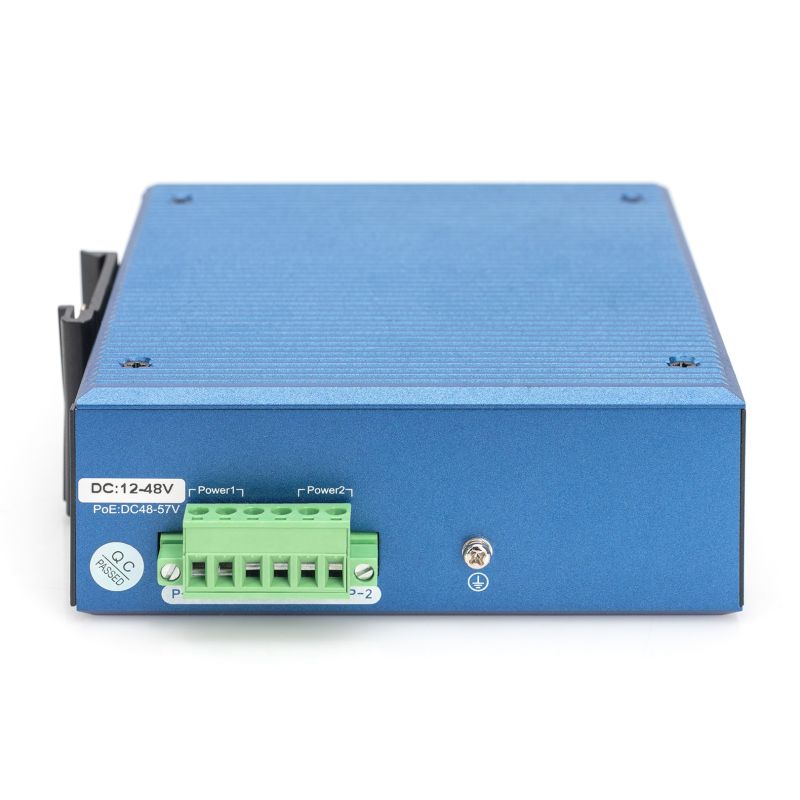

- Power source: DC/PoE
- Power consumption: 10 W
- Power supply included: Yes
- Backup Power Supply (RPS) Support: Yes
- Weight and dimensions
- Product weight: 650 g
- Product width: 143.7 mm
- Product depth: 125 mm
- Product height: 47.7 mm
- Security
- Access Control List (ACL): Yes
- MAC address filtering: Yes
- IGMP snooping: Yes
- Management features
- Switch type: Managed
- Switch Layer: L2
- Quality of Service (QoS) Support: Yes
- Working conditions
- Temperature range (storage): -40 - 80 °C
- Relative humidity range: 5 - 95%
- Temperature range (operation): -40 - 80 °C
- Permissible relative humidity: 5 - 95%
- Network
- Half-duplex: Yes
- Flow Control Support: Yes
- Connection Aggregator: Yes
- 10G Support: No
- Number of VLANs: 4094
- Port Mirroring: Yes
- Traffic Growth Control: Yes
- Virtual LAN Features
- MAC address-based VLAN
- Protocol-based VLAN
- IP subnet–based VLAN
- Port-based VLAN
- Voice VLAN
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Communication standards: IEEE 802.3af
- VLAN Support: No
- Full duplex: Yes
- Efficiency
- MTBF (Mean Time Between Failures): 300000 h
- Packaging data
- Packaging capacity: 2221.16 cm³
- Weight with packaging: 785 g
- Package height: 213 mm
- Package width: 158 mm
- Package depth: 66 mm
- Package contents
- Quick Start Guide: Yes
- Ports and interfaces

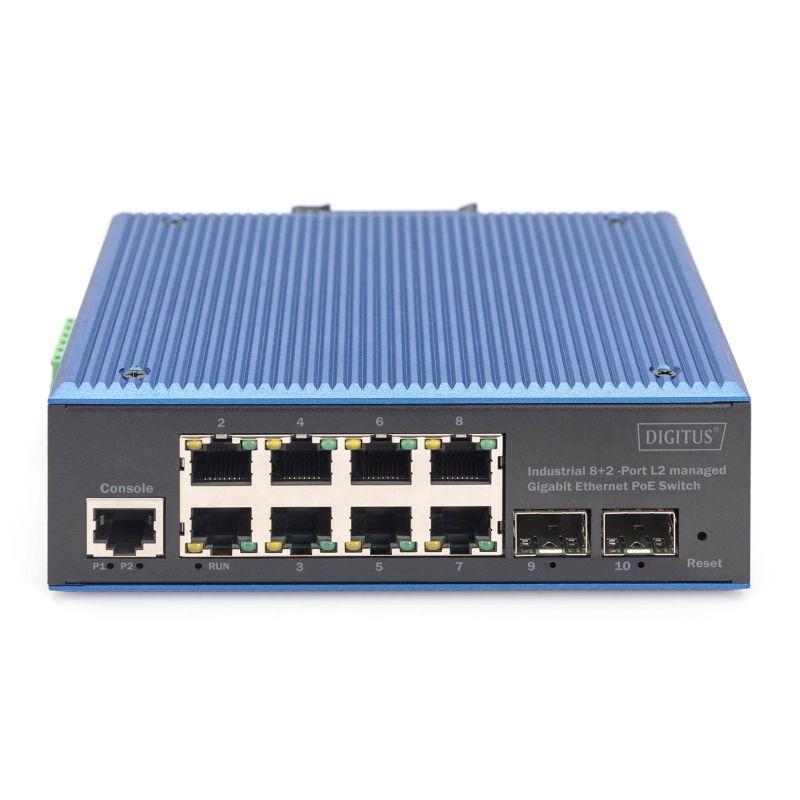

- Number of Gigabit Ethernet ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Number of SFP modules installed: 2

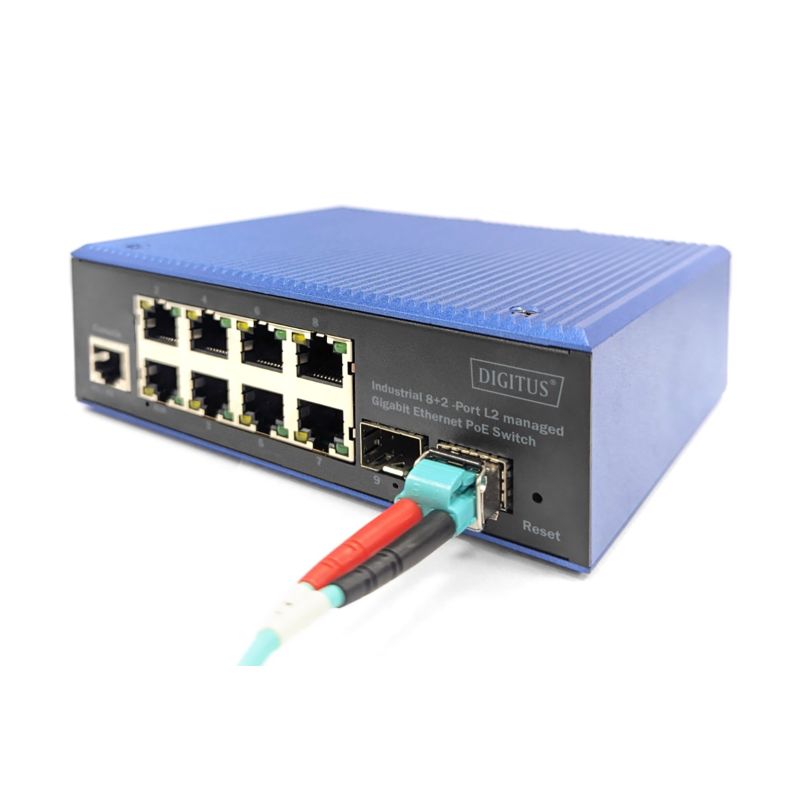

- Fiber optic connector: SFP
- Other functions
- Bandwidth: 20 Gbit/s
- Ethernet interface type: Gigabit Ethernet
- Logistics data
- Mask with serial number: 85176200
- Country of origin: China
- Data transfer
- Address table size: 4000 entries
- Packet buffer memory: 4.1 MB
- Jumbo Frames Expansion: 10240
- Transfer speed: 15 Mpps
- Store-and-forward: Yes
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 1 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
- Total Power over Ethernet (PoE) budget: 30 W
- Number of Fast Ethernet (PoE) ports: 4
| Name | Details |
|---|---|
| Producer | DIGITUS |
