Digitus Industrial Managed Gigabit Ethernet L2 Switch, 16+2 Ports
Digitus Industrial Managed Gigabit Ethernet L2 Switch, 16+2 Ports
Digitus Industrial Managed Gigabit Ethernet L2 Switch, 16+2 Ports
PRICE:
691,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Housing material: Metal
- Rack mounting options: No
- Product color
- Black
- Blue
- IP protection class: IP40
- Vandal-resistant: No
- Suitable for external use: No
- Stackable: No

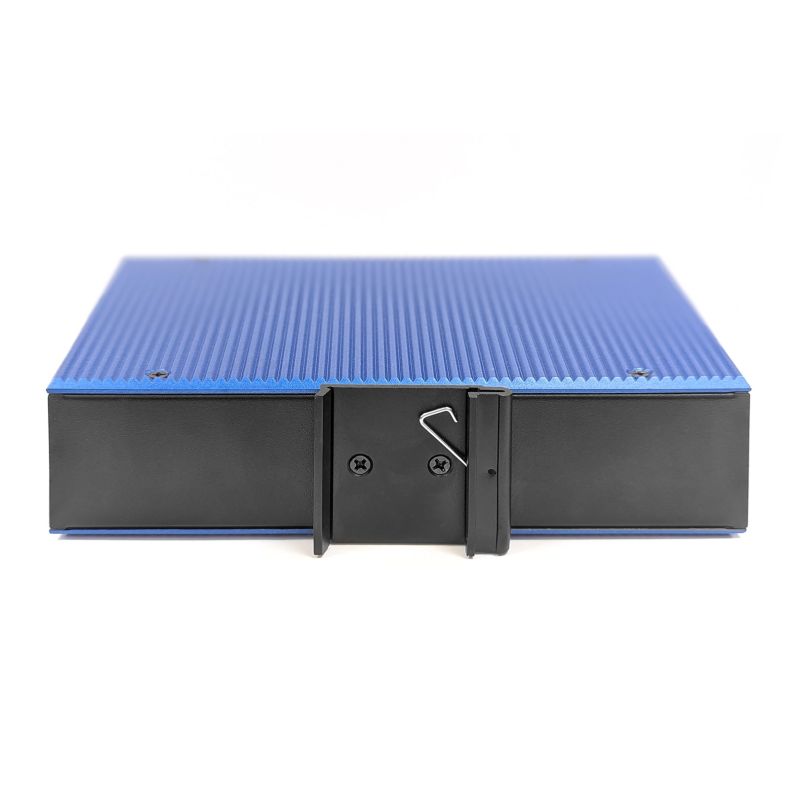

- DIN rail mounting: Yes

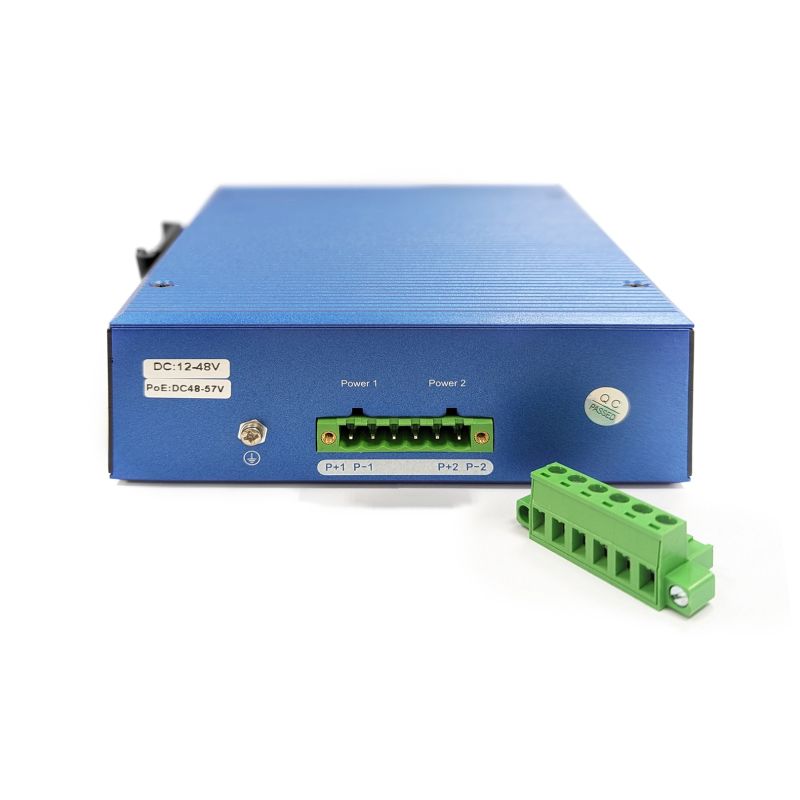

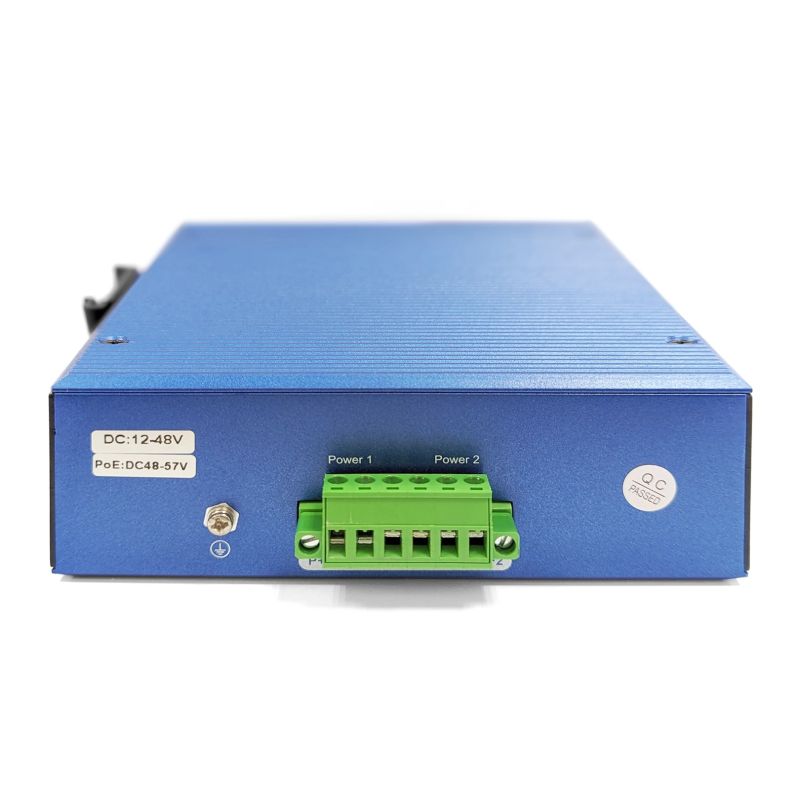

- Power
- Power supply included: Yes
- Backup Power Supply (RPS) Support: Yes
- Power source: DC
- Power consumption: 15 W
- Protection against sudden voltage increases
- Yes
- 4 kV
- DC input voltage: 12 - 48 V
- Weight and dimensions
- Product depth: 135 mm
- Product height: 45.5 mm
- Product weight: 1.1 kg
- Product width: 175.6 mm
- Security
- MAC address filtering: Yes
- IGMP snooping: Yes
- Access Control List (ACL): Yes
- Management features
- Quality of Service (QoS) Support: Yes
- Switch Layer: L2
- Switch type: Managed
- Working conditions
- Relative humidity range: 5 - 95%
- Temperature range (operation): -40 - 80 °C
- Temperature range (storage): -40 - 80 °C
- Permissible relative humidity: 5 - 95%
- Network
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- VLAN Support: No
- Communication standards: IEEE 802.3x
- Full duplex: Yes
- Half-duplex: Yes
- Flow Control Support: Yes
- Connection Aggregator: Yes
- Traffic Growth Control: Yes
- Port Mirroring: Yes
- 10G Support: No
- Virtual LAN Features
- Protocol-based VLAN
- IP subnet–based VLAN
- Port-based VLAN
- MAC address-based VLAN
- Voice VLAN
- Number of VLANs: 4094
- Efficiency
- MTBF (Mean Time Between Failures): 300000 h
- Packaging data
- Package width: 186 mm
- Package depth: 72.5 mm
- Weight with packaging: 685 g
- Package height: 298 mm
- Packaging capacity: 4018.53 cm³
- Package contents
- Quick Start Guide: Yes

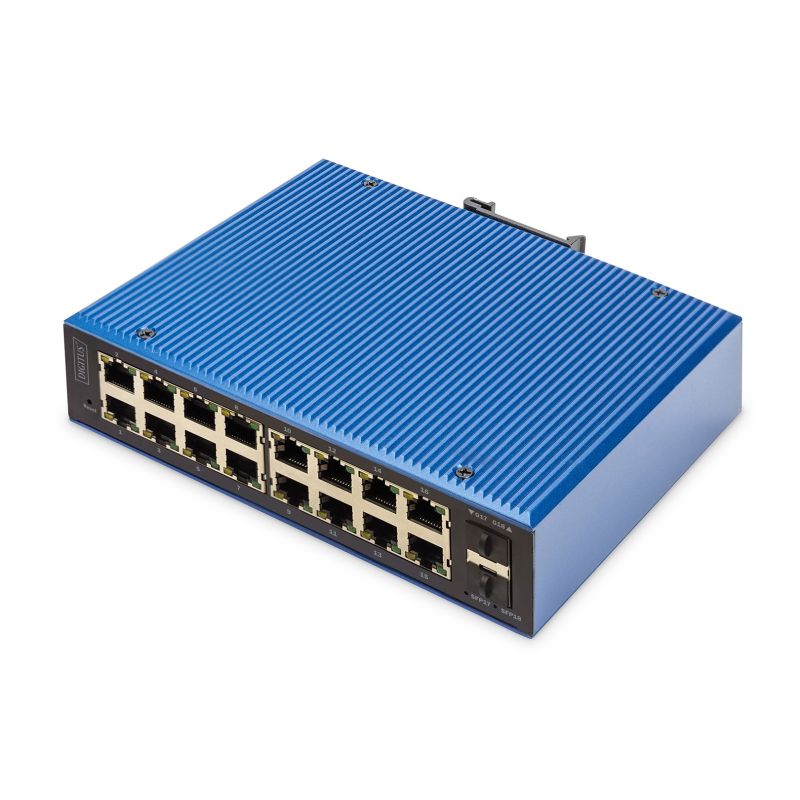

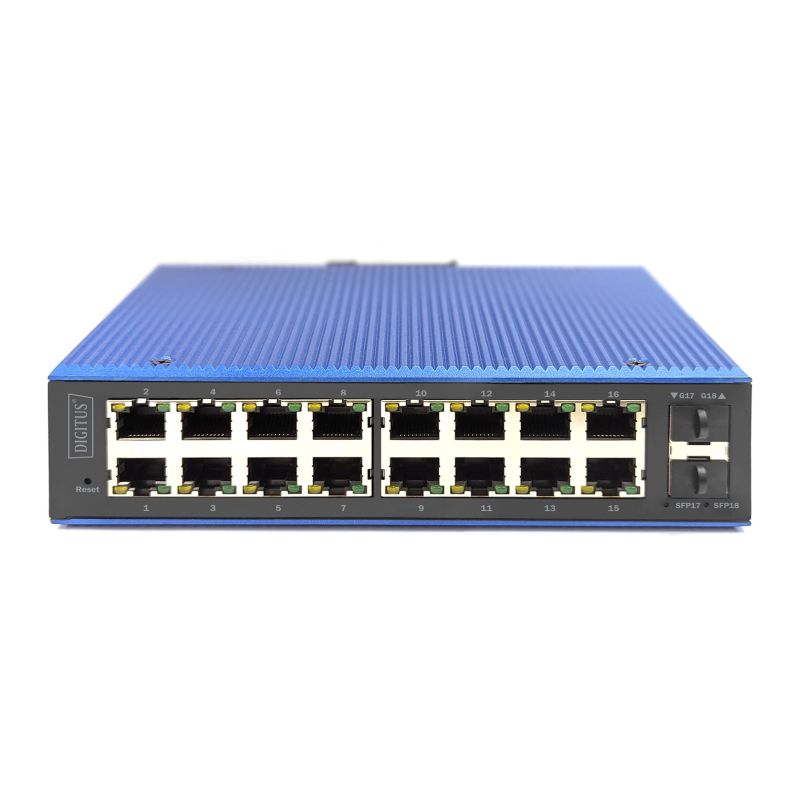

- Ports and interfaces
- Fiber optic connector: SFP
- Number of Gigabit Ethernet ports: 16
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of SFP modules installed: 2
- Other functions
- Ethernet interface type: Gigabit Ethernet
- Bandwidth: 56 Gbit/s
- Logistics data
- Country of origin: China
- Mask with serial number: 85176200
- Data transfer
- Routing/switching capacity: 1 Gbit/s
- Jumbo Frame Compatible: Yes
- Address table size: 8000 entries
- Transfer speed: 42 Mpps
- Store-and-forward: Yes
- Packet buffer memory: 4.1 MB
- Jumbo Frames Expansion: 10240
- Power over Ethernet (PoE)
- PoE Support: No
| Name | Details |
|---|---|
| Producer | DIGITUS |
