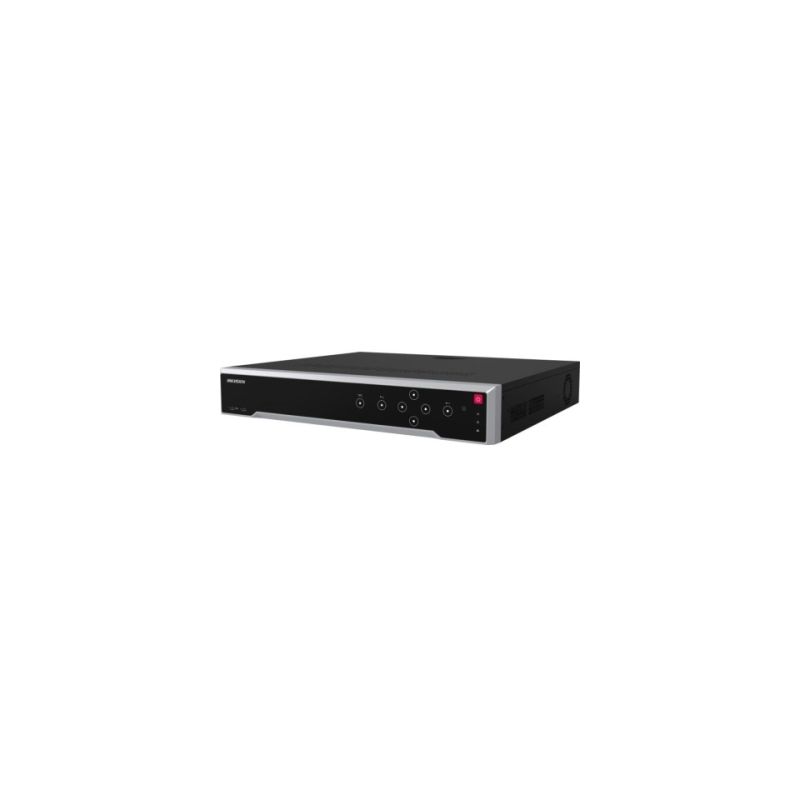

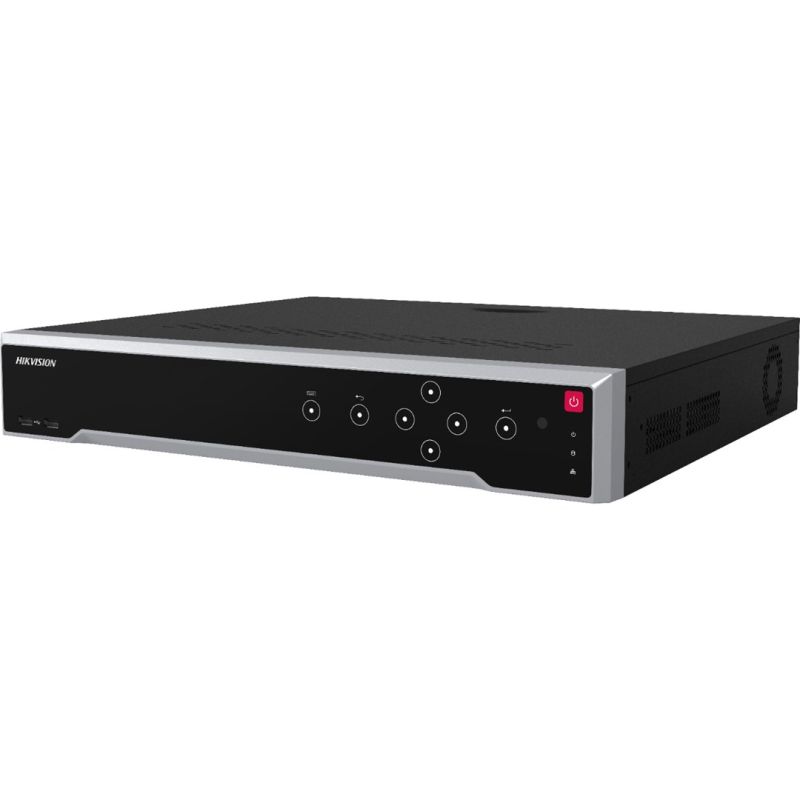

DS-7732NI-M4 32-channel recorder
DS-7732NI-M4 32-channel recorder
DS-7732NI-M4 32-channel recorder
PRICE:
1108,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Rack mounting options: Yes
- Built-in switch: Yes
- Rack capacity: 1.5U
- Product color: Black
- Brand Compatibility: Hikvision Digital Technology
- Power
- Total Power over Ethernet (PoE) budget: 200 W
- Operating voltage: 12 V
- AC input voltage: 100 - 240 V
- Power consumption (max): 15 W
- AC input frequency: 50 - 60 Hz
- Output current: 1 A
- Weight and dimensions
- Product height: 75 mm
- Product width: 445 mm
- Product depth: 400 mm
- Product weight: 5 kg
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (operation): -10 - 55 °C
- Efficiency
- Supported video file formats
- H.264+
- H.264
- H.265
- H.265+
- Maximum resolution: 7680 x 4320 px
- Supported audio formats
- AAC
- G.711 μ-law
- G.711 A-law
- G.726
- G.722
- Alarm output channels: 9
- Number of simultaneous playback channels: 16 channels
- Video Channel Inputs: 32 channels
- Two-way conversation: Yes
- Output bandwidth: 400 Mbit/s
- Alarm input channels: 16
- Input bandwidth: 320 Mbit/s
- Supported video file formats
- Wireless LAN Features
- Wi-Fi: No
- Display
- Built-in display: No
- Ports and interfaces
- Number of USB 2.0 ports: 2
- RS-485 ports: 2
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Number of eSATA ports: 1
- Number of Ethernet LAN ports (RJ-45): 2
- Number of internal SATA ports: 4
- RS-232 port: 1
- Number of HDMI ports: 2
- PoE Support: No
- RS232 connector: Yes
- Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
- VGA (D-Sub) Outputs: 1
- BNC Video Output: Yes
- RCA audio connectors: 1
- HDMI output: Yes
- RCA audio outputs: 1
- eSATA: Yes
- Hard drive
- HDD interface
- eSATA
- SATA
- Maximum storage capacity: 14 TB
- Number of supported HDDs: 5
- HDD interface
- Safety warning
- Warnings
- The product must be disposed of properly in accordance with local regulations for electronics disposal.
- The device should be installed by a qualified specialist.
- Do not expose the device to moisture or extreme temperatures.
- Warnings
| Name | Details |
|---|---|
| Producer | Hikvision |
