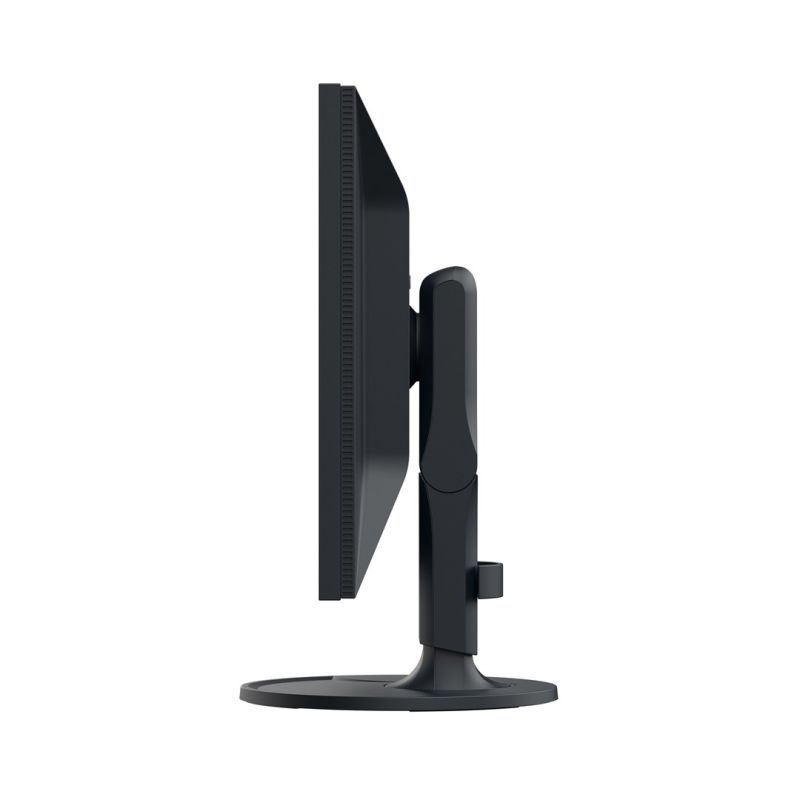

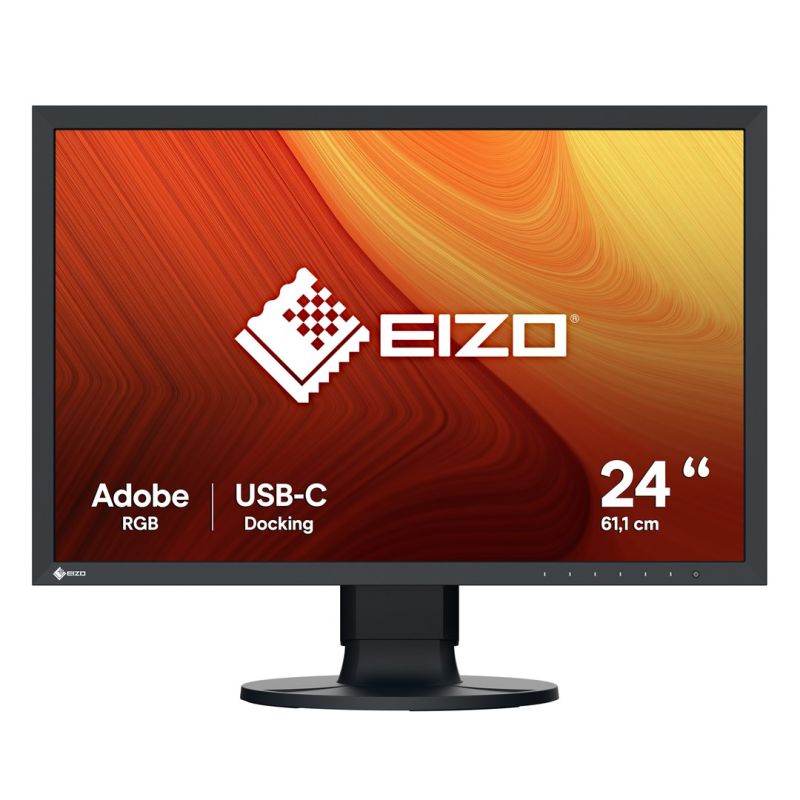

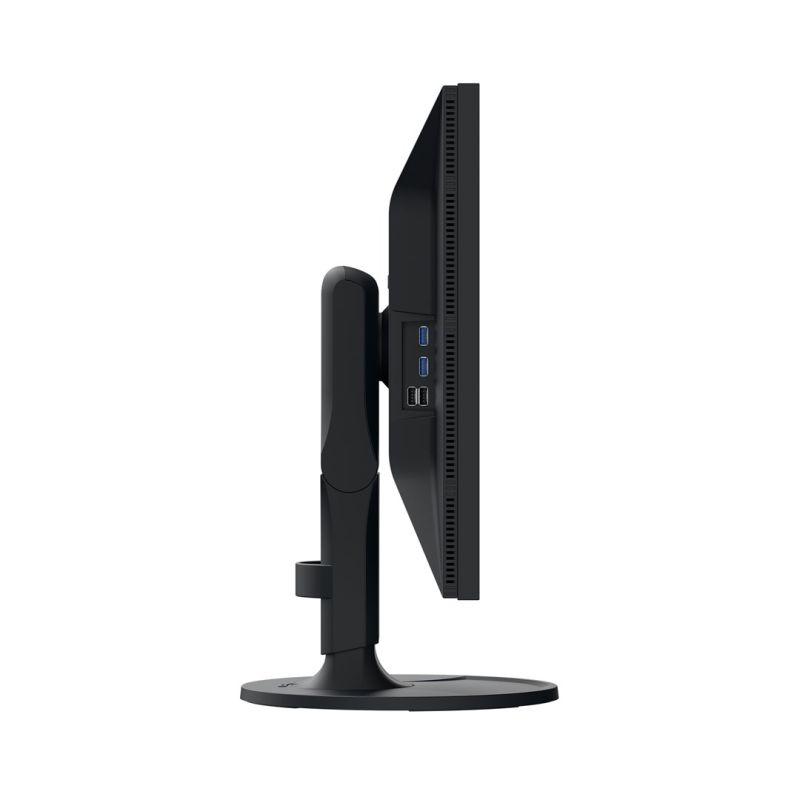

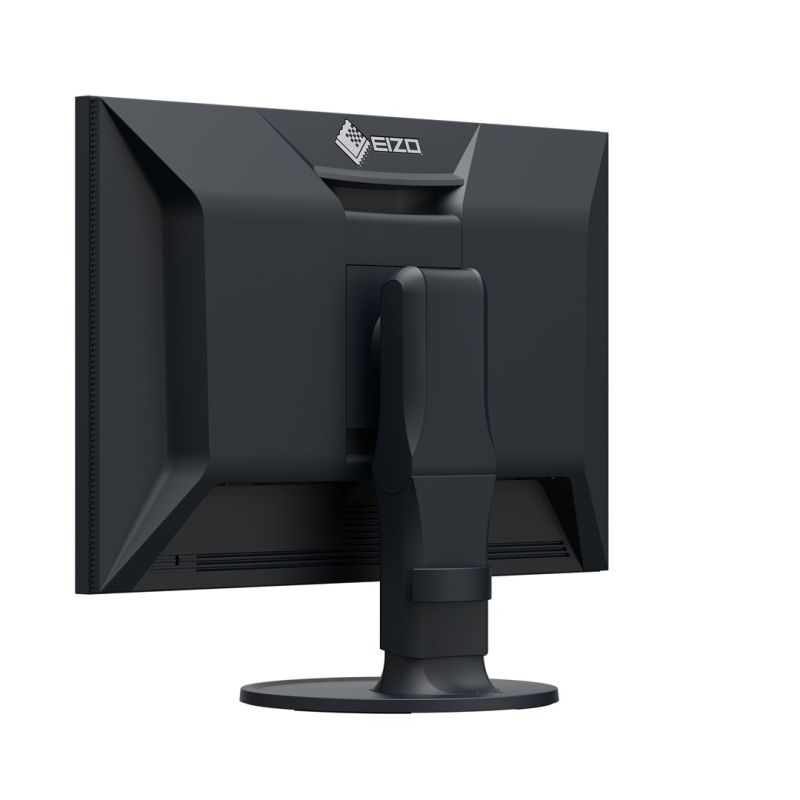

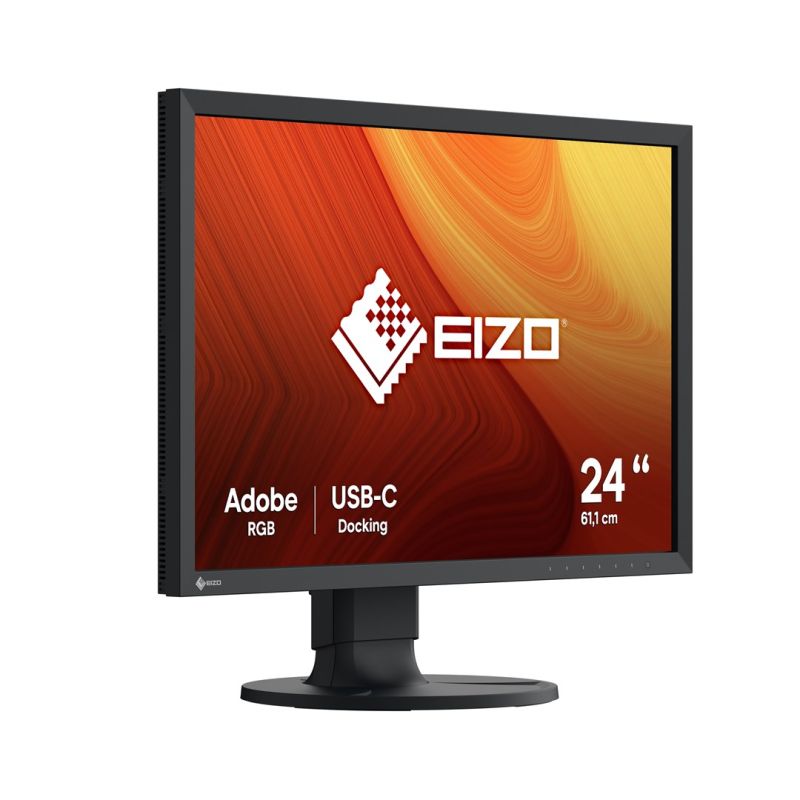

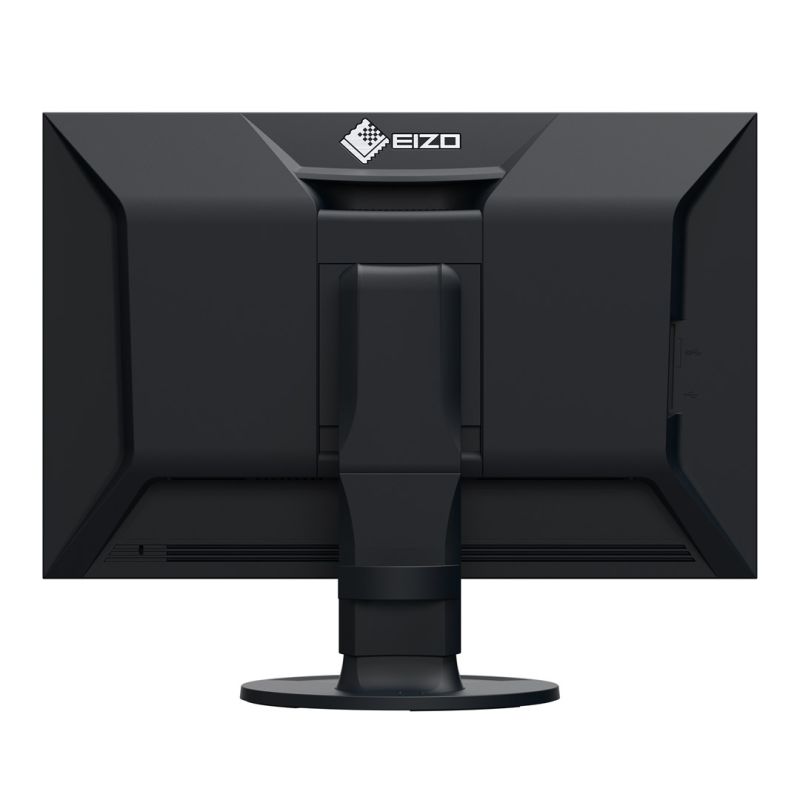

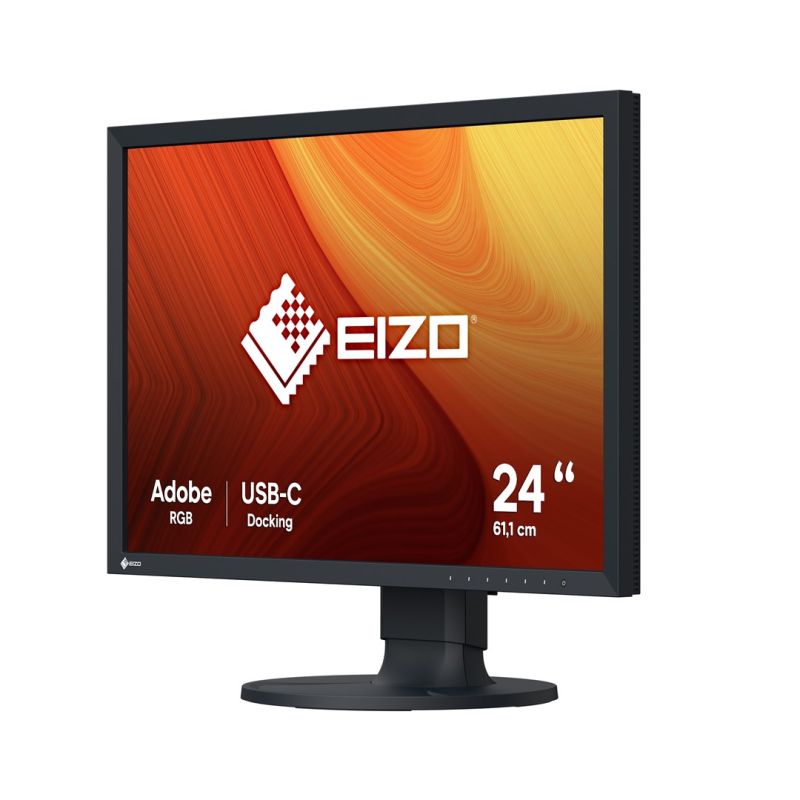

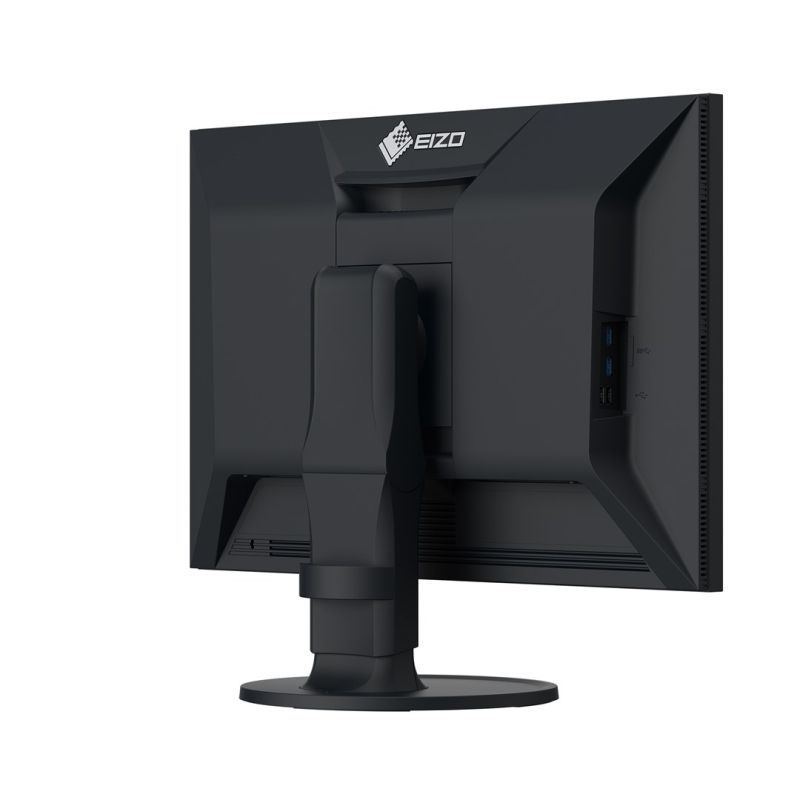

EIZO 61.0cm (24.1") CS2400S monitor 16:10 HDMI+DP+USB-C IPS
EIZO 61.0cm (24.1") CS2400S monitor 16:10 HDMI+DP+USB-C IPS
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Market positioning: Photo editing
- Leg color: Black
- Power
- AC input voltage: 100 - 240 V
- Off mode: 0.3 W
- AC input frequency: 50/60 Hz
- Power consumption (max): 149 W
- Power consumption: 18 W
- Power consumption in standby mode: 0.3 W
- Power Supply Type: Internal
- Energy consumption (SDR) per 1000 hours: 16 kWh
- Energy efficiency class (HDR): Not available
- Energy efficiency class (SDR): E
- Energy Efficiency Scale: From A to G
- Weight and dimensions
- Device depth (with base): 245 mm
- Device width (with base): 554.4 mm
- Device height (with base): 396 mm
- Width (without base): 554.4 mm
- Height (without base): 362 mm
- Depth (without base): 64 mm
- Weight (with base): 8.2 kg
- Weight (without stand): 5.2 kg
- Working conditions
- Temperature range (operation): 0 - 35 °C
- Relative humidity range: 20 - 80%
- Temperature range (storage): -20 - 60 °C
- Permissible relative humidity: 10 - 90%
- Efficiency
- NVIDIA G-SYNC: No
- AMD FreeSync: No
- Flicker-free technology: Yes
- Package contents
- Quick Start Guide: Yes
- Wires
- USB Type-C to USB Type-C
- HDMI
- Alternating current
- Base Included: Yes
- Display
- Display brightness (typical): 410 cd/m²
- LED backlight: Yes
- HD Type: WUXGA
- Horizontal viewing angle: 178°
- Screen diagonal: 24.1"
- Screen shape: Flat
- Resolution: 1920 x 1200 px
- Response time (typical): 19 ms
- Scanning range (length): 23 - 61 Hz
- Viewing angle (vertical): 178°
- Horizontal scanning range: 15 - 76 kHz
- Spot size: 0.27 x 0.27 mm
- Display colors: 1.07 trillion colors
- Supported graphics resolutions
- 1920 x 1200 (WUXGA)
- 1920 x 1080 (HD 1080)
- Native aspect ratio: 16:10
- Supported video modes
- 480i
- 576i
- 1080i
- 720p
- 480p
- 576p
- 1080p
- Display technology: LCD
- Maximum refresh rate: 60 Hz
- Image size (vertical): 32.4 cm
- Image size (horizontal): 51.8 cm
- Touchscreen: No
- Screen diagonal length (cm): 61.1 cm
- Matrix type: IPS
- Backlight type: W-LED
- Contrast ratio (typical): 1350:1
- DCI-P3 color gamut: 99%
- Color gamut standard
- Adobe RGB
- sRGB
- DCI-P3
- Matte screen: Yes
- Color depth: 10 bit
- Adobe RGB coverage: 99%
- sRGB coverage (typical): 100%
- Pixel density: 94 ppi
- Multimedia
- Built-in camera: No
- Built-in speakers: No
- Ergonomics
- Tilt angle range: -5 - 35°
- Panel mounting interface: 100 x 100 mm
- VESA Standard: Yes
- Rotatable: 0 - 344°
- Rotation angle around the axis: 0 - 90°
- Height adjustment: Yes
- Tilt adjustment: Yes
- Rotation axis: Yes
- Rotatable: Yes
- OSD: Yes
- Adjustable height (max): 15.5 cm
- Ports and interfaces
- HDCP: Yes
- Built-in USB hub: Yes
- Number of HDMI ports: 1
- DisplayPort Quantity: 1
- Number of USB Type A downstream ports: 4
- Port typeUSB upstream
- USB Type-C
- USB Type B
- USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
- HDMI: Yes
- Number of upstream ports: 2
- Number of USB Type-C upstream ports (quantity): 1
- Built-in KVM switch: Yes
- USB Power: Yes
- Number of USB Type-B ports (quantity): 1
- DisplayPort USB Type-C Alternate Mode: Yes
- Maximum USB power: 70W
- HDCP version: 2.3
- Other functions
- Certificates of conformity
- UKCA
- CE
- cTUVus
- Federal Communications Commission (FCC)
- PSE
- CCC
- RoHS
- CB
- China Compulsory Certification (CCC)
- WEEE
- Warranty period: 5 years
- Hardware Calibration: Yes
- LUT bit depth: 16
- Certificates of conformity
- Logistics data
- Harmonized System (HS) code: 85285210
| Name | Details |
|---|---|
| Producer | EIZO |
