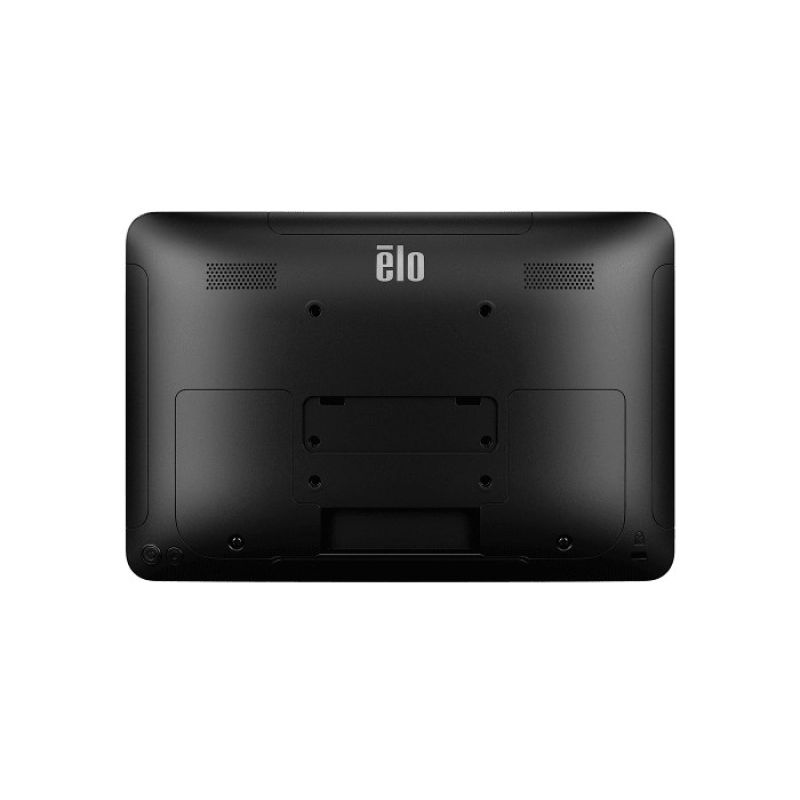

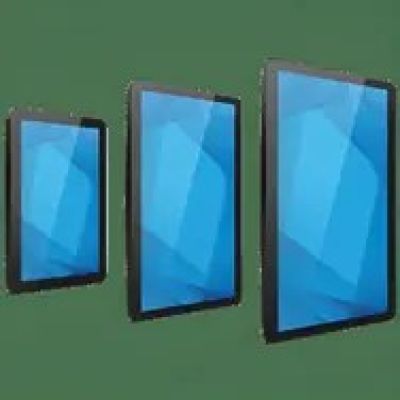

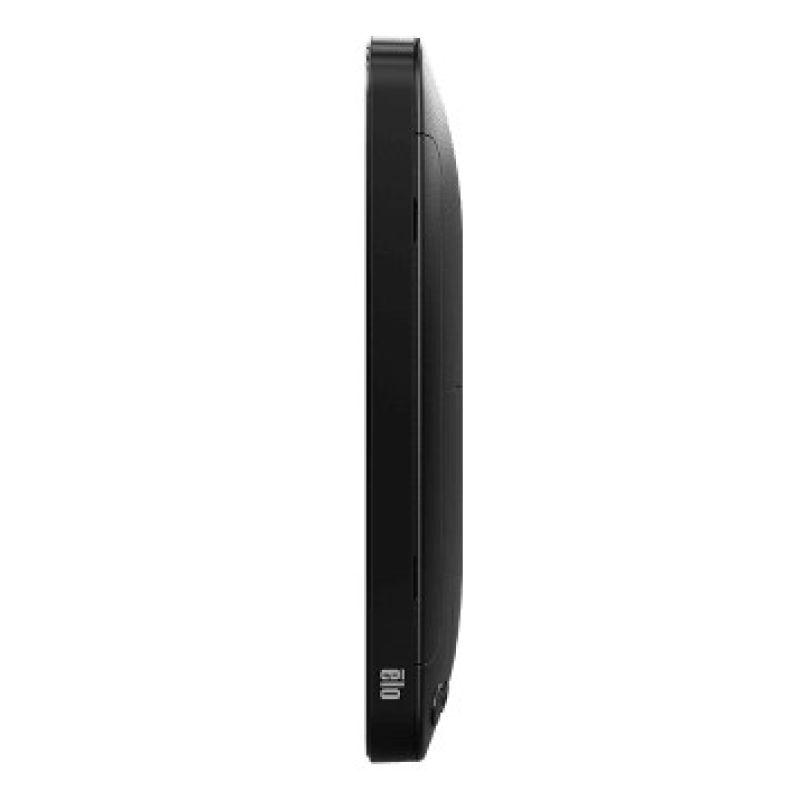

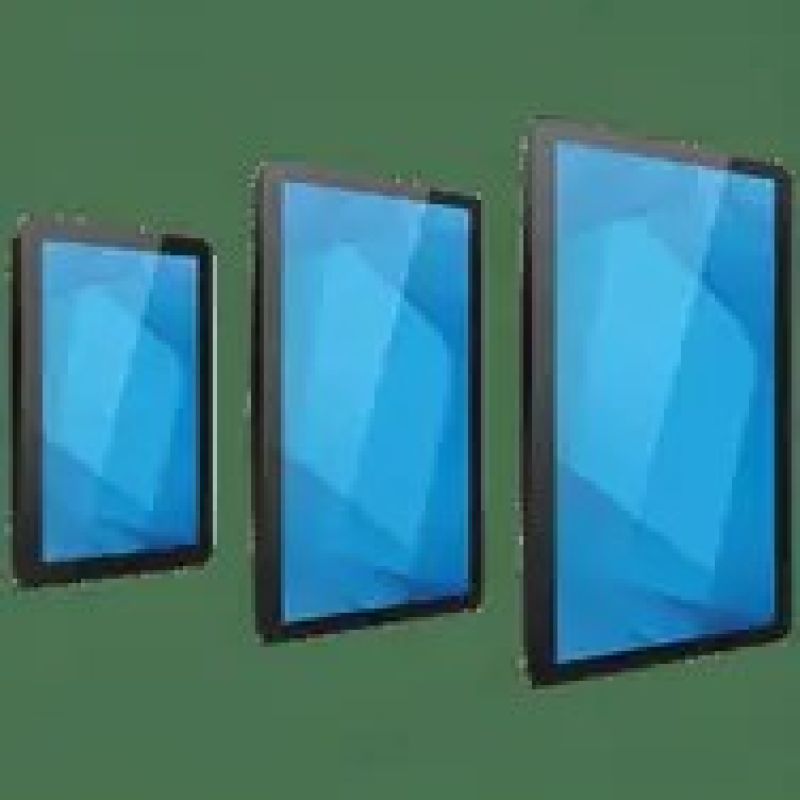

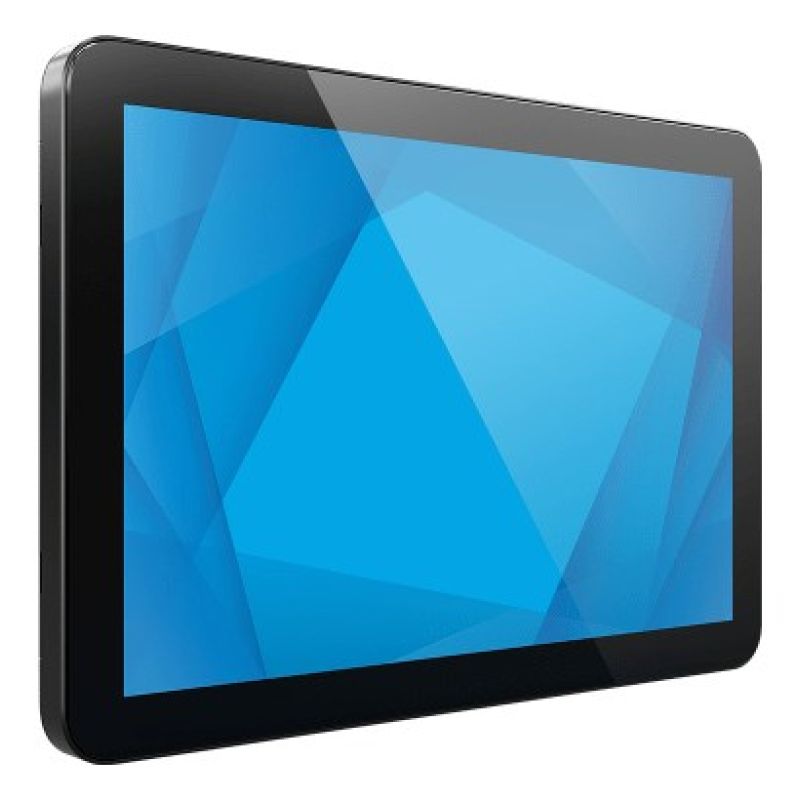

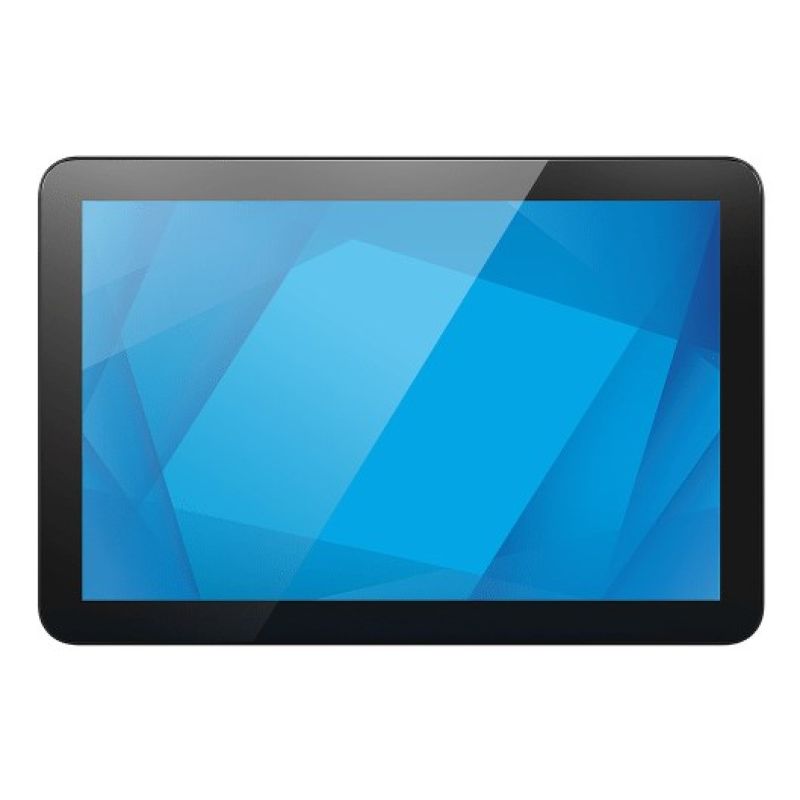

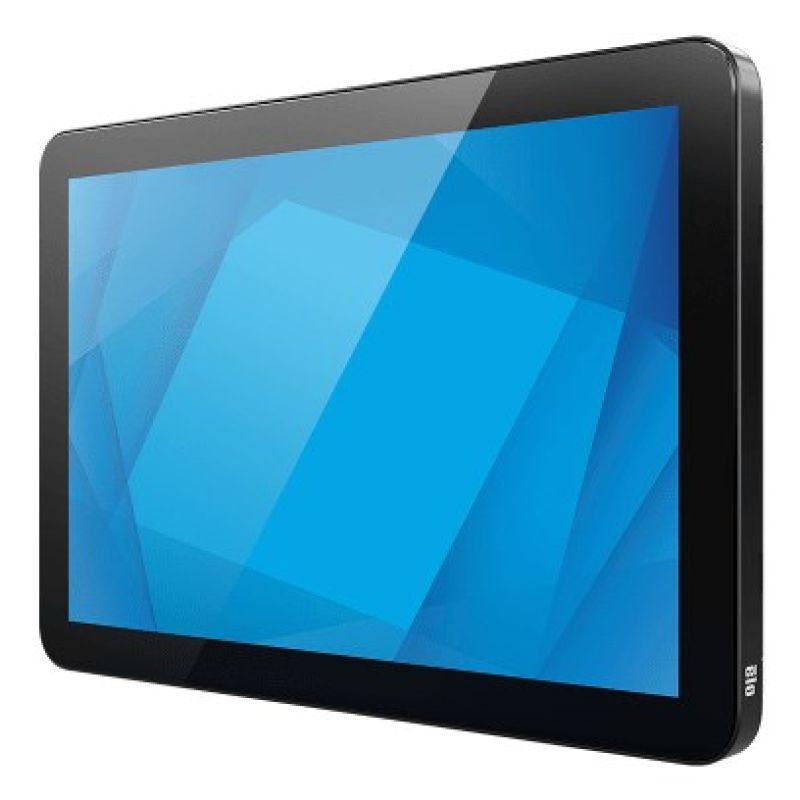

Elo Touch Solutions 1004L Digital Signage Flat Panel 25.6 cm (10.1") LED 360 cd/m2 WXGA Black Touchscreen
Elo Touch Solutions 1004L Digital Signage Flat Panel 25.6 cm (10.1") LED 360 cd/m2 WXGA Black Touchscreen
Elo Touch Solutions 1004L Digital Signage Flat Panel 25.6 cm (10.1") LED 360 cd/m2 WXGA Black Touchscreen
PRICE:
725,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product Type: Digital Signage Flat Panel
- VESA Standard: Yes
- Orientation: Landscape/Vertical
- Panel mounting interface: 75 x 75
- Screen shape: Flat
- Product color: Black
- Power
- Power consumption (sleep mode): 1 W
- Energy Efficiency Scale: From A to G
- Power consumption: 6.5 W
- Off mode: 0.25 W
- Energy consumption (SDR) per 1000 hours: 7 kWh
- Energy efficiency class (SDR): D
- Weight and dimensions
- Display weight: 900 g
- Display width: 249 mm
- Display depth: 168 mm
- Display height: 25 mm
- Working conditions
- Permissible relative humidity: 10 - 95%
- Temperature range (storage): -20 - 60 °C
- Relative humidity range: 20 - 80%
- Temperature range (operation): 0 - 40 °C
- Network
- Wired LAN: No
- Efficiency
- IP protection class: IP54
- On-screen menu languages
- Simplified Chinese
- Italian
- Chinese traditional
- Spanish
- Japanese
- German
- English
- French
- MTBF (Mean Time Between Failures): 50000 h
- Number of OSD languages: 8
- Purpose: Universal
- OSD: Yes
- Packaging data
- Package width: 308 mm
- Package height: 223 mm
- Package depth: 143 mm
- Weight with packaging: 2.2 kg
- Package contents
- Wires
- HDMI
- Power supply
- USB Type-A to USB Type-C
- Wires
- Display
- Display technology: LED
- Viewing angle (vertical): 170°
- Multi-touch: Yes
- Brightness: 360 cd/m²
- Matrix type: TFT-LCD
- Touchscreen technology: Capacitive
- Display colors: 16.7 million colors
- Native refresh rate: 60 Hz
- Contrast ratio (typical): 800:1
- Active screen area (W x H): 216.96 x 135.6 mm
- Number of displays: 1
- Touchscreen: Yes
- Response time (typical): 30 ms
- Horizontal scanning range: 30 - 80 kHz
- Screen diagonal length (cm): 26 cm
- Number of simultaneous touch points: 10
- HD type: WXGA
- Screen diagonal: 10.1"
- Horizontal viewing angle: 170°
- Resolution: 1280 x 800 px
- Audio
- Built-in speakers: Yes
- Number of built-in speakers: 2
- Output power (RMS): 4 W
- Ports and interfaces
- DVI Port: No
- USB port: Yes
- Number of HDMI ports: 1
- USB Power: Yes
- Maximum USB power: 18W
- Supported USB type
- USB Type-C
- Micro USB
- DC output socket: Yes
