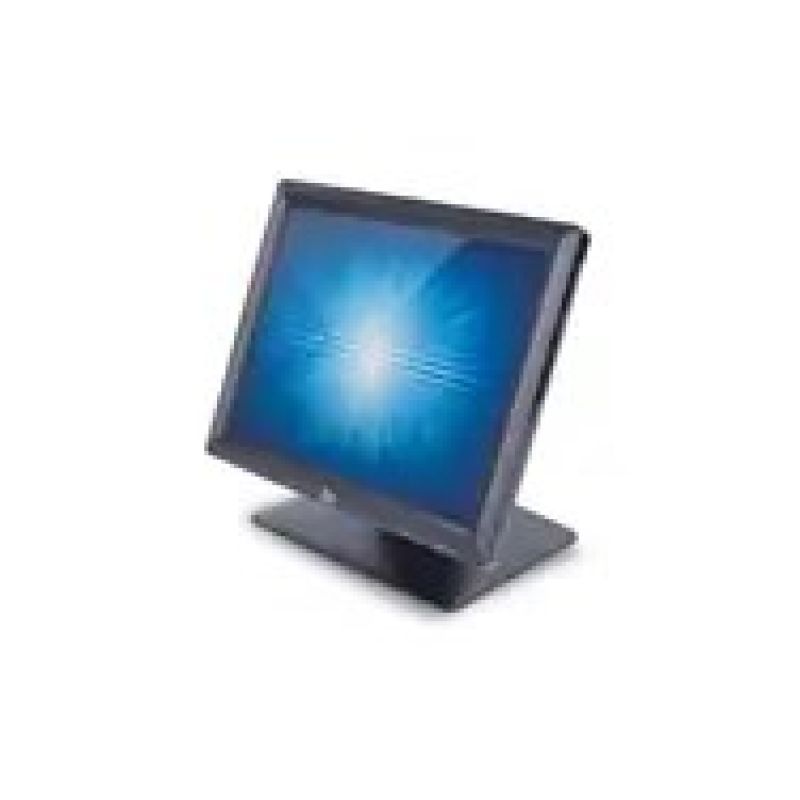

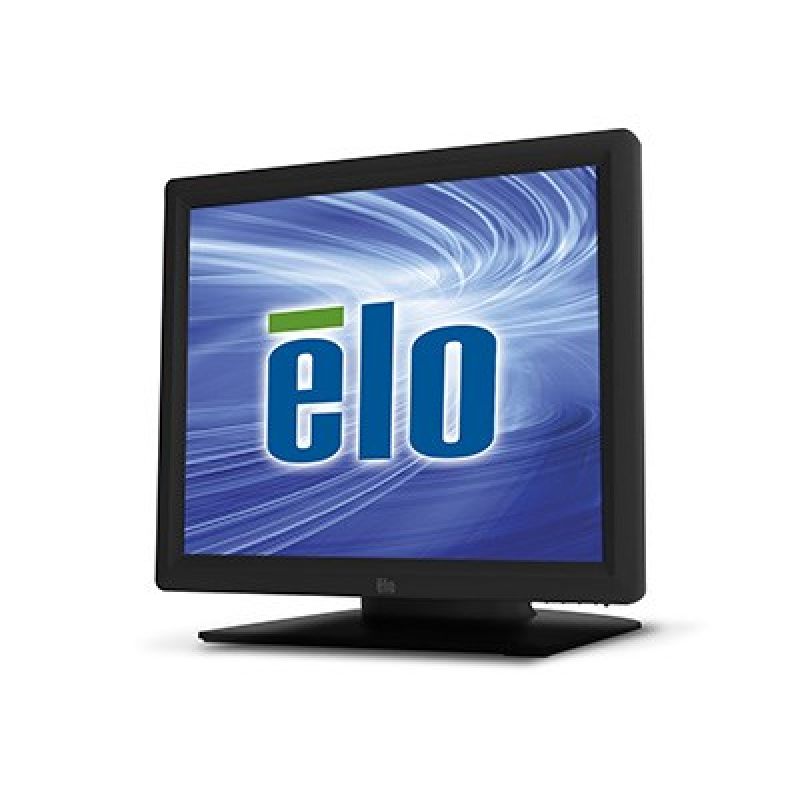

elo Touchscreen Monitor 1517L 15" LCD FHD Bezel Touch schw.
elo Touchscreen Monitor 1517L 15" LCD FHD Bezel Touch schw.
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Panel mounting interface: 75 x 75
- Screen shape: Flat
- Power
- Power consumption: 12 W
- AC input frequency: 50 - 60 Hz
- AC input voltage: 100 - 240 V
- Weight and dimensions
- Weight (with base): 4.3 kg
- Device depth (with base): 197 mm
- Device width (with base): 358 mm
- Device height (with base): 319 mm
- Working conditions
- Temperature range (storage): -20 - 60 °C
- Relative humidity range: 20 - 80%
- Permissible relative humidity: 10 - 90%
- Temperature range (operation): 0 - 40 °C
- Efficiency
- MTBF (Mean Time Between Failures): 50000 h
- Number of OSD languages: 8
- On-screen menu languages
- German
- English
- Spanish
- Simplified Chinese
- Italian
- Chinese traditional
- Japanese
- French
- Packaging data
- Package width: 487 mm
- Package height: 485 mm
- Package depth: 231 mm
- Weight with packaging: 7.3 kg
- Display
- LED backlight: Yes
- Resolution: 1024 x 768 px
- Screen diagonal: 15"
- Native refresh rate: 60 Hz
- Brightness: 200 cd/m²
- Horizontal viewing angle: 160°
- Supported graphics resolutions
- 800 x 600 (SVGA)
- 1024 x 768 (XGA)
- 720 x 400
- 640 x 480 (VGA)
- Horizontal scanning range: 31.5 - 60 kHz
- Response time (typical): 8 ms
- Touchscreen: Yes
- Viewing angle (vertical): 150°
- Display colors: 16.2 million colors
- Native aspect ratio: 4:3
- Contrast ratio (typical): 800:1
- Display technology: LCD
- Scanning range (length): 56 - 75 Hz
- Other functions
- Aspect ratio: 4:3
- Dimensions (WxDxH) with stand: 358 x 197 x 319 mm
- Voltage tolerance: 5%
- Visible part of the screen: 304 x 228 mm
- Power supply type: AC/DC
- Logistics data
- Harmonized System (HS) code: 85285210
