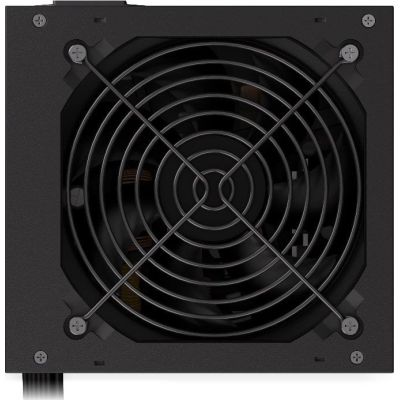

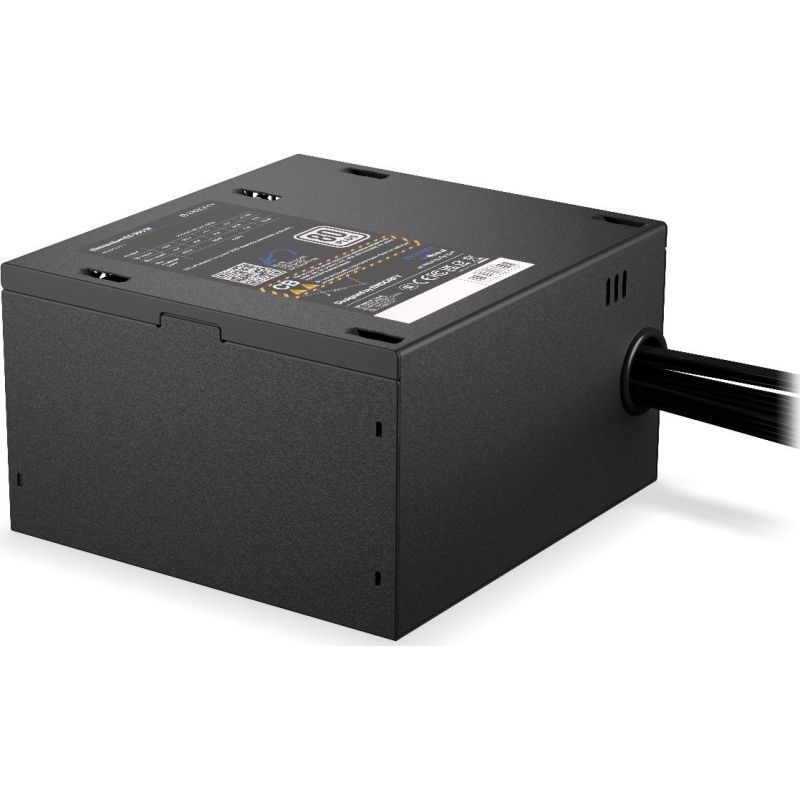

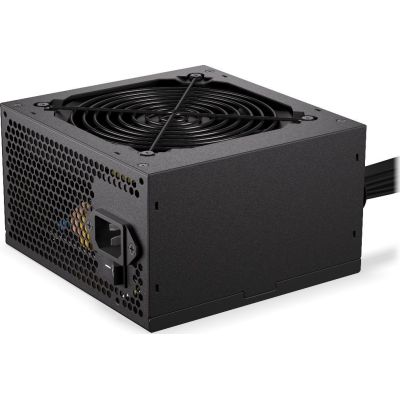

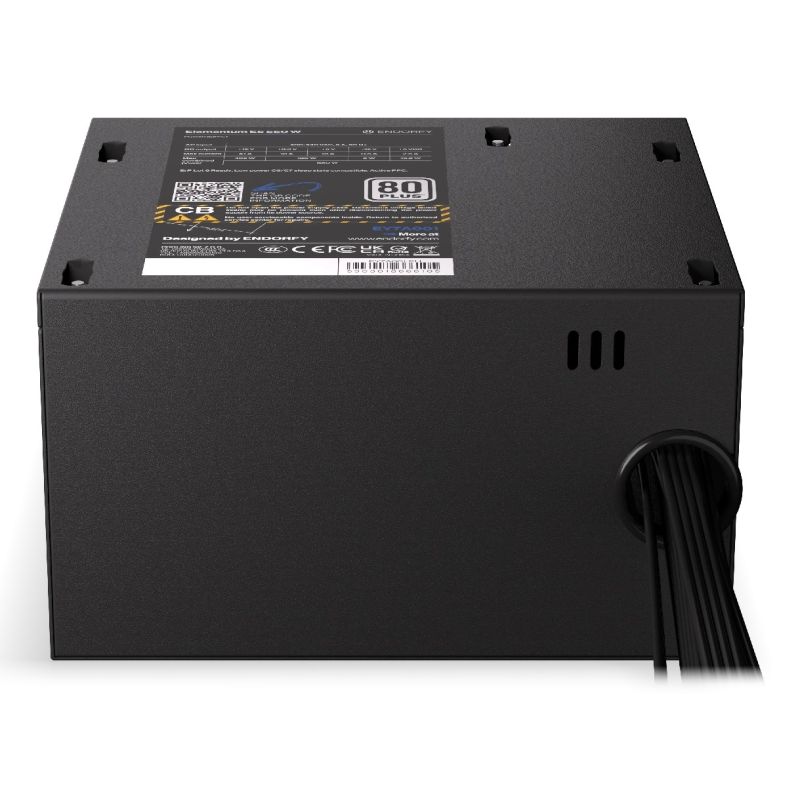

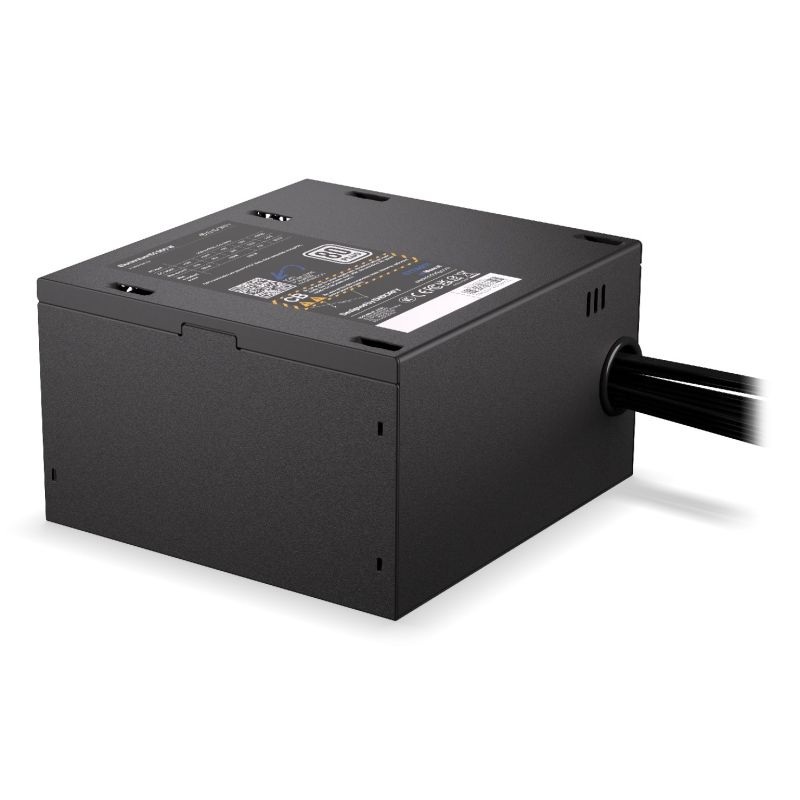

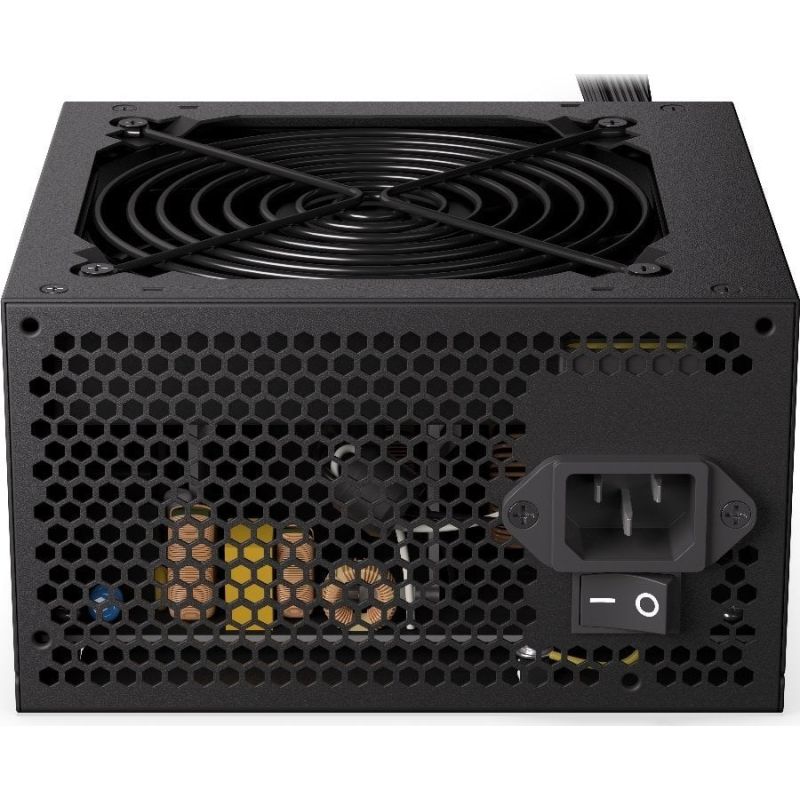

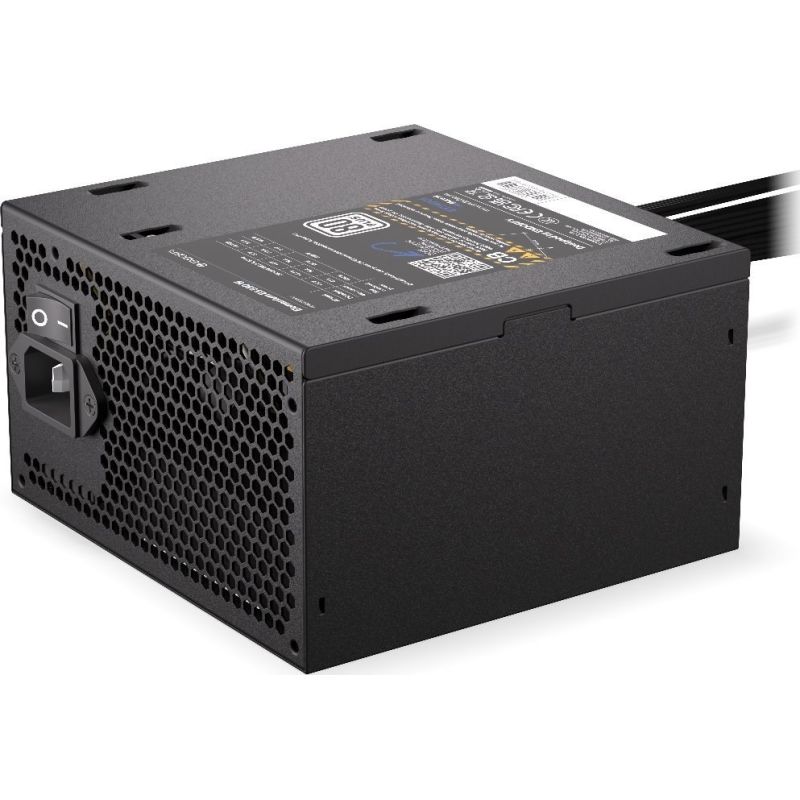

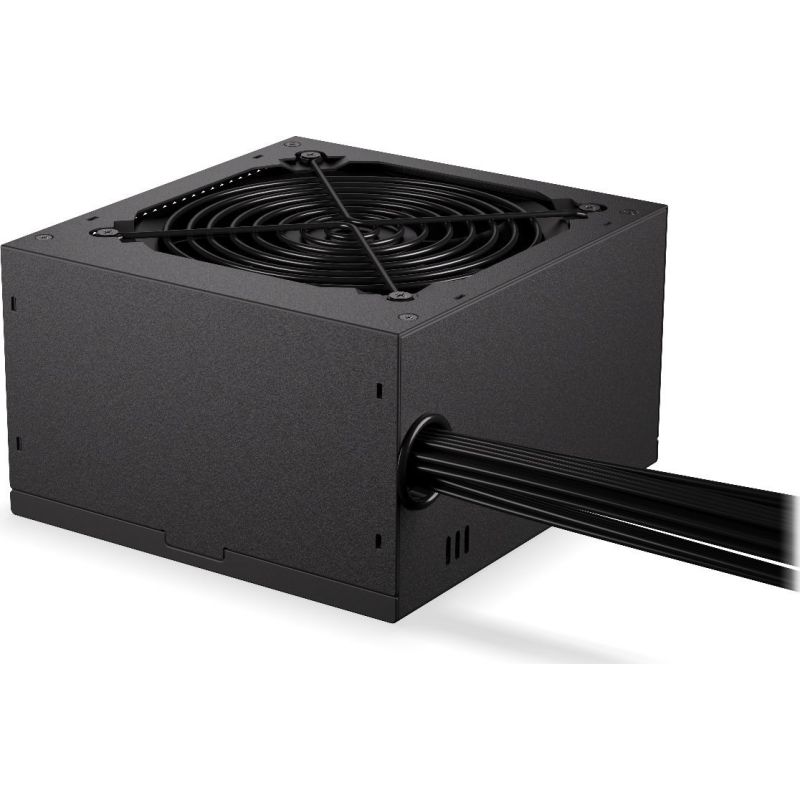

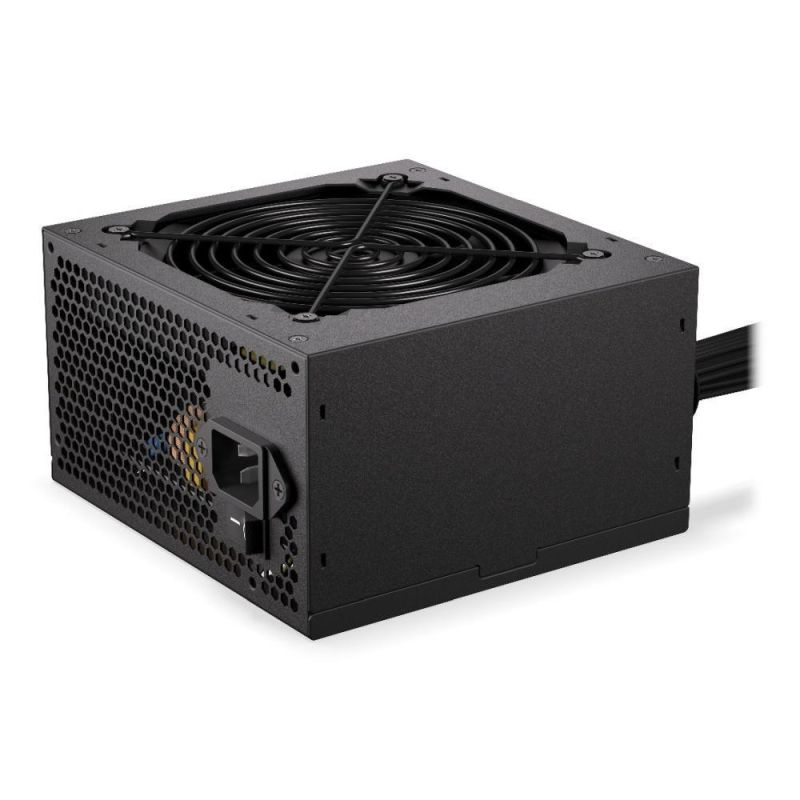

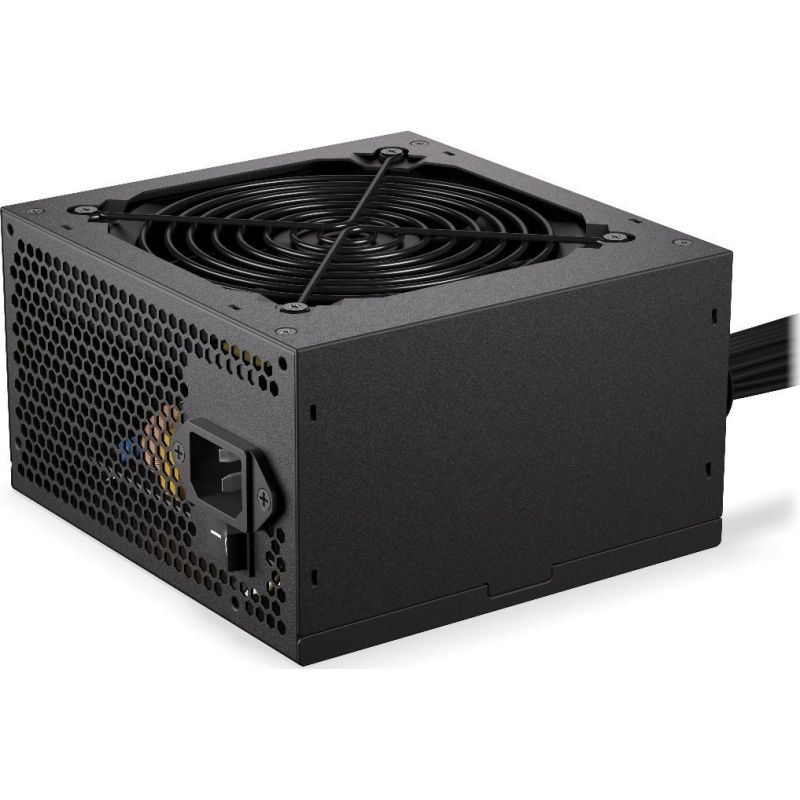

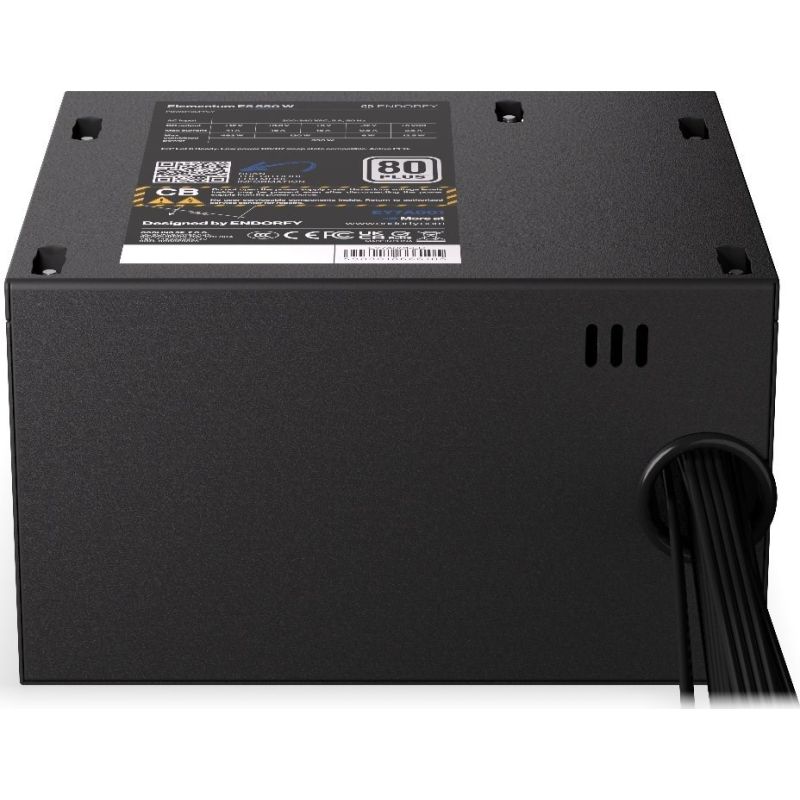

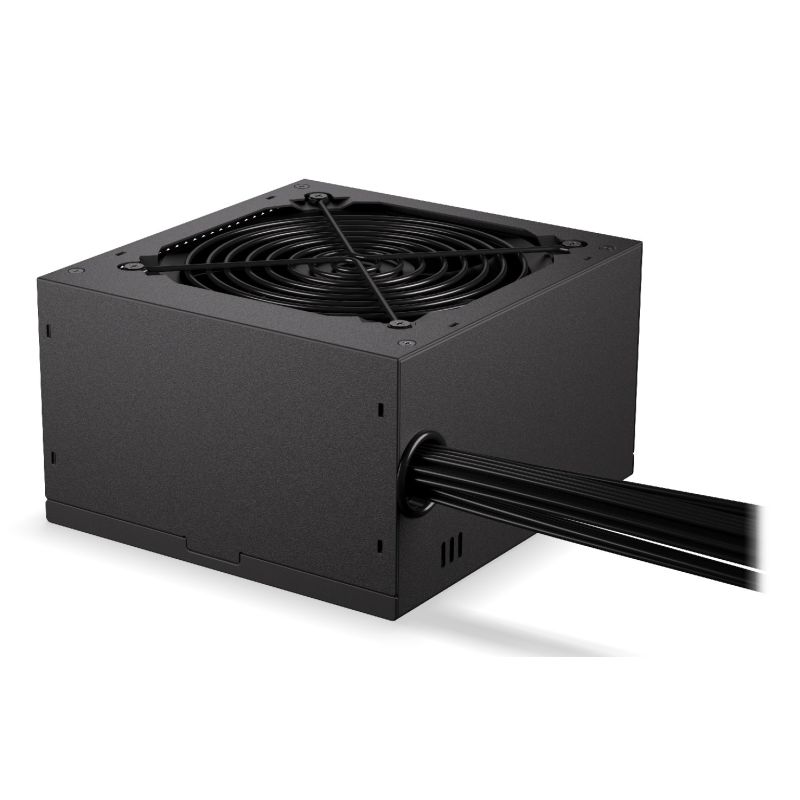

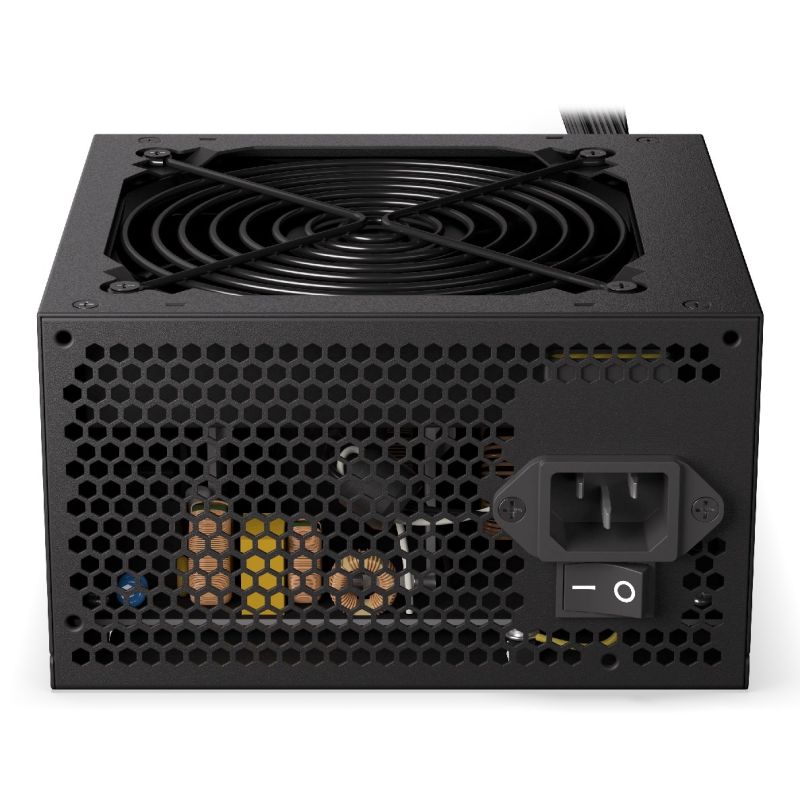

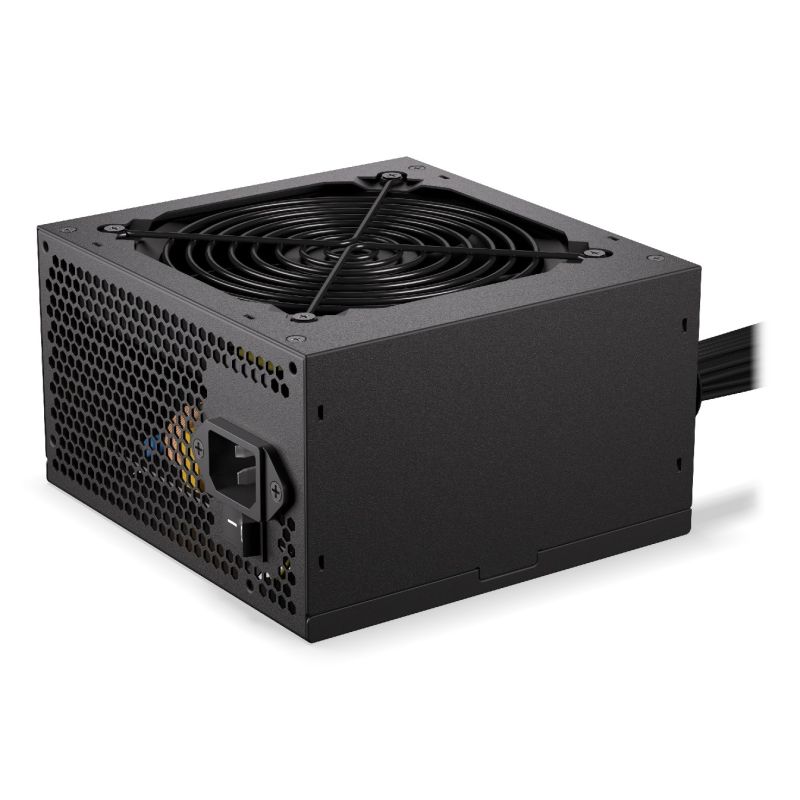

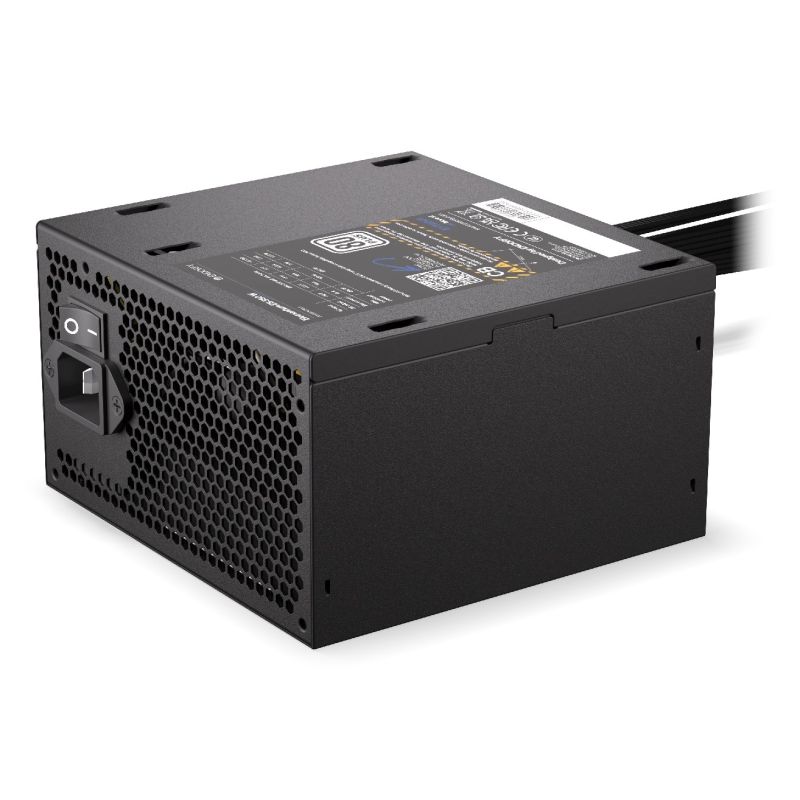

ENDORFY Elementum E5 550W Power Supply (EY7A001)
ENDORFY Elementum E5 550W Power Supply (EY7A001)
ENDORFY Elementum E5 550W Power Supply (EY7A001)
PRICE:
69,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Cooling type: Active
- Product color: Black

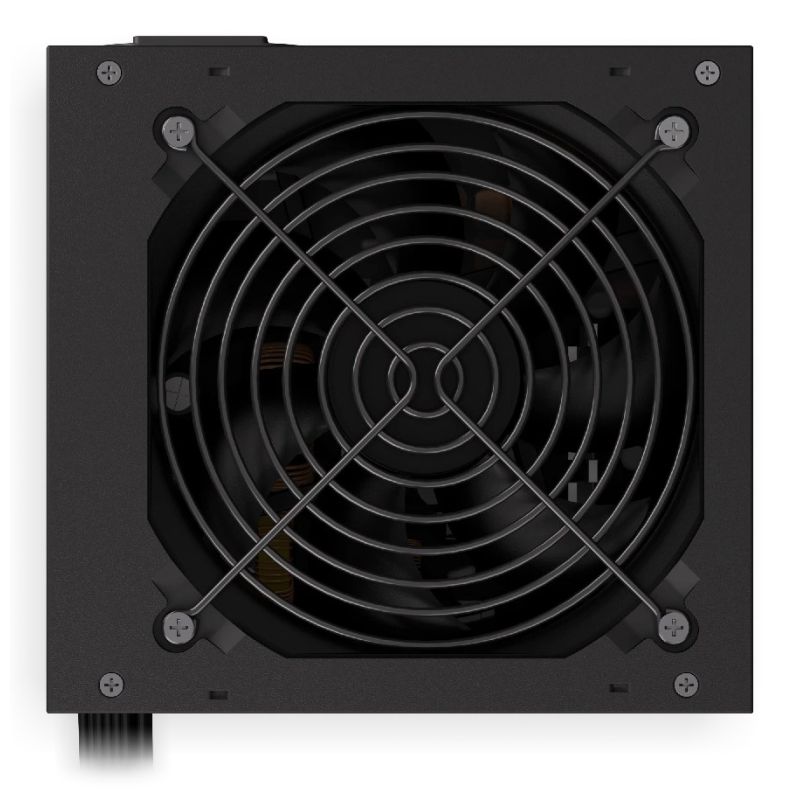

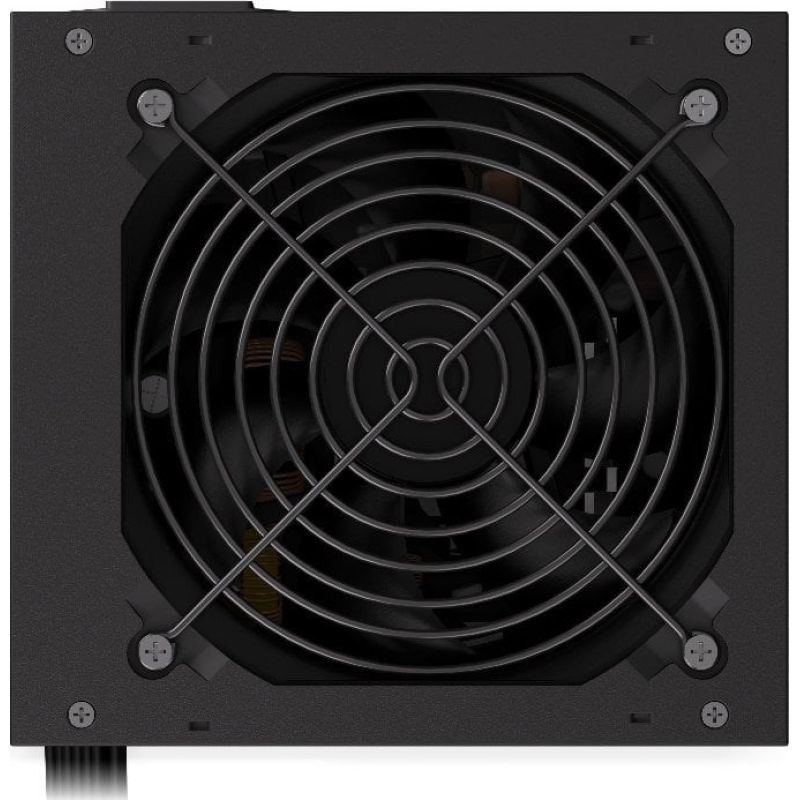

- Fan Location: Top
- Built-in switch: Yes
- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Power
- AC input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Power protection features
- UVP (undervoltage protection)
- SCP (short circuit protection)
- SIP (surge and surge protection)
- OVP (overvoltage protection)
- OPP (overload protection)

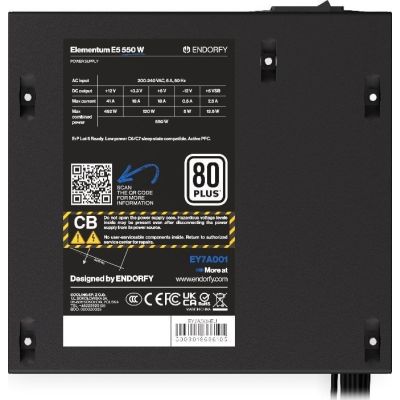

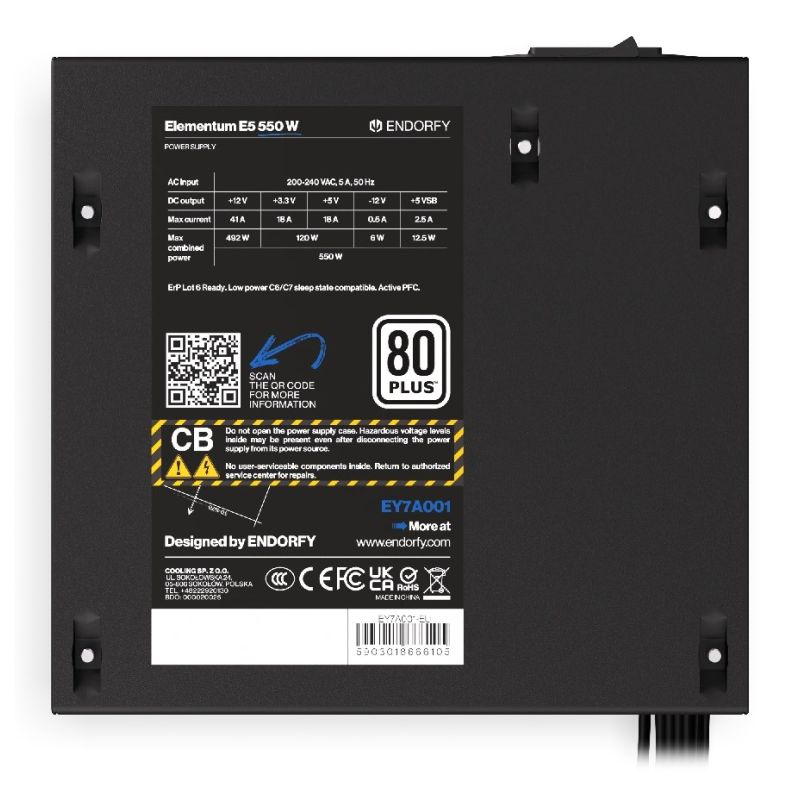

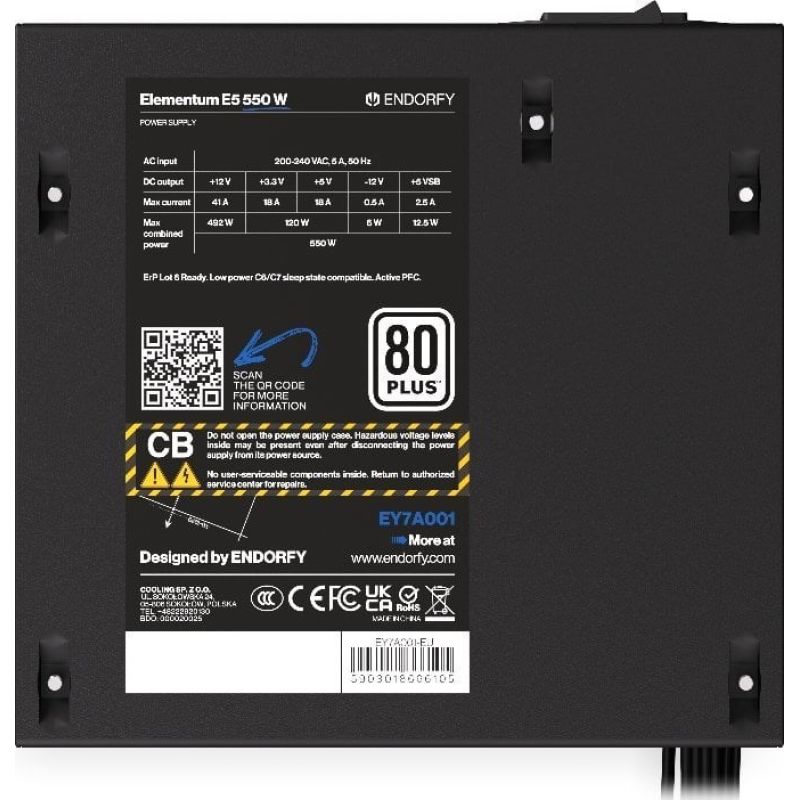

- Maximum output current (+3.3V): 18 A
- Total power: 550 W
- Maximum output current (-12V): 0.3A
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+5 Vsb): 2.5 A
- Maximum output current (+12V): 41A
- Maximum output current (+5V): 18A
- Weight and dimensions
- Product width: 150 mm
- Product depth: 140 mm
- Product height: 87 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS
- Power supply type (PSU): ATX
- Packaging data
- User manual: Yes
- Ports and interfaces
- Length of EPS power connectors (4+4 pin): 70 cm
- PCI Express (6-pin) power cable length: 460 mm
- 16 PIN PCIe GEN5 Power Connector: None
- Length of 16 PIN PCIe GEN5 Power Connectors: N/A
- PCI Express power connectors (6-pin): 1
- Number of SATA power connectors: 4
- PCI Express power cable length: 46 cm
- Peripheral (Molex) Power Connectors (4-pin): 2
- EPS power connector (4+4 pin): Yes
- SATA power cable length
- 410 mm
- 555 mm
- 700 mm
- Peripheral (Molex) Power Cable Length
- 555 mm
- 410 mm
- PCI Express power connectors (6+2 pin): 1
- Motherboard power connector: 20+4 pin ATX
- Motherboard cable length: 45 cm
- Safety warning
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Warnings
