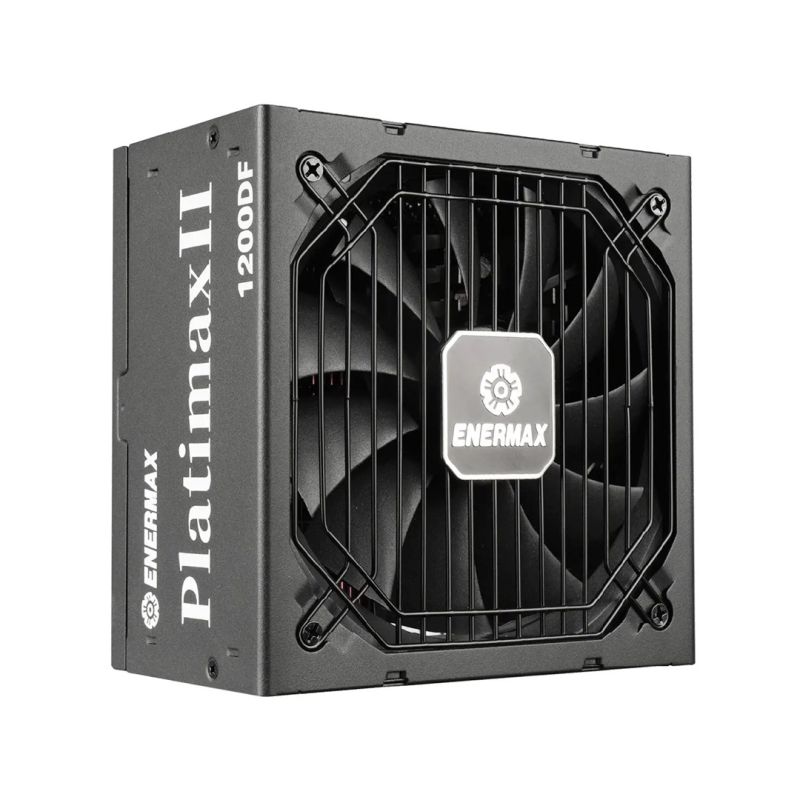

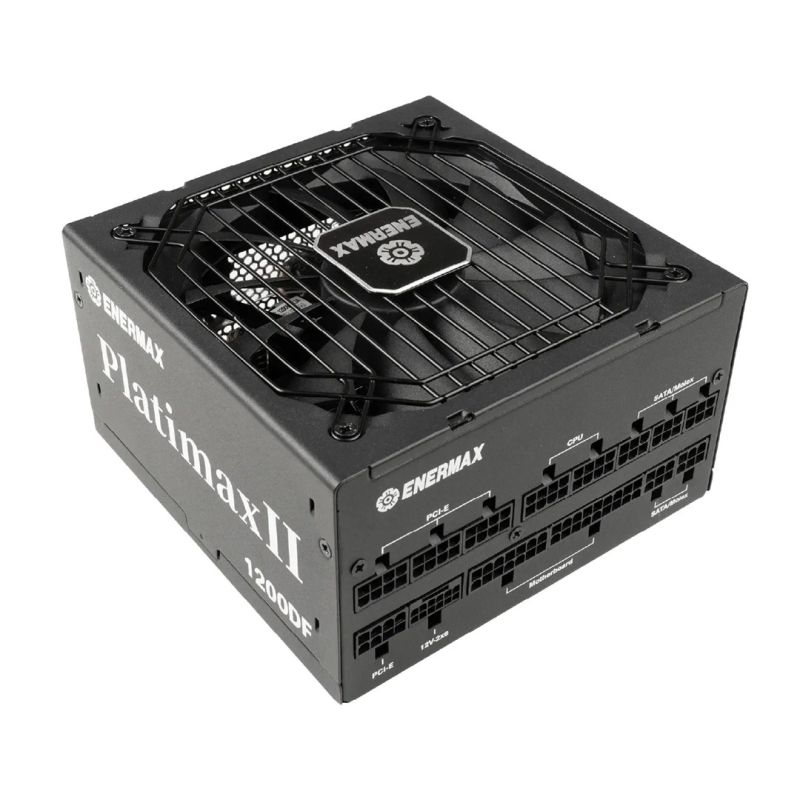

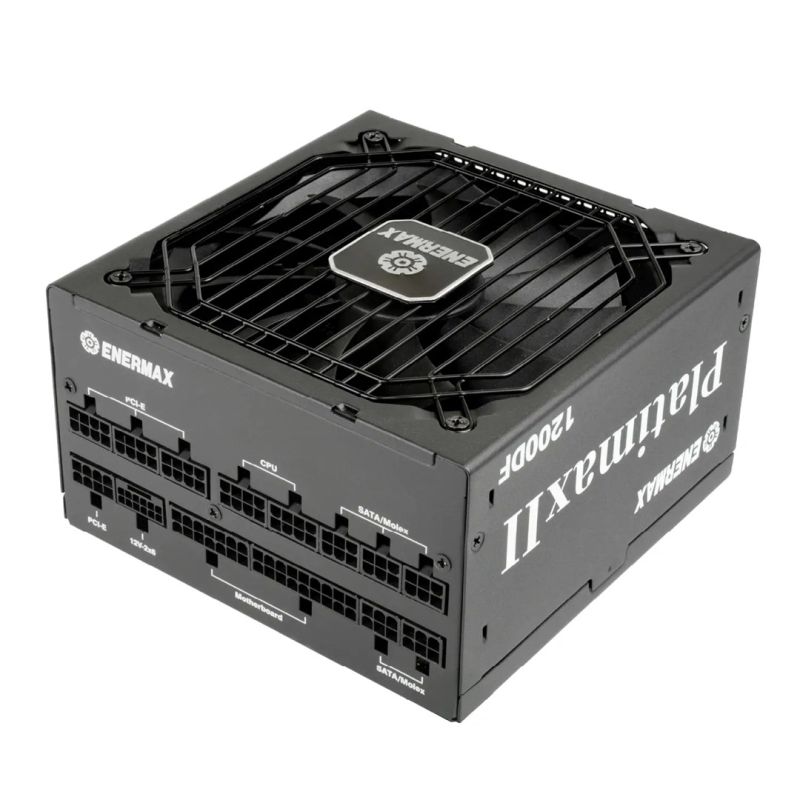

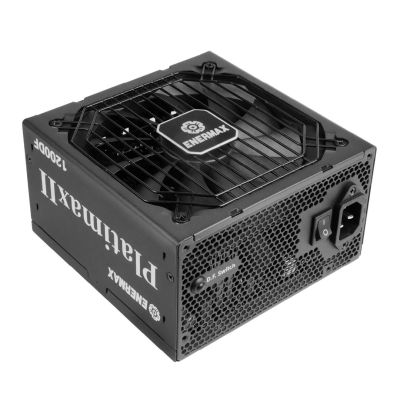

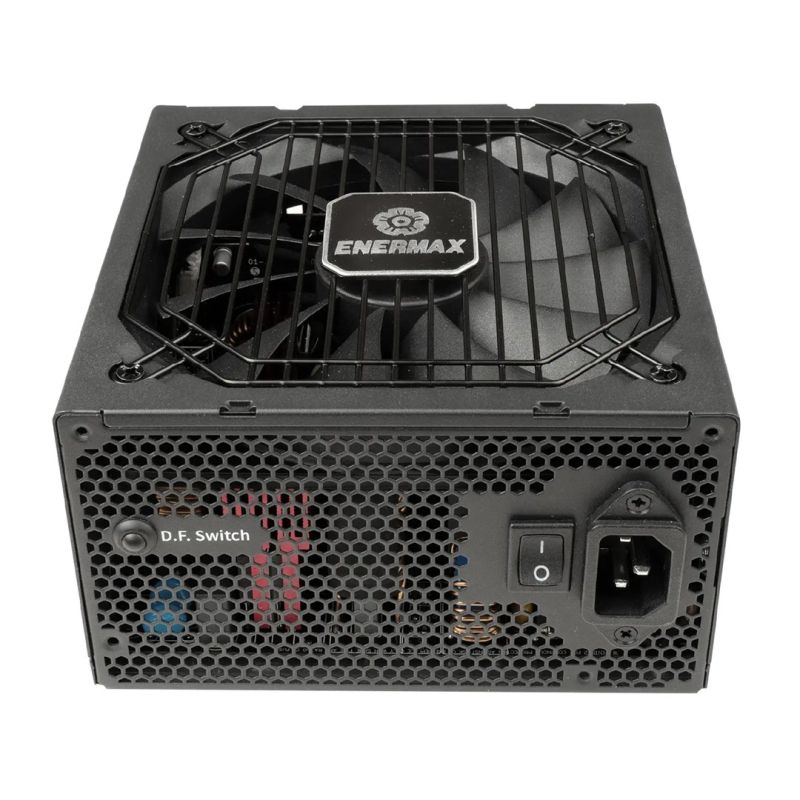

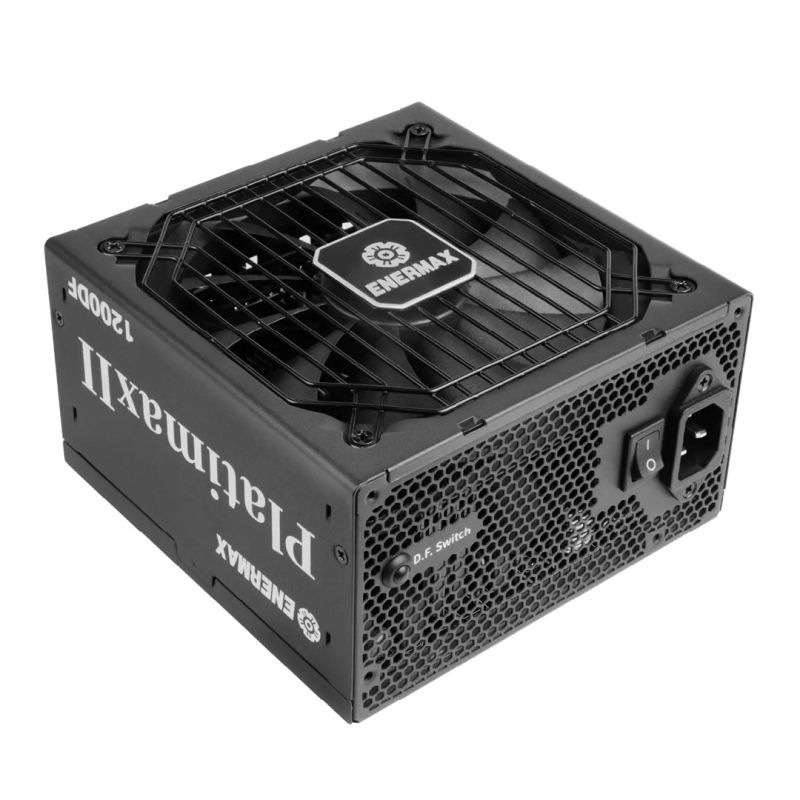

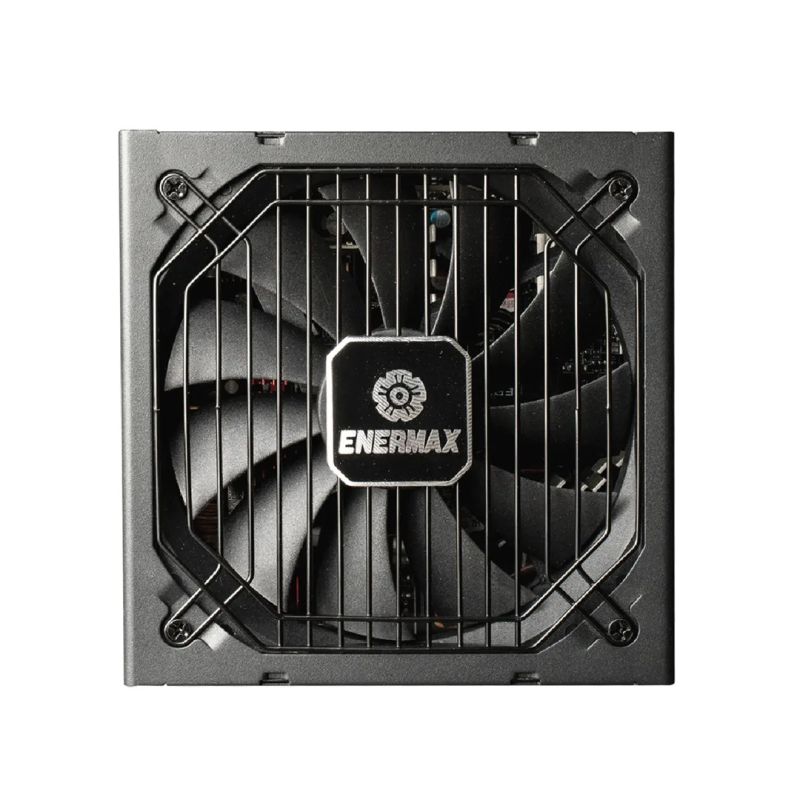

Enermax EPS1200P-NPX Power Supply Module 1200 W 24-pin ATX ATX Black
Enermax EPS1200P-NPX Power Supply Module 1200 W 24-pin ATX ATX Black
Enermax EPS1200P-NPX Power Supply Module 1200 W 24-pin ATX ATX Black
PRICE:
246,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Fan bowl diameter: 13.5 cm
- Built-in switch: Yes
- Power
- Efficiency: 92%
- Maximum output current (+5 Vsb): 3 A
- Total power: 1200 W
- AC input frequency: 50/60 Hz
- Maximum output current (+12V): 100A
- Total power (-12V): 4.8 W
- Total power (+12V): 1200 W
- Total power (+5V): 100 W
- Maximum output current (-12V): 0.4A
- AC input voltage: 100 - 240 V
- Maximum output current (+3.3V): 20 A
- Maximum output current (+5V): 10A
- Input current: 8 - 15 A
- Power protection features
- Short circuit
- Overheating protection
- Overcurrent
- Overload protection
- Overload
- Low voltage protection
- Total power (+5 Vsb): 15 W
- Total power (+3.3V): 100 W
- Weight and dimensions
- Product depth: 86 mm
- Product width: 150 mm
- Product height: 150 mm
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Gold
- Power supply type (PSU): ATX
- Cybenetics Certification: Platinum
- Packaging data
- Package depth: 195 mm
- Package width: 330 mm
- Weight with packaging: 3.19 kg
- Package height: 130 mm
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- EAC
- Certificates of conformity

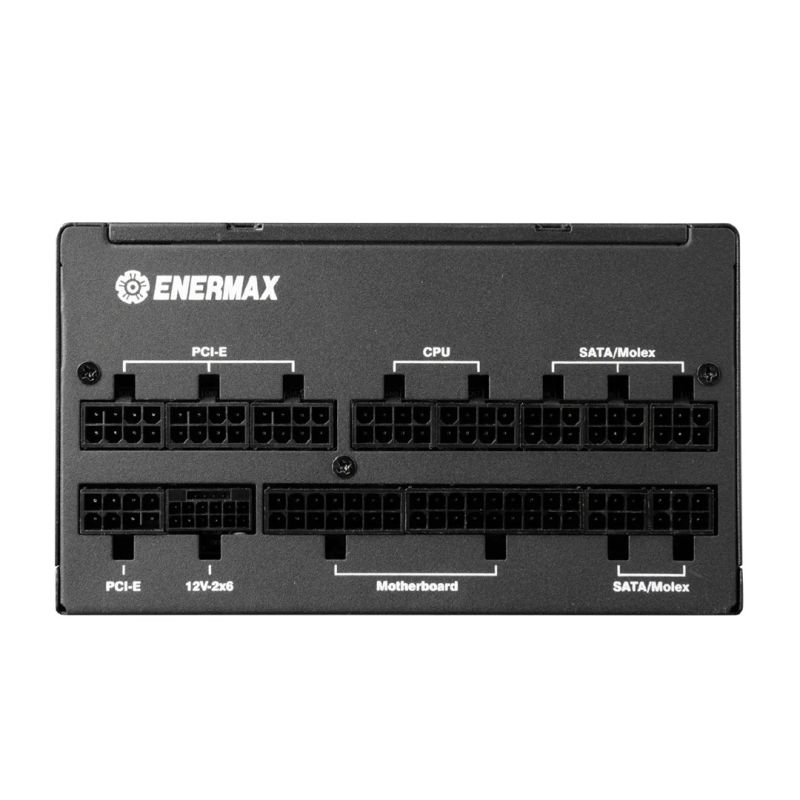

- Ports and interfaces
- Motherboard power connector: 24-pin ATX
- CPU power cable length: 70 cm
- Wiring Type: Fully Modular
- PCI Express power cable length: 60 cm
- CPU power supply connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 3
- Number of SATA power connectors: 8
- Peripheral (Molex) Power cable length: 900 mm
- Motherboard cable length: 60 cm
- Peripheral (Molex) Power Connectors (4-pin): 4
- SATA power cable length: 900 mm
- PCI Express power connectors (12+4 pin) cable length: 600 mm
- Number of SATA power cables: 2
- ATX power connector (12+4 pin): Yes
- PCI Express power connectors (12+4 pin): 1
- Logistics data
- Main (outer) case length: 345 mm
- Net weight in collective packaging: 20.7 kg
- Height of the standard (outer) box: 290 mm
- Width of the collection box (external): 605 mm
