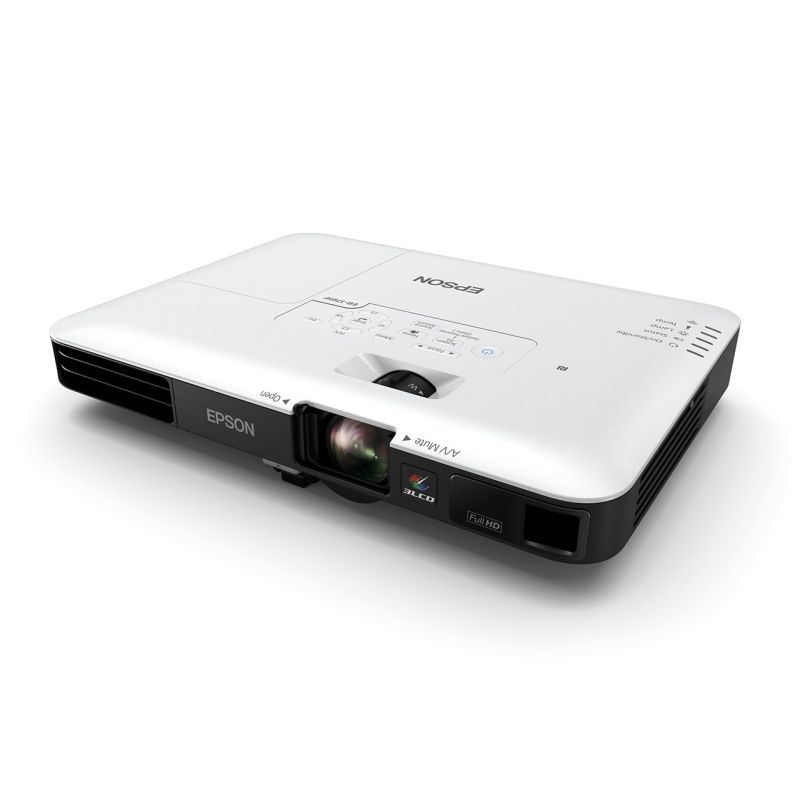

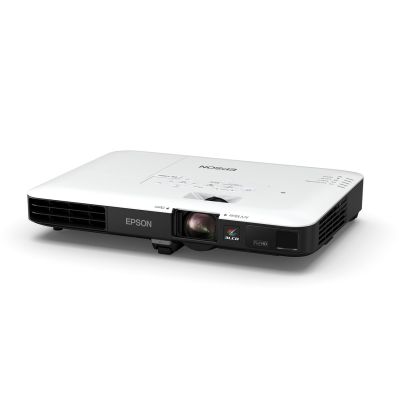

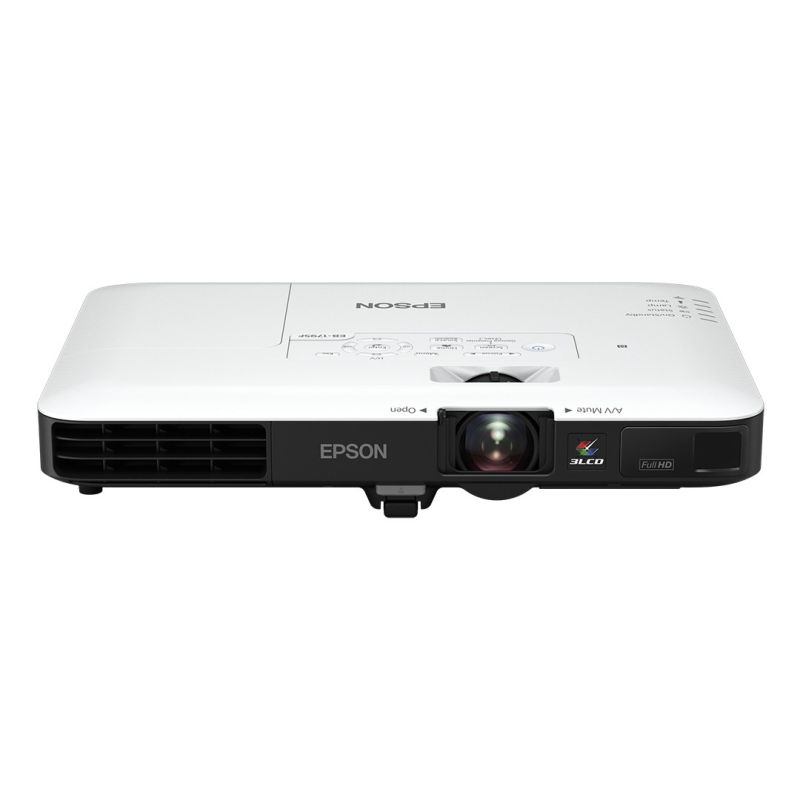

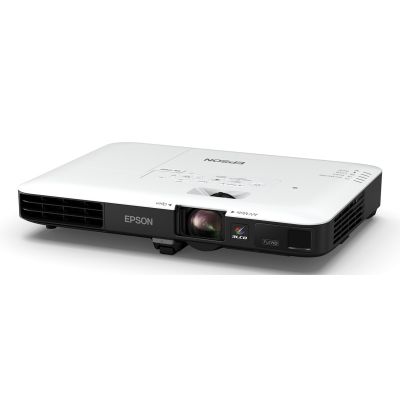

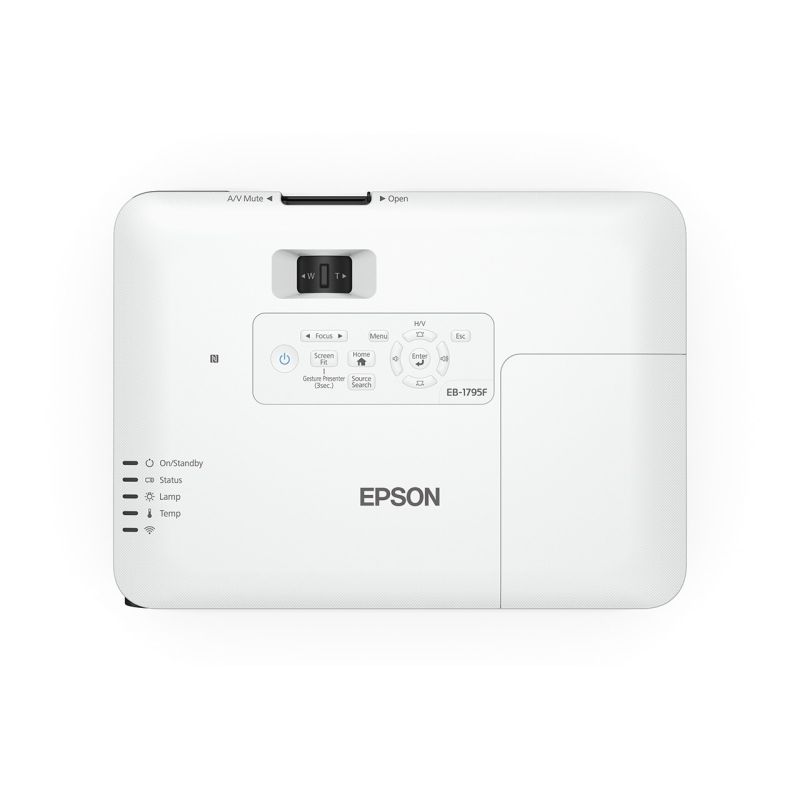

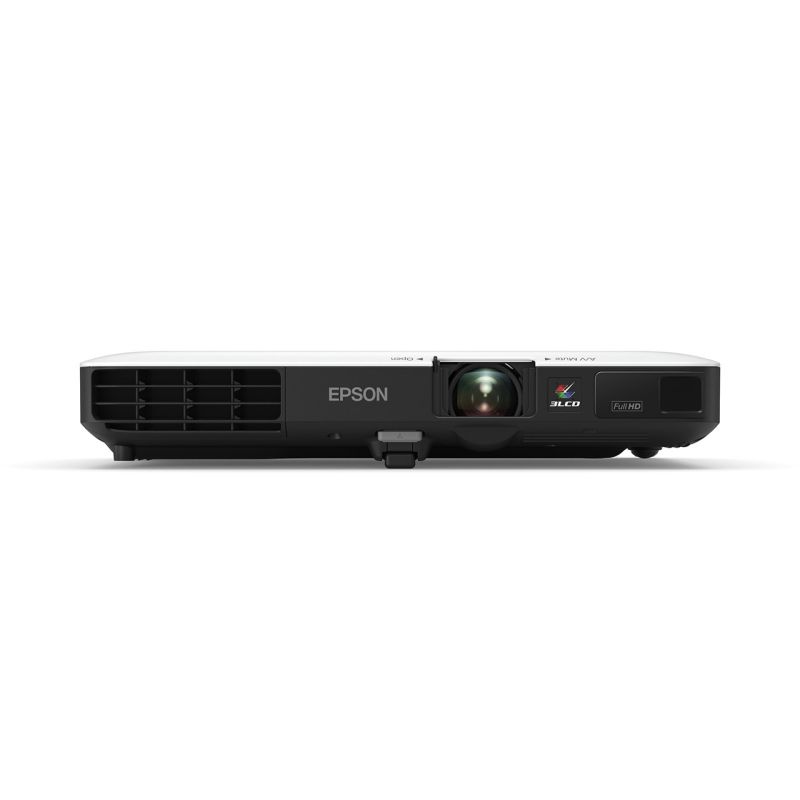

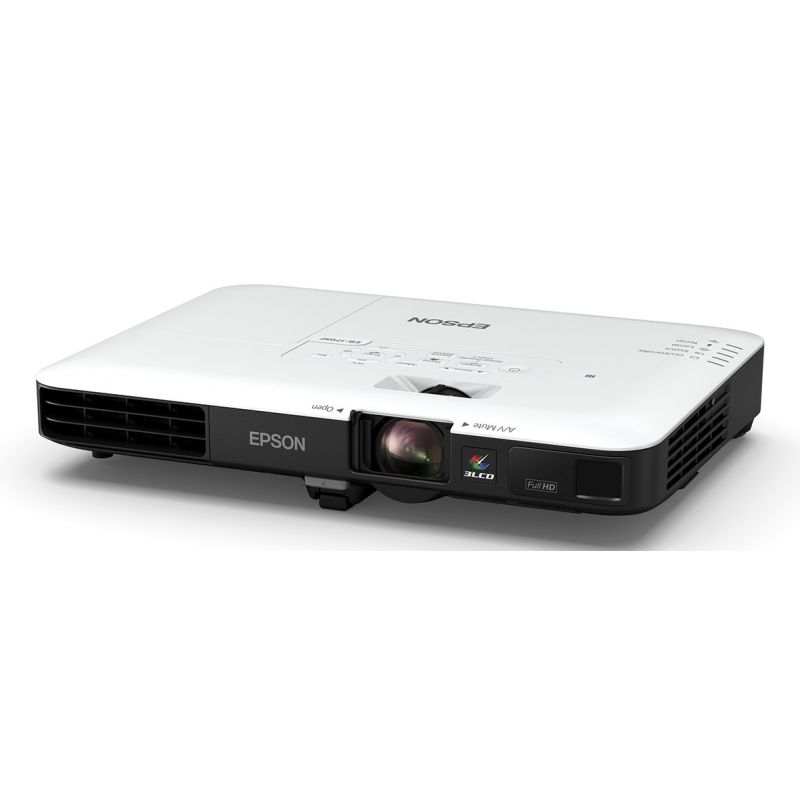

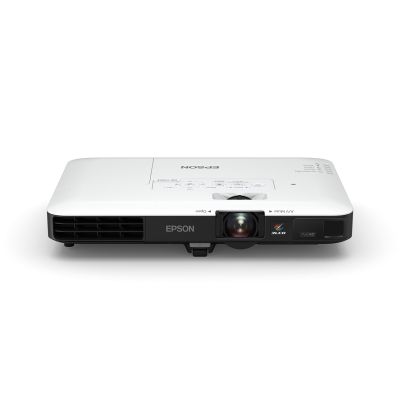

Epson EB-1795F V11H796040 projector (3LCD; 1080p (1920x1080); 3200 ANSI; 10000:1)
Epson EB-1795F V11H796040 projector (3LCD; 1080p (1920x1080); 3200 ANSI; 10000:1)
Sign up and unlock up to 10% off!
- Technical details
- Standard interfaces
- VGA
- USB
- Wireless LAN
- HDMI
- NFC
- USB Display Function: 3 in 1: Image / Mouse / Sound
- Environmental (sustainability) certification: TCO
- Standard interfaces
- Characteristics
- HDCP: Yes
- Noise level: 39 dB
- Password protection: Yes
- Noise level (economy mode): 30 dB
- Air filter: Yes
- Design
- Product color
- White
- Gray
- Product Type: Short Throw Projector
- Market positioning: Business
- Cable lock slot type: Kensington

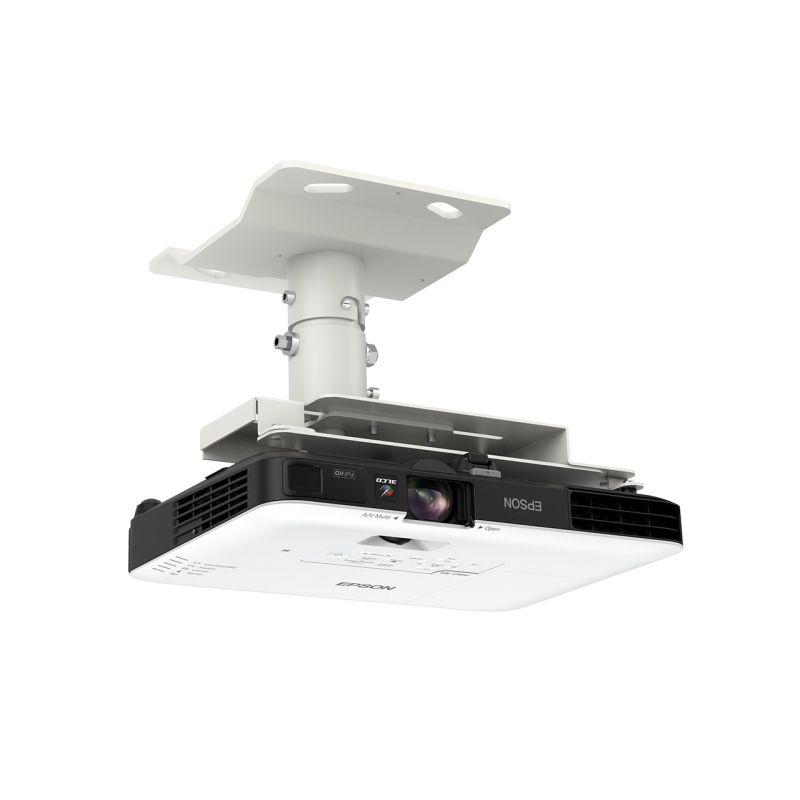

- Intended use: Ceiling, Desktop
- Kensington Lock: Yes
- Product color
- Power
- Power consumption: 295 W
- Power consumption in standby mode: 0.34 W
- Power consumption (economy mode): 208 W
- AC input frequency: 50 - 60 Hz
- Power source: AC
- AC input voltage: 100-240V
- Weight and dimensions
- Package height: 145 mm
- Weight with packaging: 3.73 kg
- Package width: 370 mm
- Product width: 292 mm
- Product weight: 1.8 kg
- Packaging depth: 420 mm
- Product height: 44 mm
- Product depth: 213 mm
- Working conditions
- Permissible relative humidity: 10 - 90%
- Temperature range (operation): 5 - 40 °C
- Temperature range (storage): -10 - 60 °C
- Relative humidity range: 20 - 80%
- Network
- Wi-Fi standards
- 802.11b
- 802.11g
- Wi-Fi 4 (802.11n)
- Wired LAN: No
- Wi-Fi: Yes
- Wi-Fi standards
- Package contents
- Remote control included: Yes
- Wires
- Alternating current
- HDMI
- Suitcase: Yes
- Batteries included: Yes
- Multimedia
- Output power (RMS): 1 W
- Number of built-in speakers: 1
- Built-in speakers: Yes
- Data carrier
- Integrated card reader: No
- Ports and interfaces
- Composite video input: 1
- PC Input (D-Sub): Yes
- Number of USB 2.0 ports: 2
- Number of VGA (D-Sub) ports: 1
- DVI Port: No
- Mobile High-Definition Link (MHL): Yes
- Number of HDMI ports: 1
- Logistics data
- Gross pallet length: 120 cm
- Gross weight of the pallet: 0 g
- Products per pallet: 70 pcs.
- Gross pallet height: 15 cm
- Number of pieces: 1
- Harmonized System (HS) code: 85286200
- Gross pallet width: 80 cm
- Pallet length (UK): 120 cm
- Products per pallet (UK): 84 pcs.
- Products per pallet layer: 5 pcs.
- Pallet width (UK): 100 cm
- Products per layer on a pallet (UK): 6 pcs.
- Pallet height (UK): 15 cm
- Pallet weight (UK): 0 g
- Video
- Supported video modes: 1080p
- 3D Compatibility: No
- Video color modes
- DICOM simulation mode
- sRGB
- Dynamic
- Cinema
- Board
- Presentation
- Video processing: 10 bit
- Supported graphics resolutions: 1920 x 1080 (HD 1080)
- Full HD: Yes
- Lens system
- Focus: Manual
- Zoom capability: Yes
- Incidence ratio: 1.02 - 1.23:1
- Lens range: 1.58 - 1.7
- Focal length: 13.52 - 16.22 mm
- Zoom ratio: 1.2:1
- Zoom type: Manual
- Safety warning
- Warnings
- Be careful when replacing the projector lamp as it can be very hot.
- Avoid placing the projector in high humidity areas to prevent damage to the device.
- Do not look directly into the projector lens while it is operating to avoid eye damage.
- Warnings
- Projector
- Keystone correction, vertical: -20 - 20°
- Number of colors: 1.07 trillion colors
- Projection technology: 3LCD
- Projection distance: 1.35 - 1.62 m
- Contrast ratio (typical): 10000:1
- Projection distance (tele): 0.8 - 8.2 m
- Screen size compatibility: 762 - 7620 mm (30 - 300")
- Projector brightness: 3200 ANSI lumens
- Projector native resolution: 1080p (1920x1080)
- Scanning range (length): 100 - 120 Hz
- Native aspect ratio: 16:9
- Keystone correction, level: -30 - 30°
- Projector brightness (economy mode): 1900 ANSI lumens
- Projection distance (wide): 0.7 - 6.8 m
- Matrix size: 1.5 cm (0.59")
- Light source
- Number of lamps: 1
- Light source type: Lamp
- Lamp power: 214 W
- Light source lifetime: 4000 h
- Light source life (economy mode): 7000 h
