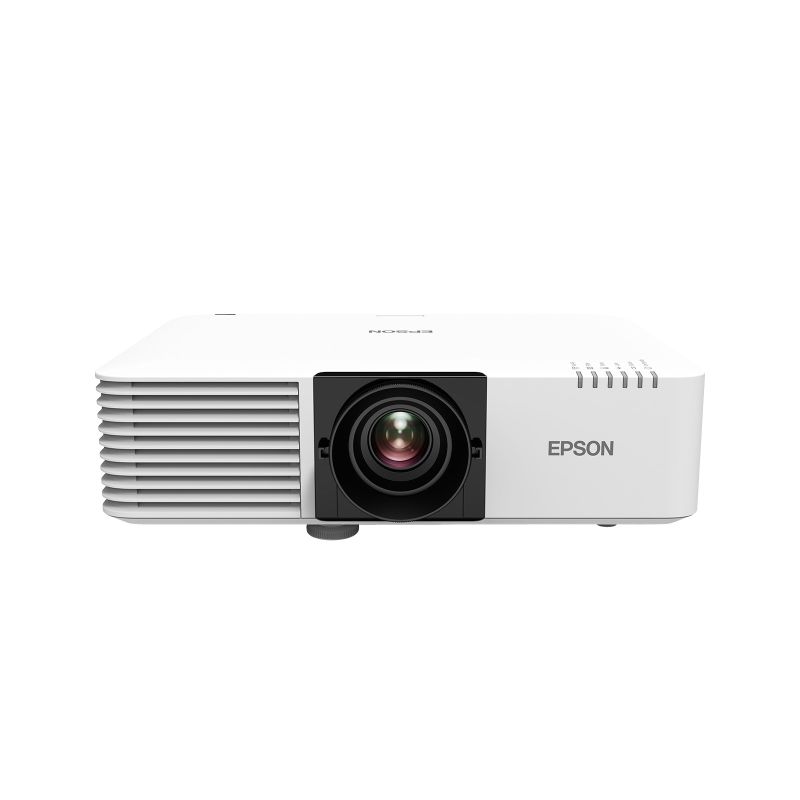

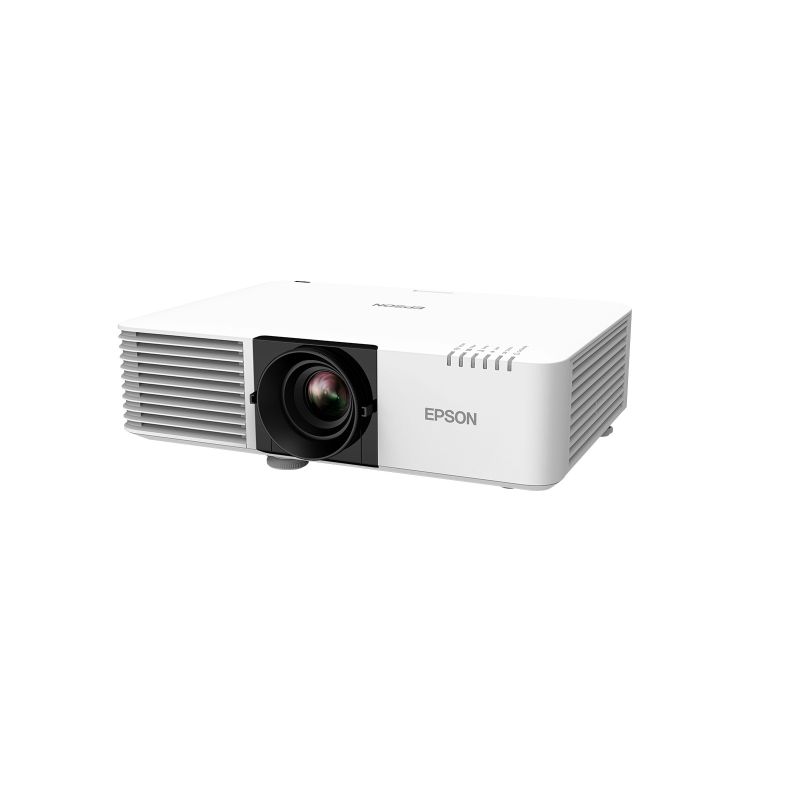

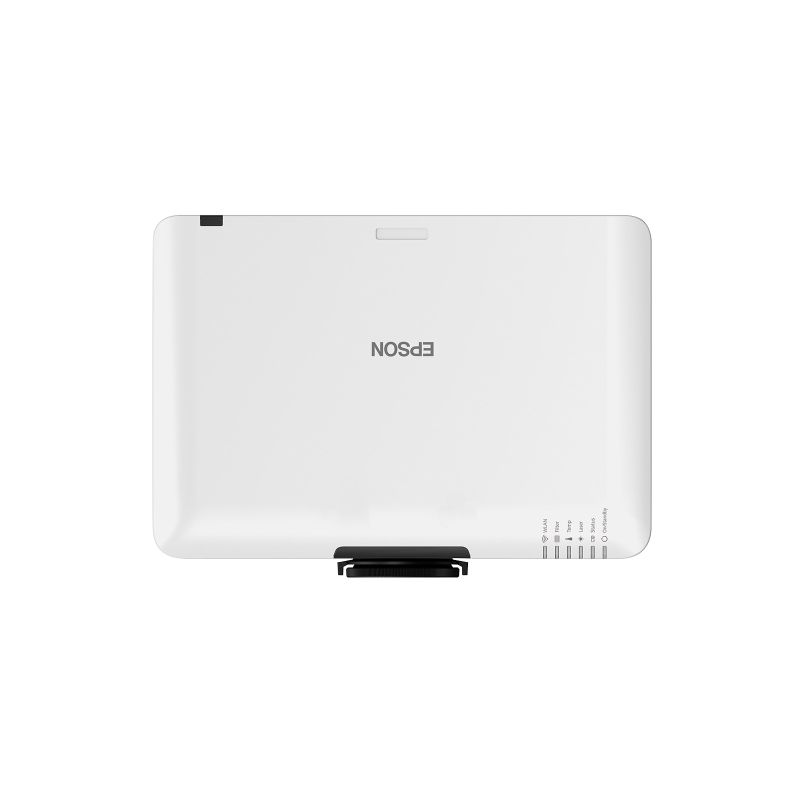

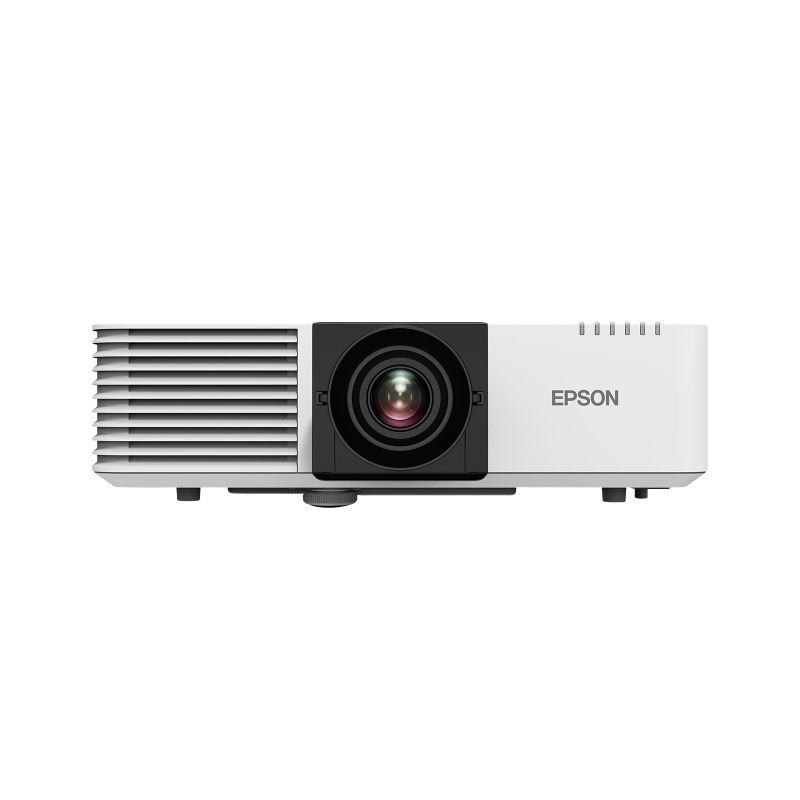

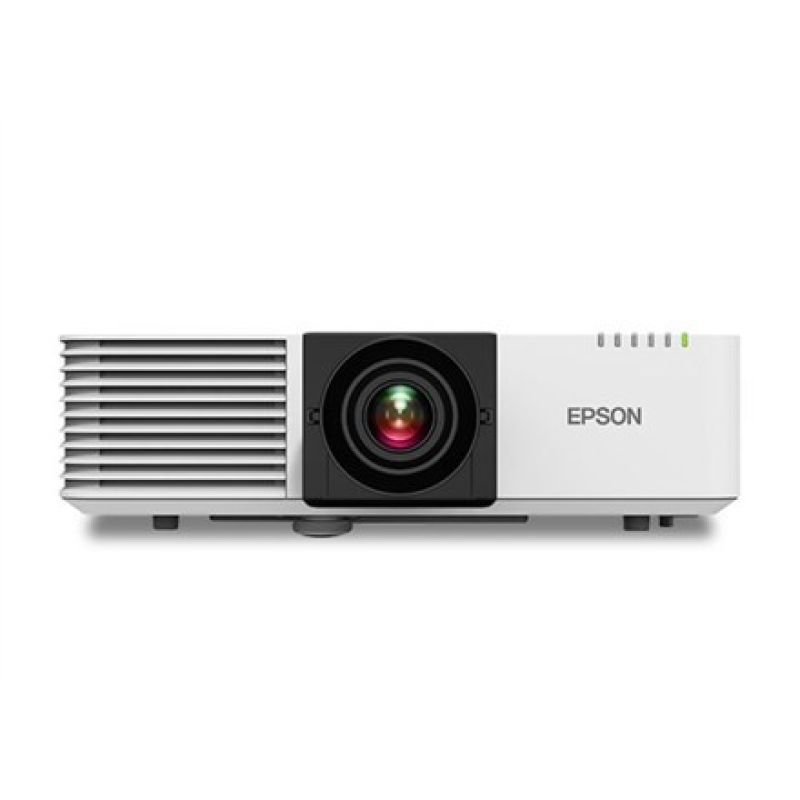

Epson EB-L520U
Epson EB-L520U
Sign up and unlock up to 10% off!
- Technical details
- USB Display Function: 3 in 1: Image / Mouse / Sound
- Environmental (sustainability) certification: TCO
- Characteristics
- Noise level (economy mode): 23 dB
- Noise level: 31 dB
- Country of origin: Philippines
- Design
- Market Positioning: Presentation
- Product Type: Standard Throw Projector
- Product color: White
- Cable lock slot type: Kensington
- Intended use: Ceiling, Desktop, Floor, Wall
- Kensington Lock: Yes
- Power
- Power consumption in standby mode: 0.3 W
- Power consumption (economy mode): 223 W
- Power consumption: 293 W
- Power source: AC
- AC input voltage: 100-240V
- AC input frequency: 50 - 60 Hz
- Weight and dimensions
- Product height: 304 mm
- Packaging depth: 530 mm
- Package width: 540 mm
- Package height: 210 mm
- Product depth: 122 mm
- Product width: 440 mm
- Weight with packaging: 10.4 kg
- Product weight: 7.7 kg
- Working conditions
- Permissible relative humidity: 10 - 90%
- Relative humidity range: 20 - 80%
- Temperature range (storage): -10 - 60 °C
- Network
- Wired LAN: Yes
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- 802.11a
- Wi-Fi: Yes
- Package contents
- Remote control included: Yes
- Warranty card: Yes
- Wires
- HDMI
- Alternating current
- Batteries included: Yes
- Display
- Built-in display: No
- Multimedia
- Output power (RMS): 10 W
- Built-in speakers: Yes
- Number of built-in speakers: 1
- Data carrier
- Integrated card reader: No

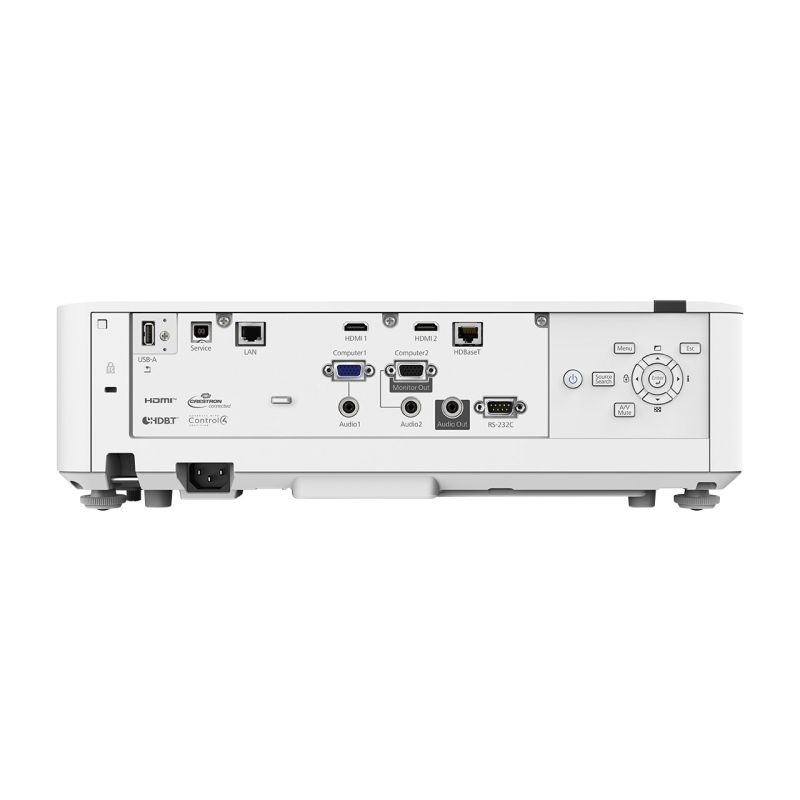

- Ports and interfaces
- Audio Input (L,R): 1
- SCSI interface: RS-232C
- Number of USB 2.0 type B ports: 1
- DVI Port: No
- Number of VGA (D-Sub) ports: 3
- Number of USB 2.0 ports: 2
- Number of HDMI ports: 2
- Logistics data
- Products per pallet: 14 pcs.
- Gross weight of the pallet: 0 g
- Pallet weight (UK): 0 g
- Products per pallet (UK): 14 pcs.
- Harmonized System (HS) code: 85286200
- Number of pieces: 1
- Video
- Analog Signal Format System: Not Supported
- Video color modes
- Cinema
- Dynamic
- DICOM simulation mode
- Presentation
- sRGB
- Video processing: 10 bit
- Full HD: Yes
- 3D Compatibility: No
- Lens system
- Fall ratio: 1.35 - 2.2:1
- Zoom capability: Yes
- Focal length: 20 - 31.8 mm
- Zoom ratio: 1.6:1
- Zoom type: Manual
- Focus: Manual
- Lens range: 1.5 - 1.7
- Safety warning
- Warnings
- Do not look directly into the projector lens while it is operating to avoid eye damage.
- Be careful when replacing the projector lamp as it can be very hot.
- Avoid placing the projector in high humidity areas to prevent damage to the device.
- Warnings
- Projector
- Projection technology: 3LCD
- Keystone correction, level: -30 - 30°
- Keystone correction, vertical: -30 - 30°
- Projector native resolution: WUXGA (1920x1200)
- Number of colors: 1.07 trillion colors
- Contrast ratio (typical): 2,500,000:1
- Screen size compatibility: 1270 - 12700 mm (50 - 500")
- Projector Brightness: 5200 ANSI Lumens
- Matrix size: 1.7 cm (0.67")
- Projector brightness (economy mode): 3640 ANSI lumens
- Scanning range (length): 192 - 240 Hz
- Native aspect ratio: 16:10
- Light source
- Light source life (economy mode): 30,000 h
- Light source type: Laser
- Light source lifetime: 20,000 h
| Name | Details |
|---|---|
| Producer | Epson |
