Epson WorkForce DS-770II
Epson WorkForce DS-770II
Sign up and unlock up to 10% off!
- Design
- Scanner type: Sheet-fed scanner
- Built-in display: Yes
- Screen type: LCD
- Product color: White
- Power
- Power Supply Type: AC
- Off mode: 0.1 W
- Weight and dimensions
- Product width: 296 mm
- Product depth: 169 mm
- Product height: 176 mm
- Product weight: 3.7 kg
- Working conditions
- Permissible relative humidity: 15 - 85%
- Relative humidity range: 15 - 80%
- Temperature range (operation): 5 - 35 °C
- Temperature range (storage): -25 - 60 °C
- System requirements
- Supported Windows operating systems
- Windows 8 x64
- Windows 8.1 x64
- Windows Vista x64
- Windows 10
- Windows 8
- Windows RT
- Windows Vista
- Windows 7 x64
- Windows 8.1
- Windows 7
- Windows XP Professional x64
- Linux operating systems supported: Yes
- Supported server operating systems
- Windows Server 2008 R2
- Windows Server 2012 R2
- Windows Server 2008 x64
- Windows Server 2012 x64
- Windows Server 2008
- Windows Server 2003 R2
- Mac operating systems supported: Yes
- Supported Windows operating systems
- Efficiency
- File formats (scanner)
- JPEG
- TIFF
- Maximum daily duty cycle: 7000 pages
- Light source: ReadyScan LED

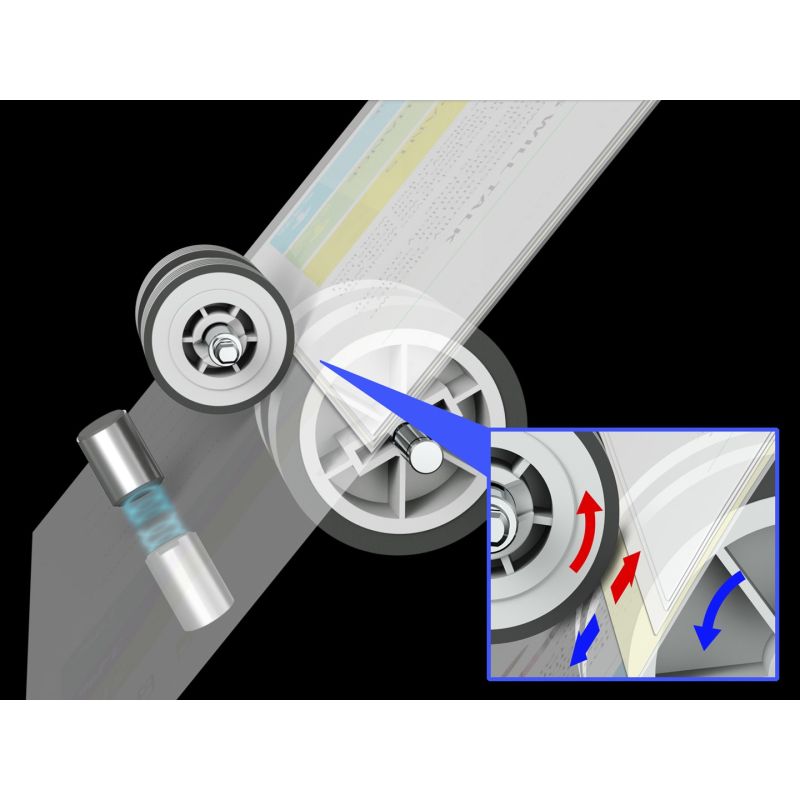

- Ultrasonic sensor: Yes
- Scanner drivers
- ISIS
- TWAIN
- WIA
- Scan to
- Network folder
- Software
- FTP
- File formats (scanner)
- Packaging data
- Package height: 285 mm
- Number of pieces: 1
- Package depth: 365 mm
- Package width: 250 mm
- Weight with packaging: 4.58 kg
- Package contents
- Drivers included: Yes
- Wires: Alternating Current
- Warranty card: Yes
- Ports and interfaces
- USB port: Yes
- USB Version: 3.2 Gen 1 (3.1 Gen 1)
- Other functions
- Photo compression format
- JPEG
- TIFF
- Output resolution settings (dpi): 75, 100, 150, 200, 240, 300, 600, 1200 dpi
- Photo compression format
- Input capacity
- Automatic paper feeder capacity: 100 sheets
- Standard input capacity (sheets): 100 sheets
- Logistics data
- Pallet weight (UK): 0 g
- Products per pallet (UK): 84 pcs.
- Gross weight of the pallet: 0 g
- Products per pallet: 63 pcs.
- Harmonized System (HS) code: 84716070
- Country of origin: Indonesia
- Scanning
- Duplex ADF scan speed (B/W, A4): 90 ipm
- Optical scanning resolution: 600 x 600 DPI
- Maximum scanning size: 215.9 x 6096 mm
- Input color depth: 30 bit
- Input grayscale depth: 10 bit
- ADF scanning speed (B/W, A4): 45 pages/min
- Output color depth: 24 bit
- Output monochrome depth: 8 bit
- Dual Scan: Yes
- ADF scanning speed (color, A4): 45 pages/min
- Color scanning: Yes
- Duplex ADF scan speed (color, A4): 90 ipm
- Output grayscale depth: 8 bit
- Paper handling
- Supported scanning media
- Plastic cards
- Post Card(JPN)
- Letter: Yes
- Media weight for automatic document feeder: 27 - 413 g/m²
- Chancellery: Yes
- Maximum scanning area (Auto Document Feeder): 215.9 x 6096 mm
- ISO B series sizes (B0…B9)
- B5
- B6
- ISO A series sizes (A0…A9)
- A5
- A4
- A6
- Maximum ISO paper size (A-series): A4
- Minimum scanning area (Auto Document Feeder): 50.8 x 50.8 mm
- Supported scanning media
- Safety warning
- Warnings
- Do not open the device casing to avoid electric shock.
- Do not use in damp rooms.
- Avoid exposure to extreme temperatures.
- Warnings
| Name | Details |
|---|---|
| Producer | Epson |
