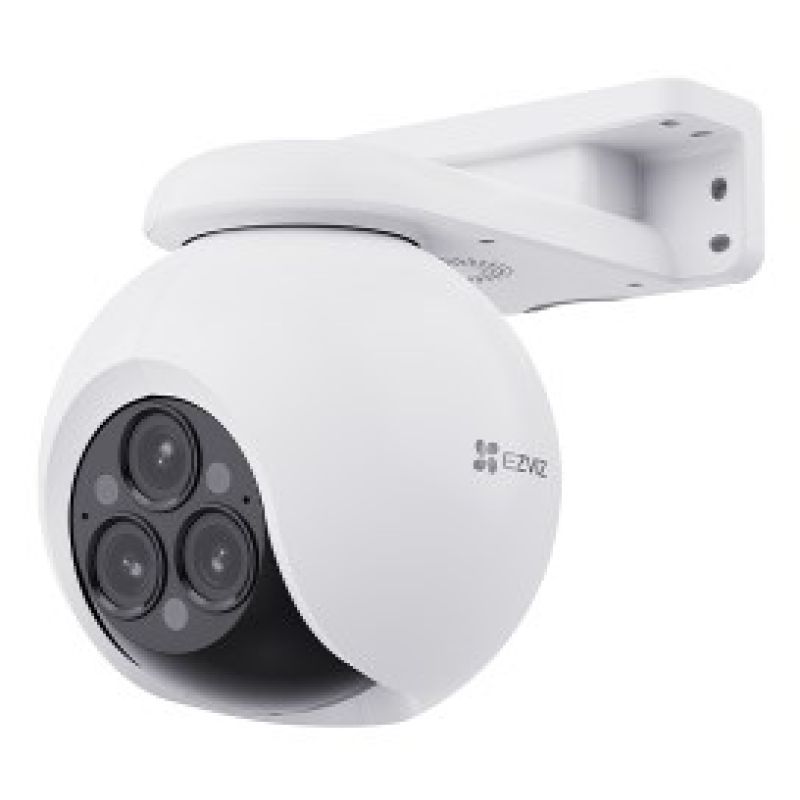

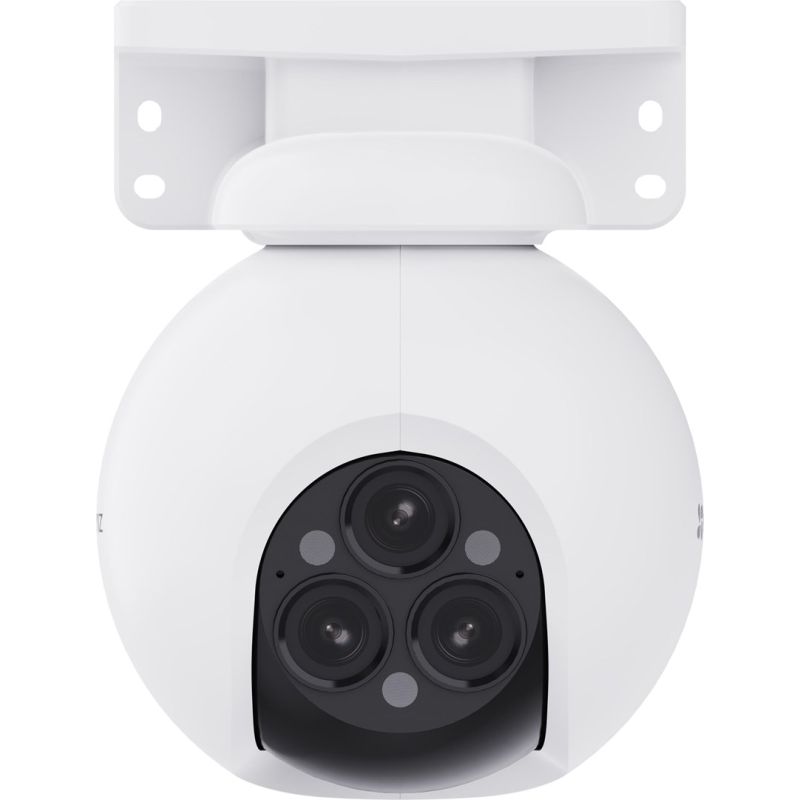

Ezviz H80f Multi IP Camera with Triple Lens 12MPx (3 x 2K+)
Ezviz H80f Multi IP Camera with Triple Lens 12MPx (3 x 2K+)
Sign up and unlock up to 10% off!
- Design
- IP protection class: IP67
- Mounting type: Wall
- Arrangement: Spherical
- Weather-resistant product: Yes
- Security features: Waterproof
- Product color: White
- Power
- DC Output (Volts): 12
- DC Output (Amps): 1.5 A
- Power consumption (max): 18 W
- Power supply type: DC
- Weight and dimensions
- Product width: 112 mm
- Product height: 156.3 mm
- Product depth: 168.8 mm
- Security
- Password protection: Yes
- Encryption/Security
- WPA
- WEP
- WPA2
- WPA-PSK
- WPA-PSK2
- Intelligent Video Surveillance (IVS) Features
- People detection
- Vehicle detection
- Digital Watermark: Yes
- Anti-glare: Yes
- Heartbeat: Yes
- Built-in siren: Yes
- Working conditions
- Temperature range (operation): -30 - 50 °C
- Relative humidity range: 0 - 95%
- Network
- Communication standards
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.11n
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- 802.11b
- Wired LAN: Yes
- Frequency range: 20 MHz
- Wi-Fi: Yes
- Communication standards
- Efficiency
- Model: IP Security Camera
- Auto-tracking: Yes
- Infrared (IR) Cut-off Filter: Yes
- Wide Dynamic Range (WDR): Yes
- Day/Night Mode: Yes
- Intended use: Outdoor
- Connection method: Wired
- Packaging data
- Package height: 194 mm
- Package width: 176 mm
- Weight with packaging: 979.89 g
- Package depth: 205 mm
- Package contents
- Drilling template included: Yes
- Number of cameras: 1
- Screws Included: Yes
- Wires: DC
- Data carrier
- Integrated card reader: Yes
- Supported memory cards: MicroSD
- Maximum memory card size: 512 GB
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Min. Illumination: 0.05 lx
- Camera Tilt Control: Yes
- Camera Pan Control: Yes
- Photosensitive matrix
- CCD sensor size: 25.4/3 mm (1/3")
- Image sensor type: CMOS
- Progressive Scan: Yes
- Night mode
- Black and white night vision distance: 30 m
- Night Vision Distance: 30 m
- Night mode: Yes
- Color night vision distance: 30 m
- Video
- Supported video file formats
- H.265
- H.264
- Backlight compensation: Yes
- Maximum resolution: 2560 x 1440 px
- Digital Dynamic Range (DWDR): Yes
- Quality Regulation: DNR
- Supported video file formats
- Lens system
- Number of lenses: 3
- Sustainable development
- Certificates of conformity
- REACH
- WEEE
- RoHS
- CE
- UL
- Certificates of conformity
