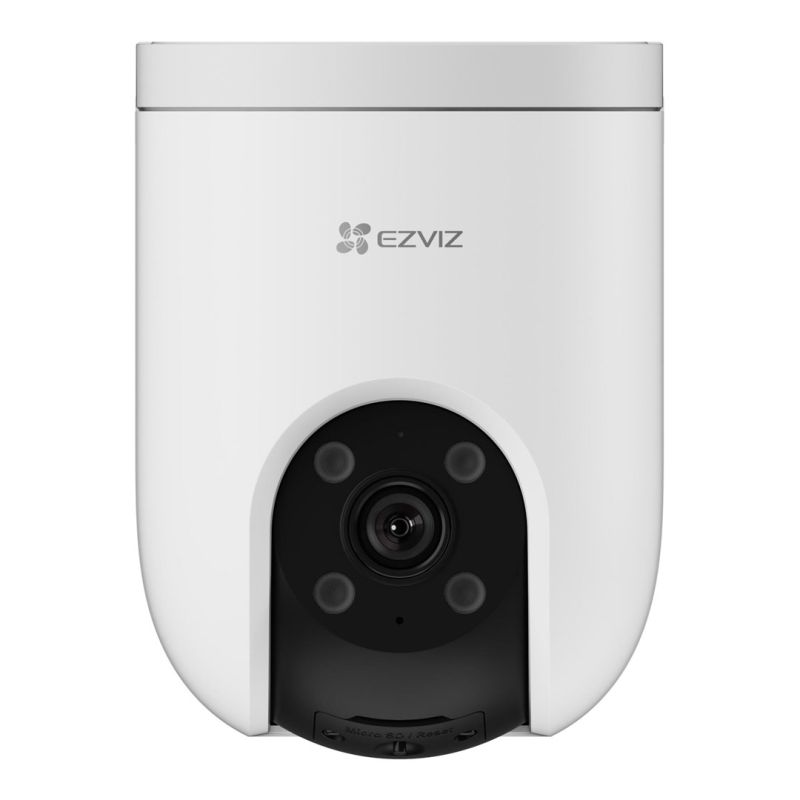

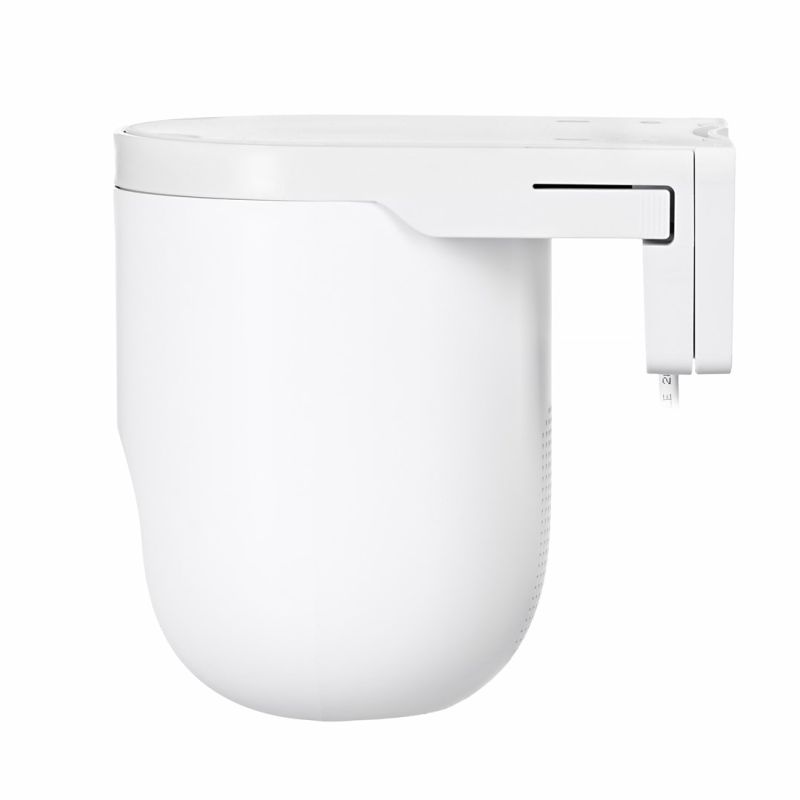

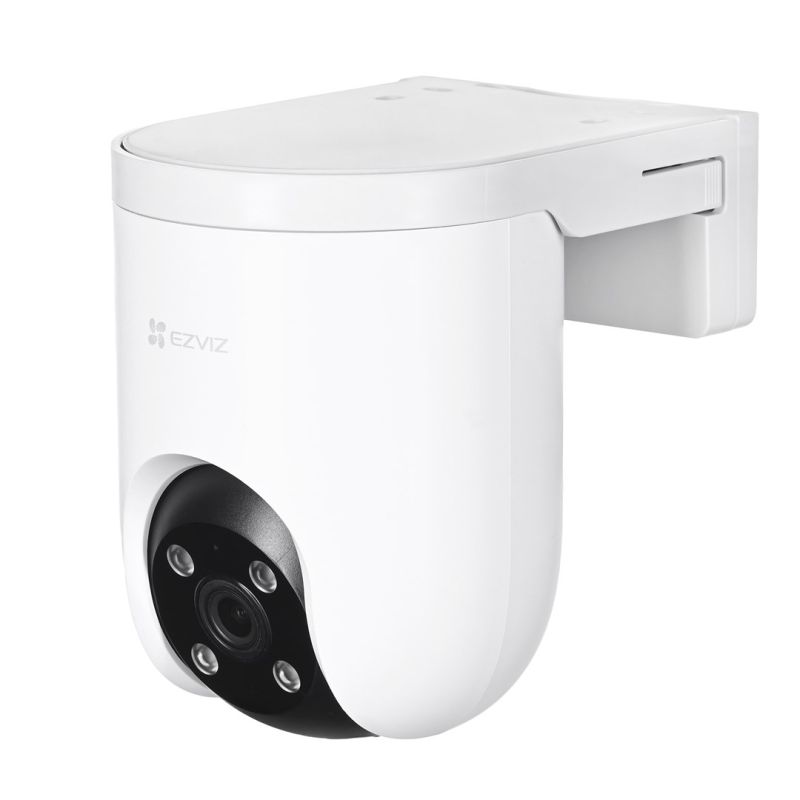

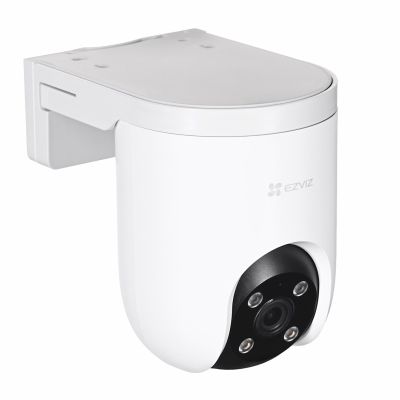

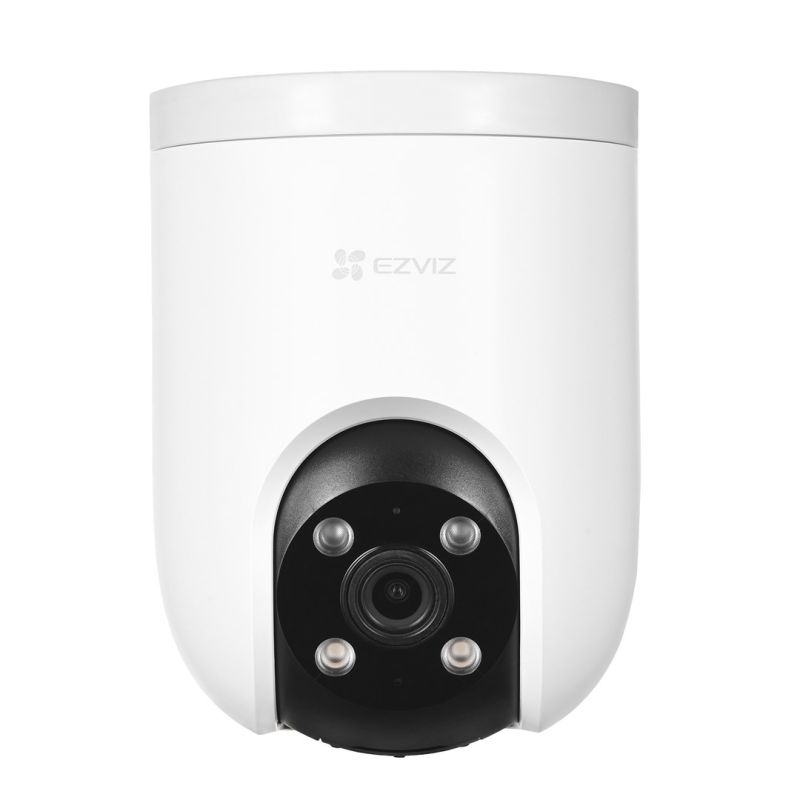

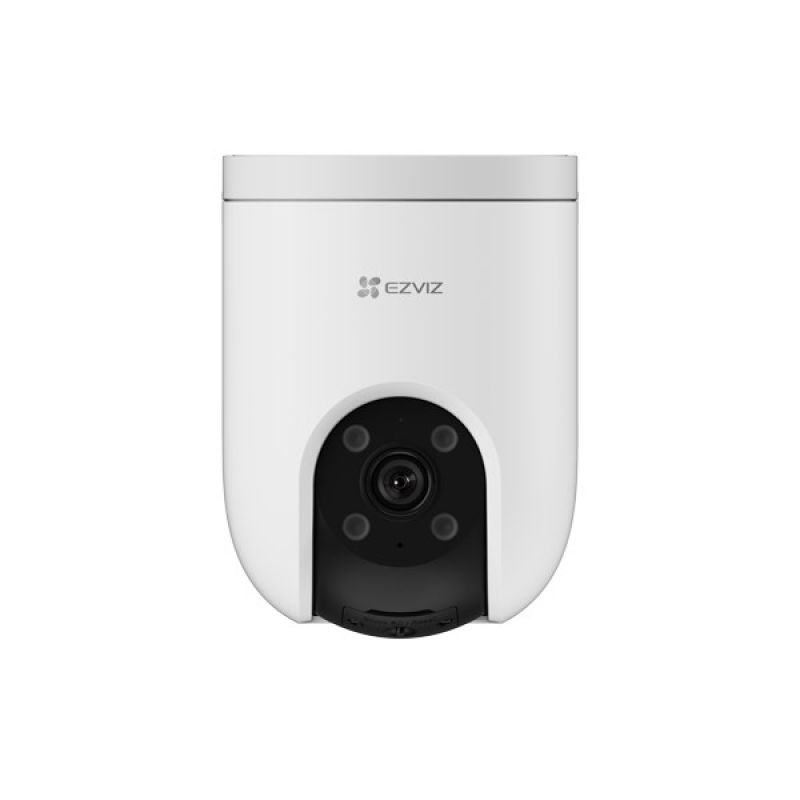

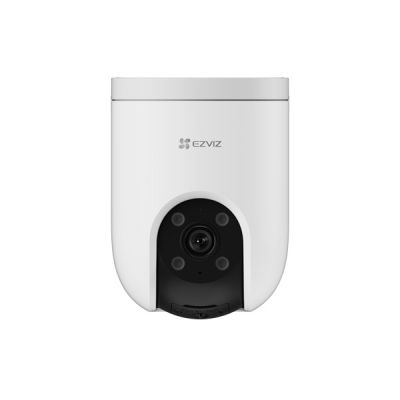

EZVIZ H8c Pro 3K WiFi IP surveillance camera
EZVIZ H8c Pro 3K WiFi IP surveillance camera
Sign up and unlock up to 10% off!
- Design
- Layout: Dome
- Product color: White
- Weather-resistant product: Yes
- Mounting type: Ceiling
- Power
- DC Output (Volts): 12
- DC Output (Amperes): 1 A
- Power consumption: 12 W

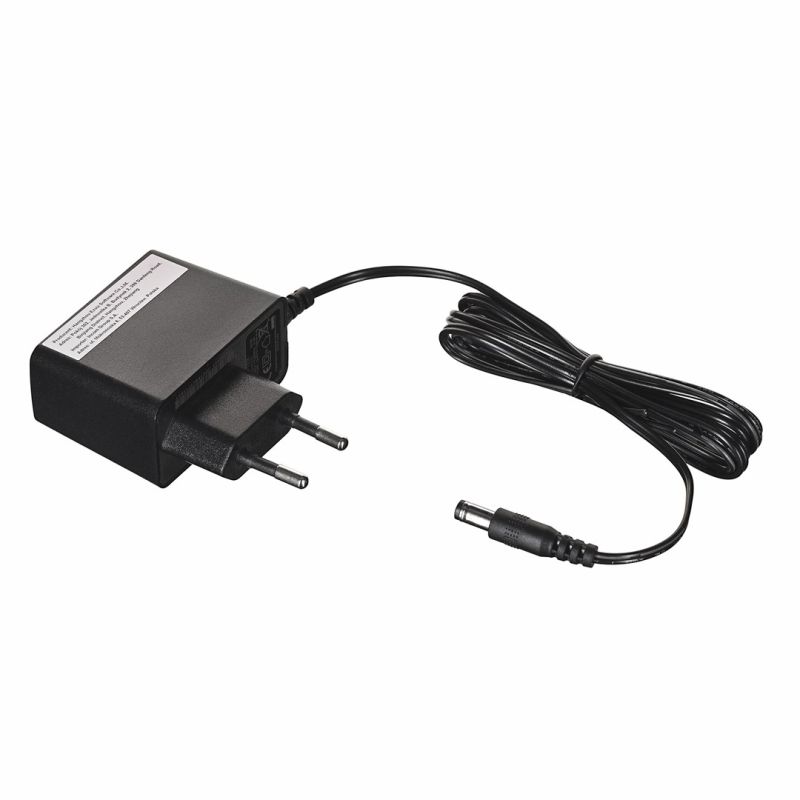

- Power supply type: DC
- Weight and dimensions
- Product width: 100 mm
- Product depth: 136 mm
- Product height: 140 mm
- Product weight: 539.7 g
- Security
- Encryption/Security
- WPA-PSK
- WPA2-PSK
- Digital Watermark: Yes
- Anti-glare: Yes
- Password protection: Yes
- Encryption/Security
- Management features
- Cloud system support: EZVIZ Cloud
- Cloud-managed: Yes
- Working conditions
- Temperature range (operation): -30 - 50 °C
- Relative humidity range: 0 - 95%
- Network
- Supported network protocols: EZVIZ Cloud Proprietary Protocol
- Wi-Fi: Yes
- Wired LAN: Yes
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- 802.11g
- Frequency range: 20 MHz
- Bluetooth: No
- Communication standards
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11g
- Efficiency
- Wide Dynamic Range (WDR): Yes
- Connection method: Wireless
- Model: IP Security Camera
- Day/Night Mode: Yes
- Auto-tracking: Yes
- Luminous flux: 0.5 lm
- Intended use: Outdoor
- Packaging data
- Packaging depth: 140 mm
- Package height: 192 mm
- Package width: 140 mm
- Weight with packaging: 823.6 g
- Package contents
- Number of cameras: 1
- Data carrier
- Maximum memory card size: 512 GB
- Supported memory cards: MicroSD
- Built-in HDD: No

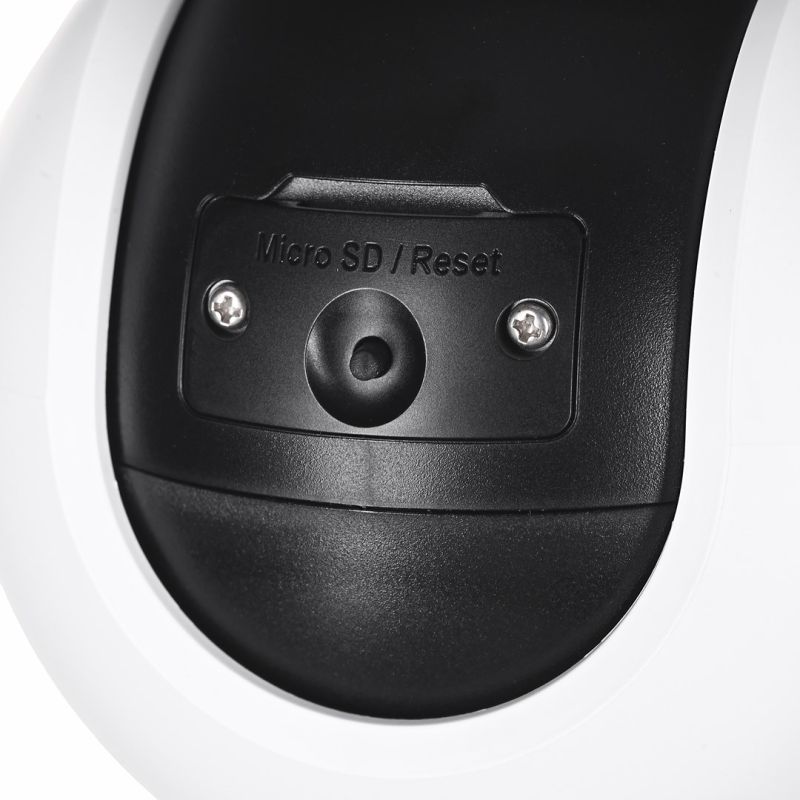

- Integrated card reader: Yes
- Ports and interfaces

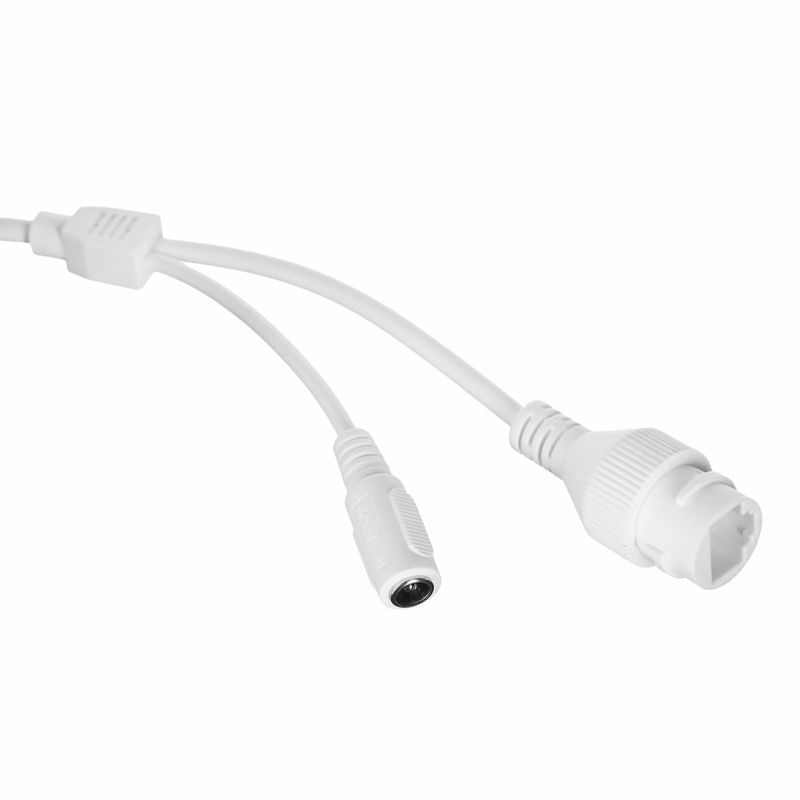

- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Sliding range: 0 - 350°
- Tilt angle range: 0 - 80°
- Lens viewing angle, diagonal: 108°
- Lens viewing angle, horizontal: 91°
- Vertical lens viewing angle: 48°
- Photosensitive matrix
- Image sensor type: CMOS
- CCD sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Night mode
- Night Vision Distance: 30 m
- Night mode: Yes
- Video
- Data rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
- Compression formats
- H.265
- H.264
- Digital Dynamic Range (DWDR): Yes
- Maximum resolution: 2880 x 1620 px
- Quality Regulation: DNR

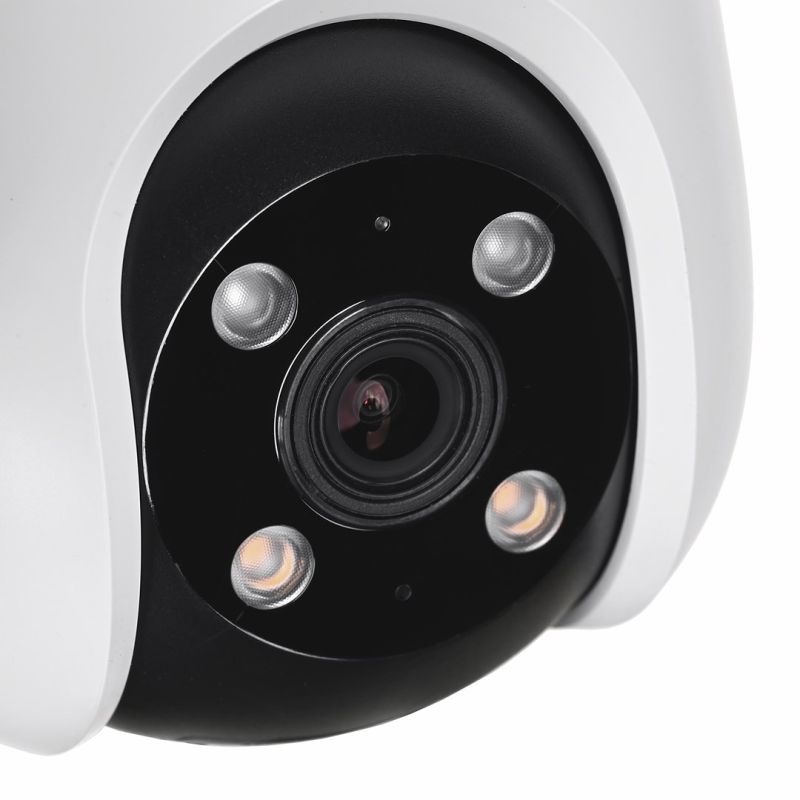

- Lens system
- Number of lenses: 2
- Lens diameter: 6 mm
- Safety warning
- Warnings
- The product contains electronic components and should not be disposed of in regular waste.
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
- Warnings
