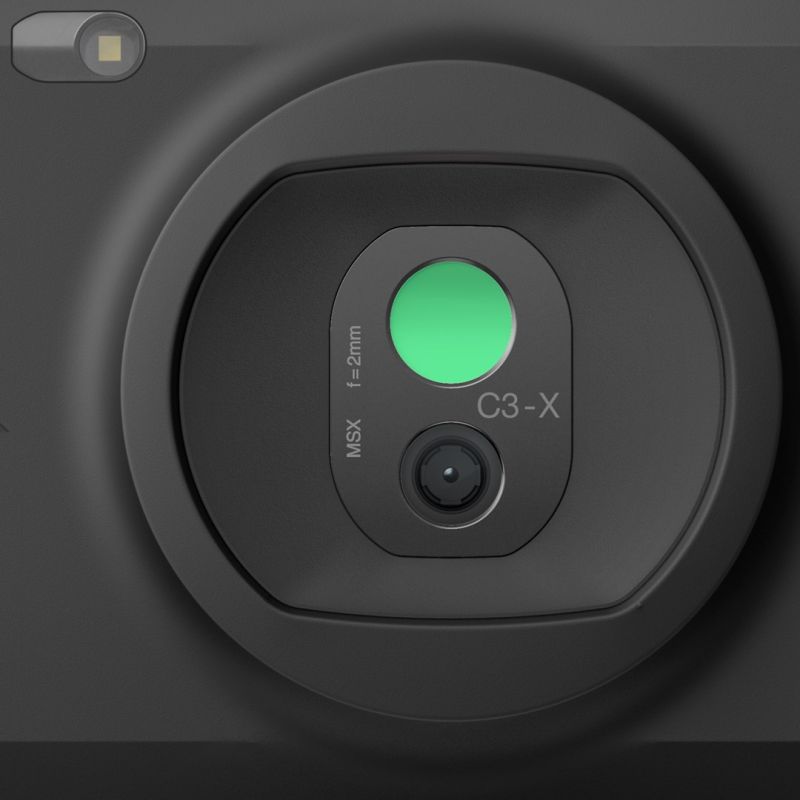

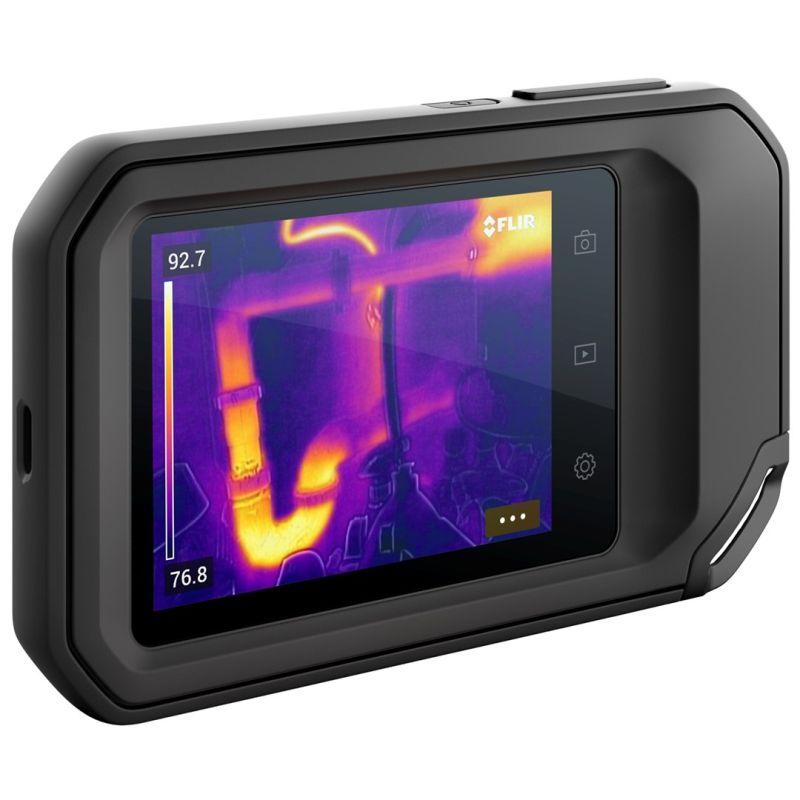

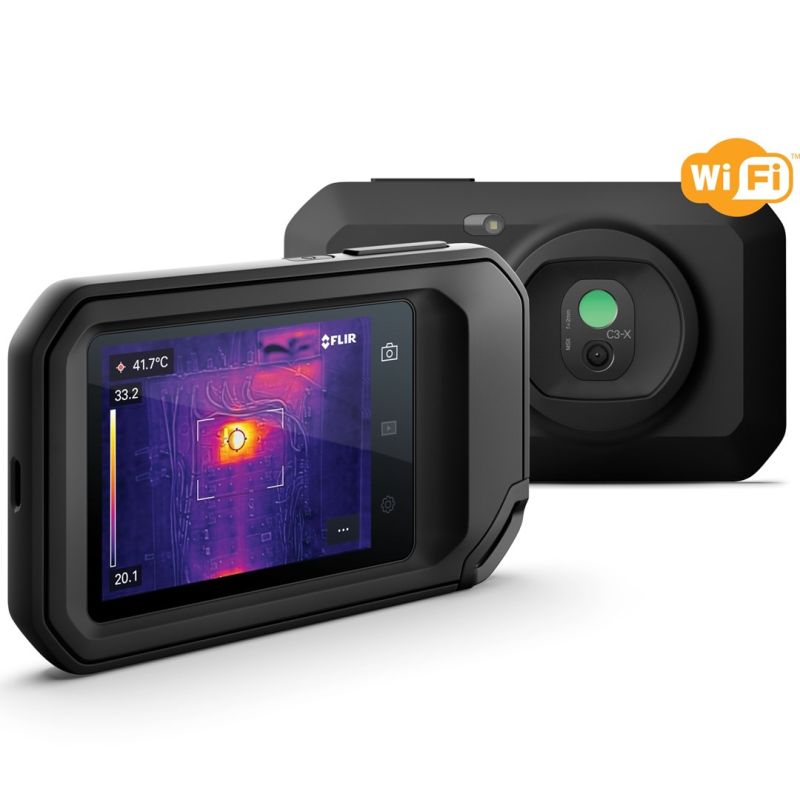

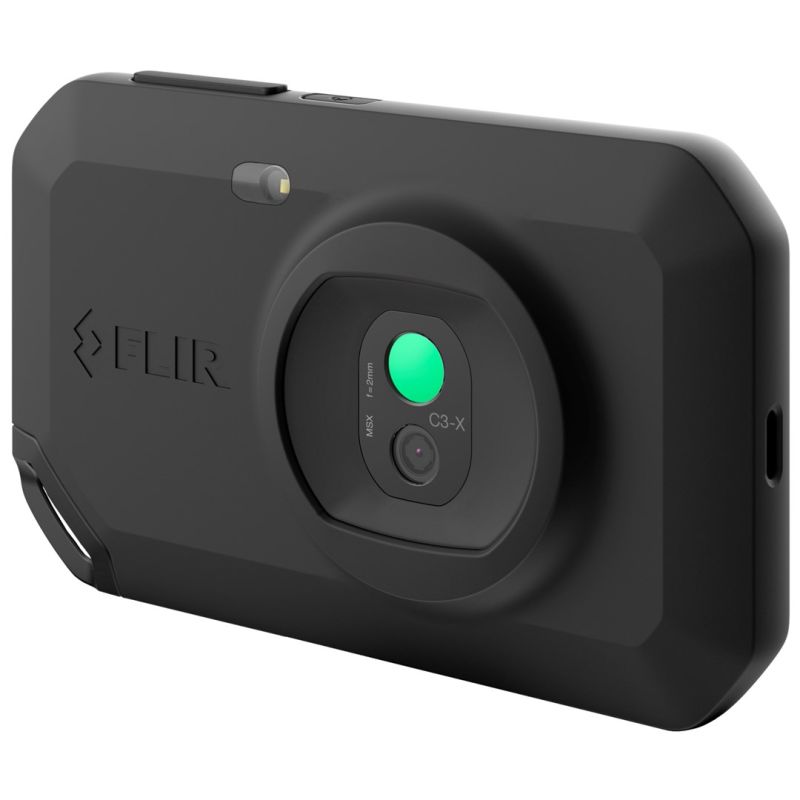

FLIR THERMAL IMAGING CAMERA WITH MSX WI-FI IMAGE ENHANCEMENT TECHNOLOGY AND CLOUD CONNECTIVITY, 128X96PX, UP TO 300STC, FOV 53.6ST, C3-X
FLIR THERMAL IMAGING CAMERA WITH MSX WI-FI IMAGE ENHANCEMENT TECHNOLOGY AND CLOUD CONNECTIVITY, 128X96PX, UP TO 300STC, FOV 53.6ST, C3-X
Sign up and unlock up to 10% off!
- Technical details
- Environmental (sustainability) certification: RoHS
- Design
- Packaging type: Box
- Display type: LCD
- Resolution: 640 x 480 px
- Product color: Black
- Built-in display: Yes
- Housing material: Aluminum
- Screen diagonal: 3.5"
- Temperature range (storage): -40 - 70 °C
- IP protection class: IP54
- Temperature range (operation): -10 - 50 °C
- Weight and dimensions
- Product weight: 190 g
- Product depth: 84 mm
- Product width: 138 mm
- Product height: 24 mm
- Package depth: 117 mm
- Package width: 160 mm
- Package height: 94 mm
- Weight with packaging: 517 g
- Efficiency
- Thermal sensitivity (NETD): 70 mK
- Supported memory cards: Not supported
- Infrared spectral band: 8 - 14 µm
- Sensor type (thermal module): Vanadium Oxide Uncooled Focal Plane Arrays

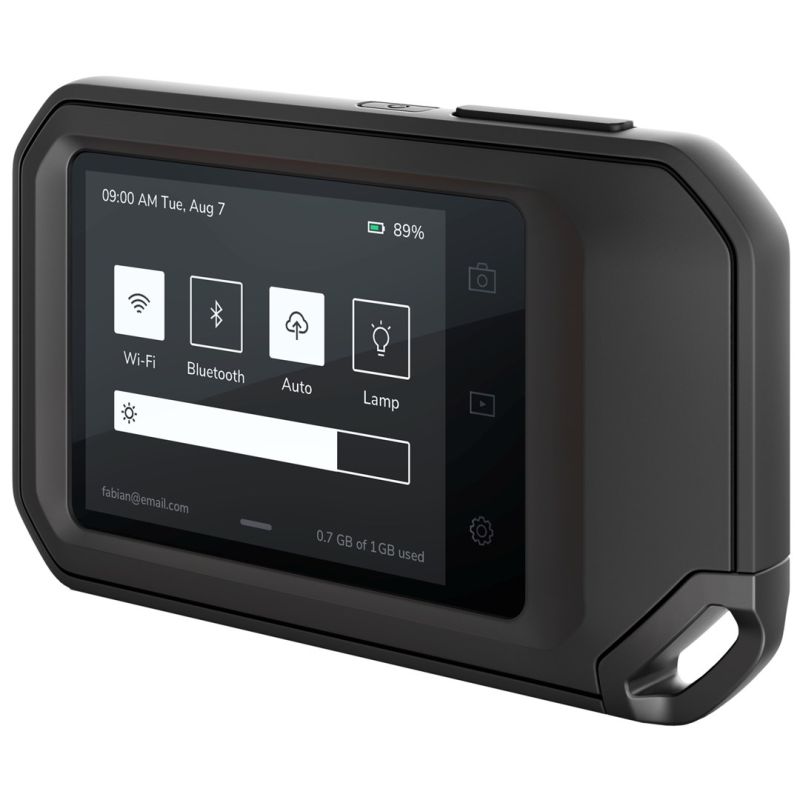

- Wi-Fi: Yes
- Horizontal viewpoint: 53.6°
- Standard palettes: Grayscale, High Contrast, Hot Metal, Ironbow
- Thermal refresh rate: 8.7 Hz
- Temperature measurement range: -20 - 300 °C
- Sensor resolution (thermal module): 128 x 96 px
- IFOV (spatial resolution): 7.9 mRad
- GPS: No
- Package contents
- Batteries included: Yes
- User Manual: Yes
- Wrist strap included: Yes
- Cables: USB Type-C
- Certificates
- Waste Electrical and Electronic Equipment (WEEE) Disposal: Yes
- Ports and interfaces
- USB port: Yes
- Battery
- Battery capacity: 1800 mAh
- Battery type: Lithium-ion (Li-Ion)
- Input current: 1 A
- Battery operation time: 4 h
- Charging time: 2 hours
- Voltage: 3.7 V
- Rechargeable battery: Yes
- Lens system
- Fixed focus: Yes
- Safety warning
- Warnings
- Do not open the casing - risk of electric shock.
- Product sensitive to shocks and falls - exercise caution.
- Read the instruction manual before using the product.
- Warnings
| Name | Details |
|---|---|
| Producer | FLIR |
