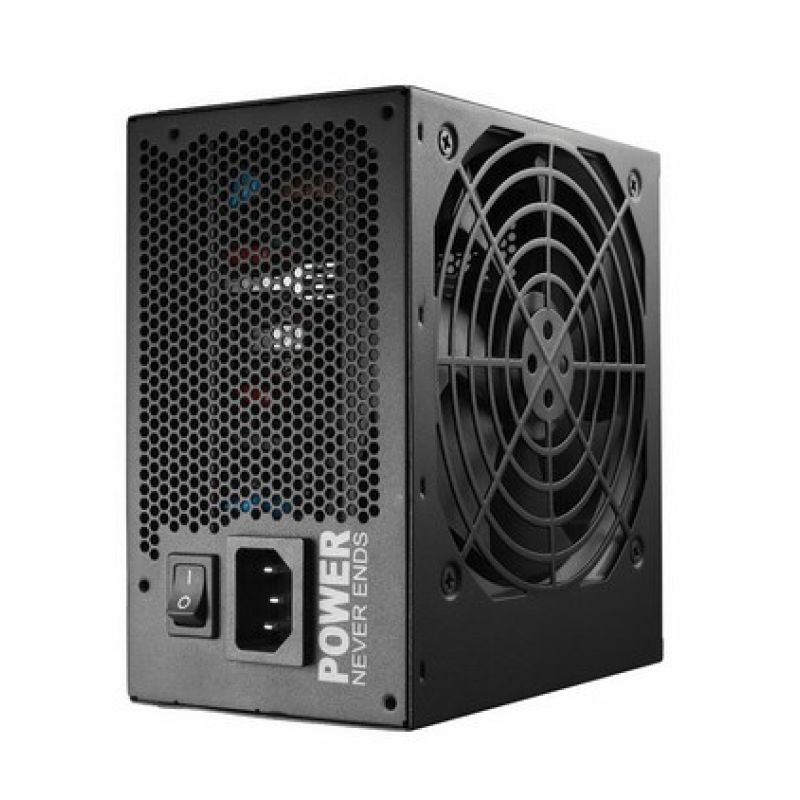

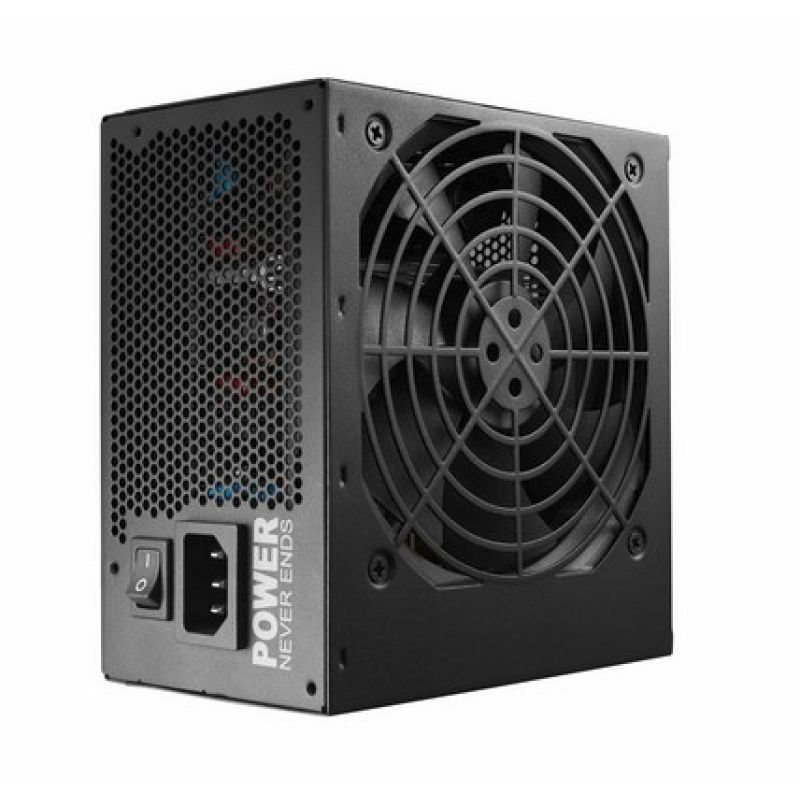

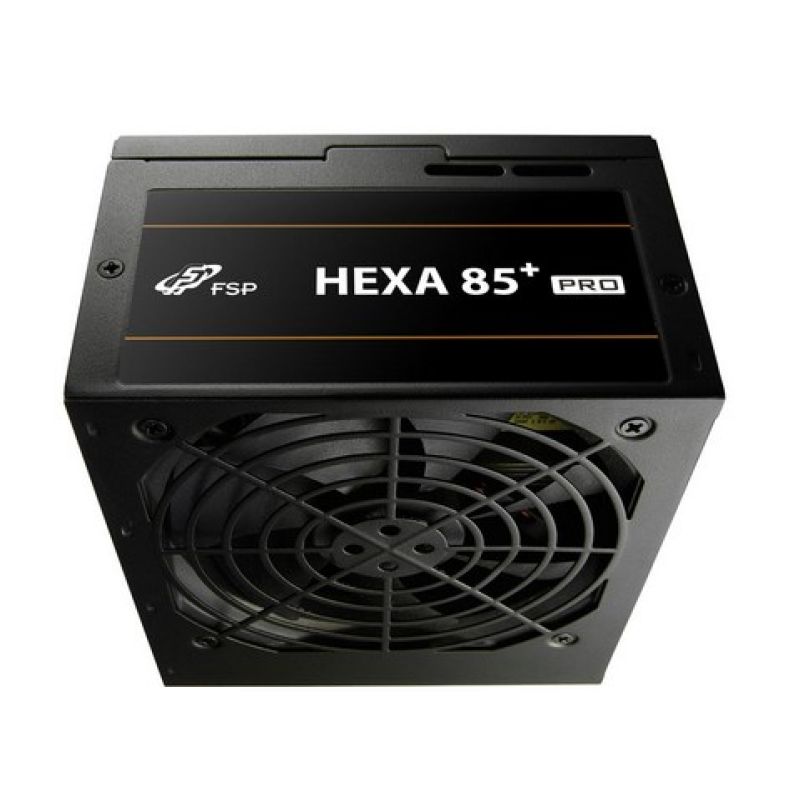

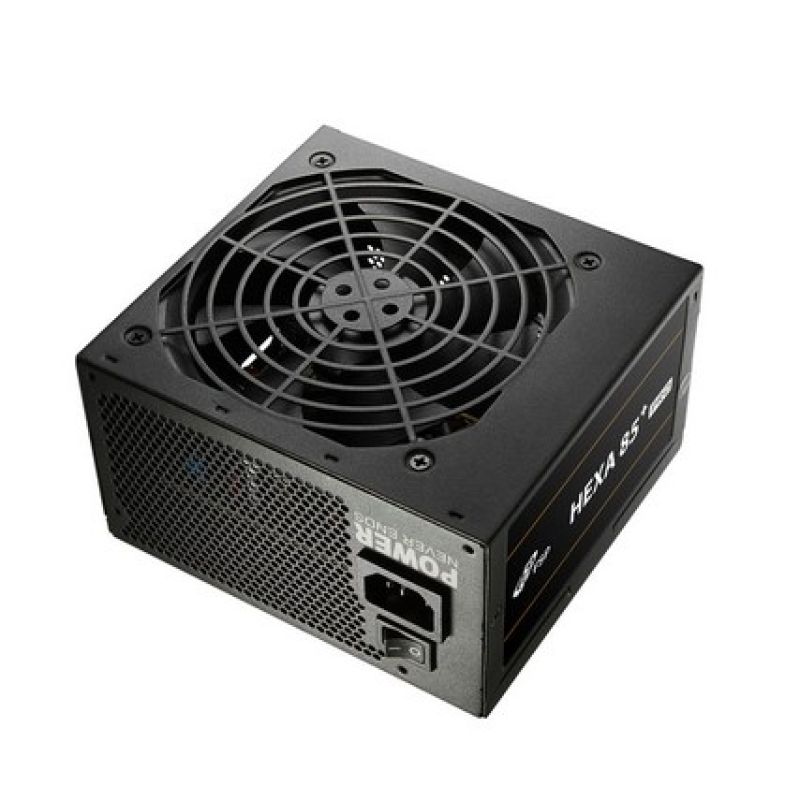

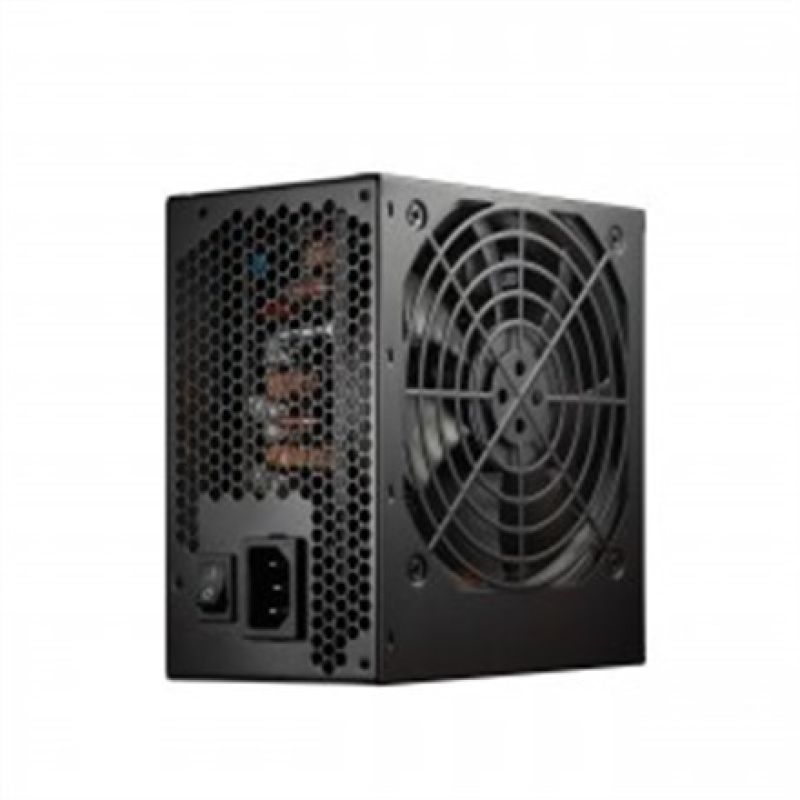

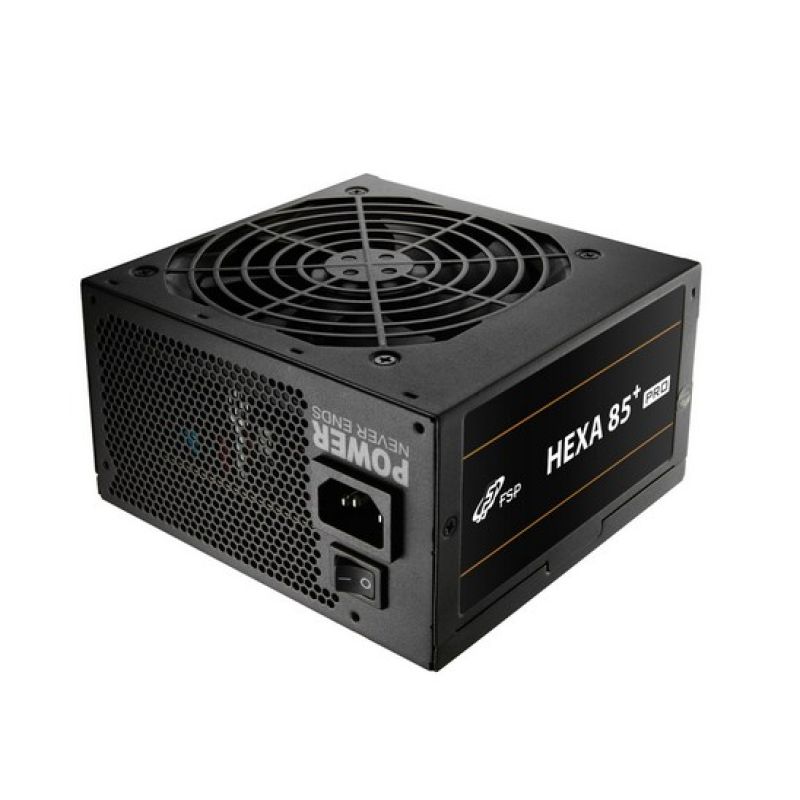

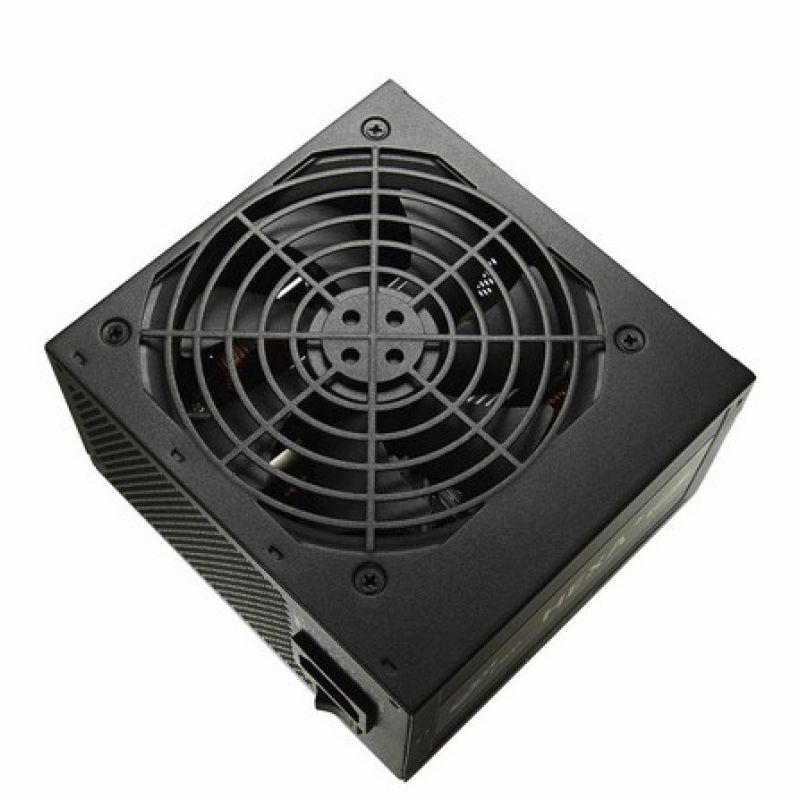

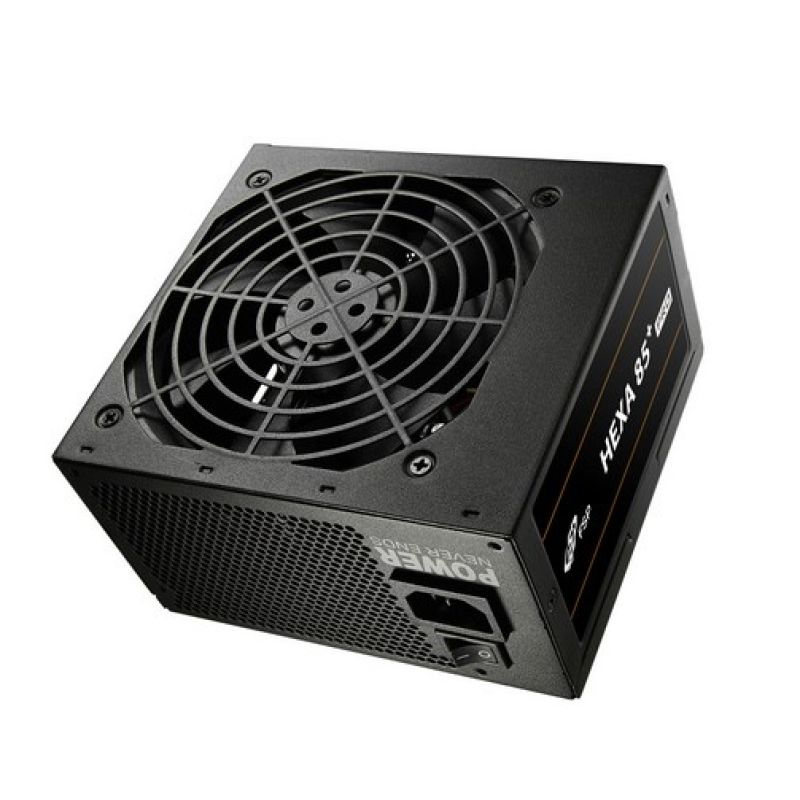

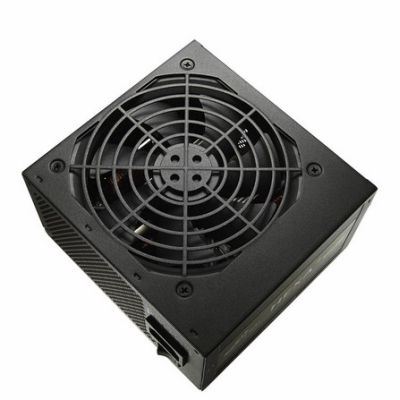

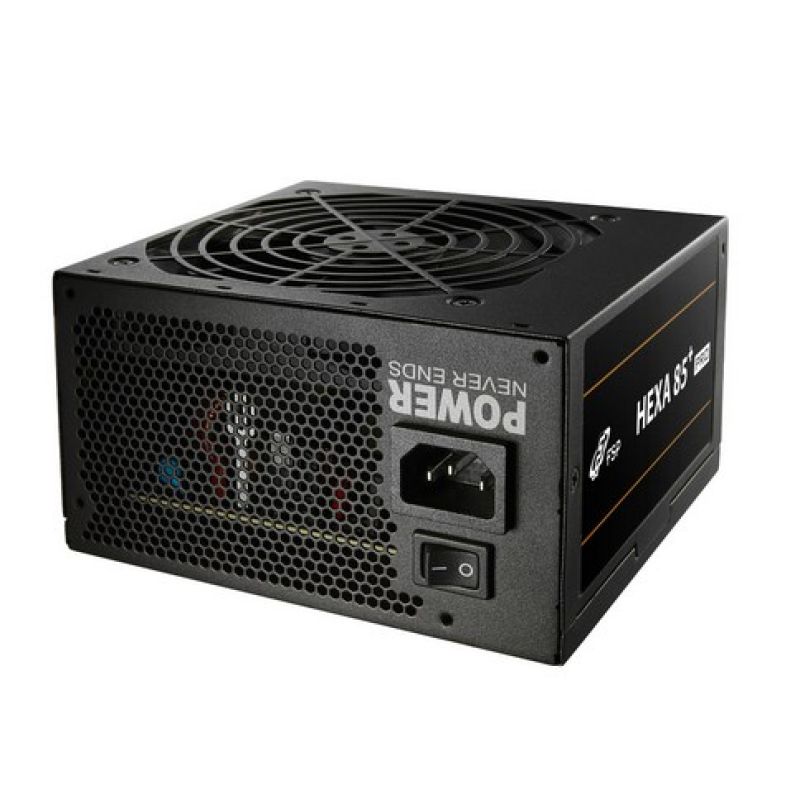

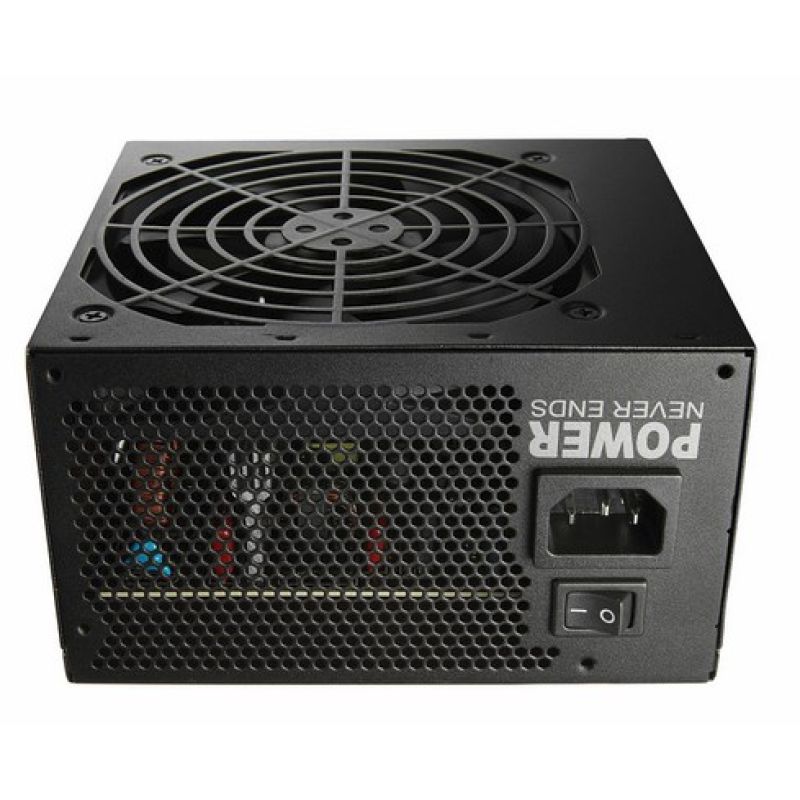

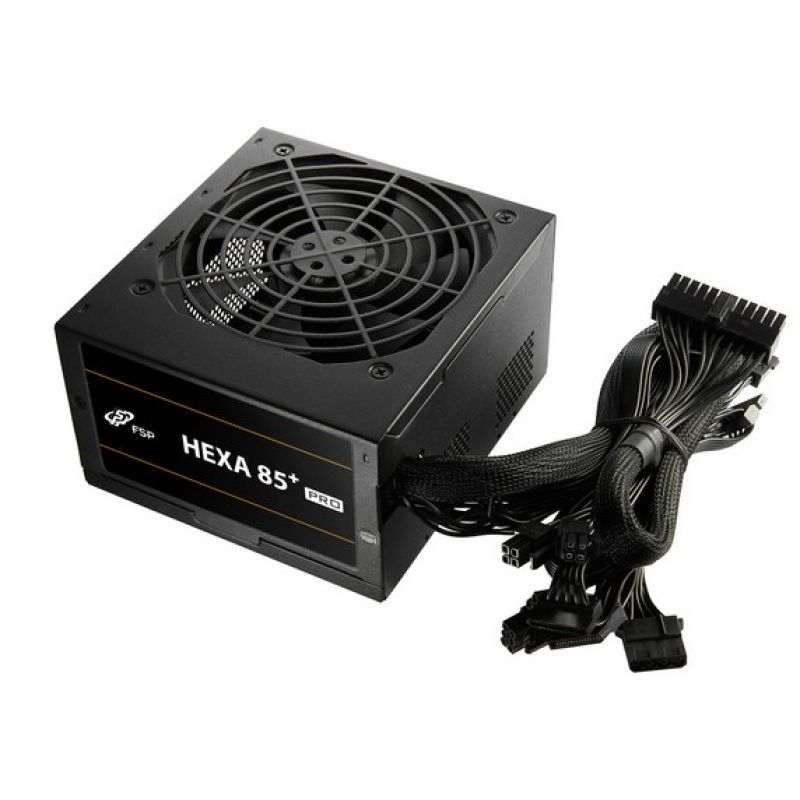

FSP HEXA 85+ PRO 650W 20+4 pin ATX power supply module Black
FSP HEXA 85+ PRO 650W 20+4 pin ATX power supply module Black
FSP HEXA 85+ PRO 650W 20+4 pin ATX power supply module Black
PRICE:
113,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Cooling type: Active
- Built-in switch: Yes

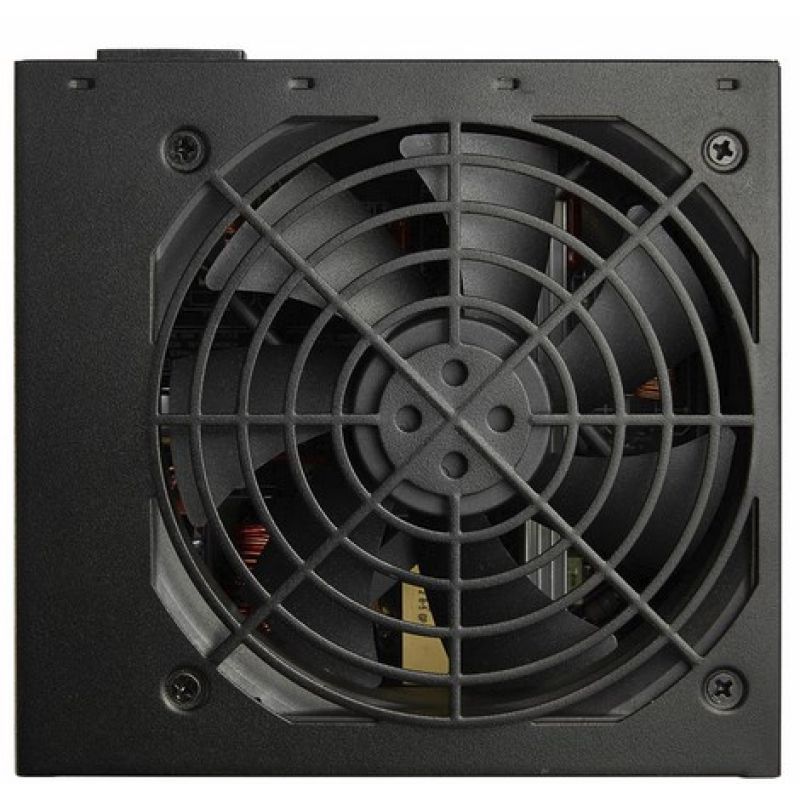

- Fan Location: Top
- Fan bowl diameter: 12 cm
- Number of fans: 1 fan
- Power
- AC input voltage: 100 - 240 V
- Input current: 9 - 4 A
- AC input frequency: 50 - 60 Hz
- Power protection features
- Protection against overvoltage
- Overcurrent
- Overload protection
- Short circuit
- Hold time: 17 ms
- Total power (+5 Vsb): 12.5 W
- Total power (+3.3V): 100 W
- Total power: 650 W
- Maximum output current (+3.3V): 20 A
- Total power (+5V): 100 W
- PFC (Power Factor Correction) Type: Active
- Maximum output current (-12V): 0.3A
- Efficiency: 85%
- Total power (-12V): 3.6 W
- Maximum output current (+12V): 54.16A
- Maximum output current (+5V): 20A
- Total power (+12V): 650 W
- Maximum output current (+5 Vsb): 2.5 A
- Weight and dimensions
- Product weight: 1.45 kg
- Product width: 140 mm
- Product height: 86 mm
- Product depth: 150 mm
- Efficiency
- Intended use: PC/server
- 80 PLUS Certificate: 80 PLUS Bronze
- ATX version: 2.5
- Bearing Technology: Sleeve
- EPS version: 2.92
- Power supply type (PSU): ATX
- Package contents

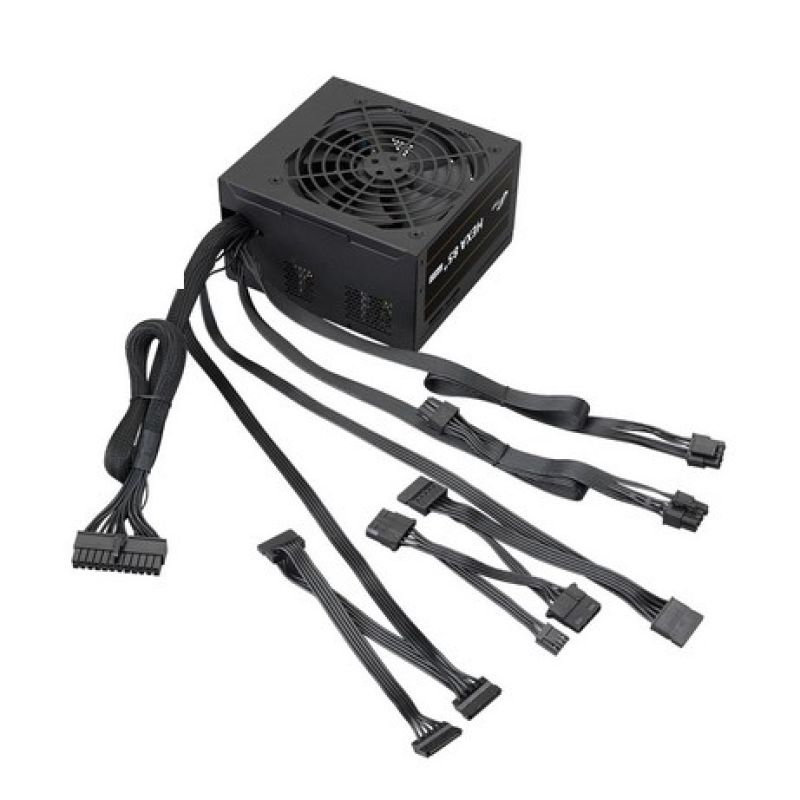

- Cables: Processor, PCIe, Peripheral (Molex), SATA
- Ports and interfaces
- ATX power socket (24-pin): Yes
- Peripheral (Molex) Power Connectors (4-pin): 2
- Wiring Type: Non-Modular
- Floppy disk drive slot: Yes
- Motherboard power connector: 20+4 pin ATX
- Floppy drive connector: 1
- Number of SATA power connectors: 5
- CPU power supply connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 2
- PCI Express slot: Yes
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Hazard pictogram(s)
- GHS02: Flammable substances
- GHS07: Irritating substances
- GHS09: Environmentally Harmful Substances
- Warnings
| Name | Details |
|---|---|
| Producer | Fortron |
