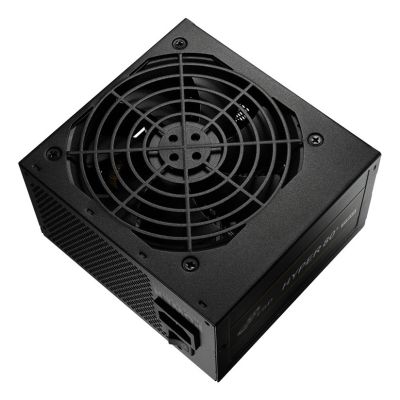

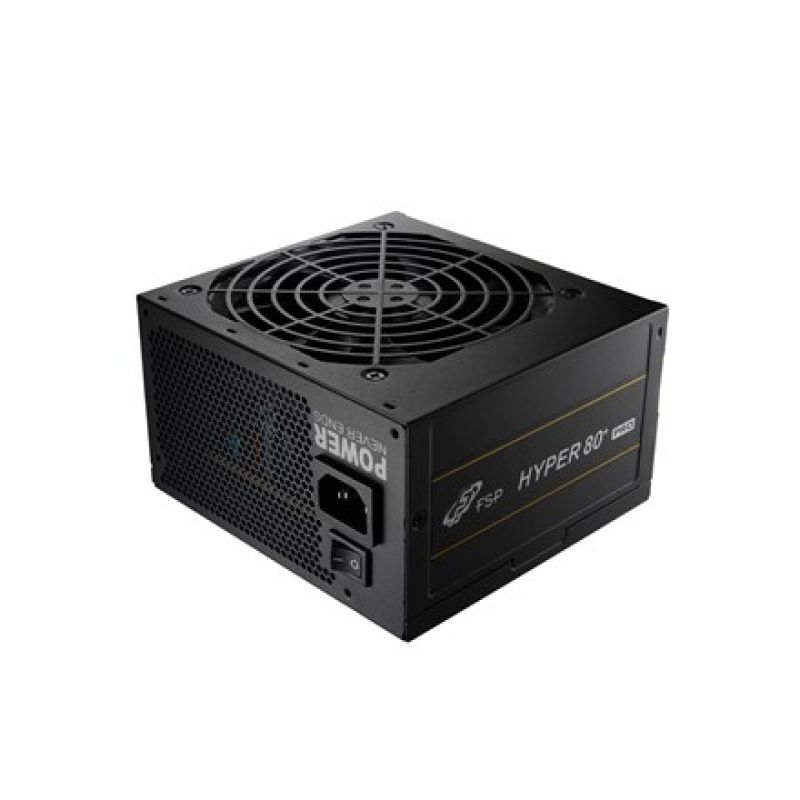

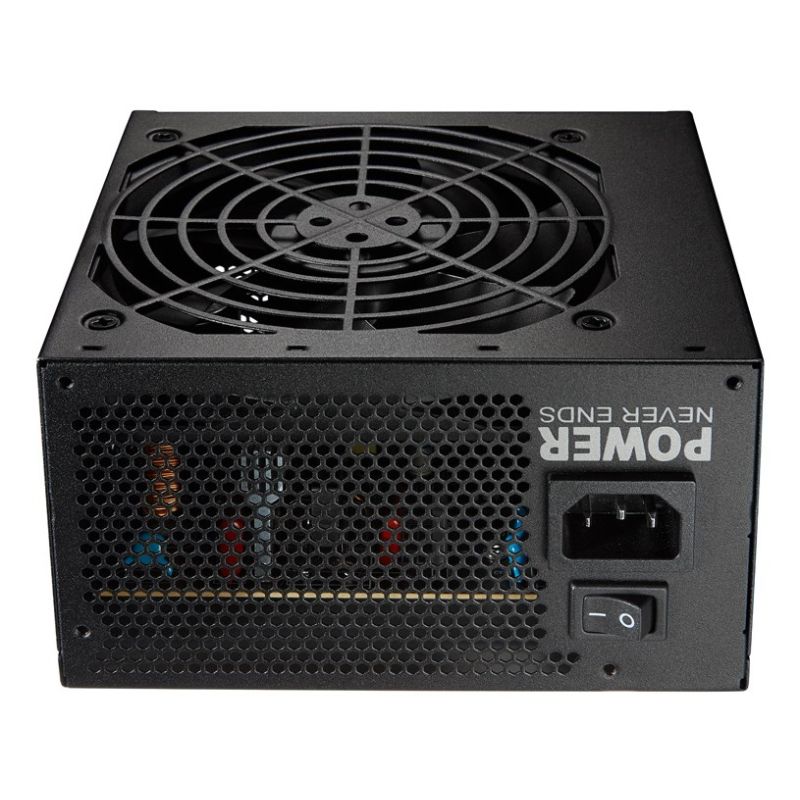

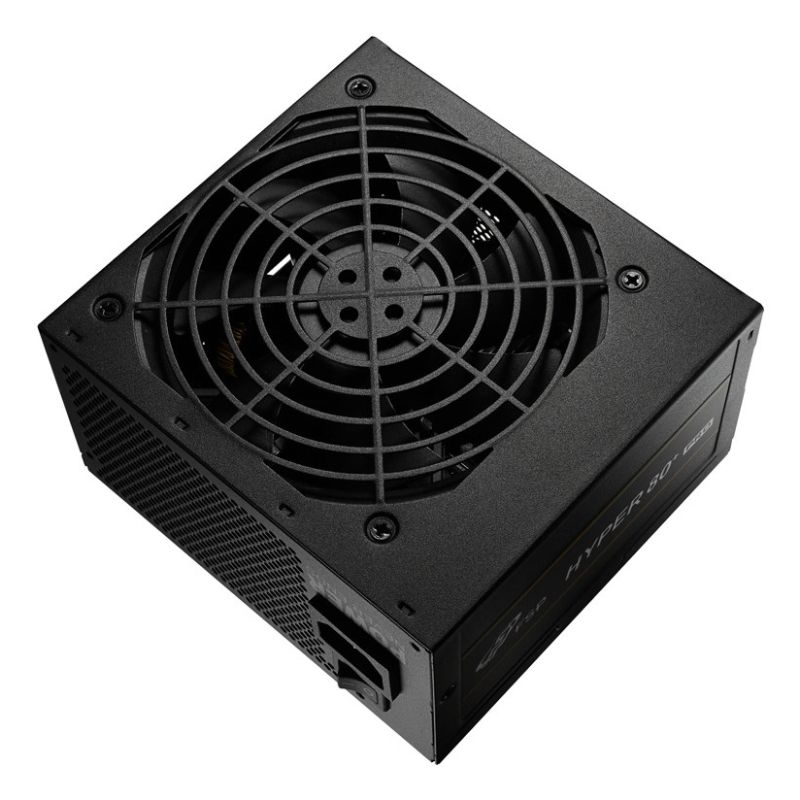

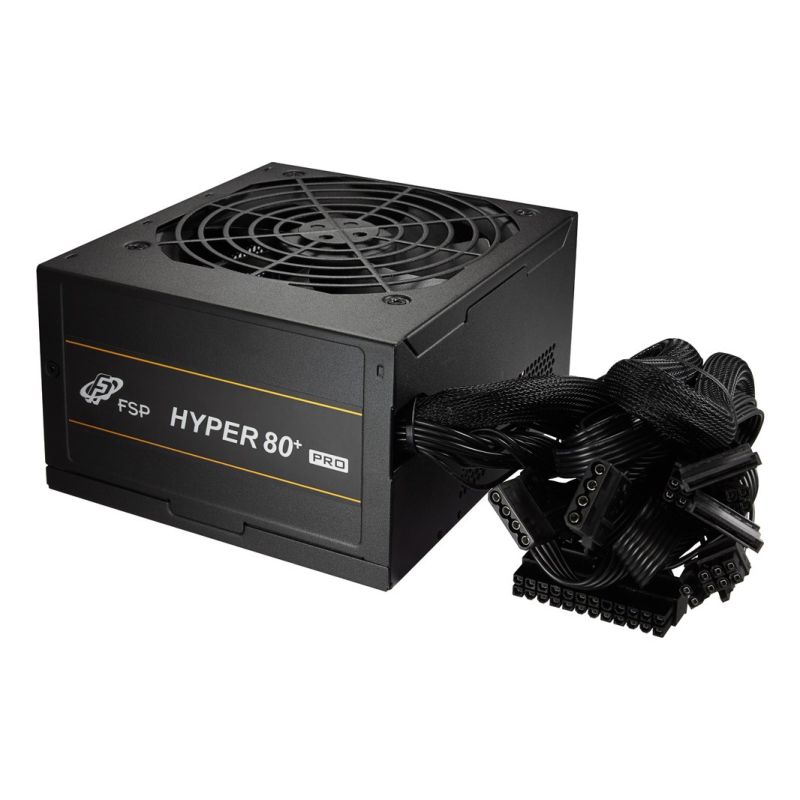

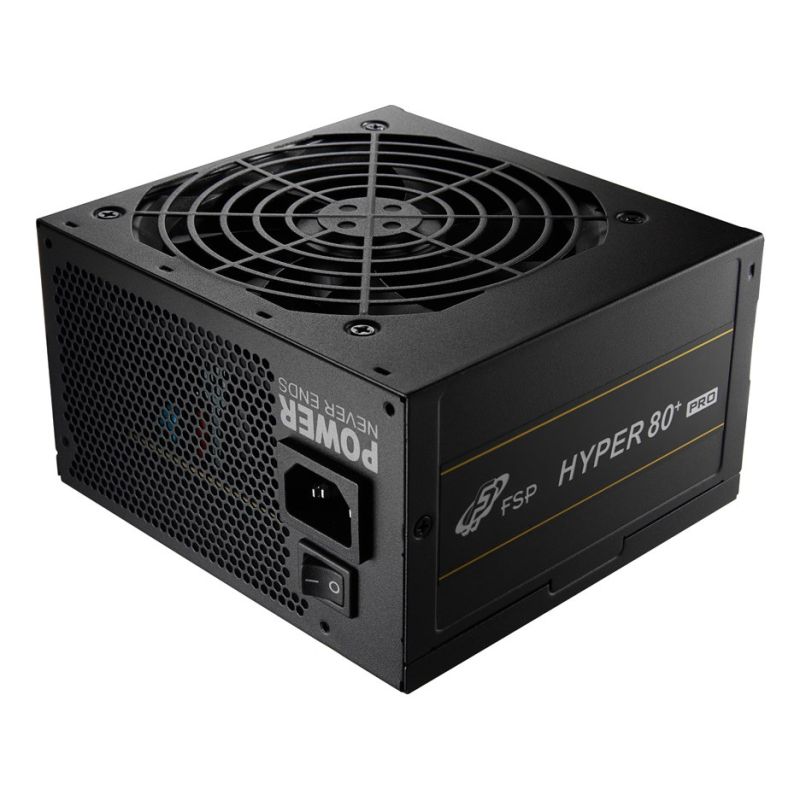

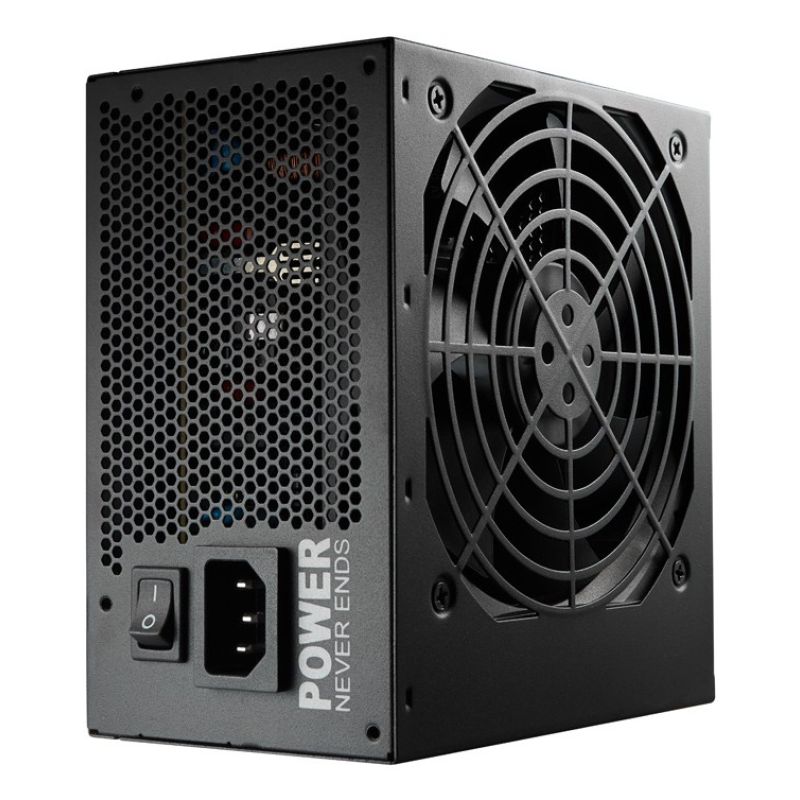

FSP HYPER 80+PRO650 Power Supply Module 650 W 24-pin ATX ATX Black
FSP HYPER 80+PRO650 Power Supply Module 650 W 24-pin ATX ATX Black
FSP HYPER 80+PRO650 Power Supply Module 650 W 24-pin ATX ATX Black
PRICE:
74,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental (sustainability) certification: ErP
- Sustainability: Yes
- Design
- Fan bowl diameter: 12 cm
- Product color: Black
- Number of fans: 1 fan
- Cooling type: Active
- Fan Location: Top
- Backlight: No
- Built-in switch: Yes
- Power
- AC input frequency: 50/60 Hz
- Power factor: 0.9
- Maximum output current (-12V): 0.3A
- Total power (+5 Vsb): 12.5 W
- Maximum output current (+3.3V): 20 A
- PFC (Power Factor Correction) Type: Active
- AC input voltage: 220 - 240 V
- Total power: 650 W
- Total power (+12V): 649.2 W
- Maximum output current (+12V): 54.1 A
- Total power (-12V): 3.6 W
- Efficiency: 85%
- Maximum output current (+5 Vsb): 2.5 A
- Total power (+5V): 100 W
- Input current: 5 A
- Maximum output current (+5V): 20A
- Power protection features
- Short circuit
- Overheating protection
- Protection against overvoltage
- Overcurrent
- Overload protection
- Hold time: 17 ms
- Total power (+3.3V): 100 W
- Weight and dimensions
- Product weight: 1.46 kg
- Product depth: 150 mm
- Product width: 140 mm
- Product height: 86 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Bronze
- Power supply type (PSU): ATX
- ATX version: 3.1
- Bearing Technology: Sleeve
- Intended use: PC/server
- EPS version: 2.92
- Package contents
- Cables: Processor, PCIe, Peripheral (Molex), SATA
- Ports and interfaces
- Motherboard power connector: 24-pin ATX
- Wiring Type: Non-Modular
- CPU power supply connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- EPS power supply connector (8-pin): Yes
- Floppy disk drive slot: Yes
- Number of SATA power connectors: 8
- EPS power connector (4+4 pin): Yes
- Floppy drive connector: 1
- Peripheral (Molex) Power Connectors (4-pin): 2
- PCI Express power supply connector (8-pin): 1
| Name | Details |
|---|---|
| Producer | Fortron |
