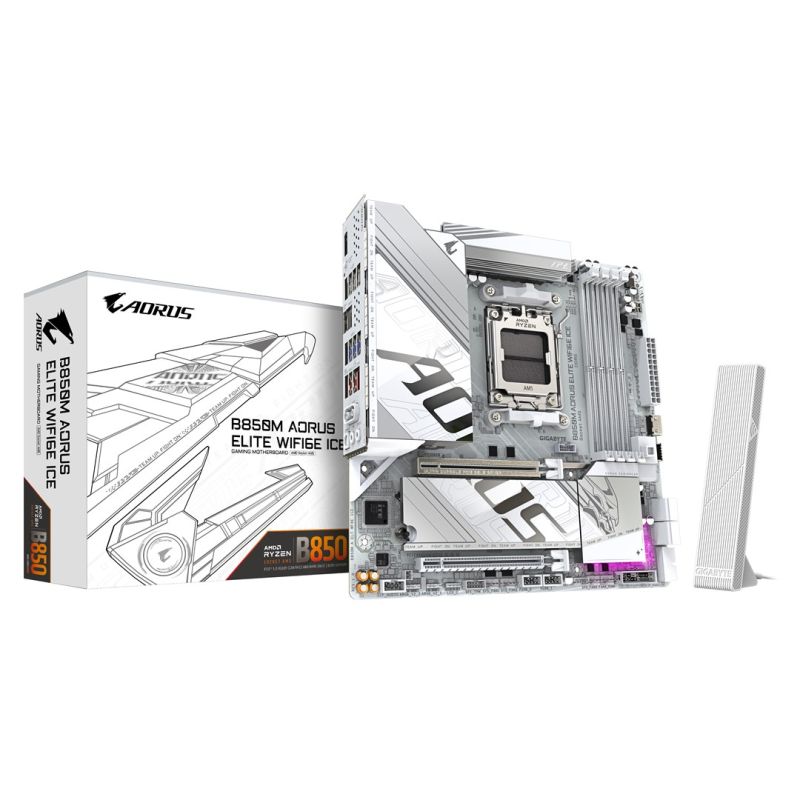

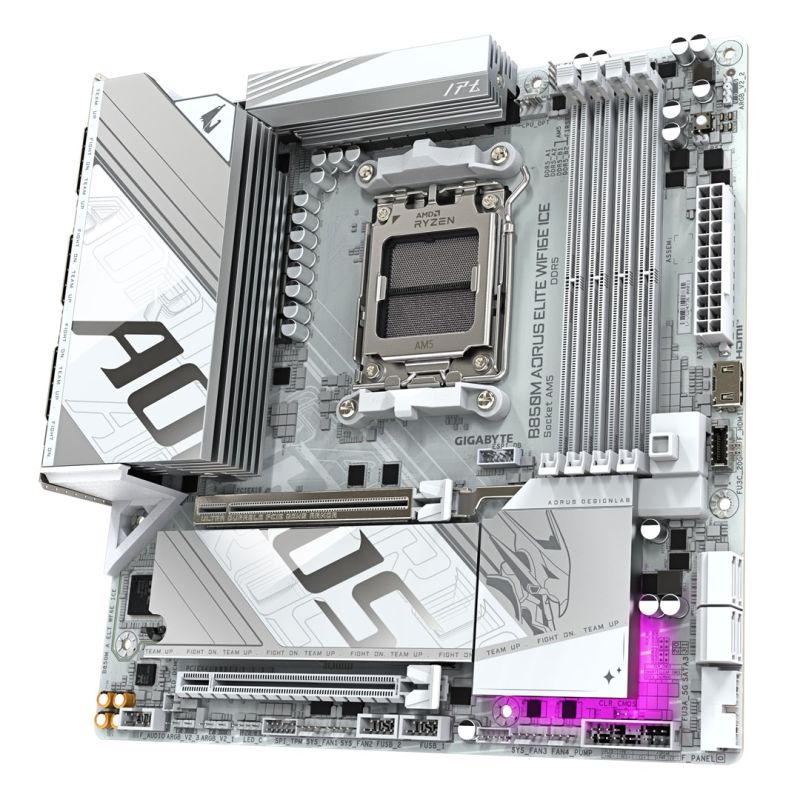

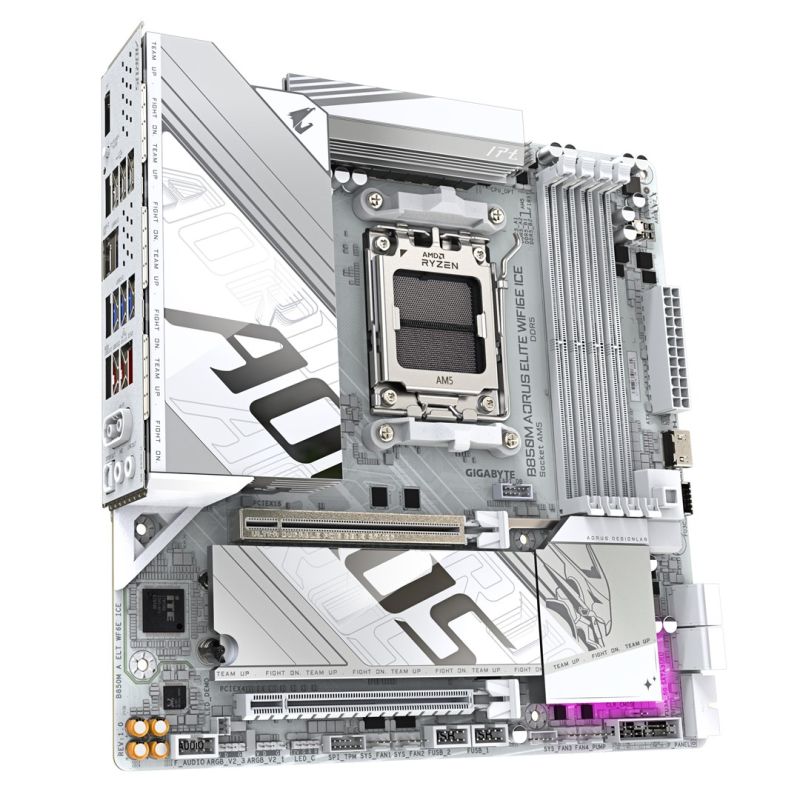

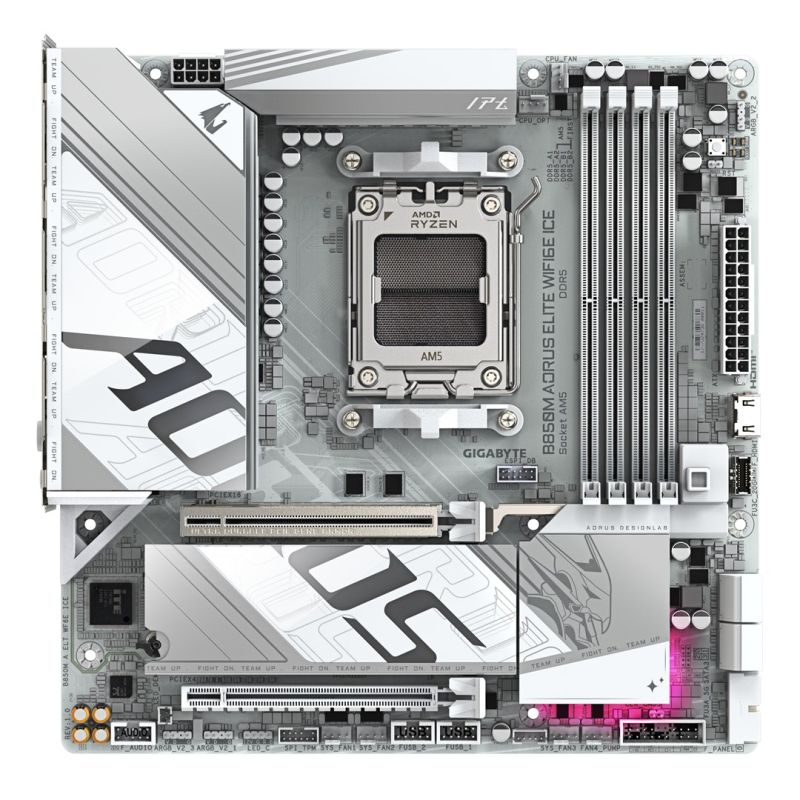

GIGA B850M AORUS ELITE WF6E ICE AM5 DDR5 µATX Motherboard
GIGA B850M AORUS ELITE WF6E ICE AM5 DDR5 µATX Motherboard
GIGA B850M AORUS ELITE WF6E ICE AM5 DDR5 µATX Motherboard
PRICE:
313,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- Supported CPU sockets: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- Maximum resolution: 4096 x 2160 px
- HDCP: Yes
- Built-in graphics card: No
- DirectX Version: 12.0
- Memory
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- 4400 MHz
- 8000
- 5800 MHz
- 6000 MHz
- 8200
- 5600 MHz
- 6400 MHz
- 7900
- 7200
- 7800
- 7950
- 6600
- 6800
- 4800 MHz
- 7000
- 5200 MHz
- 7600
- 6200 MHz
- 7400
- Number of memory slots: 4
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Maximum memory capacity: 256 GB
- Supported memory clock speed (max): 8200 MHz
- ECC Compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Characteristics
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Audio chip: Realtek ALC897
- Intended use: PC
- Power supply type: ATX
- Monitoring computer status
- Temperature
- Tension
- Fan
- Water cooling
- Audio output channels: 7.1 ch.
- Motherboard Layout: AMD B850
- Product color: White
- Chipset Board Family: AMD
- Motherboard format: Micro ATX
- Supported Windows operating systems
- Weight and dimensions
- Product depth: 244 mm
- Product height: 35 mm
- Product width: 244 mm
- Internal I/O
- RGB LED: Yes
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- ATX power socket (24-pin): Yes
- Serial port connector: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- 12V power connector: Yes
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- Number of case fan connectors: 3
- TPM Connector: Yes
- Peripheral (Molex) Power Connectors (4-pin): 1
- USB 3.2 Gen 2x2 ports: 1
- Number of water pump connections: 2
- Number of CPU fan connectors: 2
- Number of EPS power connectors (8-pin): 1
- Number of RGB LED connectors: 4
- Network
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- 802.11g
- 802.11a
- Wi-Fi 6E (802.11ax)
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- 802.11b
- Wired LAN: Yes
- Wi-Fi: Yes
- WLAN controller model: Realtek RTL8852CE
- Ethernet interface type: 2.5 Gigabit Ethernet
- Bluetooth version: 5.3
- Bluetooth: Yes
- BIOS
- ACPI version: 5.0
- Clear CMOS Button: Yes
- System BIOS (SMBIOS) version: 2.7
- Clear CMOS Jumper: Yes
- BIOS memory size: 256 Mbit
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- Packaging data
- Weight with packaging: 1.97 kg
- Package width: 270 mm
- Package height: 68 mm
- Package depth: 268 mm
- Package contents
- Screws Included: Yes
- Antenna Included: Yes
- Batteries included: Yes
- Memory drivers
- RAID levels
- 0
- 1
- 10
- RAID Service: Yes
- Number of supported storage drive sizes: 6
- Number of supported HDDs: 4
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID levels

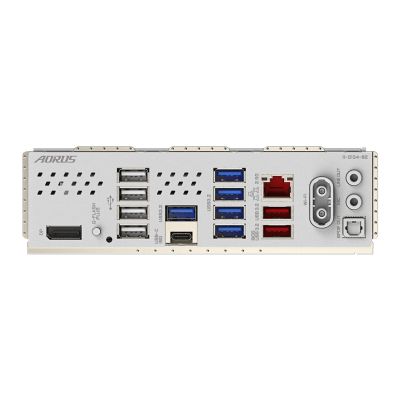

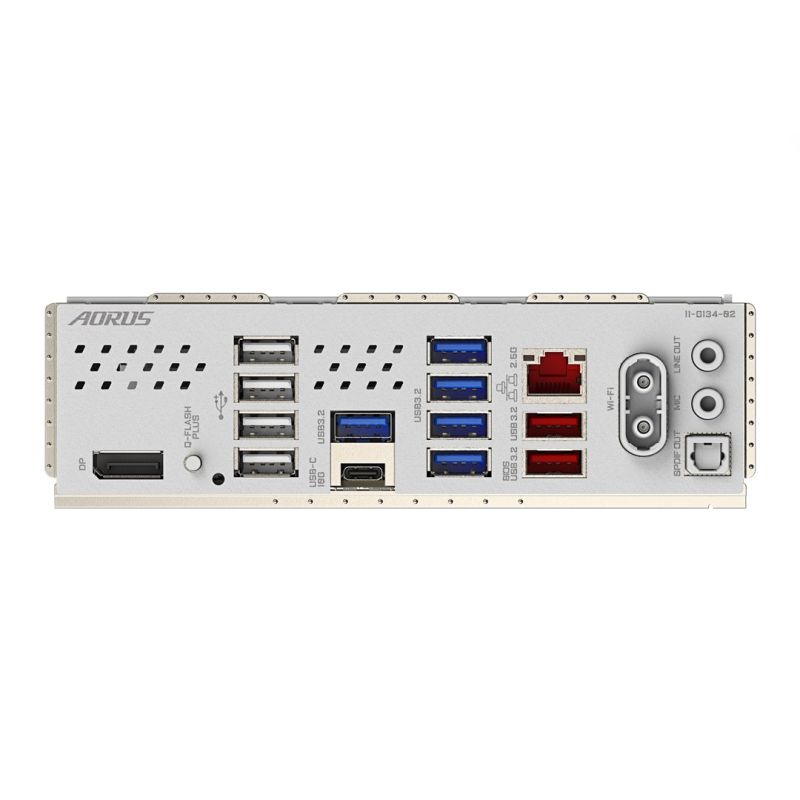

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Microphone: Yes
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- HDMI version: 1.4
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 2.0 ports: 4
- Headphone outputs: 1
- DisplayPort Quantity: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 5
- DisplayPort version: 1.4
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
- 2nd largest M.2 key size: 22110
- 1. largest M.2 key size: 25110
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 5.0
- Battery
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Battery weight: 3 g
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.77 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
| Name | Details |
|---|---|
| Producer | Gigabyte |
