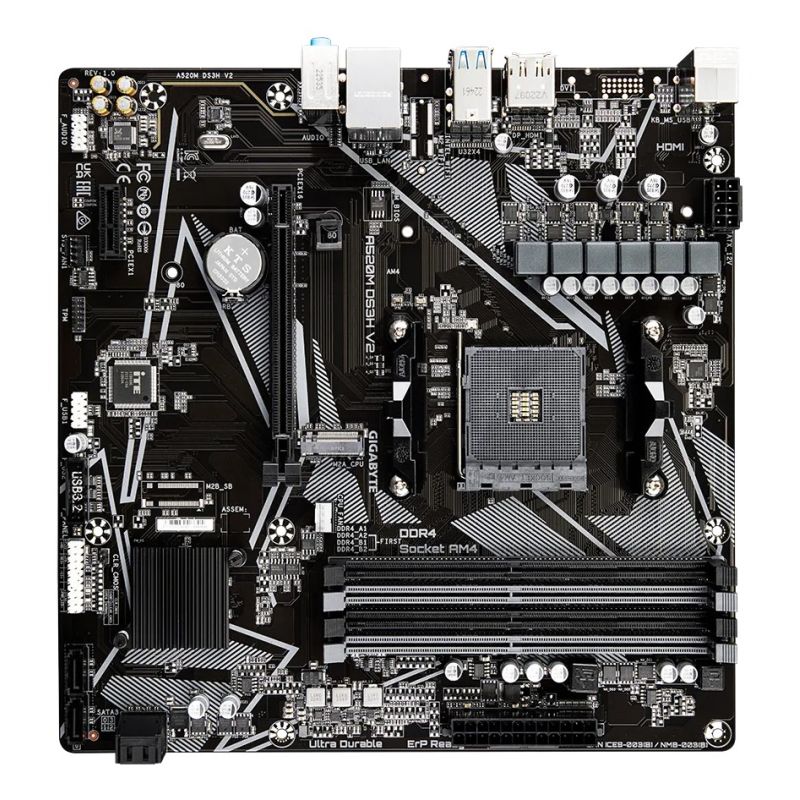

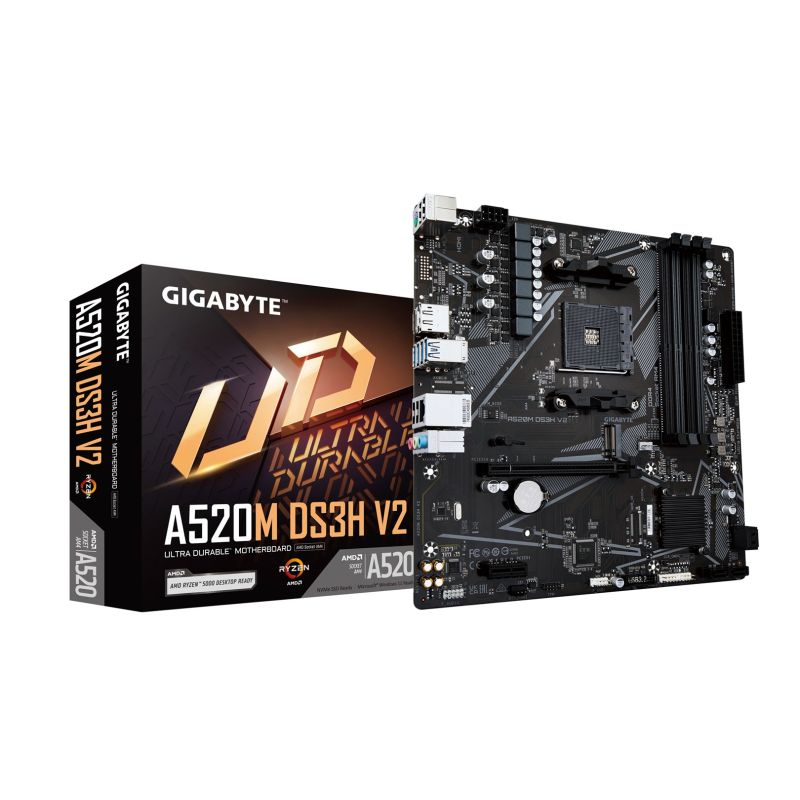

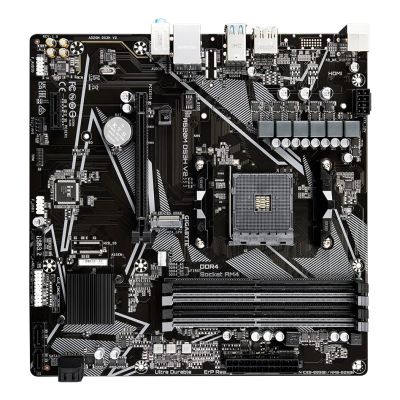

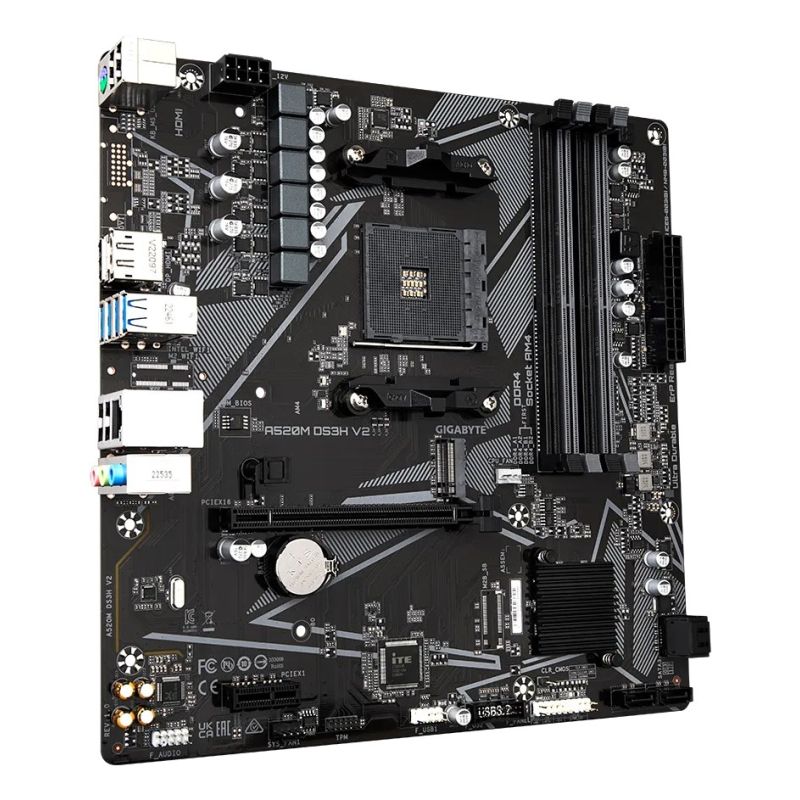

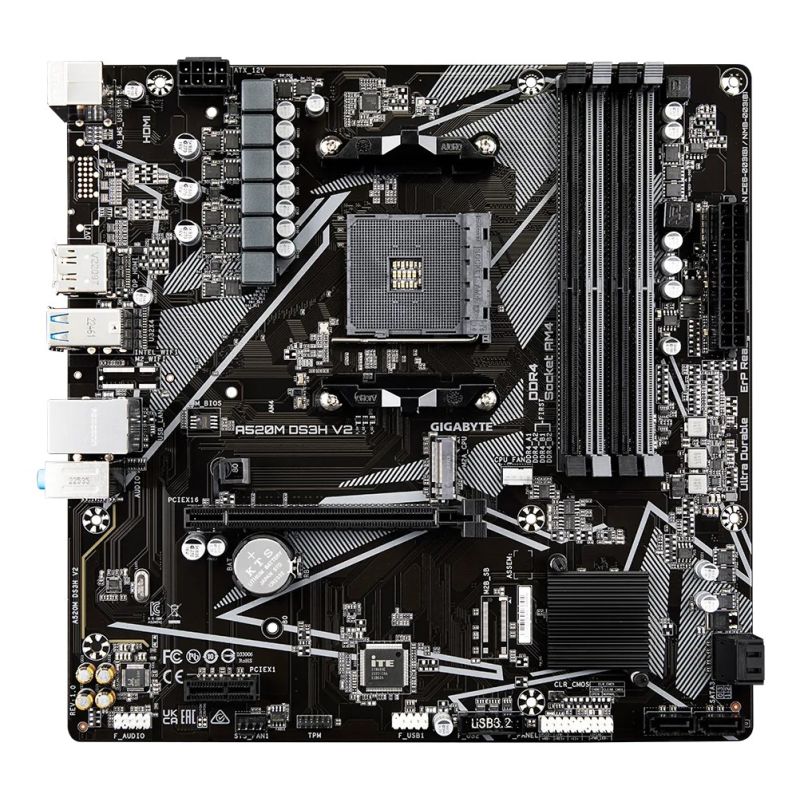

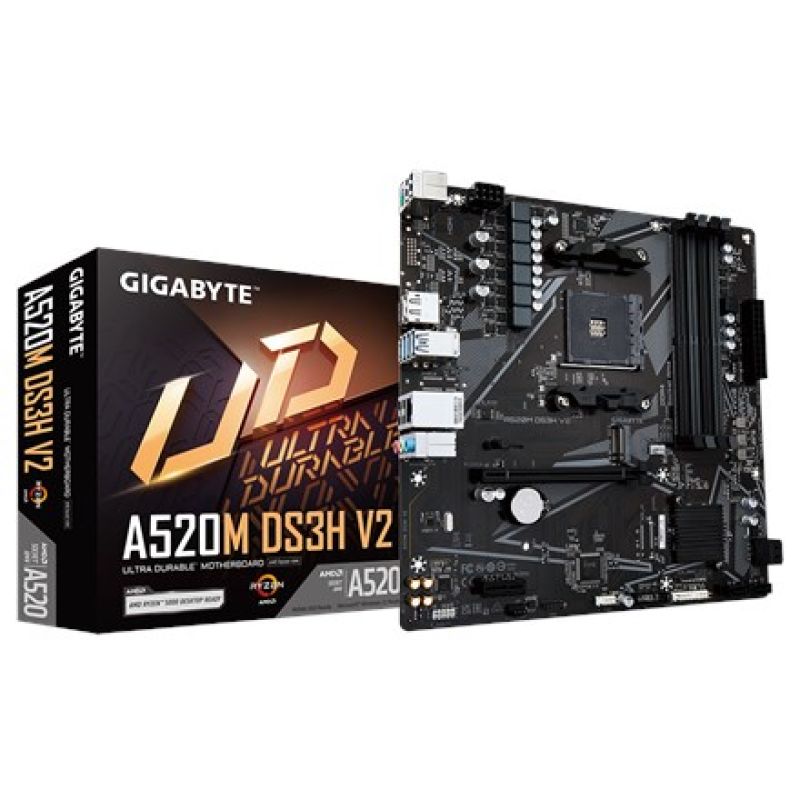

Gigabyte A520M DS3H V2 Motherboard
Gigabyte A520M DS3H V2 Motherboard
Gigabyte A520M DS3H V2 Motherboard
PRICE:
98,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 year(s)
- Processor
- Processor socket: Socket AM4
- Maximum number of SMP processors: 1
- Processor
- AMD Ryzen 3000 Series
- AMD Ryzen Threadripper 3000 Series
- AMD Ryzen Threadripper PRO 3000 WX-Series
- Maximum internal memory supported by the processor: 128 GB
- Processor manufacturer: AMD
- Supported processor sockets: Socket AM4
- Graphics
- Number of supported displays: 3
- HDCP: Yes
- Maximum resolution: 5120 x 2880 px
- Memory
- Number of memory slots: 4
- Supported memory types: DDR4-SDRAM
- Memory slot type: DIMM
- Memory channels: Dual-channel
- ECC compatibility: ECC or Non-ECC
- Supported memory clock speeds
- 3333 MHz
- 4400 MHz
- 3200 MHz
- 2667 MHz
- 2133 MHz
- 2933 MHz
- 4733 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- Supported memory module capacities
- 32GB
- 8GB
- 1GB
- 2GB
- 16GB
- 4GB
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- Features
- Computer health monitoring
- Processor
- Voltage
- Power supply
- Temperature
- LED
- Motherboard form factor: Micro ATX
- Power supply type: ATX
- Audio output channels: 7.1 channels
- Product colour: Black
- Chipset family: AMD
- Cooling type: Active
- Supported Windows operating systems: Windows 10 x64
- Audio chip: Realtek ALC887
- Computer health monitoring
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Product height: 35 mm
- Internal I/O
- Total number of SATA connectors: 4
- TPM connector: Yes
- Number of EATX connectors: 1
- 12V power connector: Yes
- CPU fan connector: Yes
- Fan connector: Yes
- Number of USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Serial port connector: 1
- Front panel audio connector: Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- ATX power connector (24-pin): Yes
- Network
- Wired LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- BIOS
- Desktop Management Interface (DMI) version: 2.7
- Clear CMOS jumper: Yes
- BIOS type: UEFI AMI
- Clear CMOS button: Yes
- Packaging data
- Package depth: 265 mm
- Package height: 54 mm
- Package weight: 810 g
- Package width: 265 mm
- Packaging content
- Drivers included: Yes
- Cables: SATA
- Batteries included: Yes
- Storage controllers
- Number of supported storage drive sizes: 5
- Number of supported HDDs: 4
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels
- 10
- 1
- 0
- Rear I/O ports
- HDMI version: 2.1
- Number of DVI-D ports: 1
- Number of PS/2 ports: 1
- Headphone outputs: 1
- Number of HDMI ports: 1
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of DisplayPorts: 1
- DisplayPort version: 2.0
- Number of USB 2.0 ports: 2
- Supported USB type: USB Type-A
- Number of Ethernet LAN (RJ-45) ports: 1
- Digital audio input: 1
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Supported battery type: CR2032
- Battery/accumulator weight: 3 g
- Number of battery cells: 1
- Lithium battery weight: 0,07 g
- Logistics data
- Products per shipping case (inner): 1 pc
- Country of origin: China
- Safety warning
- Warnings
- Avoid direct contact with sensitive electronic components.
- Keep away from water and sources of moisture.
- Dispose of in accordance with local regulations concerning electronic waste.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Product Type | Motherboards |
| Producer | Gigabyte |
| Department | Electronics |
