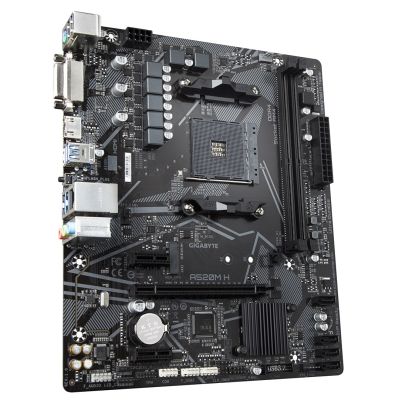

Gigabyte A520M H Motherboard (REV. 1.0)
Gigabyte A520M H Motherboard (REV. 1.0)
Gigabyte A520M H Motherboard (REV. 1.0)
PRICE:
86,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Maximum number of SMP processors: 1
- Processor socket: Socket AM4
- Maximum internal memory supported by the processor: 64 GB
- Processor
- AMD Ryzen 3000 Series
- AMD Ryzen Threadripper 3000 Series
- AMD Ryzen Threadripper PRO 3000 WX-Series
- Processor manufacturer: AMD
- Supported processor sockets: Socket AM4
- Graphics
- Parallel Processing Support: Not Supported
- Discrete graphics support: Yes
- Maximum resolution: 4096 x 2160 px
- HDCP: Yes
- Memory
- Supported memory clock speeds
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 3466 MHz
- 4133 MHz
- 3400 MHz
- 3866 MHz
- 4600 MHz
- 3200 MHz
- 2133 MHz
- 4400 MHz
- 2933 MHz
- 4800 MHz
- 3733 MHz
- 5100 MHz
- 4266 MHz
- 2667 MHz
- Supported memory module capacities
- 8GB
- 1GB
- 16GB
- Maximum memory capacity: 64 GB
- Unbuffered memory: Yes
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory Channel Support: Dual Channel
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speed (max): 5100 MHz
- Memory slot type: DIMM
- Supported memory clock speeds
- Characteristics
- Monitoring computer status
- LED
- Processor
- Temperature
- Fan
- Tension
- Power supply
- Product color: Black
- Chipset Board Family: AMD
- Audio output channels: 7.1 ch.
- Power supply type: ATX
- Motherboard format: Micro ATX
- Audio chip: Realtek ALC887
- Motherboard Layout: AMD A520
- Intended use: PC
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Cooling type: Active
- Monitoring computer status
- Weight and dimensions
- Product depth: 205 mm
- Product height: 35 mm
- Product width: 244 mm
- Internal I/O
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Serial port connector: 1
- Fan connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 2.0 ports: 2
- Front panel connector: Yes
- 12V power connector: Yes
- EPS power supply connector (8-pin): Yes
- RGB LED: Yes
- Total number of SATA connectors: 4
- TPM Connector: Yes
- Housing intrusion sensor connector: Yes
- CPU fan connector: Yes
- Number of EATX sockets: 1
- Network
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- Desktop Management Interface (DMI) Version: 2.7
- BIOS Type: UEFI AMI
- BIOS memory size: 128 Mbit
- Clear CMOS Jumper: Yes
- Clear CMOS Button: Yes
- ACPI version: 5.0
- System BIOS (SMBIOS) version: 2.7
- Packaging data
- Weight with packaging: 740 g
- Package depth: 235 mm
- Package width: 265 mm
- Package height: 52 mm
- Package contents
- Cables: SATA
- Batteries included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, PCI Express 3.0, SATA III
- RAID levels
- 10
- 1
- 0
- Supported drive types: HDD & SSD
- RAID Service: Yes
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 5

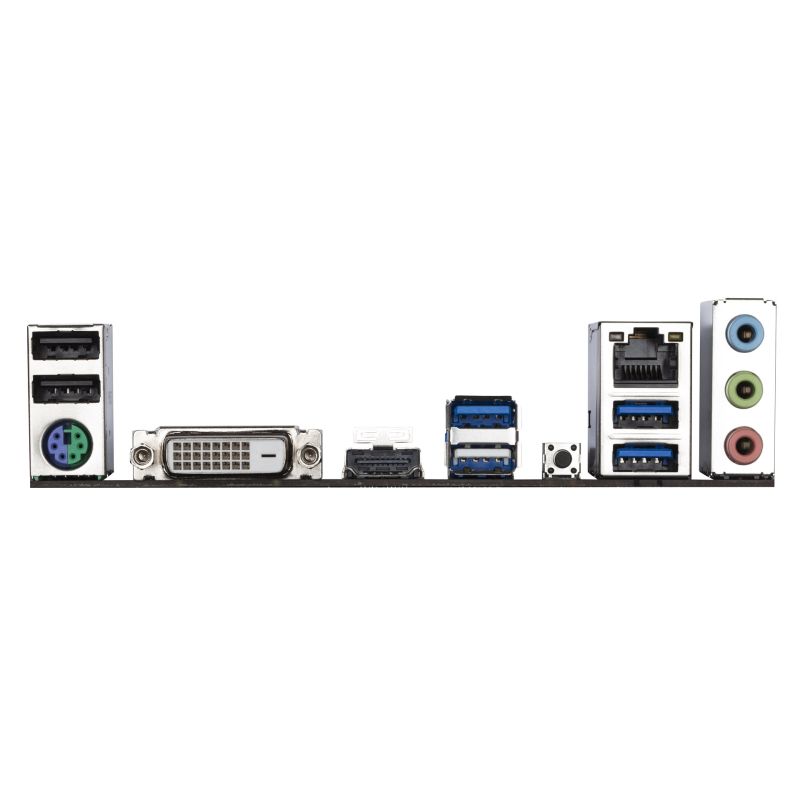

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Supported USB type: USB Type-A
- Number of USB 2.0 ports: 2
- Headphone outputs: 1
- Microphone: Yes
- Number of DVI-D ports: 1
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- Battery
- Battery weight: 3 g
- Number of battery compartments: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
| Name | Details |
|---|---|
| Producer | Gigabyte |
