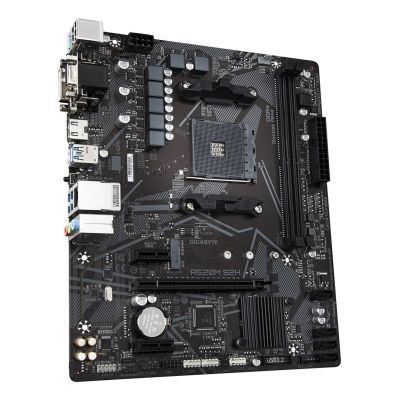

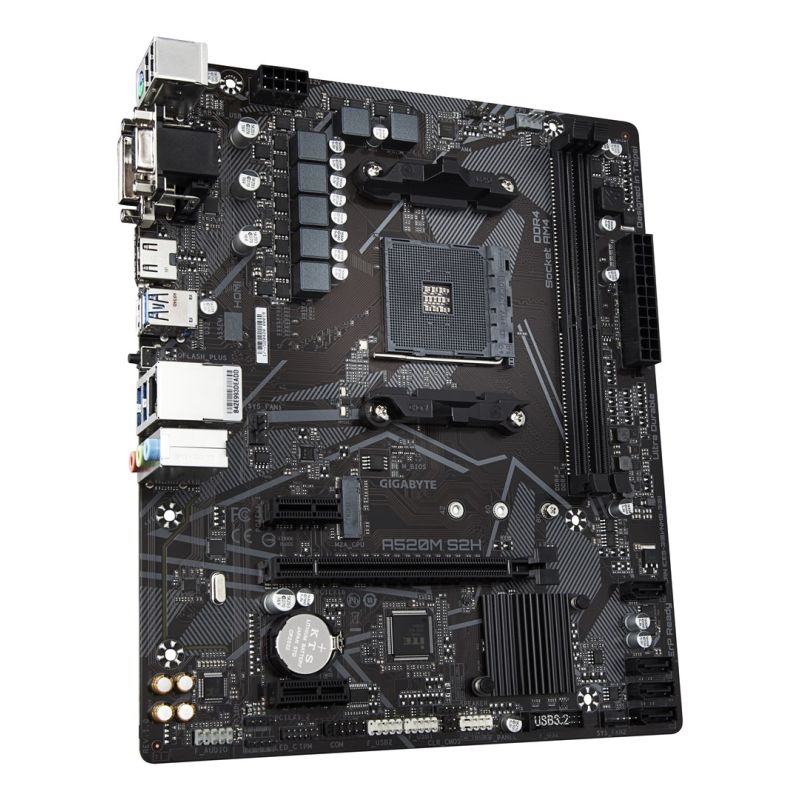

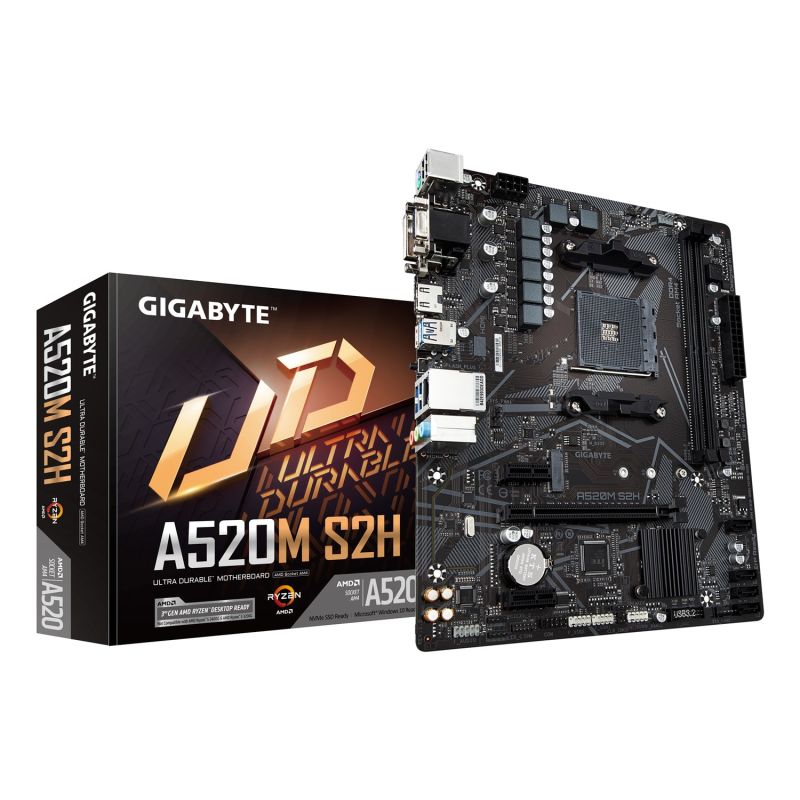

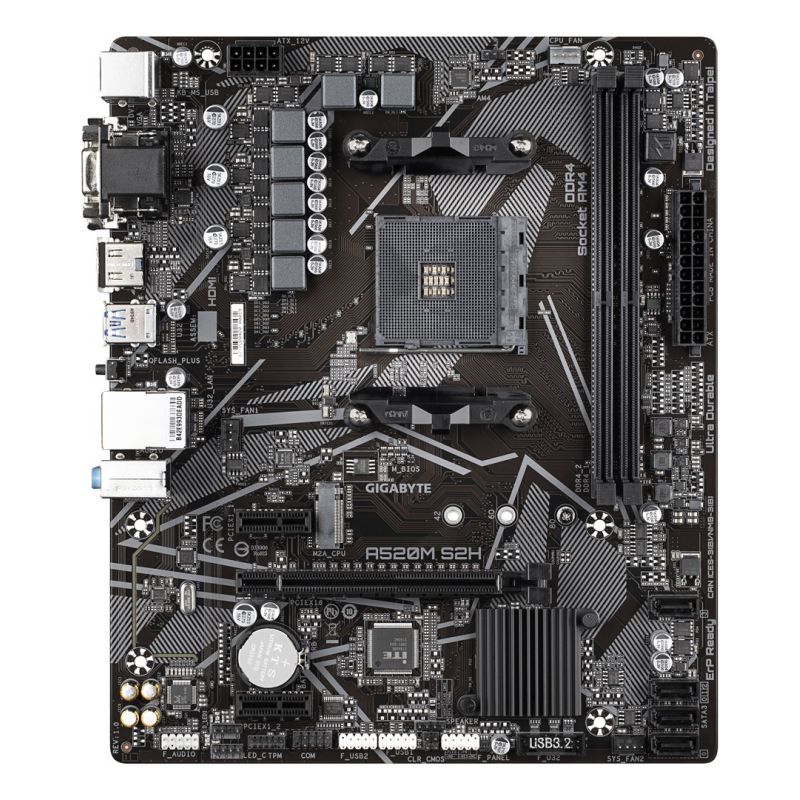

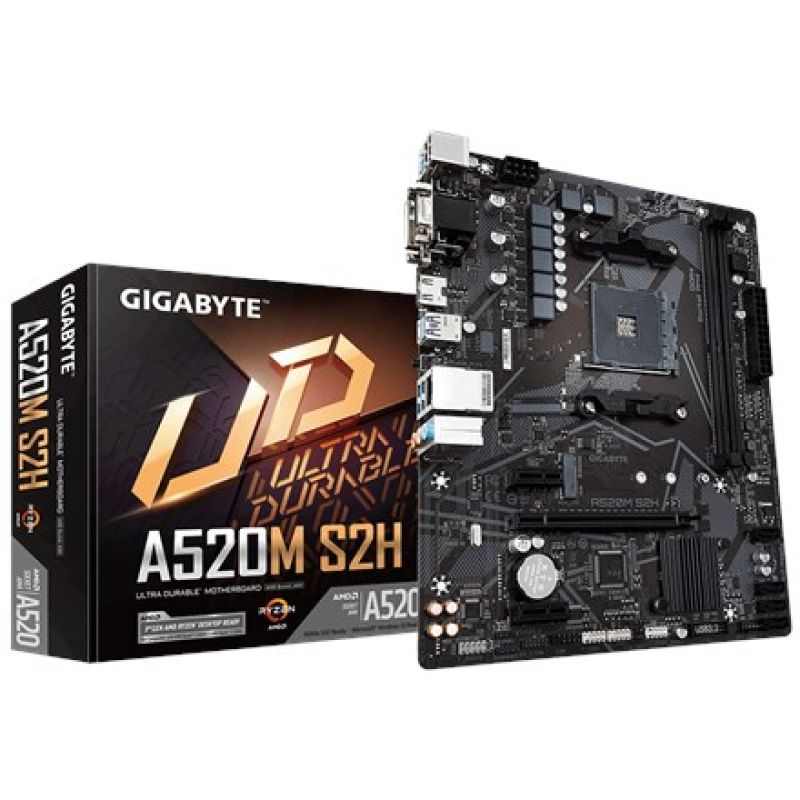

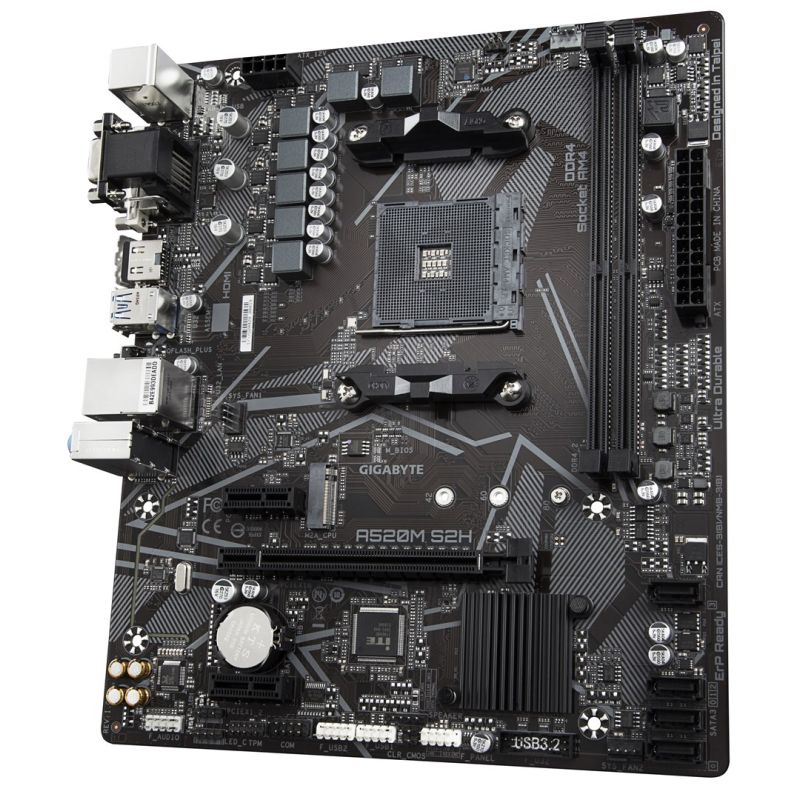

GIGABYTE A520M S2H motherboard AMD A520 Socket AM4 micro ATX
GIGABYTE A520M S2H motherboard AMD A520 Socket AM4 micro ATX
GIGABYTE A520M S2H motherboard AMD A520 Socket AM4 micro ATX
PRICE:
98,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Processor manufacturer: AMD
- Supported processor sockets: Socket AM4
- Processor: AMD Ryzen 3000 Series
- Maximum number of SMP processors: 1
- Processor socket: Socket AM4
- Maximum internal memory supported by the processor: 64 GB
- Graphics
- Built-in graphics card: No
- HDCP: Yes
- Memory
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speeds
- 5000 MHz
- 2933 MHz
- 3333 MHz
- 4400 MHz
- 4866 MHz
- 2133 MHz
- 3200 MHz
- 2667 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 4600 MHz
- Maximum memory capacity: 64 GB
- Characteristics
- Intended use: PC
- Audio output channels: 7.1 ch.
- Product color: Black
- Chipset Board Family: AMD
- Motherboard Layout: AMD A520
- Motherboard format: Micro ATX
- Weight and dimensions
- Product width: 244 mm
- Product height: 35 mm
- Product depth: 205 mm
- Internal I/O
- Number of case fan connectors: 2
- CPU fan connector: Yes
- Fan connector: Yes
- RGB LED: Yes
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 2.0 ports: 2
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- BIOS
- BIOS memory size: 128 Mbit
- BIOS Type: UEFI AMI
- Clear CMOS Button: Yes
- ACPI version: 5.0
- Desktop Management Interface (DMI) Version: 2.7
- System BIOS (SMBIOS) version: 2.7
- Clear CMOS Jumper: Yes
- Packaging data
- Package height: 52 mm
- Package depth: 235 mm
- Package width: 265 mm
- Weight with packaging: 740 g
- Package contents
- Batteries included: Yes
- Memory drivers
- RAID levels
- 0
- 1
- 10
- RAID Service: Yes
- Supported hard drive interfaces: M.2, PCI Express 3.0, SATA
- RAID levels

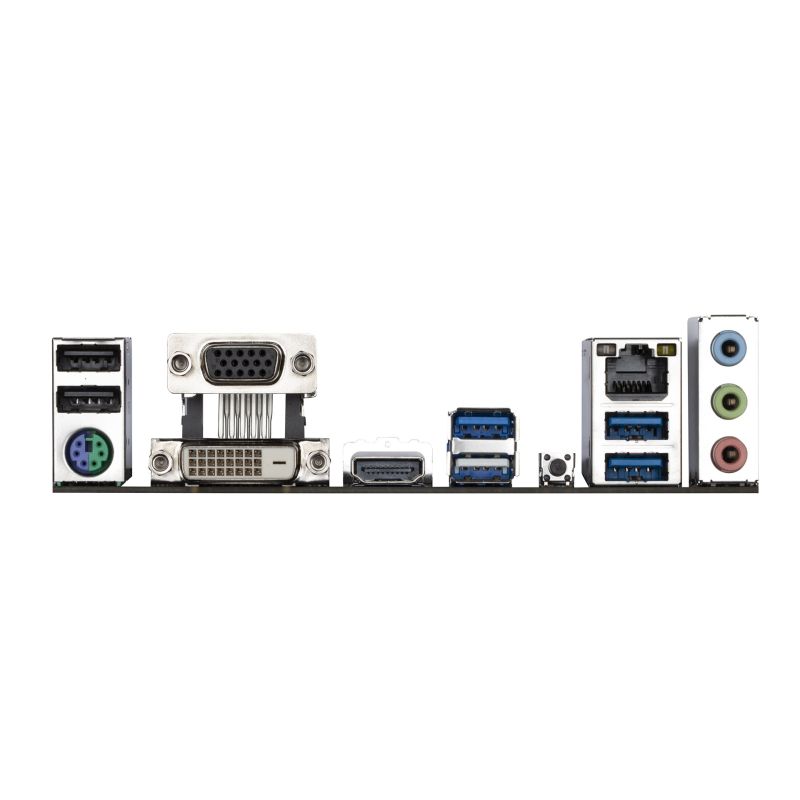

- Rear Panel I/O Ports
- Number of VGA (D-Sub) ports: 1
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- Number of DVI-D ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of USB 2.0 ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Supported battery type: CR2032
- Number of battery compartments: 1
- Lithium battery weight: 0.07 g
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Harmonized System (HS) code: 84733020
- Country of origin: China
- Safety warning
- Warnings
- Avoid direct contact with sensitive electronic components.
- Store away from water and sources of moisture.
- Dispose of in accordance with local regulations regarding electronic waste.
- Warnings
| Name | Details |
|---|---|
| Producer | Gigabyte |
