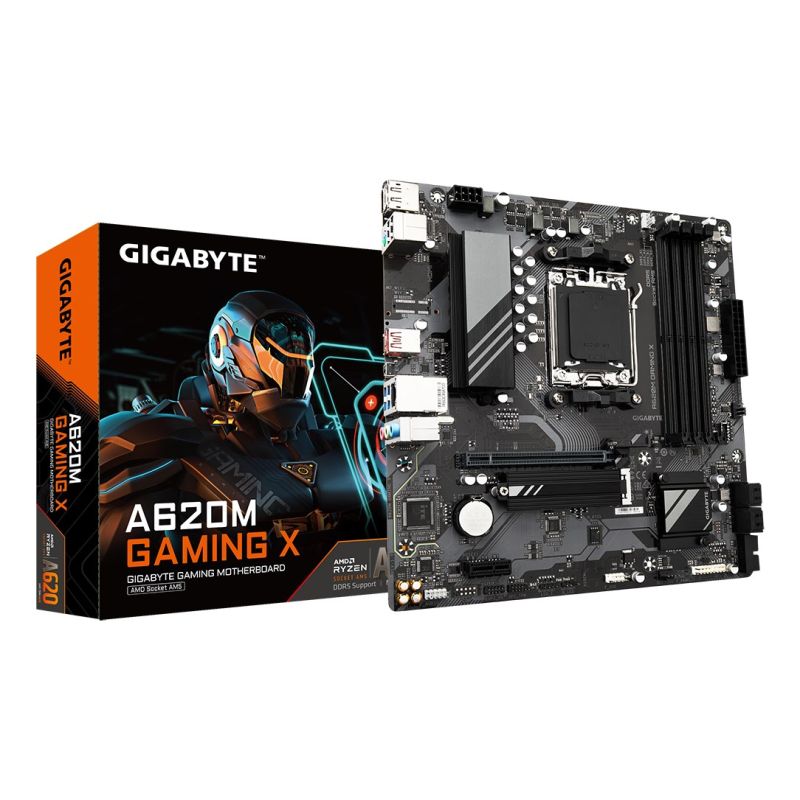

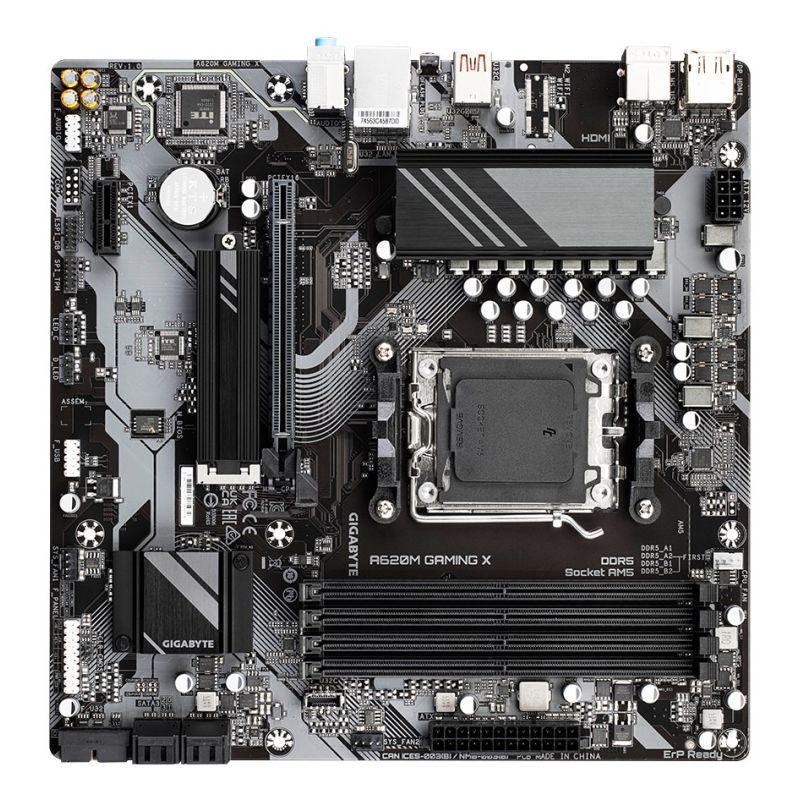

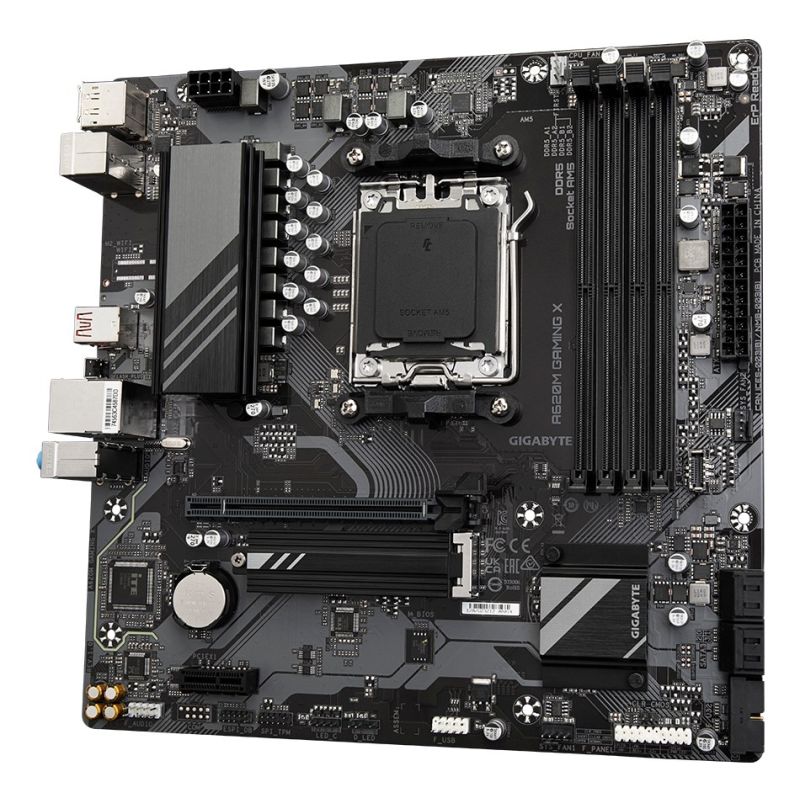

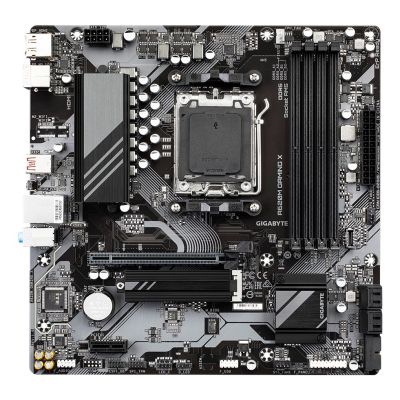

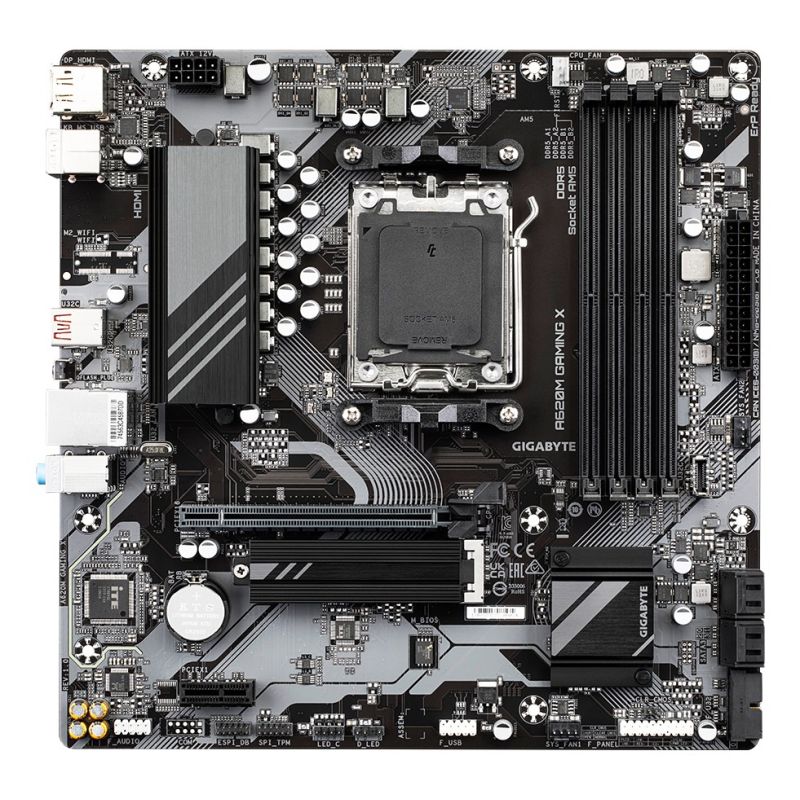

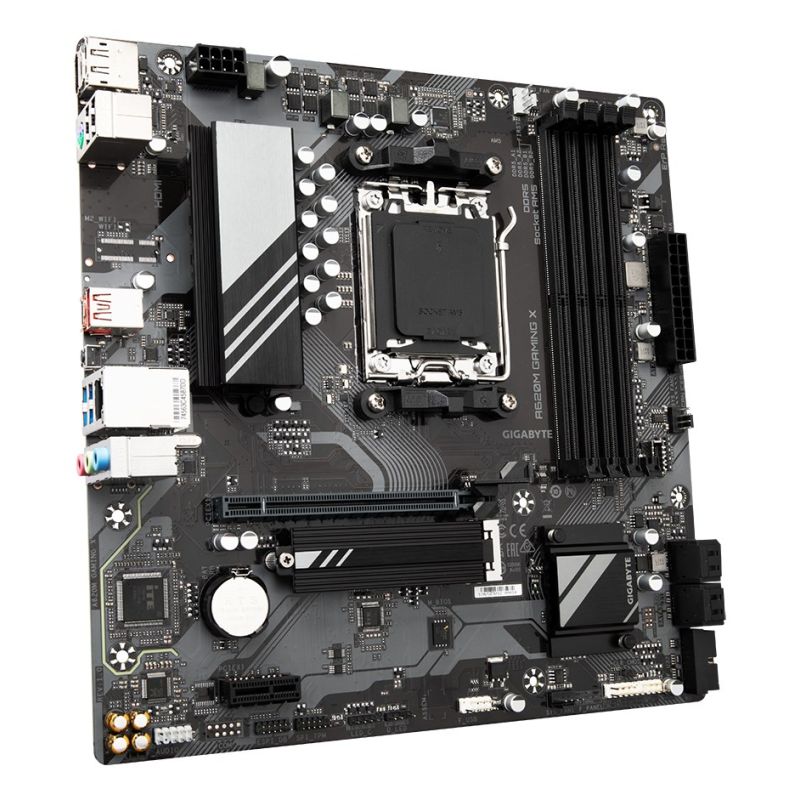

Gigabyte A620M GAMING X motherboard
Gigabyte A620M GAMING X motherboard
Gigabyte A620M GAMING X motherboard
PRICE:
148,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported CPU sockets: Socket AM5
- Maximum internal memory supported by the processor: 192 GB
- Processor socket: Socket AM5
- Processor: AMD Ryzen 7000 Series
- Processor manufacturer: AMD
- Graphics
- HDCP: Yes
- Maximum resolution: 4096 x 2160 px
- Parallel Processing Support: Not Supported
- DirectX Version: 12.0
- Memory
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 8000 MHz
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- 7600
- 6800 MHz
- 4800 MHz
- 7000
- 6200 MHz
- 5600 MHz
- 6400 MHz
- 5200 MHz
- 7800
- 8000 MHz
- 4400 MHz
- 7200
- 6000 MHz
- Supported memory module capacities
- 12GB
- 48GB
- 16GB
- 32GB
- 2GB
- 8GB
- 1GB
- 4GB
- Maximum memory capacity: 192 GB
- Characteristics
- Audio output channels: 7.1 ch.
- Monitoring computer status
- Temperature
- Fan
- Water cooling
- Tension
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Motherboard format: Micro ATX
- Chipset Board Family: AMD
- Product color: Brown
- Motherboard Layout: AMD A620
- Weight and dimensions
- Product height: 35 mm
- Product width: 244 mm
- Product depth: 244 mm
- Internal I/O
- Number of SATA III connectors: 4
- RGB LED: Yes
- Number of USB 2.0 ports: 1
- 12V power connector: Yes
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Front panel connector: Yes
- Front panel audio connector: Yes
- CPU fan connector: Yes
- Total number of SATA connectors: 4
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- Network
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- Clear CMOS Jumper: Yes
- BIOS Type: UEFI AMI
- Desktop Management Interface (DMI) Version: 2.7
- Packaging data
- Package depth: 268 mm
- Package height: 68 mm
- Package width: 270 mm
- Weight with packaging: 892 g
- Package contents
- Batteries included: Yes
- Cables: SATA
- Memory drivers
- Number of supported storage drive sizes: 5
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 10
- 0
- 1
- Supported drive types: HDD & SSD
- RAID Service: Yes
- Number of supported HDDs: 4

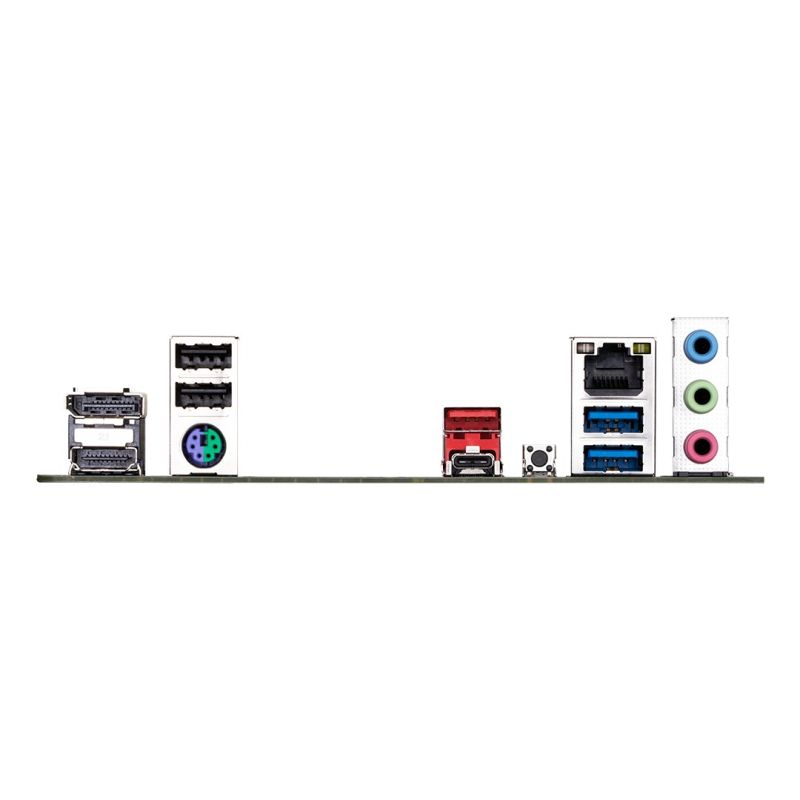

- Rear Panel I/O Ports
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Supported USB type
- USB Type-A
- USB Type-C
- Microphone: Yes
- Headphone outputs: 3
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of USB 2.0 ports: 2
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- HDMI version: 2.1
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x1 slots: 1
- PCI Express x16 slots: 1
- Battery
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Supported battery type: CR2032
- Number of battery compartments: 1
- Lithium battery weight: 0.07 g
- Logistics data
- Country of origin: China
- Products per shipping crate (inner): 1 pc.
- Safety warning
- Warnings
- Avoid contact with liquids to prevent electronic damage.
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Dispose of in accordance with local regulations for electronic waste.
- Warnings
| Name | Details |
|---|---|
| Producer | Gigabyte |
