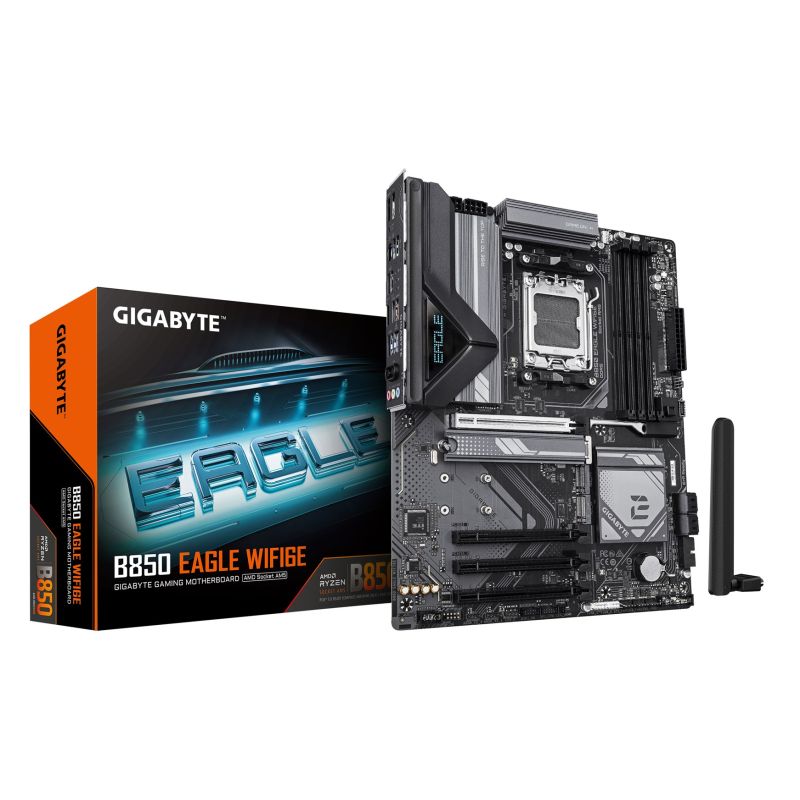

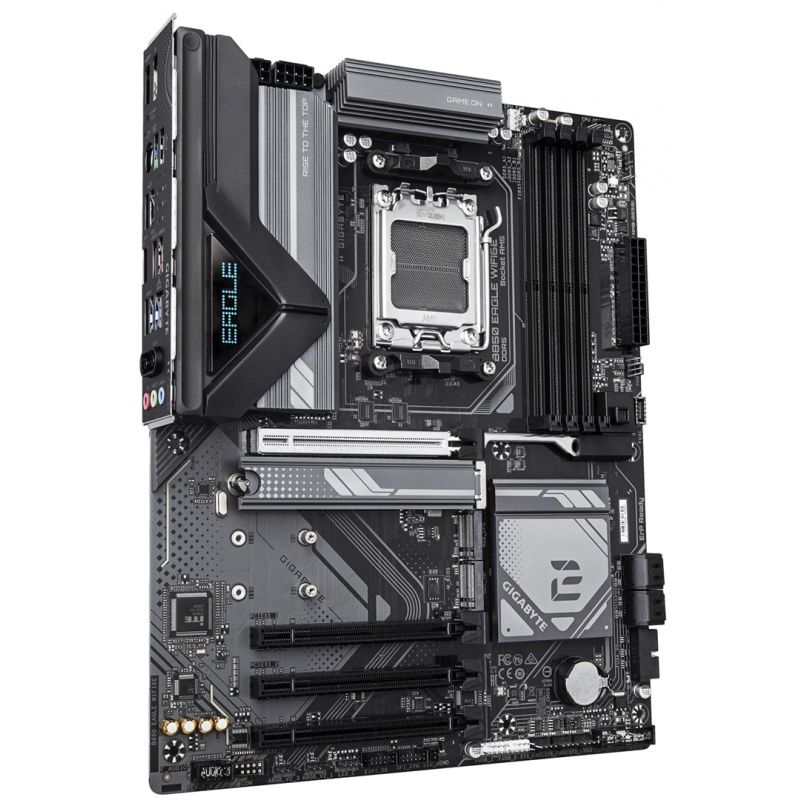

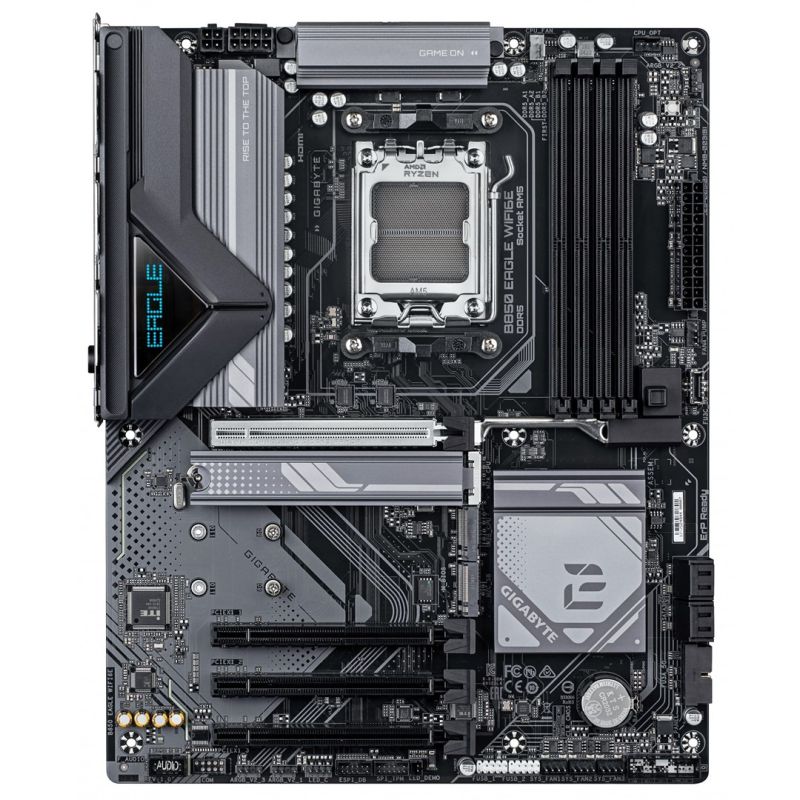

GIGABYTE AMD B850 EAGLE WIFI6E SAM5 ATX Motherboard
GIGABYTE AMD B850 EAGLE WIFI6E SAM5 ATX Motherboard
GIGABYTE AMD B850 EAGLE WIFI6E SAM5 ATX Motherboard
PRICE:
313,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Supported processor sockets: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Graphics
- HDCP: Yes
- DirectX version: 12.0
- Maximum resolution: 4096 x 2160 px
- Memory
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Supported memory clock speeds
- 7400
- 5600 MHz
- 6400 MHz
- 7900
- 7600 MHz
- 5800 MHz
- 5200 MHz
- 4400 MHz
- 7200 MHz
- 6000 MHz
- 8200 MHz
- 6200 MHz
- 6600
- 6800
- 8000 MHz
- 4800 MHz
- 7000
- 7800
- 7950
- Number of memory slots: 4
- Maximum internal memory per slot: 64 GB
- ECC compatibility: Non-ECC
- Supported memory clock speed (max.): 8200 MHz
- Memory slot type: DIMM
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- Features
- Motherboard chipset: AMD B850
- Motherboard form factor: ATX
- Computer health monitoring
- Fan
- Voltage
- Water cooling
- Temperature
- Audio output channels: 7.1 channels
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Motherboard chipset family: AMD
- Power supply: ATX
- Weight and dimensions
- Product width: 305 mm
- Product height: 35 mm
- Product depth: 244 mm
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Reset button: Yes
- Number of USB 2.0 connectors: 2
- Number of SATA III connectors: 4
- TPM connector: Yes
- ATX power connector (24-pin): Yes
- EPS power supply connector (8-pin): Yes
- Peripheral power connectors (Molex) (4-pin): 1
- Front-panel audio connector: Yes
- Front-panel connector: Yes
- CPU fan connector: Yes
- Number of RGB LED connectors: 4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C connectors: 1
- Number of EPS power connectors (8-pin): 1
- Total number of SATA connectors: 4
- 12V power connector: Yes
- Number of water pump connectors: 2
- Number of CPU fan connectors: 2
- RGB LED: Yes
- Network
- Bluetooth: Yes
- Primary Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- 802.11b
- Wi-Fi 6E (802.11ax)
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Bluetooth version: 5.3
- Wired LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- WLAN controller model: Realtek RTL8852CE
- BIOS
- BIOS type: UEFI AMI
- Clear CMOS button: Yes
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Package contents
- Batteries included: Yes
- Storage controller
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 10
- 0
- 1
- RAID support: Yes
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 7

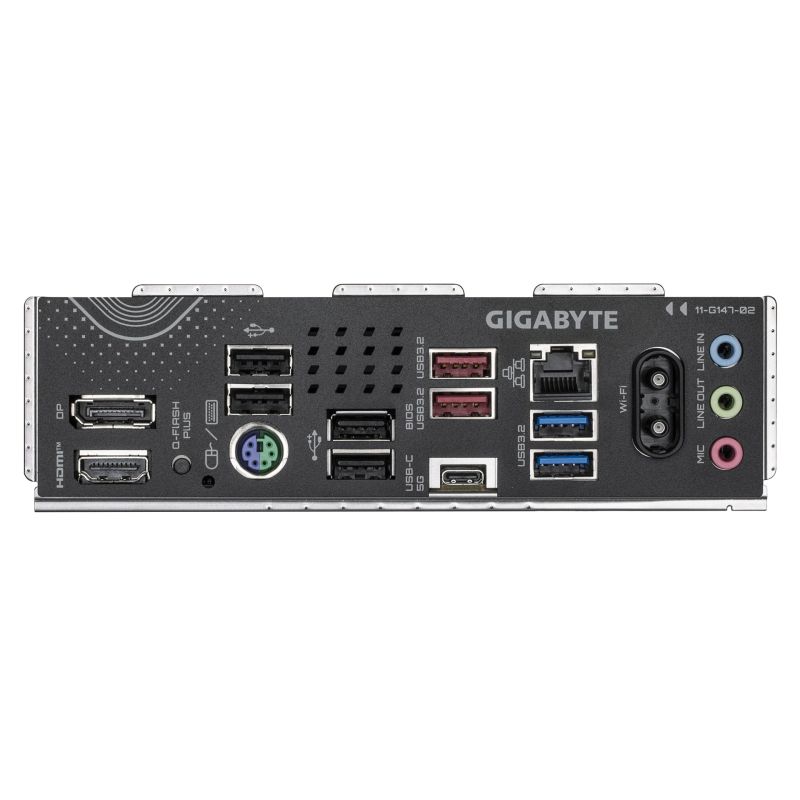

- Rear-panel I/O ports
- Number of DisplayPorts: 1
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- Number of PS/2 ports: 1
- Number of audio jack connectors: 3
- HDMI version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of HDMI ports: 1
- Expansion slots
- Number of M.2 (M) slots: 3
- PCI Express x16 slots (Gen 3.x): 3
- Largest M.2 key size for the 2nd slot: 22110
- Largest M.2 key size for the 3rd slot: 22110
- Largest M.2 key size for the 1st slot: 22110
- Highest PCI Express generation of the 1st M.2 slot: 5.0
- Highest PCI Express generation of the 2nd M.2 slot: 4.0
- Highest PCI Express generation of the 3rd M.2 slot: 4.0
- PCI Express x16 slots (Gen 5.x): 1
- Battery
- Battery/accumulator weight: 3 g
- Number of battery cells: 1
- Lithium battery weight: 0.07 g
- Supported battery type: CR2032
- Battery type: Lithium Manganese Dioxide (LiMnO2)
