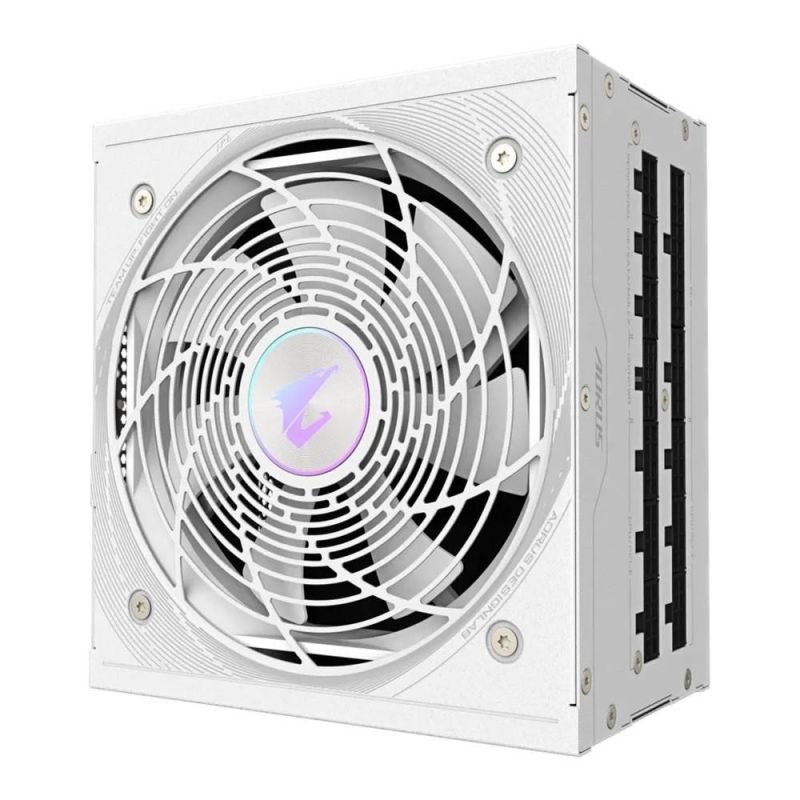

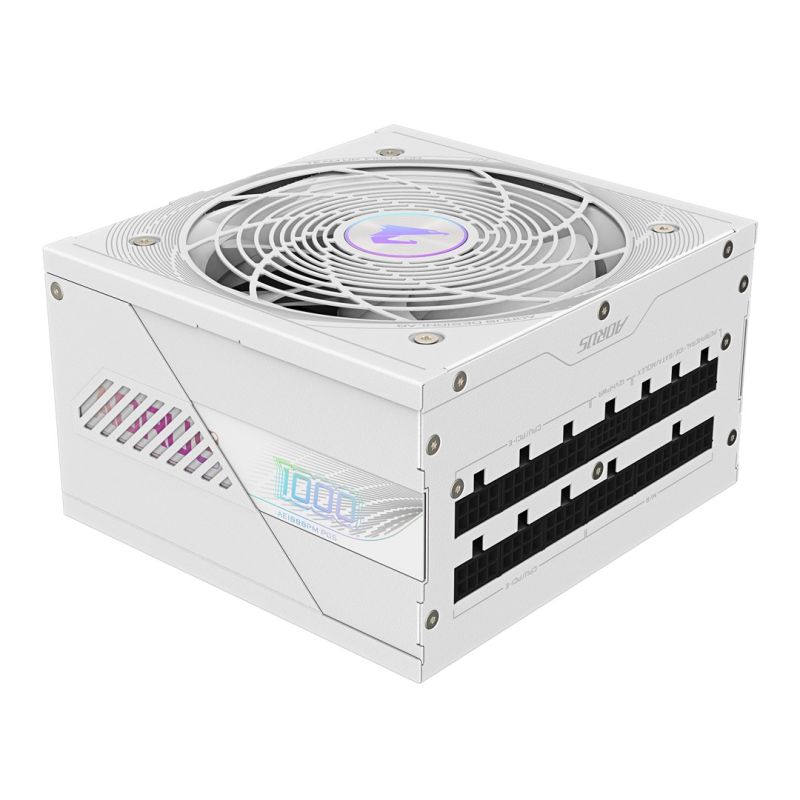

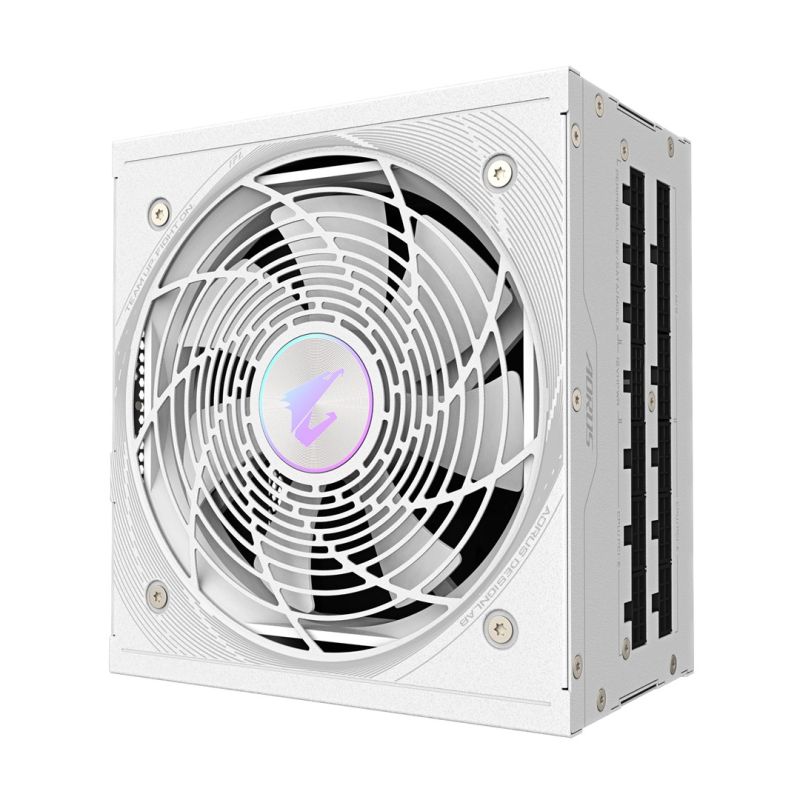

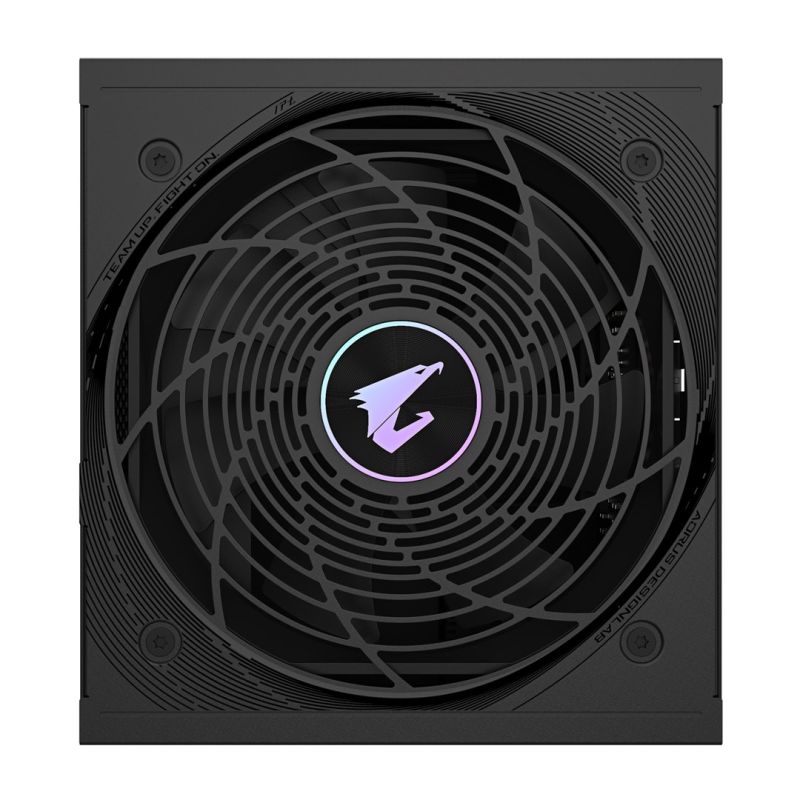

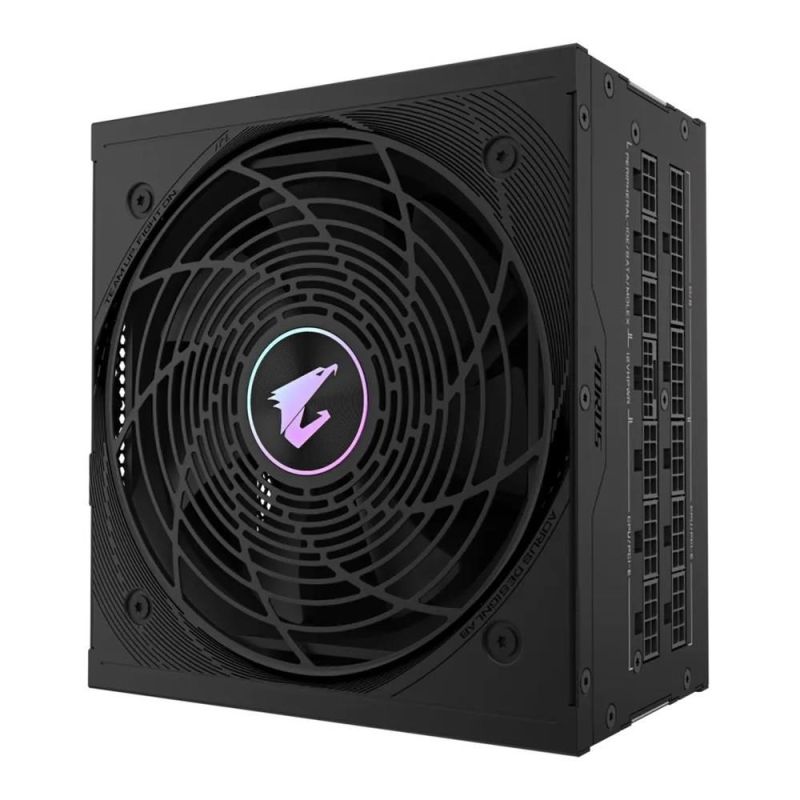

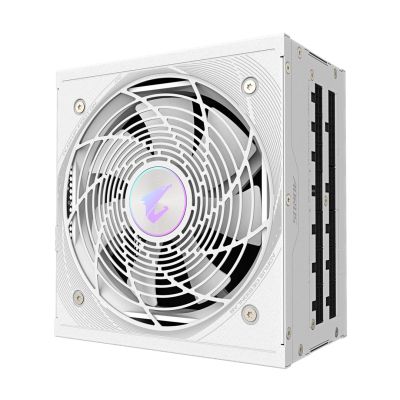

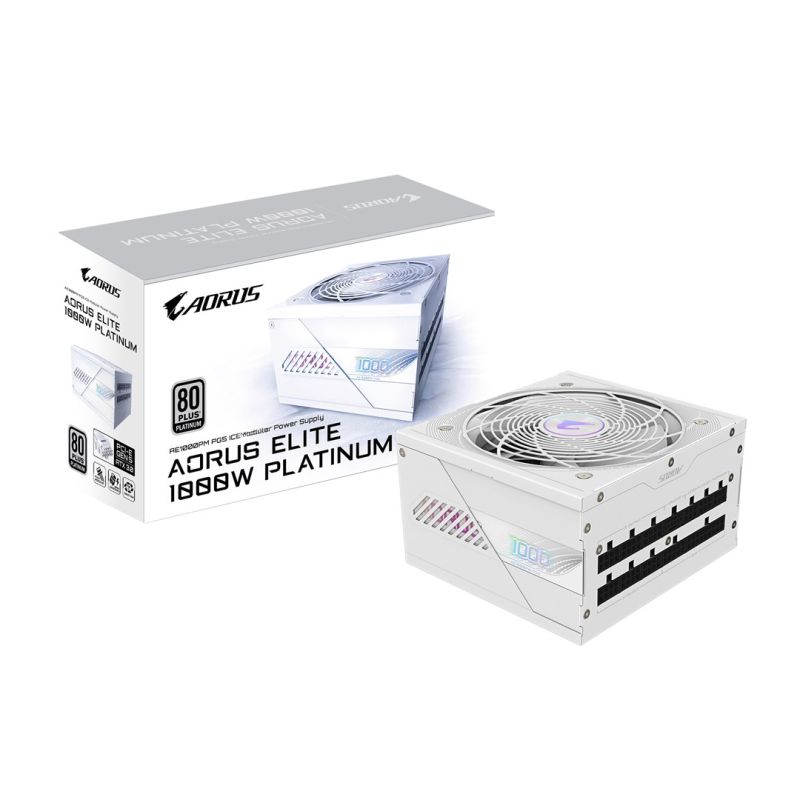

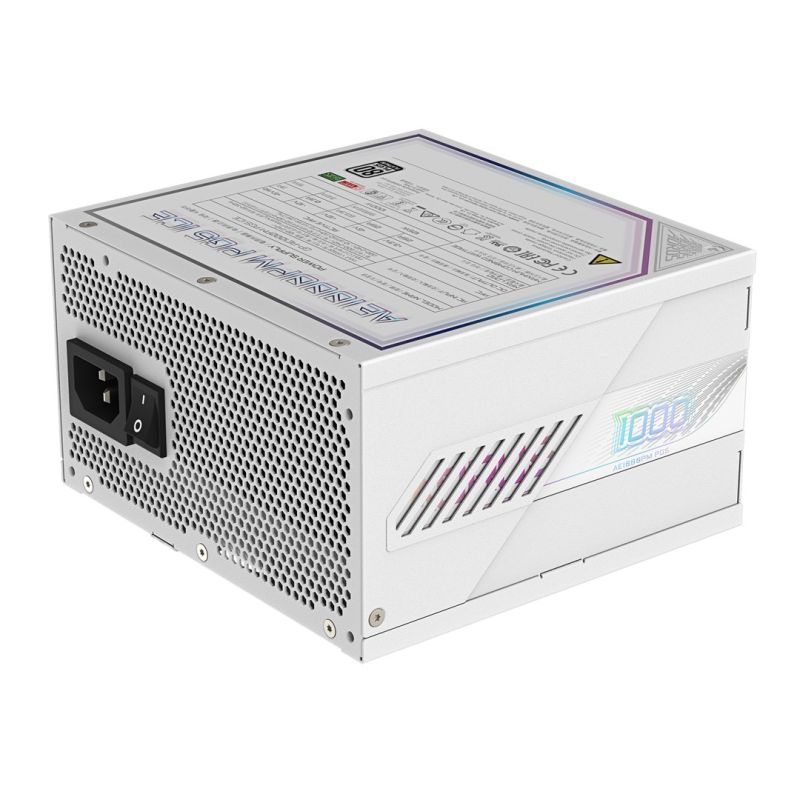

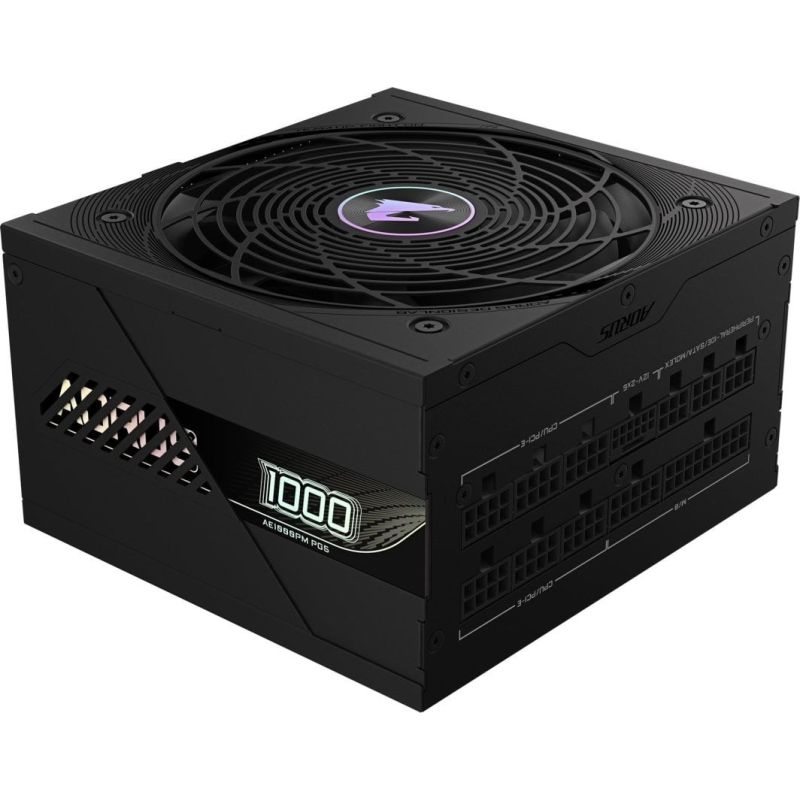

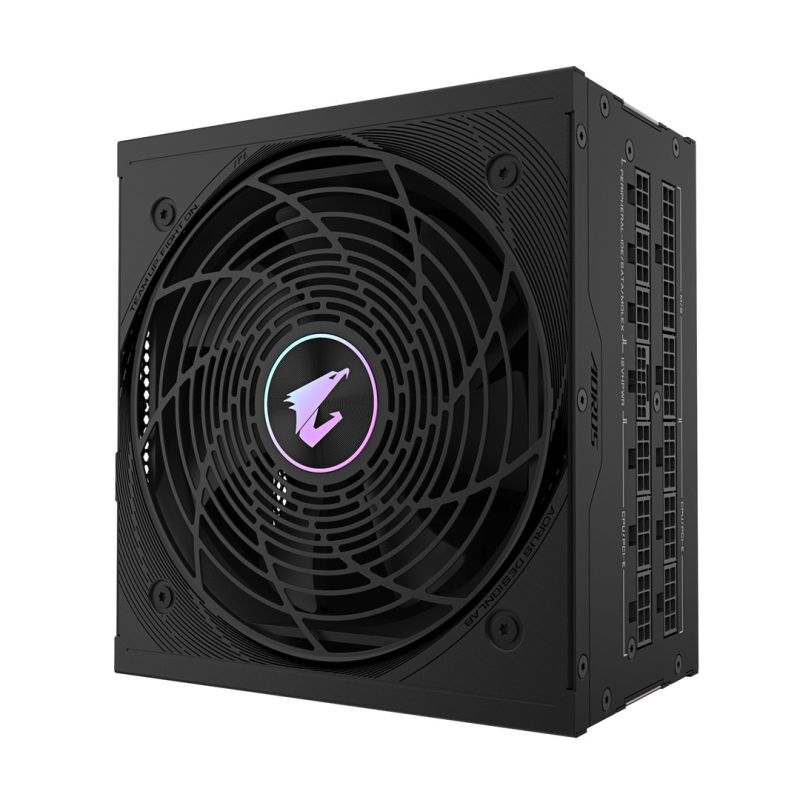

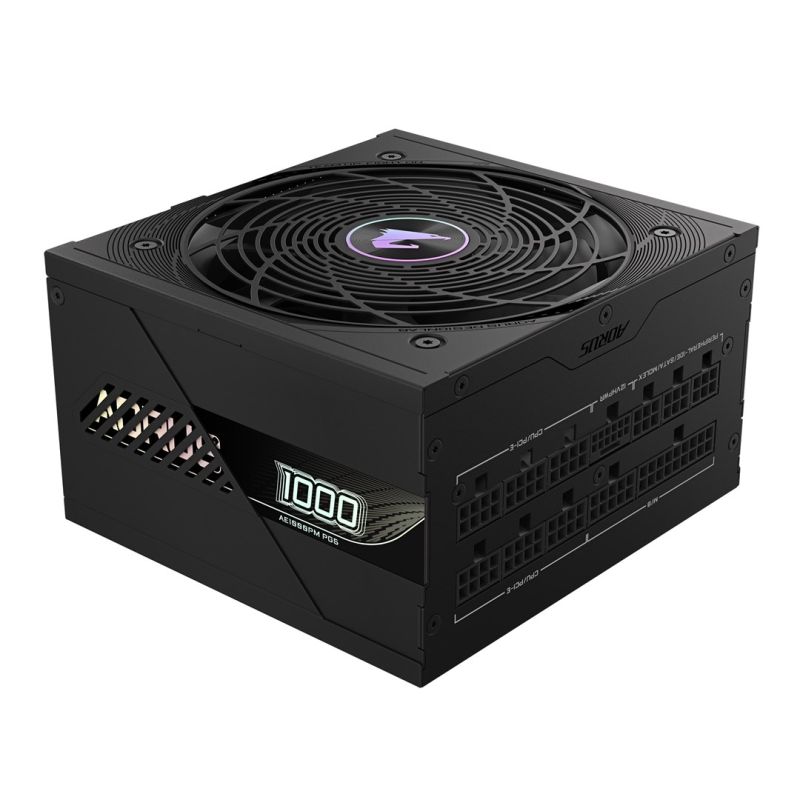

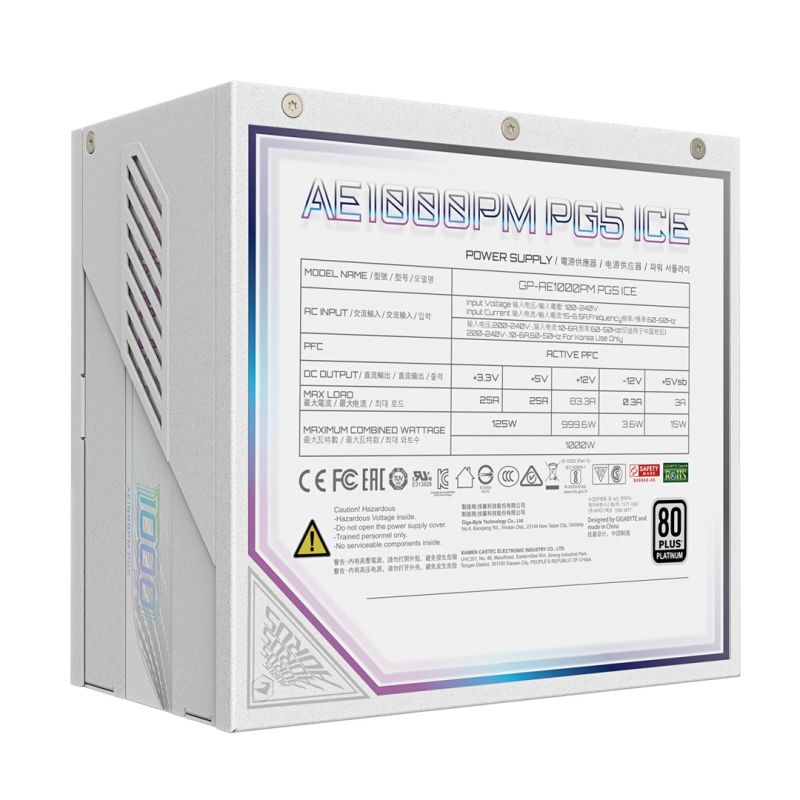

Gigabyte AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE Power Supply (GP-AE1000PM PG5 ICE)
Gigabyte AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE Power Supply (GP-AE1000PM PG5 ICE)
Gigabyte AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE Power Supply (GP-AE1000PM PG5 ICE)
PRICE:
234,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: White

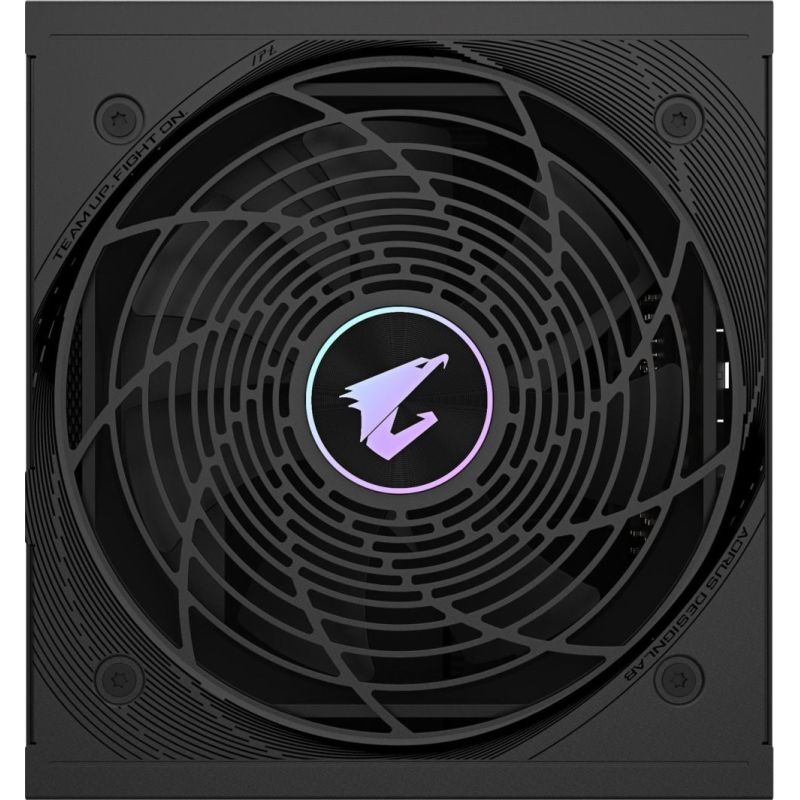

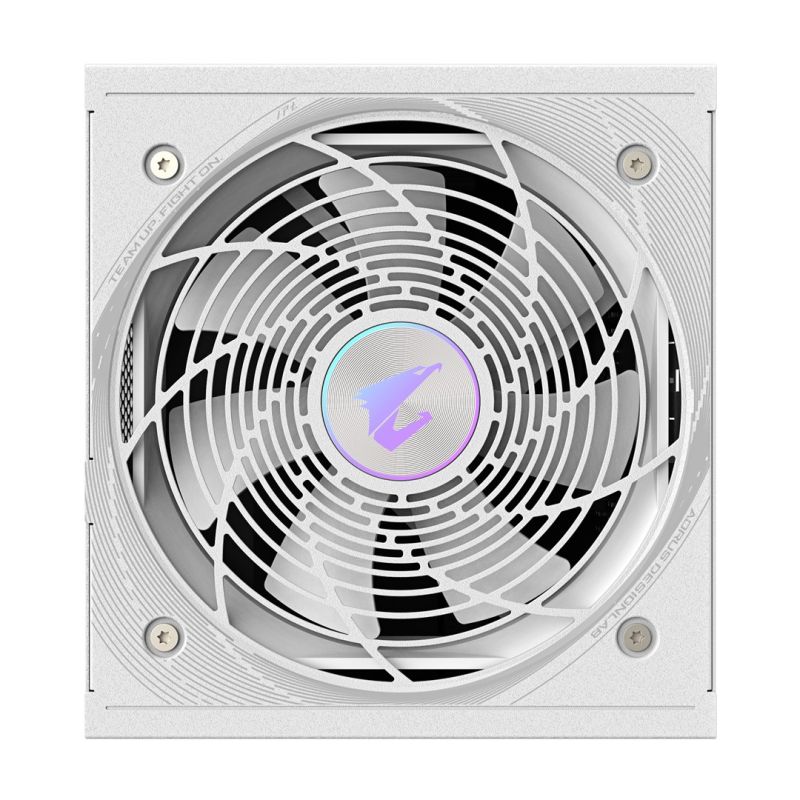

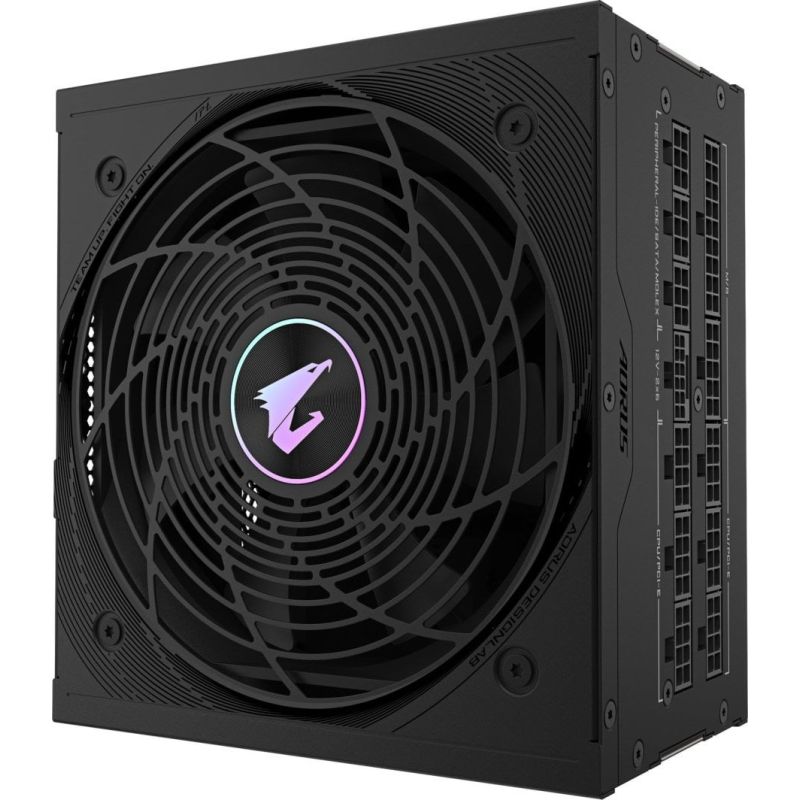

- Number of fans: 1 fan
- Cooling type: Active
- Built-in switch: Yes
- Fan bowl diameter: 12 cm
- Fan Location: Top

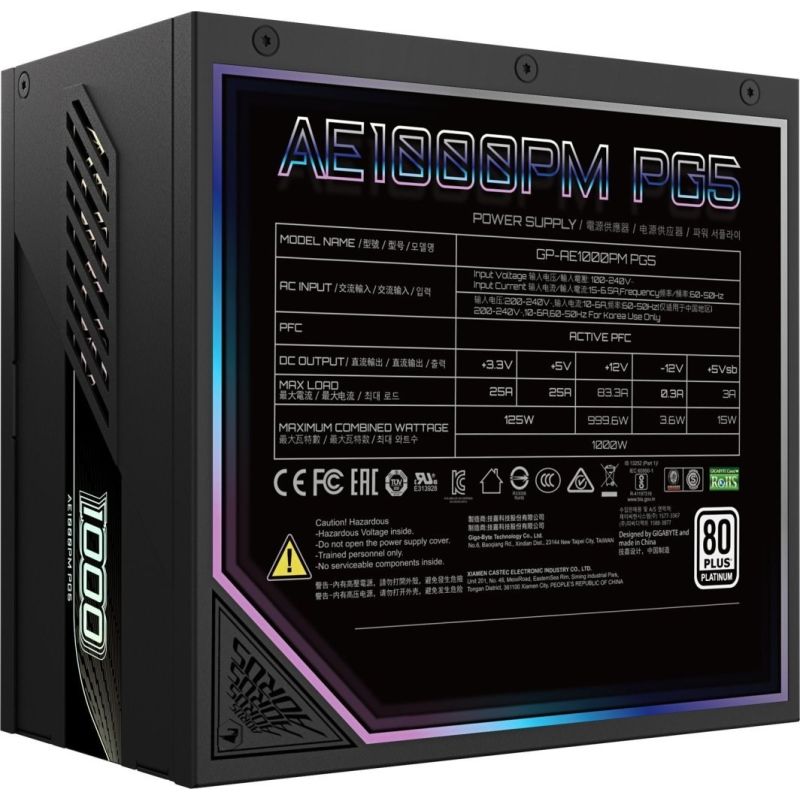

- Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 15 - 6.5 A
- Power protection features
- Short circuit
- Overheating protection
- Overload protection
- Protection against overvoltage
- Overcurrent
- Low voltage protection
- Total power: 1000 W
- Total power (-12V): 3.6 W
- Total power (+12V): 999.6 W
- Total power (+5V): 125 W
- Total power (+5 Vsb): 15 W
- Maximum output current (+3.3V): 25 A
- PFC (Power Factor Correction) Type: Active
- Efficiency: 92%
- Power factor: 0.9
- Hold time: 16 ms
- Total power (+3.3V): 125 W
- Maximum output current (+5V): 25A
- Maximum output current (-12V): 0.3A
- Maximum output current (+12V): 83.3A
- Maximum output current (+5 Vsb): 3 A
- Good Signal Power Delay Range: 100 - 150 ms
- Weight and dimensions
- Product height: 86 mm
- Product depth: 140 mm
- Product width: 150 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Platinum
- ATX version: 3.1
- Power supply type (PSU): ATX
- MTBF (Mean Time Between Failures): 100000 h
- Intended use: PC
- Packaging data
- Packaging type: Box

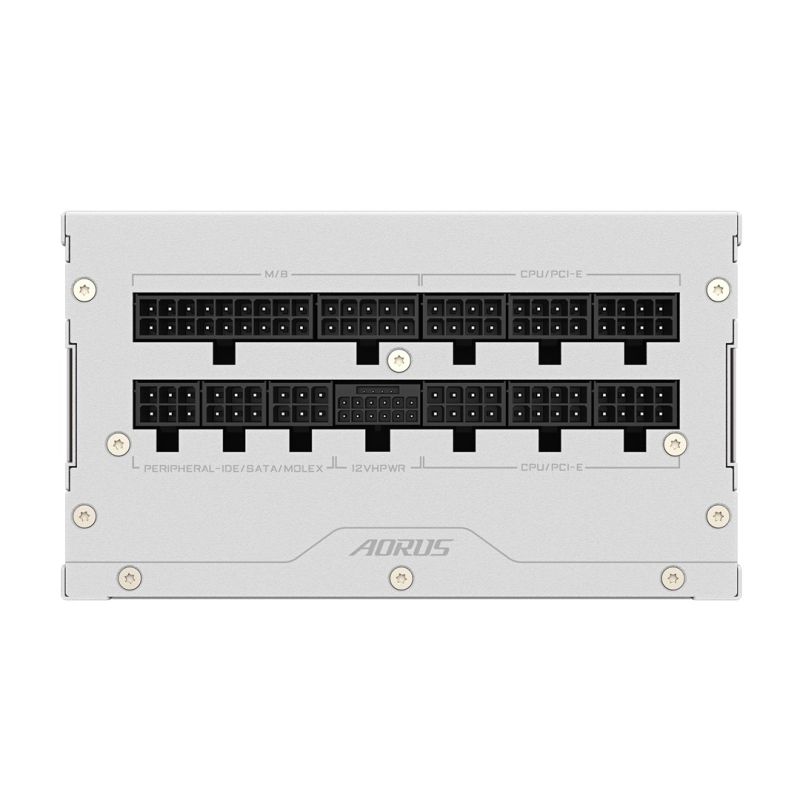

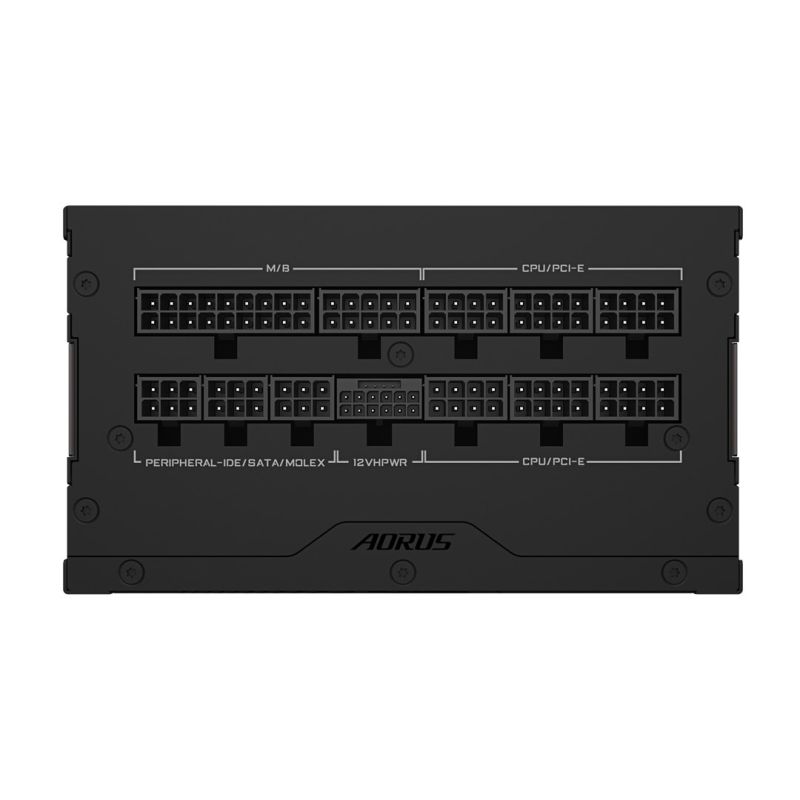

- Ports and interfaces
- Floppy disk drive slot: Yes
- Peripheral (Molex) Power Connectors (4-pin): 4
- PCI Express power connectors (6+2 pin): 6
- Wiring Type: Fully Modular
- ATX power supply connector (20+4 pin): Yes
- CPU power supply connector (4+4 pin): Yes
- Motherboard cable length: 65 cm
- PCI Express slot: Yes
- Floppy drive connector: 2
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 8
| Name | Details |
|---|---|
| Producer | Gigabyte |
