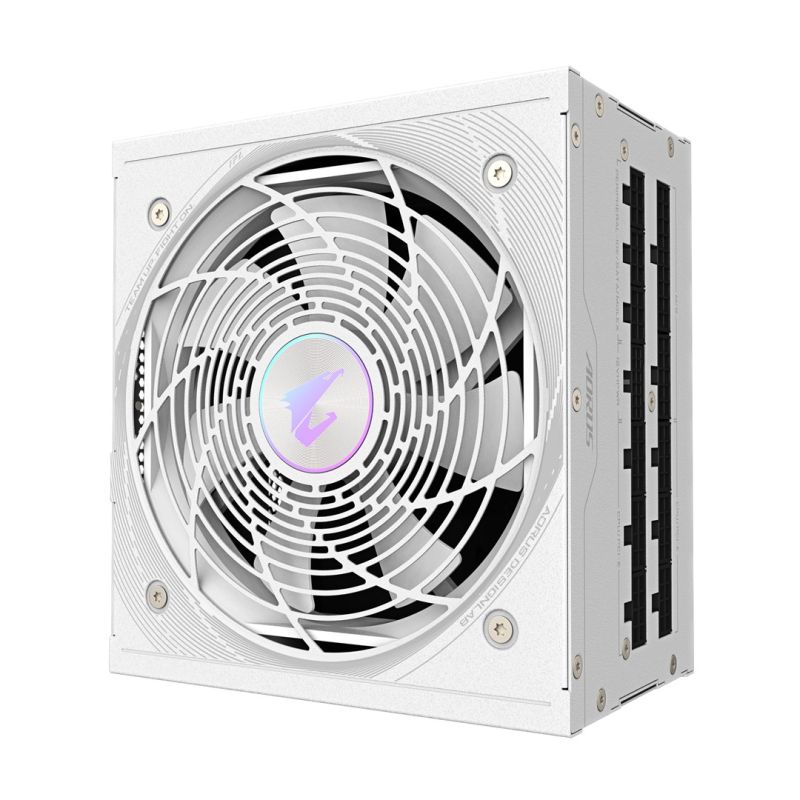

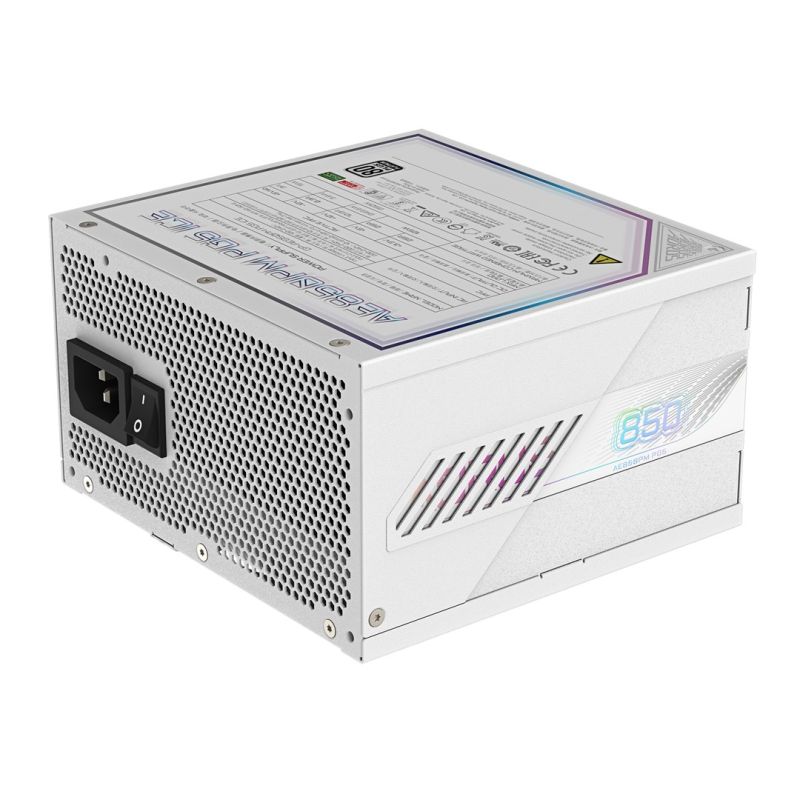

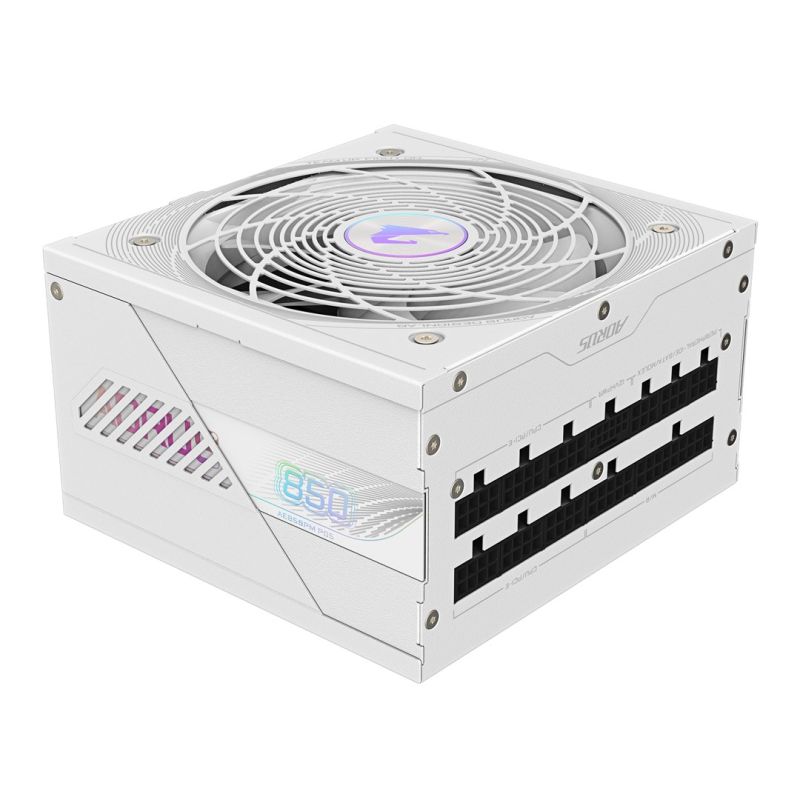

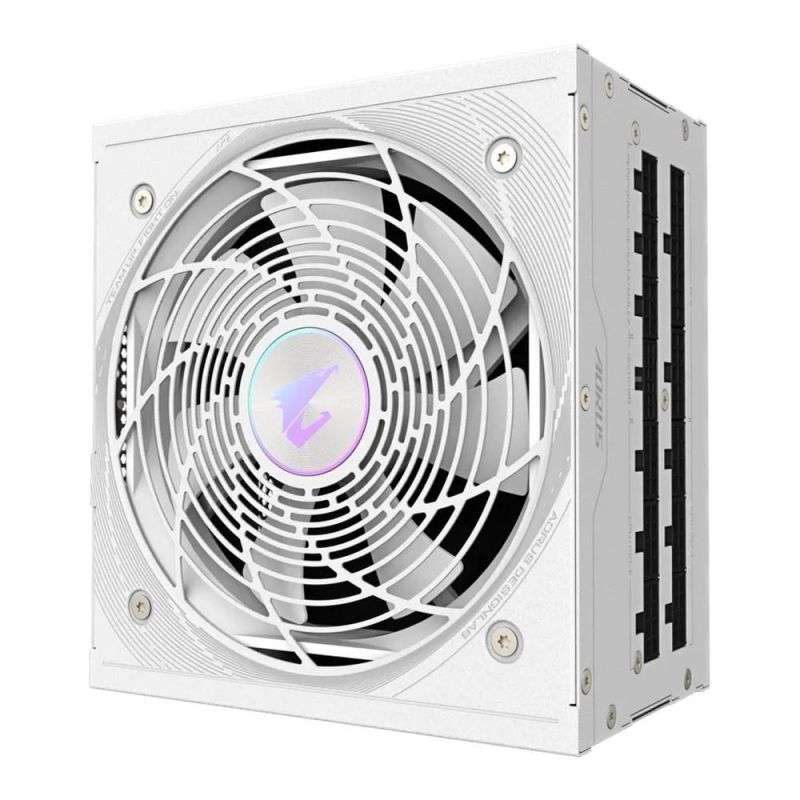

Gigabyte Aorus Elite Platinum ATX 3.1 ICE 850W Power Supply
Gigabyte Aorus Elite Platinum ATX 3.1 ICE 850W Power Supply
Gigabyte Aorus Elite Platinum ATX 3.1 ICE 850W Power Supply
PRICE:
172,99
€
IN A WAREHOUSE
6 pcs
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 10 years
- Design
- Cooling type: Active
- Product color: White
- Built-in switch: Yes

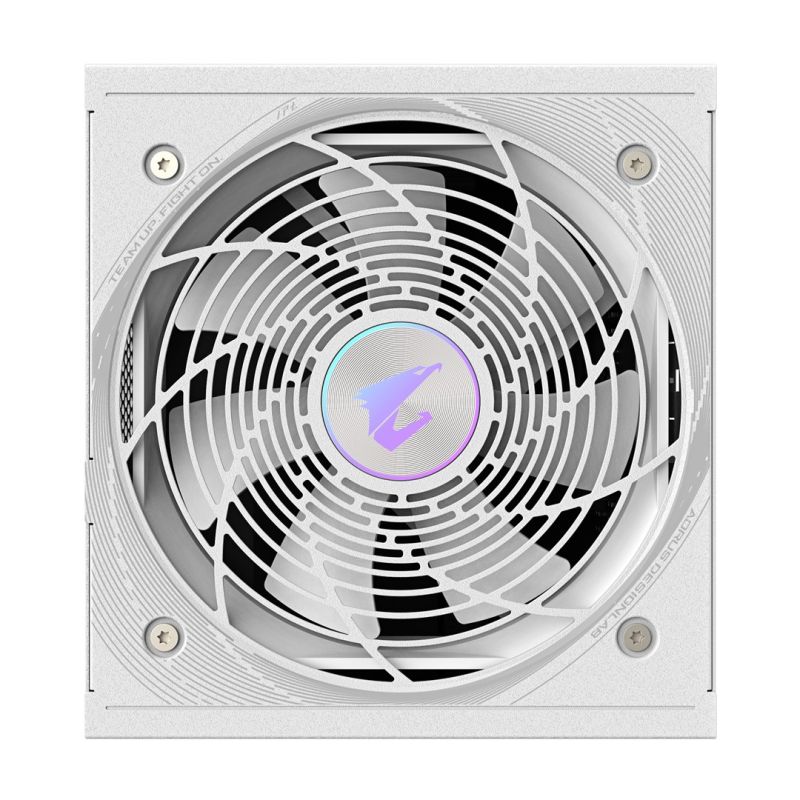

- Fan bowl diameter: 12 cm
- Fan Location: Top
- Number of fans: 1 fan

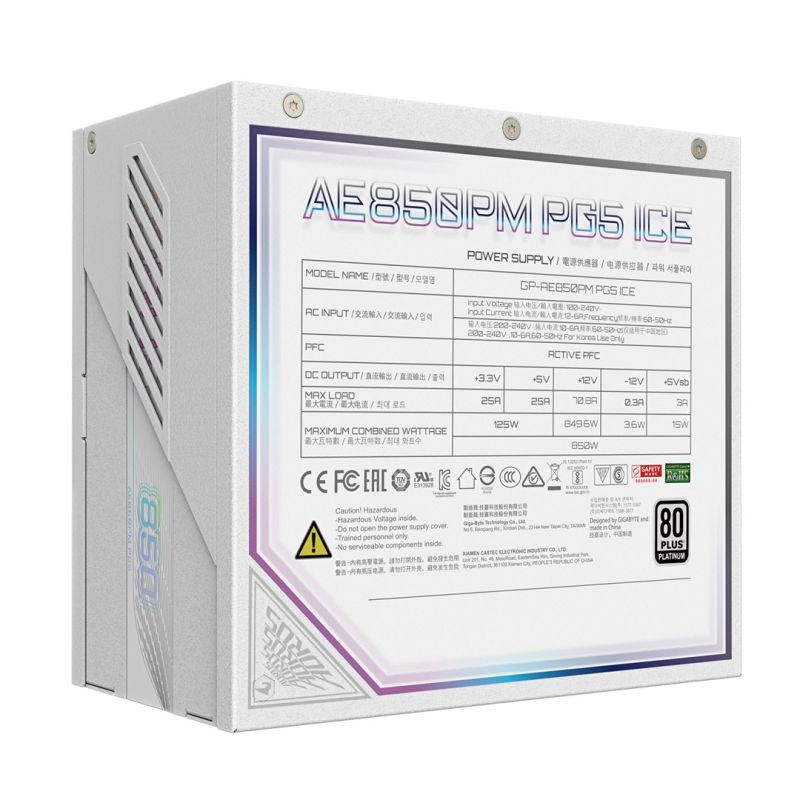

- Power
- Input current: 12 A
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Total power (+12V): 849.6 W
- Maximum output current (+5V): 25A
- Good Signal Power Delay Range: 100 - 150 ms
- Maximum output current (+5 Vsb): 3 A
- Power protection features
- Short circuit
- Overheating protection
- Overload protection
- Low voltage protection
- Protection against overvoltage
- Overcurrent
- Total power (+5 Vsb): 15 W
- Maximum output current (-12V): 0.3A
- Total power: 850 W
- Total power (+3.3V): 125 W
- Hold time: 16 ms
- Maximum output current (+3.3V): 25 A
- Efficiency: 90%
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 70.8 A
- Total power (+5V): 125 W
- Total power (-12V): 3.6 W
- Weight and dimensions
- Product weight: 2.68 kg
- Product height: 86 mm
- Product depth: 140 mm
- Product width: 150 mm
- Efficiency
- Intended use: PC
- Power supply type (PSU): ATX
- 80 PLUS Certificate: 80 PLUS Platinum
- ATX version: 3.1
- Bearing technology: Ball bearing
- MTBF (Mean Time Between Failures): 100000 h
- Packaging data

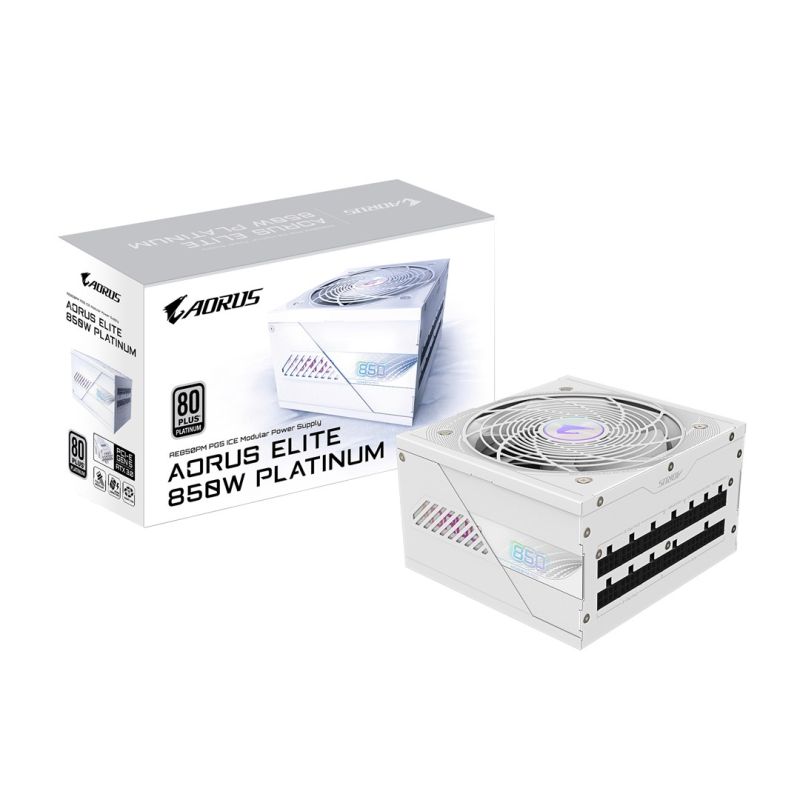

- Packaging type: Box
- Package depth: 206 mm
- Package width: 340 mm
- Weight with packaging: 3.31 kg
- Package height: 120 mm

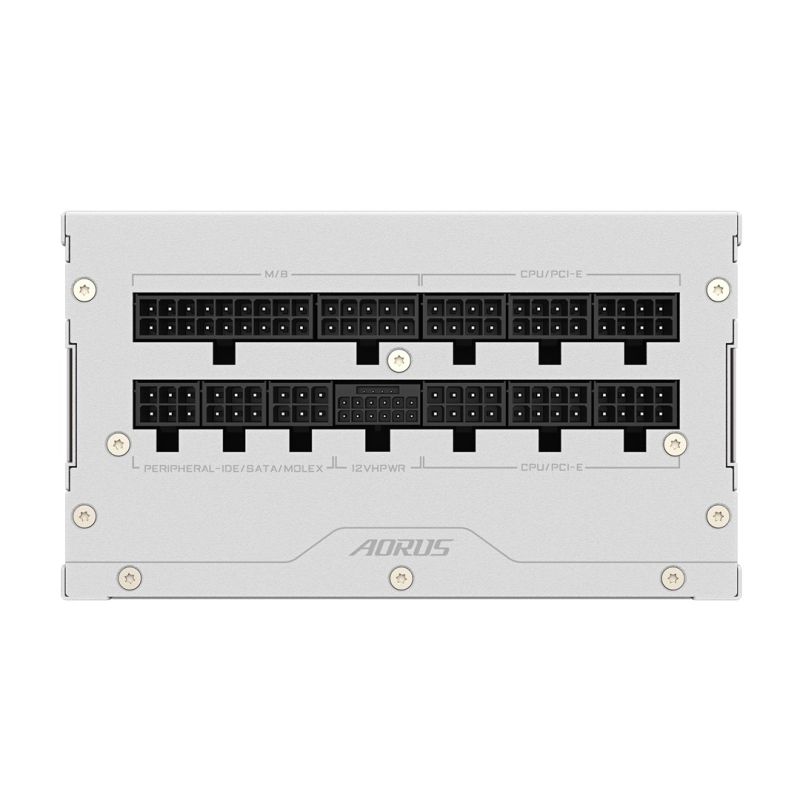

- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 4
- Floppy disk drive slot: Yes
- Motherboard cable length: 65 cm
- ATX power supply connector (20+4 pin): Yes
- PCI Express power connectors (6+2 pin): 6
- Wiring Type: Fully Modular
- Number of SATA power connectors: 8
- CPU power supply connector (4+4 pin): Yes
- Floppy drive connector: 2
- PCI Express slot: Yes
- Motherboard power connector: 20+4 pin ATX
- Safety warning
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Warnings
| Name | Details |
|---|---|
| Producer | Gigabyte |
