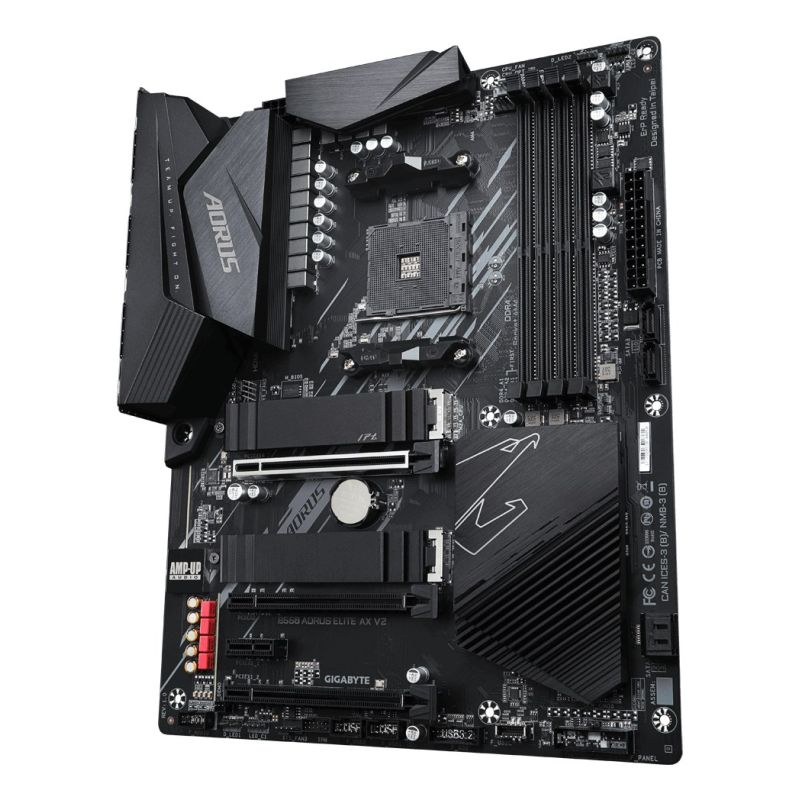

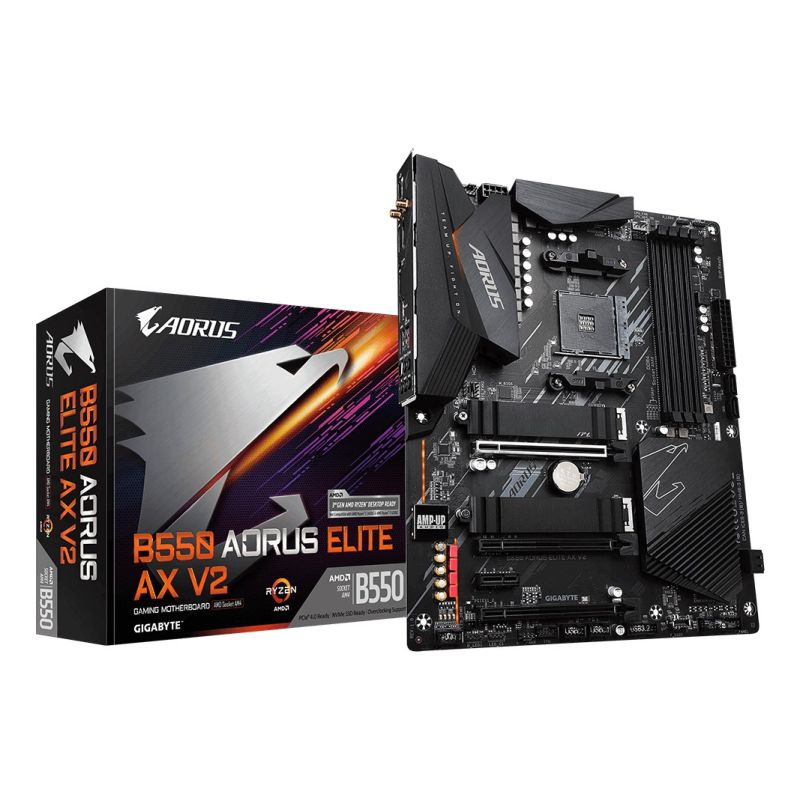

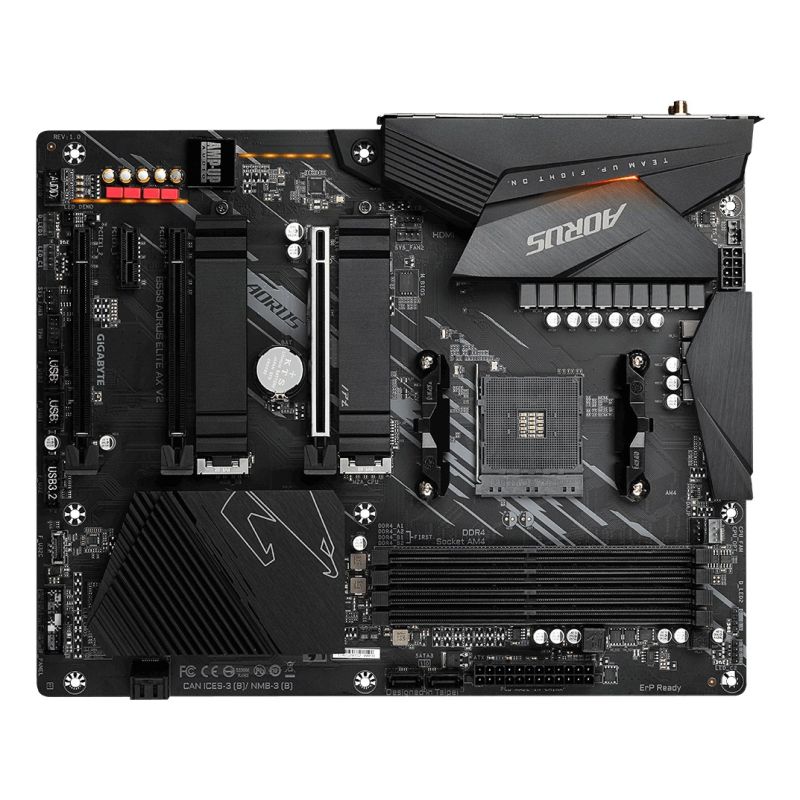

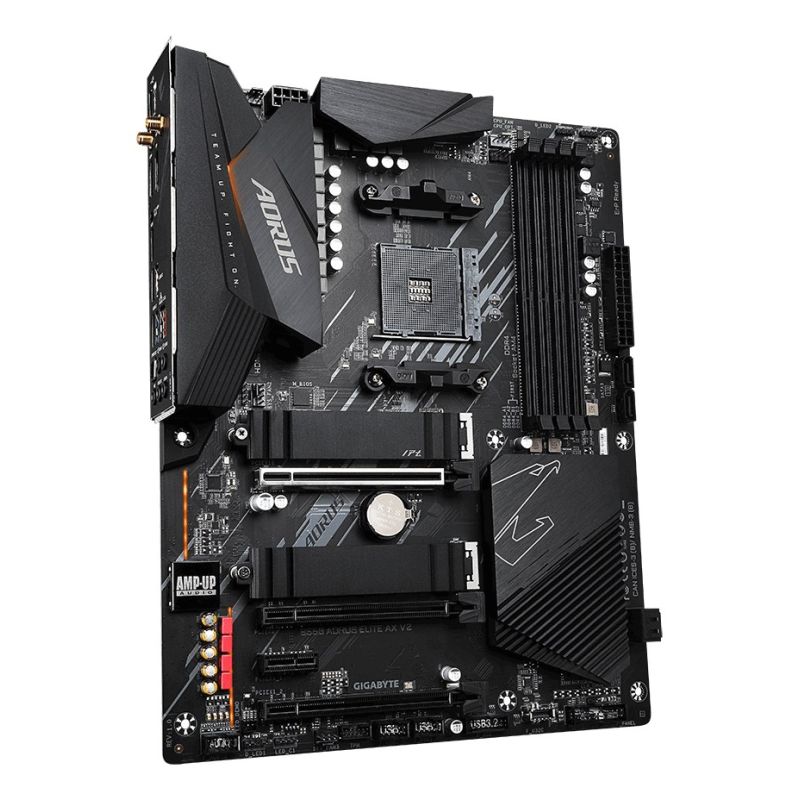

Gigabyte B550 AORUS ELITE AX V2 Motherboard
Gigabyte B550 AORUS ELITE AX V2 Motherboard
Gigabyte B550 AORUS ELITE AX V2 Motherboard
PRICE:
222,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Warranty period: 3 years
- Processor
- Maximum number of SMP processors: 1
- Supported processor sockets: Socket AM4
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 5000 Series
- AMD Ryzen 3000 Series
- AMD Ryzen 4000 Series
- Processor socket: Socket AM4
- Graphics
- DirectX Version: 12.0
- Parallel Processing Support: Not Supported
- HDCP: Yes
- Maximum resolution: 5120 x 2880 px
- Memory
- Supported memory clock speeds
- 2933 MHz
- 3200 MHz
- 2133 MHz
- 4400 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 4266 MHz
- 3733 MHz
- 2667 MHz
- 3466 MHz
- 4133 MHz
- 3400 MHz
- 3866 MHz
- 4600 MHz
- 4733 MHz
- Supported memory clock speed (max): 4733 MHz
- Number of memory slots: 4
- Maximum memory capacity: 128 GB
- Supported memory types: DDR4-SDRAM
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Unbuffered memory: Yes
- Maximum internal memory per slot: 32 GB
- ECC Compatibility: ECC or Non-ECC
- Supported memory clock speeds
- Characteristics
- Motherboard format: ATX
- Motherboard Layout: AMD B550
- Audio chip: Realtek ALC897
- Power supply type: ATX
- Product color: Black
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Monitoring computer status
- Water cooling
- Fan
- Temperature
- Tension
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Cooling type: Passive
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Product height: 35 mm
- Internal I/O
- Number of RGB LED connectors: 5
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Number of case fan connectors: 3
- TPM Connector: Yes
- Front panel connector: Yes
- RGB LED: Yes
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- 12V power connector: Yes
- EPS power supply connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Front panel audio connector: Yes
- Number of water pump connections: 4
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 1
- Network
- Bluetooth: Yes
- LAN controller: Realtek RTL8125
- Ethernet network interface type
- Gigabit Ethernet
- Fast Ethernet
- 2.5 Gigabit Ethernet
- WLAN controller model: Intel Wi-Fi 6E AX210
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6E (802.11ax)
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- 802.11b
- Wired LAN: Yes
- Bluetooth version: 5.3
- BIOS
- BIOS Type: UEFI AMI
- Desktop Management Interface (DMI) Version: 2.7
- Clear CMOS Jumper: Yes
- Packaging data
- Packaging depth: 270 mm
- Weight with packaging: 1.89 kg
- Package width: 335 mm
- Package height: 80 mm
- Package contents
- Antenna Included: Yes
- Batteries included: Yes
- Screws Included: Yes
- Memory drivers
- RAID Service: Yes
- Number of supported storage drive sizes: 6
- RAID levels
- 1
- 0
- 10
- Supported hard drive interfaces: M.2, SATA III
- Number of supported HDDs: 4
- Supported drive types: HDD & SSD

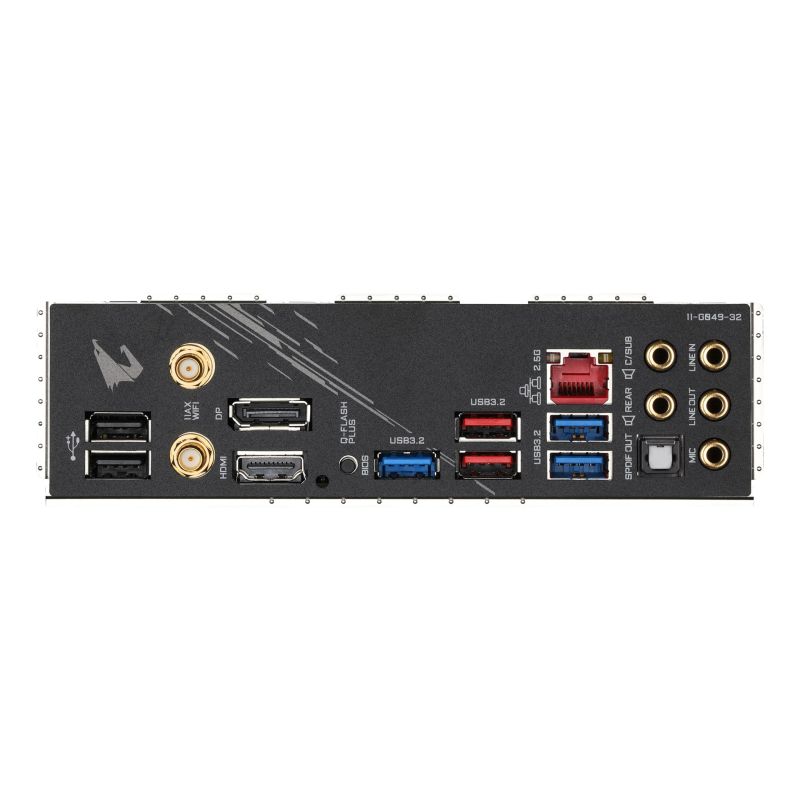

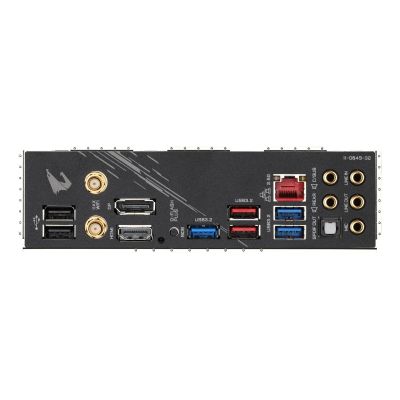

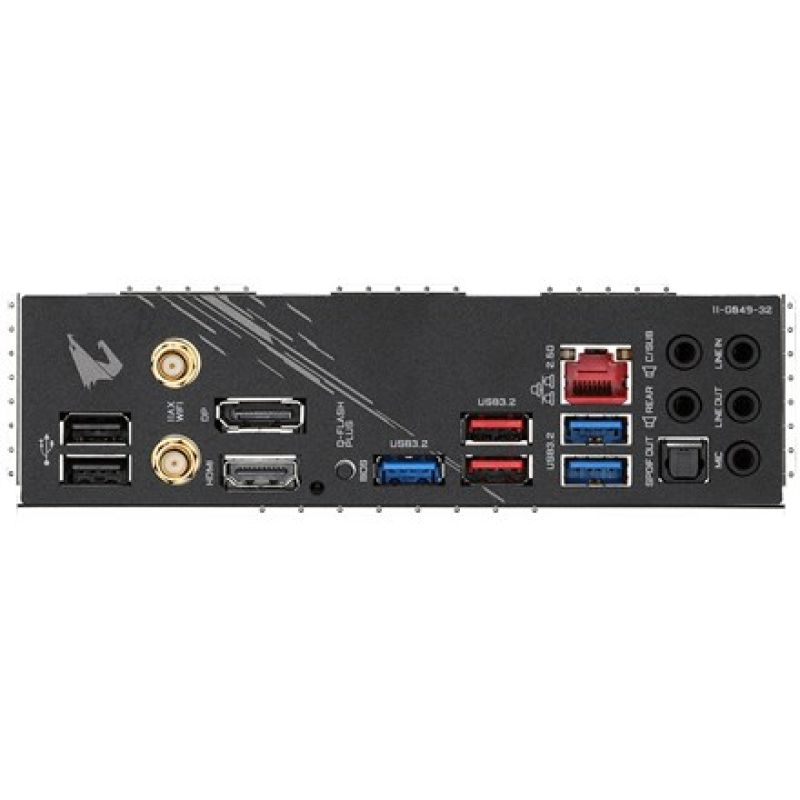

- Rear Panel I/O Ports
- S/PDIF Output Port: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- HDMI version: 2.1
- Number of HDMI ports: 1
- Headphone outputs: 1
- Microphone: Yes
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Line Input: Yes
- Number of USB 2.0 ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort version: 1.4
- WiFi-AP Antenna Jack Plug: 2
- Expansion slots
- 1. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 22110
- 2nd largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 3.0
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 3.x) slots: 2
- PCI Express x1 (Gen 3.x) slots: 1
- Battery
- Supported battery type: CR2032
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery weight: 3 g
- Number of battery compartments: 1
- Lithium battery weight: 0.07 g
- Other functions
- Product weight: 1.12 kg
- Logistics data
- Products per shipping crate (inner): 1 pc.
- Country of origin: China
- Safety warning
- Warnings
- Store away from water and sources of moisture.
- Dispose of in accordance with local regulations regarding electronic waste.
- Avoid direct contact with sensitive electronic components.
- Warnings
| Name | Details |
|---|---|
| Producer | Gigabyte |
